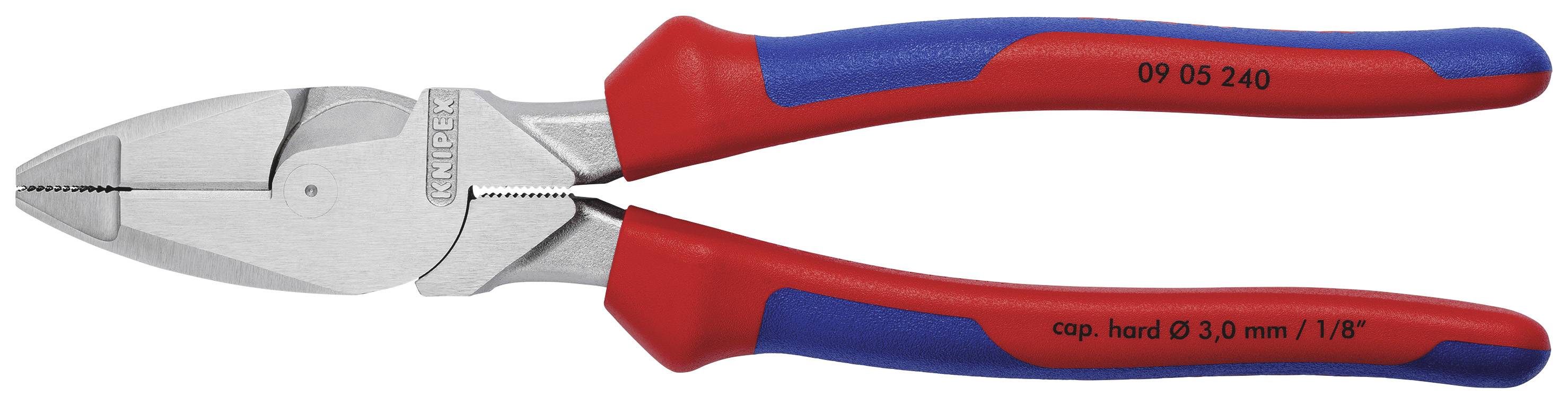

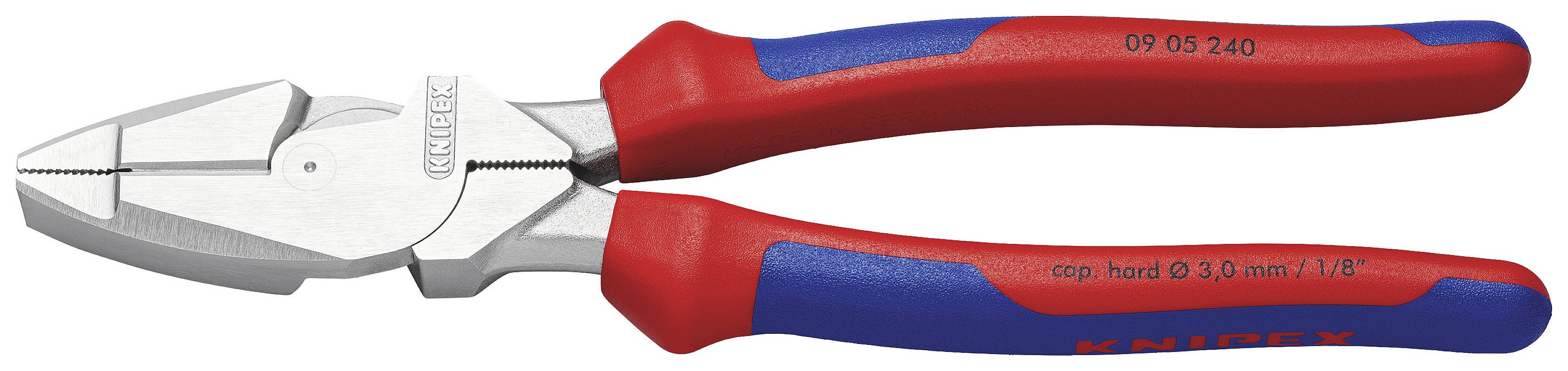

Knipex 09 05 240 Electrician Kraft comb pliers 240 mm DIN ISO 5746
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Power combination pliers "Lineman's" American model
- American model
- DIN ISO 5746
- ASME B107.20
- This text is machine translated.
Technical specifications
- Product type
Kraft comb pliers
- Manufacturer part #
09 05 240
- Range of use
Electrician
- Length
240 mm
- Material
Vanadium electric furnace steel
- Edge hardness
64 HRC
- Wire hardness (max.) medium wire
4.6 mm
- Wire hardness (max.) hard wire
3 mm
- DIN standard
DIN ISO 5746
- Weight
460 g
- Width
55 mm
- Height
22 mm
Documents & Downloads
Datasheet
Datasheet 2634202 Knipex 09 05 240 Electrician Kraft comb pliers 240 mm DIN ISO 5746
User & Safety Instructions
User & Safety Instructions 2634202 Knipex 09 05 240 Electrician Kraft comb pliers 240 mm DIN ISO 5746
Description
● High transmission ratio for easy cutting● 50 % less effort required than with conventional combination pliers thanks to optimized transmission ratio● Solid design for heavy loads, can be used universallyErgonomically optimised handles for firm contact with the hand and fatigue-reduced workingParticularly effective cross-hatched knurled gripping zone in the jaws - for strong gripping and pullingAdditional grip zone below the joint for powerful leverage and pressing● With cutting edges for soft and hard wire● Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC● Vanadium electric steel, forged, multi-stage oil-hardened
This text is machine translated.
This text is machine translated.
Features
- Solid design for heavy strain, can be used universally
- High transmission ratio for easy cutting
- 40% less effort required compared to conventional combination pliers thanks to optimised transmission ratio
- Ergonomically optimised handles for firm contact with the hand and fatigue-reduced working
- Particularly effective cross-hatched knurled gripping zone in the jaws - for strong gripping and pulling
- Additional grip zone below the joint for powerful leverage and pressing
- With cutting edges for soft and hard wire
- Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC
- Vanadium electric steel, forged, oil-hardened.
