Buy Knipex 12 12 06 12 12 06 Cable stripping pliers 0.14 up to 6 mm² 10 up to 26

'Crimping tool with red and blue handle on white background, used for cable processing and connection in electronic work.'

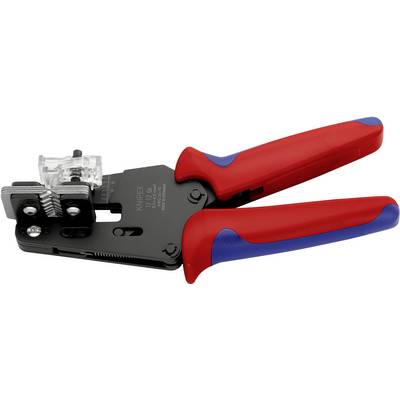

A red and blue crimping pliers for cable connectors on a white background. A metal form is attached to the pliers.

A red and blue crimping pliers with a black metal body, suitable for cable connections.

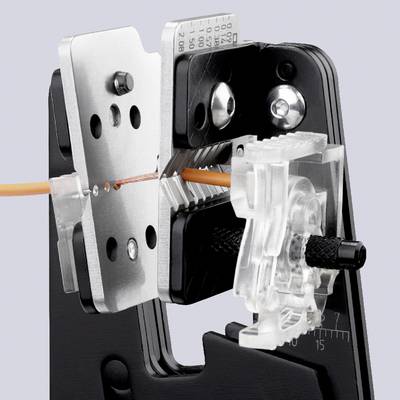

An orange cable is being precisely processed in a tool instrument. Stop and scale for accurate measurement are visible.

1/5

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

14-day return policy included

Report legal concerns

Precision stripping pliers with shaped blades

Highlights & Details

Technical specifications

Product type: Cable stripping pliers

Suitable for: PTFE-coated cables
Silicone-coated cables
Radox-coated cables
Kapton-coated cables
Rubber-coated cables

Working area (cross section): 0.14 up to 6 mm²

Working area cross section (min.): 0.14 mm²

Operating range (cross section) (max.): 6 mm²

Operating range (AWG diameter): 10 up to 26

Range of use: Electrician

Operating range (AWG cross section) (min.): 26

Operating range (AWG cross section) (max.): 10 awg

Material: Tool steel

Material properties: tempered

Length: 195 mm

Suitable for: Knipex

Suited for model: 12 12 06

Width: 73 mm

Weight: 445 g

Features: incl. spare blades

Suitable for: Difficult-to-work insulation materials such as PTFE, silicon, Radox®, Kapton, rubber as well as of multi-layer insulation

Type: 12 12 06

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 815093 Knipex 12 12 06 12 12 06 Cable stripping pliers 0.14 up to 6 mm² 10 up to 26

User & Safety Instructions

User & Safety Instructions 815093 Knipex 12 12 06 12 12 06 Cable stripping pliers 0.14 up to 6 mm² 10 up to 26

Information

Information 815093 Knipex 12 12 06 12 12 06 Cable stripping pliers 0.14 up to 6 mm² 10 up to 26

Description

Form-locking stripping also of difficult to remove insulation materials made of PTFE, silicon, Radox ®, Kapton ® and rubber. Also multi-layered. A second blade pair holding the rest of the insulation firmly and securely. Exactly to the corresponding conductor cross-tuned, replaceable form knife. With adjustable length stop for equal insulation lengths when working in series Knife: Special tool steel, oil-hardened. Pliers body: Steel.

This text is machine translated.

Features

With a new stripping mechanism
Problem-free stripping of difficult to process insulation materials like Teflon®, silicone, Radox®, Kapton® and rubber as well as of multi-layered insulations
No damaging of the conductor through precisely grounded knife; even fine-wired strands are also stripped in a protective way
With adjustable length stop for equal insulation lengths when working in series
4 changeable blades.
