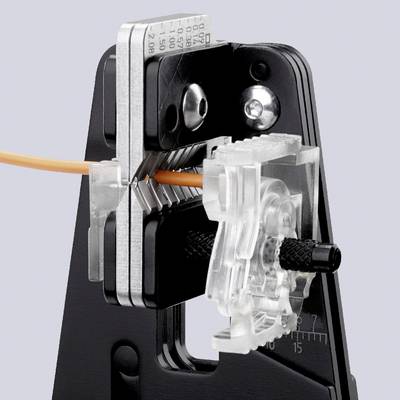

A tool for stripping optical fibres. Demonstrates a splitting mechanism with guide rails and a clamped optical fibre cable.

A red and blue crimping pliers used for connecting cables. Suitable for electrical work with insulated connectors.

1/5

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Universal stripper pliers KNIPEX 12 12 11

Highlights & Details

Especially suitable for solar cables

Technical specifications

Product type: Cable stripping pliers

Suitable for: PTFE-coated cables
Silicone-coated cables
Radox-coated cables
Kapton-coated cables
Rubber-coated cables
Solar cables

Working area (cross section): 1.5 up to 6 mm²

Working area cross section (min.): 1.5 mm²

Operating range (cross section) (max.): 6 mm²

Operating range (AWG diameter): 10 up to 15

Range of use: Electrician

Operating range (AWG cross section) (min.): 15

Operating range (AWG cross section) (max.): 10 awg

Length stop range: 10 up to 15 mm

Length stop (min.): 10 mm

Length stop (max.): 15 mm

Material: Tool steel

Material properties: tempered

Length: 195 mm

Suitable for: Knipex

Suited for model: 12 12 11

Width: 107 mm

Weight: 449 g

Suitable for: Difficult to process insulation materials like PTFE, silicon, Radox®, Kapton, rubber, solar cable as well as multi-layered insulations.

Type: 12 12 11

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 821058 Knipex 12 12 11 12 12 11 Cable stripping pliers 1.5 up to 6 mm² 10 up to 15

User & Safety Instructions

User & Safety Instructions 821058 Knipex 12 12 11 12 12 11 Cable stripping pliers 1.5 up to 6 mm² 10 up to 15

Information

Information 821058 Knipex 12 12 11 12 12 11 Cable stripping pliers 1.5 up to 6 mm² 10 up to 15

Description

For solar cable, specially designed for multi-layered and to Radox ® insulations. With additional cable support for better centering multi-layer insulated conductors in the stripping profiles. Form-locking stripping also of difficult to remove insulation materials made of PTFE, silicon, Radox ®, Kapton ® and rubber. Also multi-layered. A second blade pair holding the rest of the insulation firmly and securely. Exactly to the corresponding conductor cross-tuned, replaceable form knife. With adjustable length stop for equal insulation lengths when working in series Knife: Special tool steel, oil-hardened. Pliers body: Steel.

This text is machine translated.

Features

With a new stripping mechanism
Problem-free stripping of difficult to process insulation materials like Teflon®, silicone, Radox®, Kapton® and rubber as well as of multi-layered insulations
No damaging of the conductor through precisely grounded knife; even fine-wired strands are also stripped in a protective way
With adjustable length stop for equal insulation lengths when working in series
4 changeable blades.
