Buy Knipex 12 12 12 12 12 12 Cable stripping pliers 4 up to 10 mm² 7 up to 11

A device for cutting or stripping cables with an orange cable being guided through the mechanism.

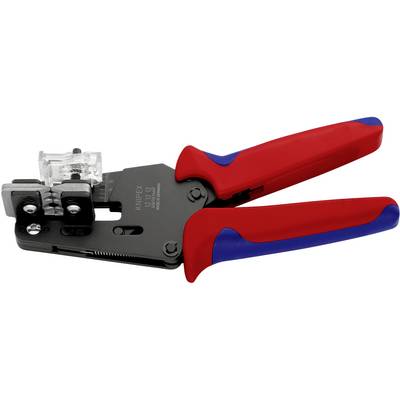

A red and blue crimping plier, used for connecting cables with connectors, on a white background.

A red and blue crimping pliers by KNIPEX, model 97 53 13. It is used for crimping telephone connectors.

A tool for stripping cable insulation. The cable is inserted into a slotted system on the left and precisely stripped on the right.

1/5

Fast track dispatch on Tue, 6 Oct

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 121.84 / piece)

€ 121.84

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Pliers: burnished
Handles: with multi-component grips
Stripping capacities: 4,0 - 10,0 mm²
AWG: 11 - 7
Length: 195 mm

Product type: Cable stripping pliers

Suitable for: PTFE-coated cables
Silicone-coated cables
Radox-coated cables
Kapton-coated cables
Rubber-coated cables
Solar cables

Working area (cross section): 4 up to 10 mm²

Working area cross section (min.): 4 mm²

Operating range (cross section) (max.): 10 mm²

Operating range (AWG diameter): 7 up to 11

Range of use: Electrician

Operating range (AWG cross section) (min.): 11

Operating range (AWG cross section) (max.): 7 awg

Material: Tool steel

Material properties: tempered

Length: 195 mm

Suitable for: Knipex

Suited for model: 12 12 12

Width: 107 mm

Weight: 450 g

Features: incl. spare blades

Suitable for: Difficult-to-work insulation materials such as PTFE, silicon, Radox®, Kapton, rubber as well as of multi-layer insulation

Type: 12 12 12

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 825373 Knipex 12 12 12 12 12 12 Cable stripping pliers 4 up to 10 mm² 7 up to 11

Information

Information 825373 Knipex 12 12 12 12 12 12 Cable stripping pliers 4 up to 10 mm² 7 up to 11

Description

Form-fit stripping also of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber- multi-layer too
A second pair of blades holds the remaining insulation reliably in place
Replaceable shaped blade adapted precisely to the respective conductor cross-section
With length stop for constant stripping length during repetitive work
Pliers body: steel
Blade: special tool steel, oil-hardened
For solar cables, specially adapted to multi-layered and RADOX® insulations
With additional cable support for a better centring of multi-layer insulated conductors in the stripping profiles

Features

With a new stripping mechanism
Problem-free stripping of difficult to process insulation materials like Teflon®, silicone, Radox®, Kapton® and rubber as well as of multi-layered insulations
No damaging of the conductor through precisely grounded knife; even fine-wired strands are also stripped in a protective way
With adjustable length stop for equal insulation lengths when working in series
4 changeable blades.
