Knipex 12 69 21 Cable stripping blade Suitable for brand (pliers) Knipex
EAN:
Part number:
Item no:
Datasheet (PDF)

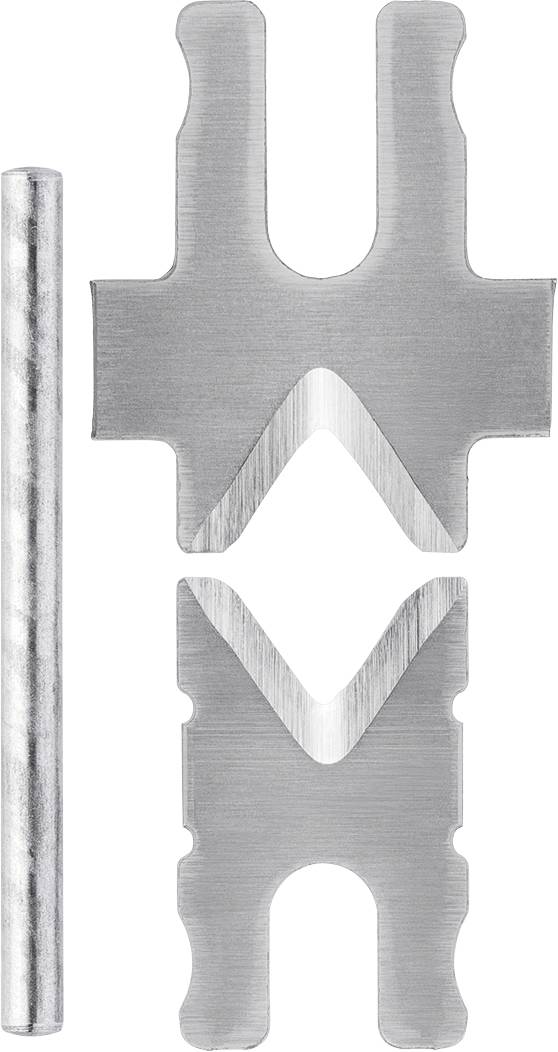

Knipex 12 69 21 1 pair of spare blades for 12 62 180 15 mm
Technical specifications
- 1 pair of spare blades for 12 62 180 15 mm
- Product type
Cable stripping blade
- Suitable for
Insulated cables
- Working area (cross section)
0.2 up to 6 mm²
- Working area cross section (min.)
0.2 mm²
- Operating range (cross section) (max.)
6 mm²
- Length stop range
6.0 up to 18.0 mm
- Length stop (min.)
6.0 mm
- Length stop (max.)
18.0 mm
- Material
Tool steel
- Material properties
tempered
- Length
15 mm
- Suitable for
Knipex
- Weight
2 g
- Features
incl. spare blades
Documents & Downloads
Datasheet
Datasheet 2399944 Knipex 12 69 21 Cable stripping blade Suitable for brand (pliers) Knipex
User & Safety Instructions
User & Safety Instructions 2399944 Knipex 12 69 21 Cable stripping blade Suitable for brand (pliers) Knipex
Description
· Compact standard tool for all common cable cross-sections and insulation materials
· For single, multiple and fine-stranded conductors from 0.2 to 6 mm² with standard insulation
· adapts itself automatically to the different conductor cross-sections: Thus no damage to the conductor
· high operating comfort through handy design and low weight
· slim head shape for use in difficult to access work areas
· with wire cutter for Cu and Al conductors up to max. 2.5 mm²
· with adjustable length stop from 6.0 to 18.0 mm for the same stripping lengths
· Housing: Plastic, glass fiber reinforced
· Knife: Special tool steel, oil-hardened, replaceable
This text is machine translated.
