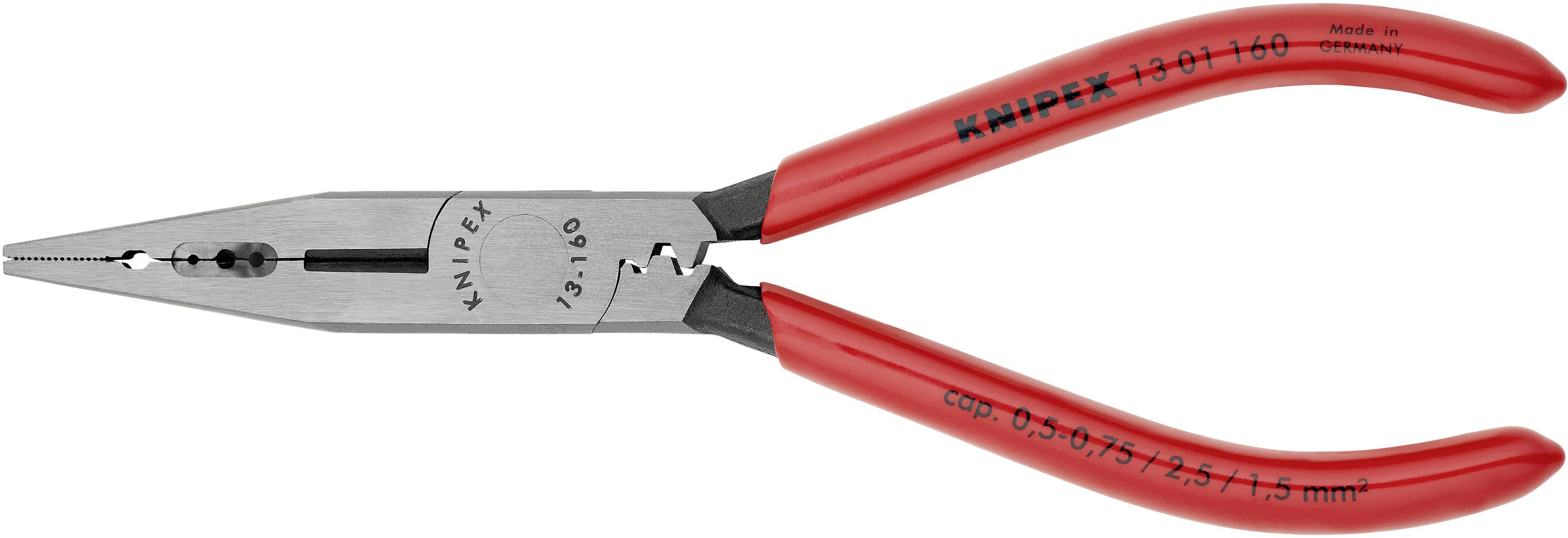

Knipex 13 01 160 Wiring pliers 160 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
14-day return policy included
Wiring pliers
Highlights & Details
- The ideal pliers for wiring work
- For gripping and bending wires
- For cutting medium-hard and hard wire
- Precision cutting edges additionally induction hardened, cutting edge hardness approx. 6 HRC
- With precision stripping holes
Technical specifications
- Stripping values: 0.5 - 0.75 / 1.5 / 2.5 mm²
- Wire-end sleeves squeeze-Ø: 0.75/1.5/2.5 mm²
- Product type
Wiring pliers
- Length
160 mm
- Edge hardness
60 HRC
- Wire hardness (max.) medium wire
2.5 mm
- Wire hardness (max.) hard wire
1.6 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
tempered
polishing
- Width
52 mm
- Weight
112 g
- Material (details)
Polished head, plastic-coated handles.
- Type
13 01 160
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 822060 Knipex 13 01 160 Wiring pliers 160 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 822060 Knipex 13 01 160 Wiring pliers 160 mm 1 pc(s)
Description
The ideal pliers for wiring work. For gripping and bending wires. For cutting medium-hard and hard wire. Precision cutting edges additionally induction hardened, cutting edge hardness approx. 60 HRC. With precision stripping holes. For crimping of wire end sleeves. Vanadium electric steel, forged, oil-hardened multi-level
