Buy Knipex 13 42 165 Cable jacket stripping pliers 1.5 up to 2.5 mm² 8 up to 13 mm

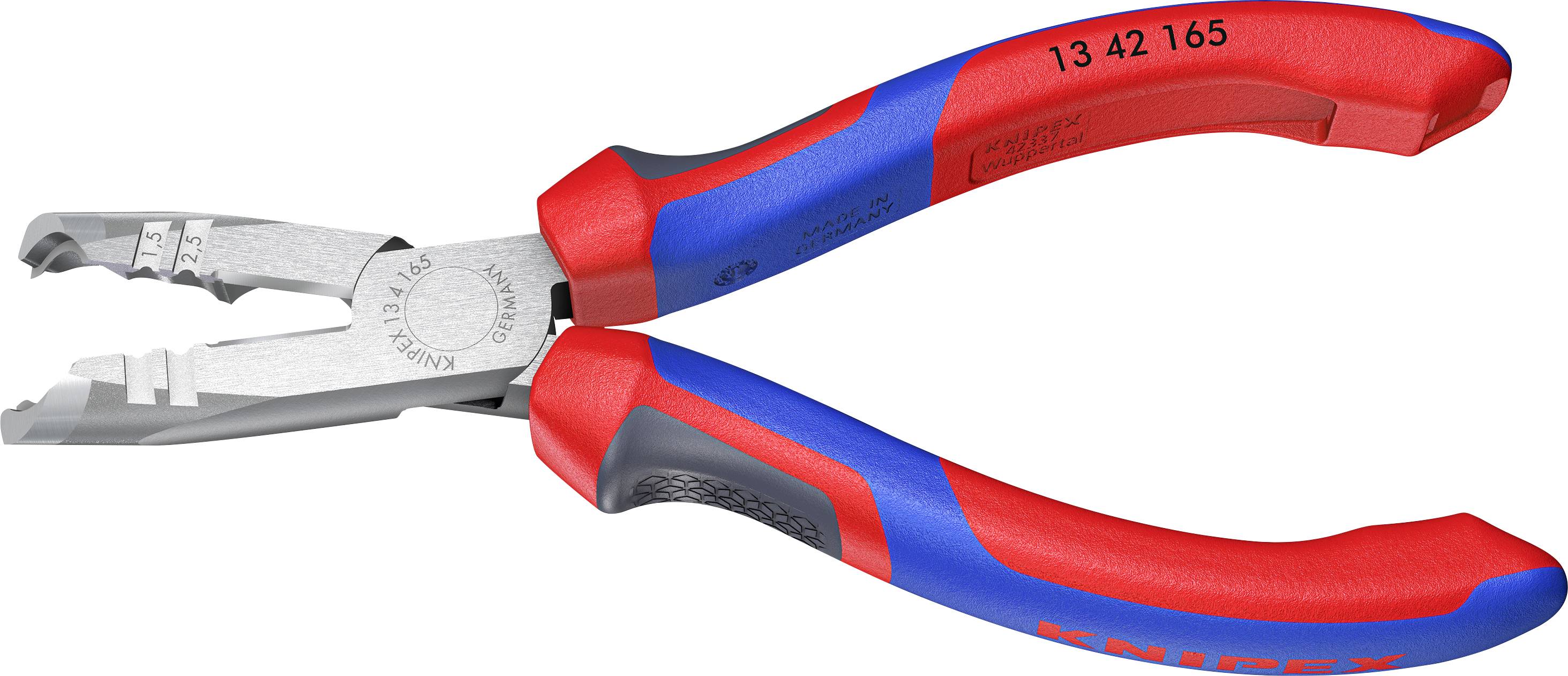

Red and blue combination pliers with insulated handles and knurled head, suitable for various electrical work.

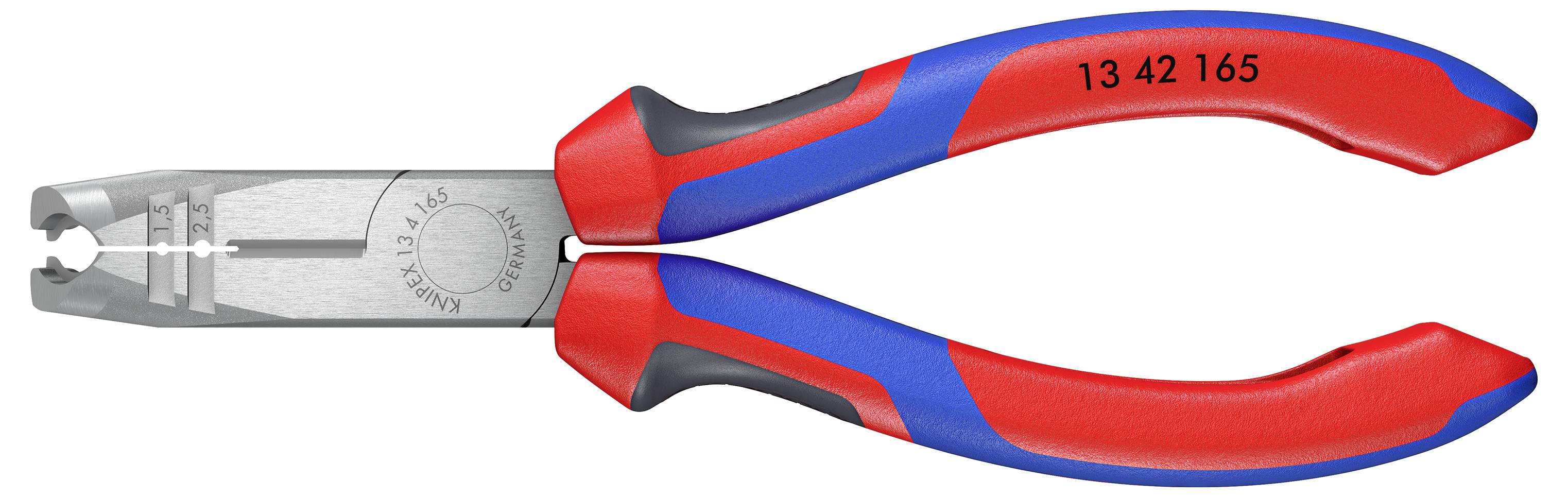

A red and blue wire stripping pliers with the inscription '13 42 165' on the handle. It is suitable for stripping and cutting wires.

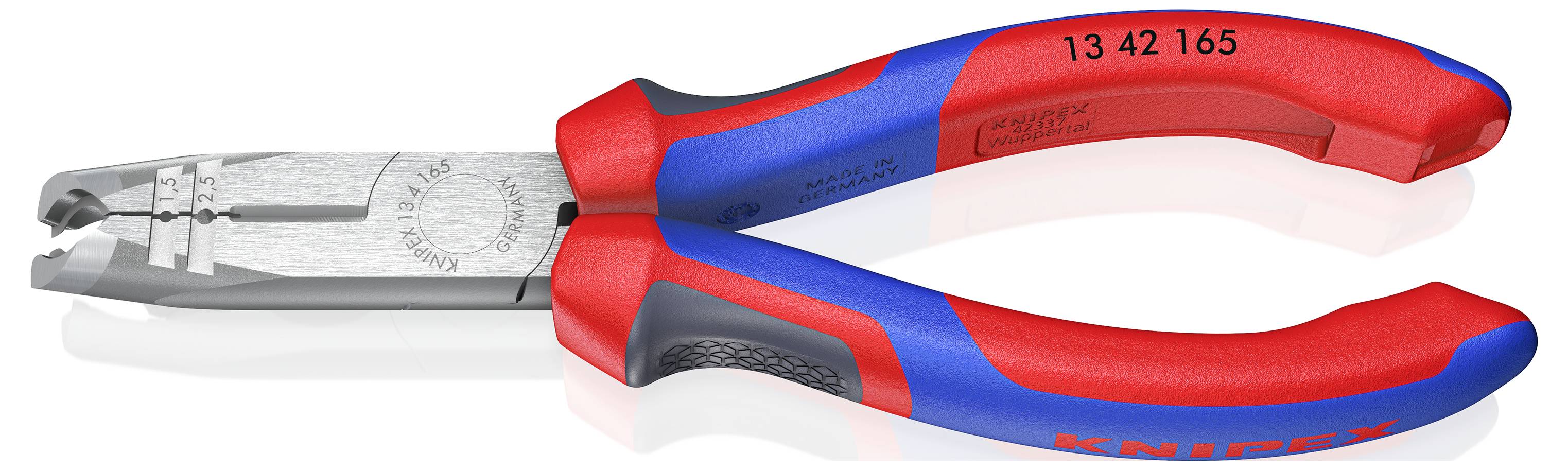

KNIPEX pliers, model number 13 42 165, in blue and red. They have insulated handles and are suitable for precision work.

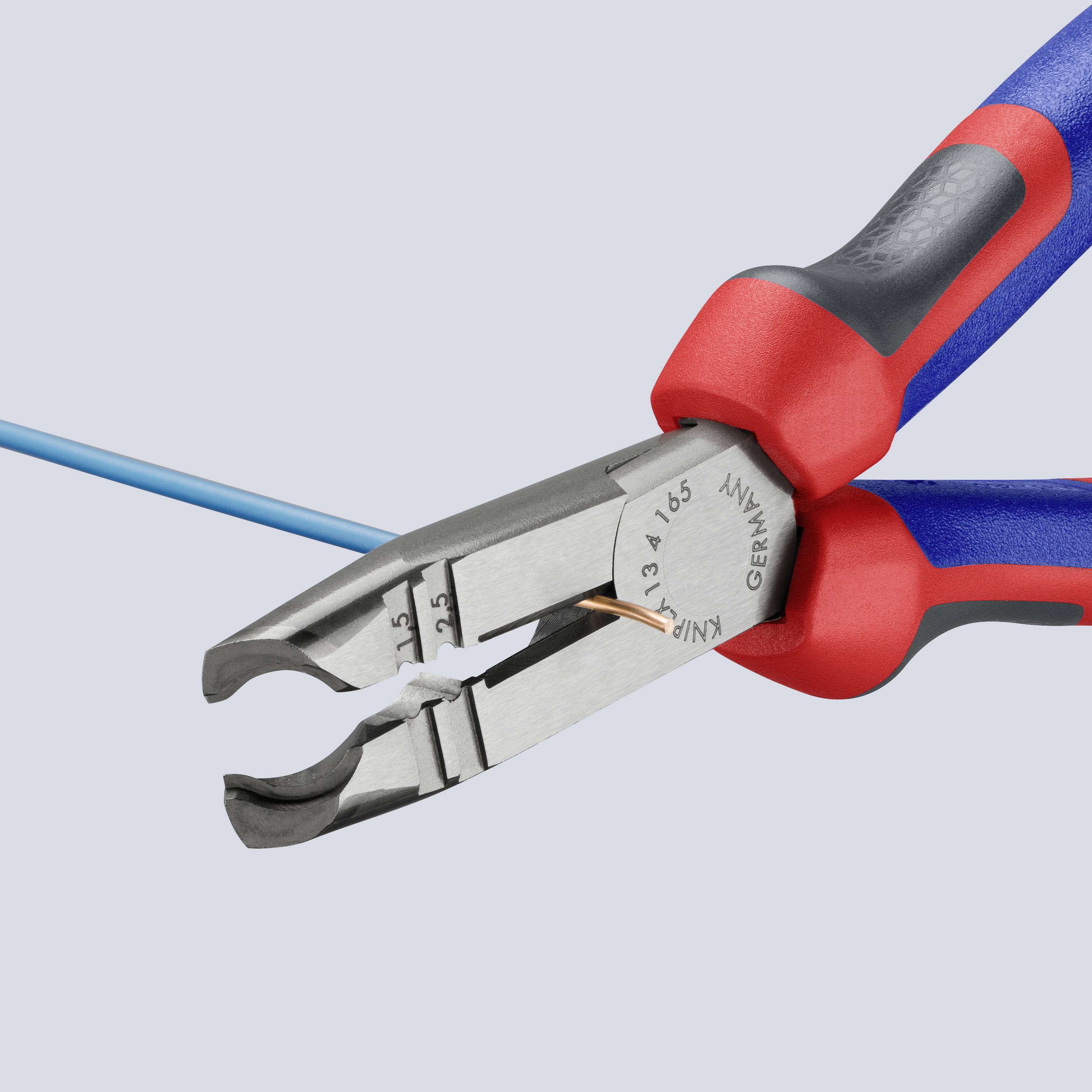

A red and blue wire stripping pliers cuts a blue cable. It is positioned on a light grey background.

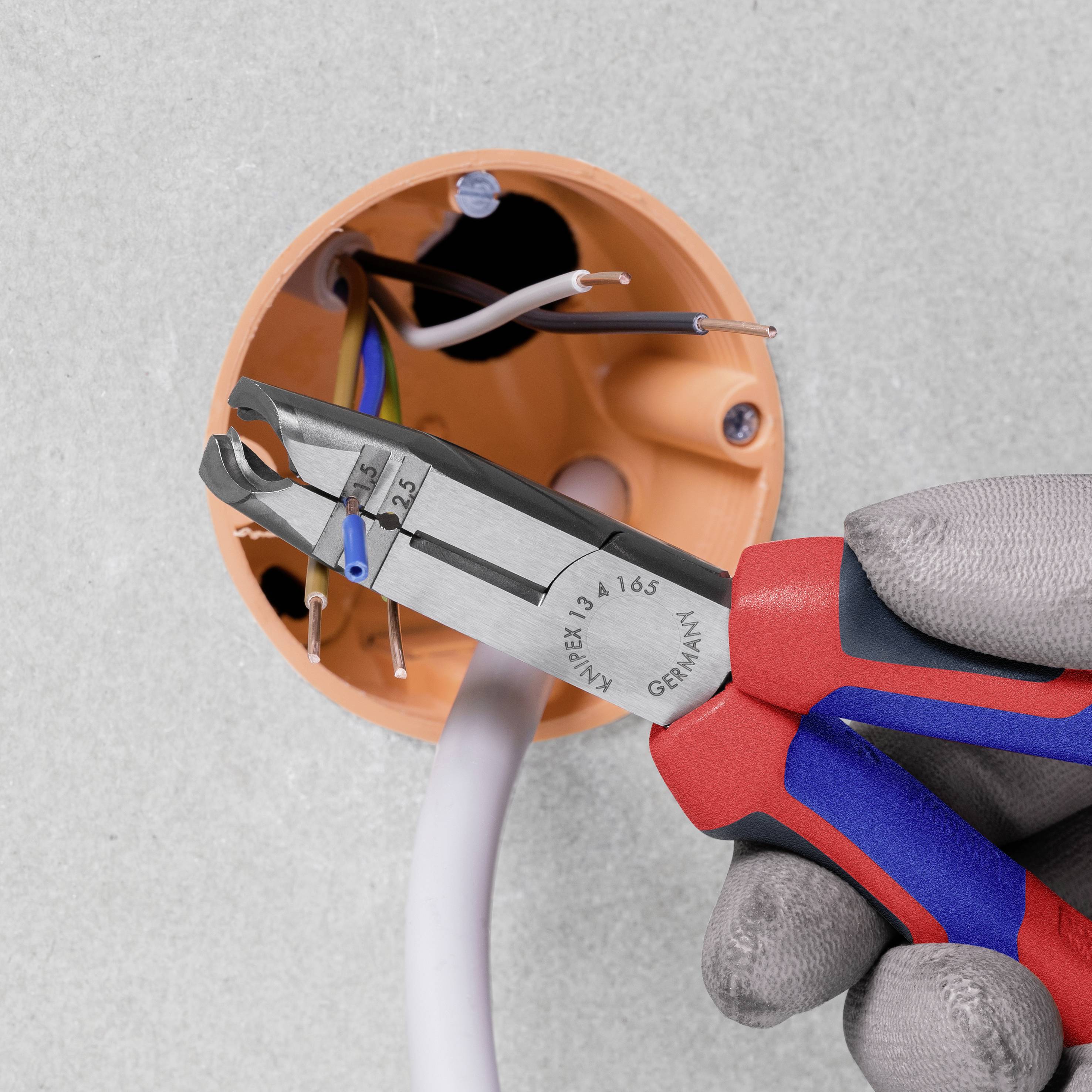

A hand is holding a wire stripping pliers that is working on a cable in a wall socket.

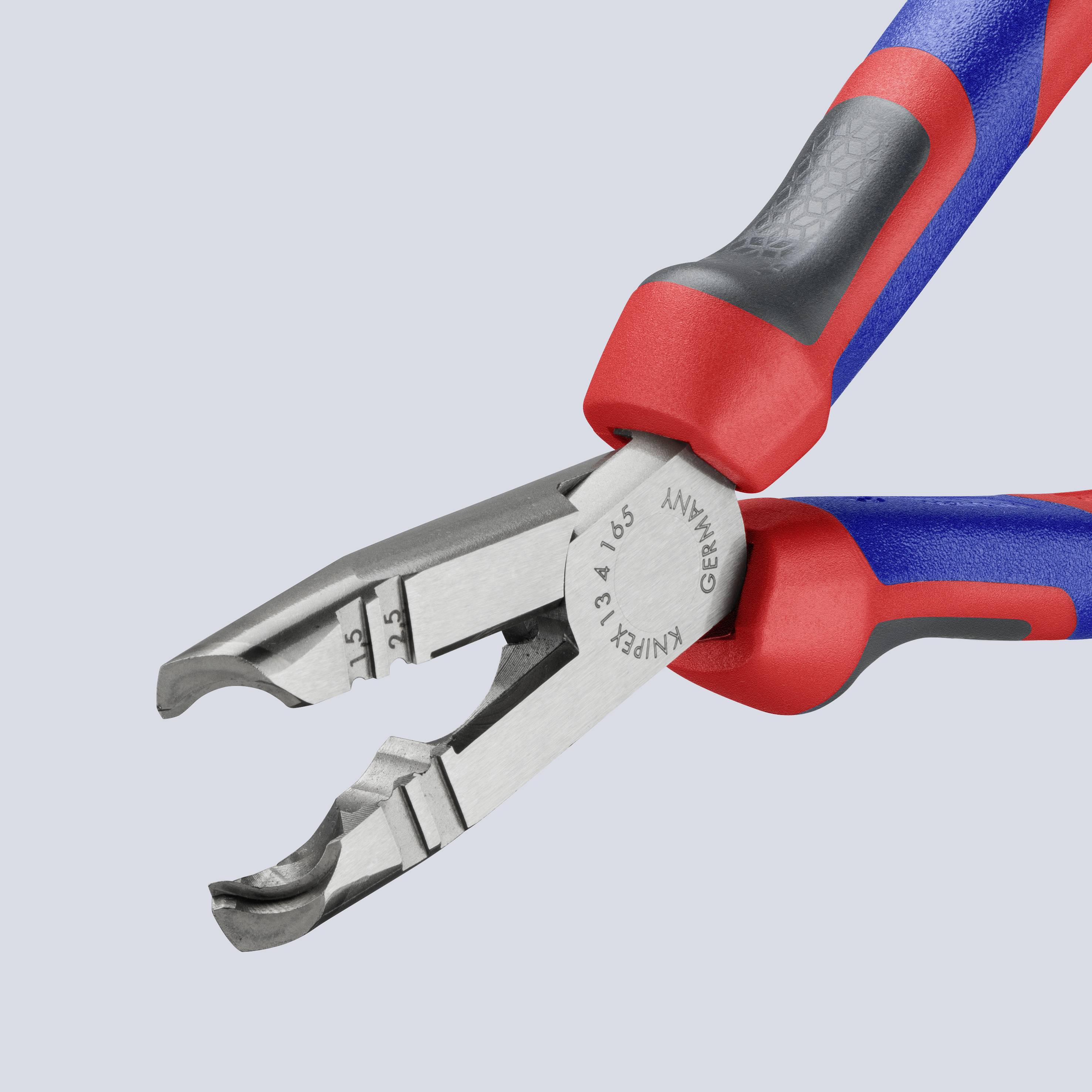

Pliers with red and blue handles, opened, on a grey background.

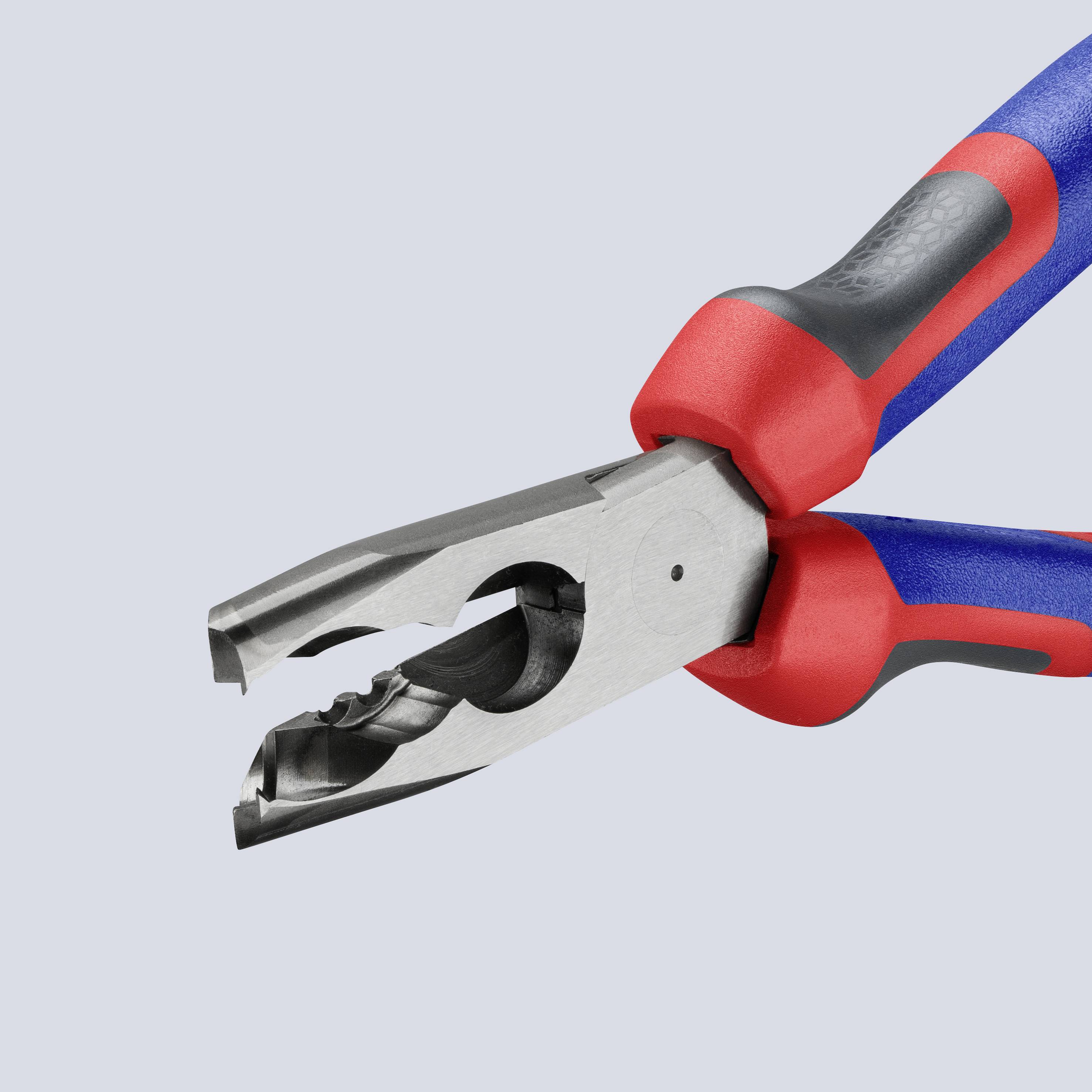

Wire cutters with red and blue handles on a grey background. Primary tool for gripping, cutting, and bending wires.

1/7

Datasheet (PDF)

Unavailable

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Cutting value for hard wire: 2.2 mm dia
Cutting value for medium-hard wire: 2.5 mm dia.

Product type: Cable jacket stripping pliers

Suitable for: Round cable
Wet room cables

Operating range (diameter): 8 up to 13 mm

Working area diameter (min.): 8 mm

Operating range (diameter) (max.): 13 mm

Working area (cross section): 1.5 up to 2.5 mm²

Working area cross section (min.): 1.5 mm²

Operating range (cross section) (max.): 2.5 mm²

Edge hardness: 61 HRC

Material: Vanadium electric furnace steel

Material properties: polishing

Length: 165 mm

Width: 57 mm

Weight: 176 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1462180 Knipex 13 42 165 Cable jacket stripping pliers 1.5 up to 2.5 mm² 8 up to 13 mm

User & Safety Instructions

User & Safety Instructions 1462180 Knipex 13 42 165 Cable jacket stripping pliers 1.5 up to 2.5 mm² 8 up to 13 mm

Description

The time-saving Strip and strip the insulation from all common round and wet room cables (e.g. NYM cables). Easier access, especially for low-lying flush boxes by Slim head shape and optimally angled cable sheath cutting edge. Easy and damage-free stripping thanks to Round cutter with depth restriction. Can be used universally: Precision stripping holes for wires: 1.5 and 2.5 mm². With wire cutter for cutting cables, wires, small screws and nails. All cutting edges additionally induction hardened to approx. 61 HRC: for high wear resistance. 30% lower weight than comparable pliers. Vanadium electric steel, forged, oil-hardened.
