Buy Knipex 13 46 165 Cable jacket stripping pliers 1.5 up to 2.5 mm² 8 up to 13 mm

Electric wire stripping pliers with red and yellow plastic handles and insulated metal cutting head, suitable for work up to 1000 V.

Knipex 13 46 165 Cable jacket stripping pliers 1.5 up to 2.5 mm² 8 up to 13 mm-1

A hand holds pliers and cuts wires in an open wall socket. The wires are different colours: white, blue, yellow, brown.

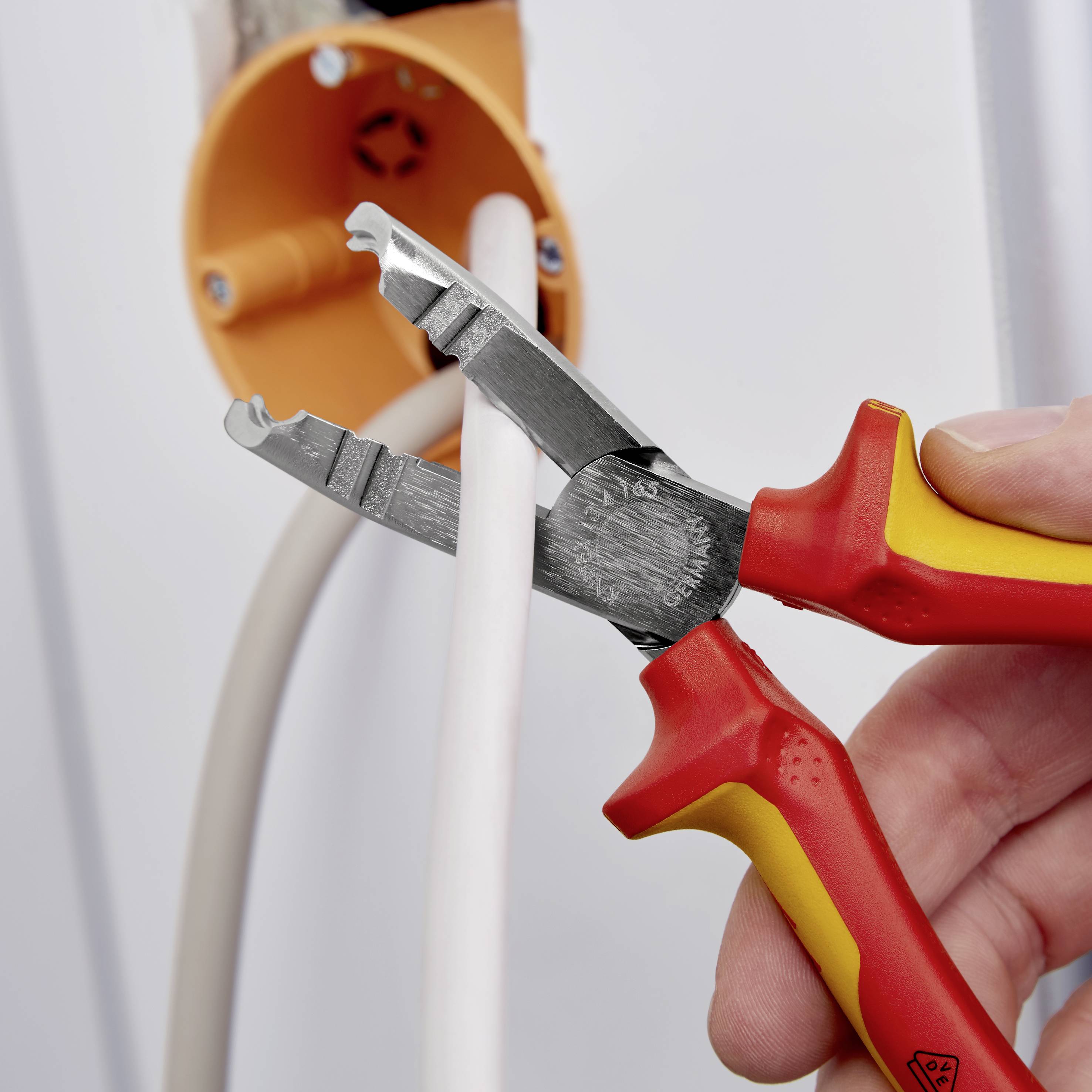

A hand holds a red pair of pliers and cuts an electrical cable in an orange socket.

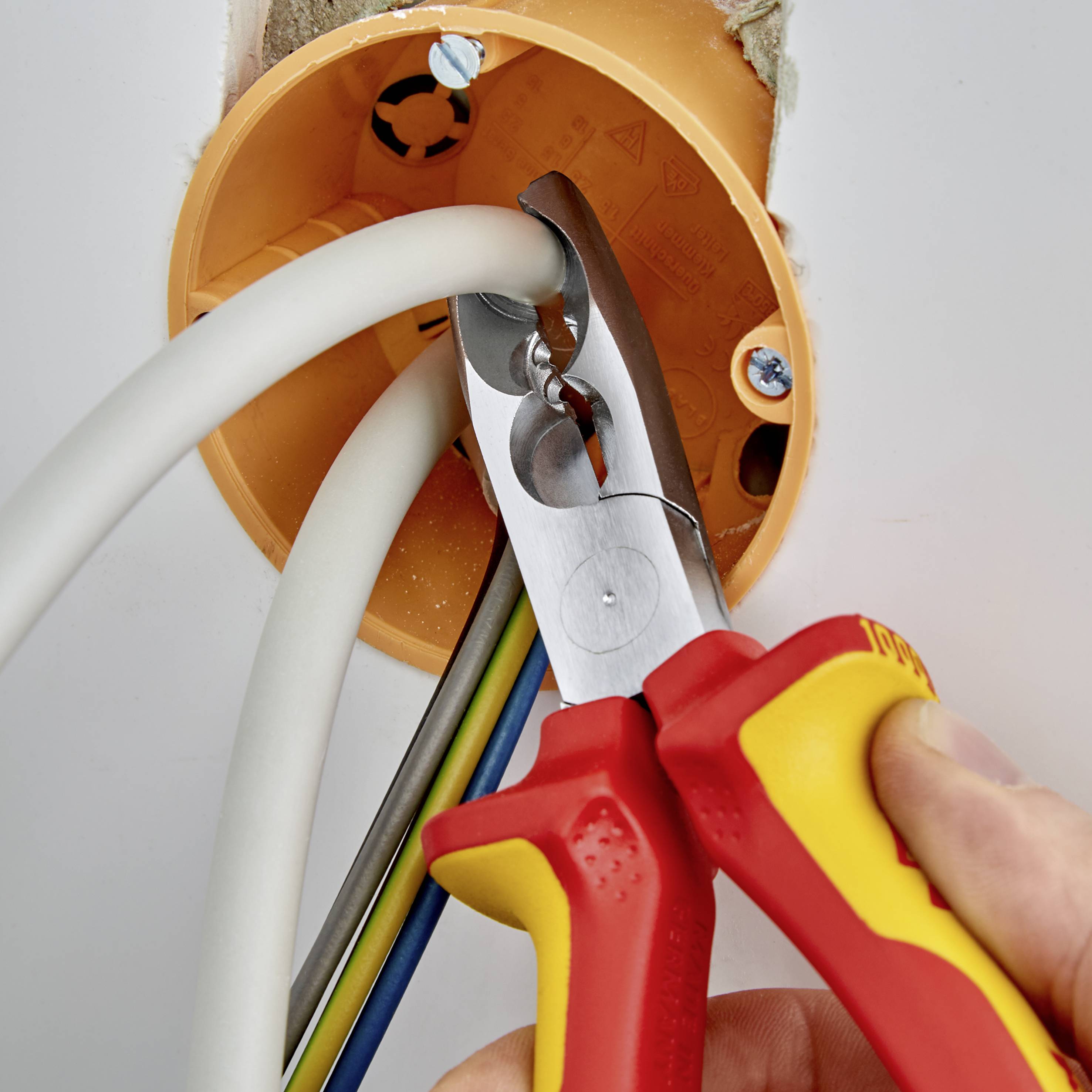

A person is pulling electrical cables through an orange conduit using a red side cutter.

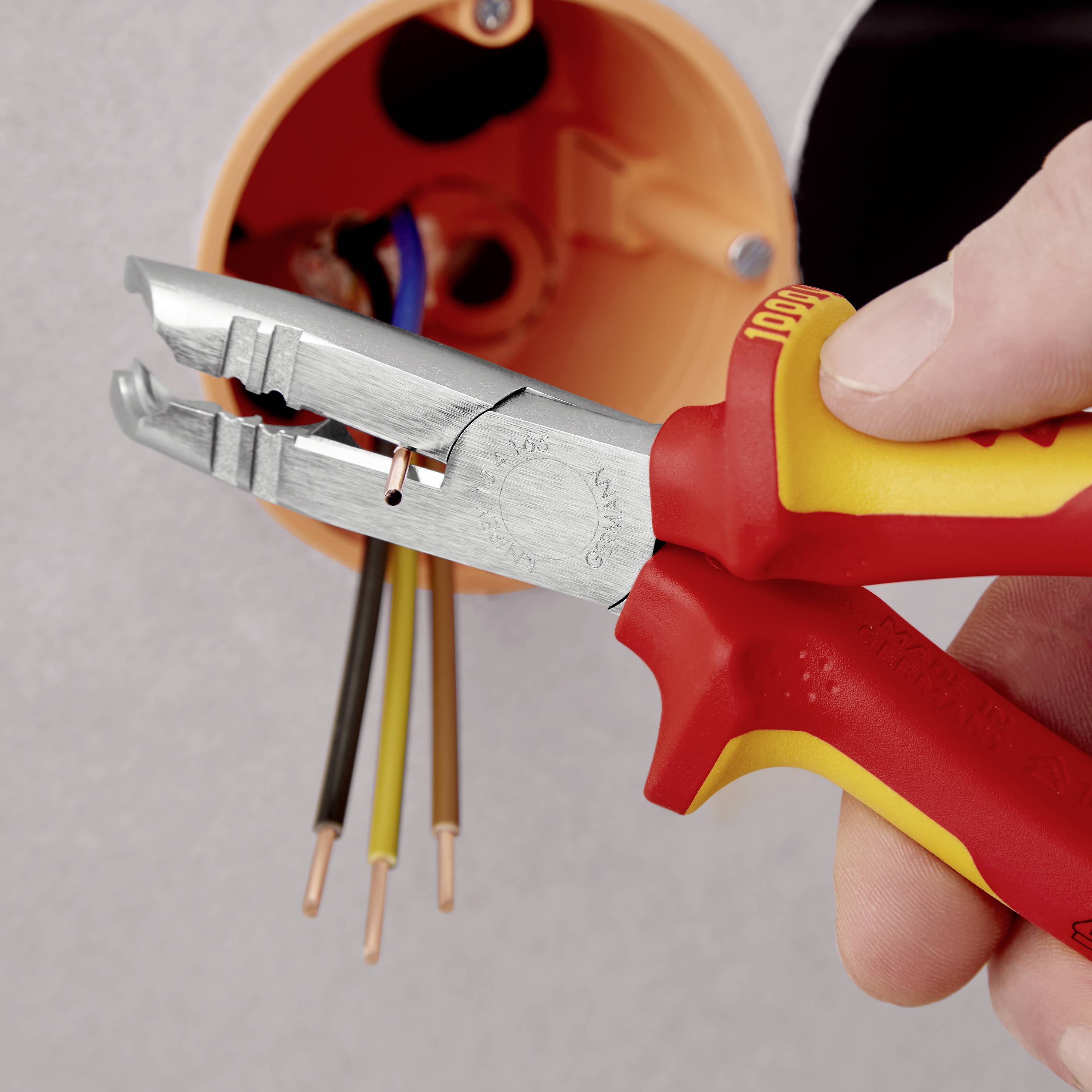

A hand is using wire strippers to remove the insulation from electrical cables in a socket.

1/7

Unavailable

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Stripping Pliers chrome-plated 165 mm

Highlights & Details

The time-saving cable stripping and removal of round sheath cables and wet room cables (e.g. NYM cables)
Easier access, especially for low-lying flush boxes by Slim head shape and optimally angled cable sheath cutter
Easy and damage-free stripping thanks to Round cutter with depth restriction
Can be used universally: Precision stripping holes for wires.75 - 1.5 and 2.5 mm²
With wire cutter for cutting of conductors, wires, small screws and nails.

Technical specifications

Cutting value for hard wire: 2.2 mm dia
Cutting value for medium-hard wire: 2.8 mm dia.

Product type: Cable jacket stripping pliers

Suitable for: Round cable
Wet room cables

Operating range (diameter): 8 up to 13 mm

Working area diameter (min.): 8 mm

Operating range (diameter) (max.): 13 mm

Working area (cross section): 1.5 up to 2.5 mm²

Working area cross section (min.): 1.5 mm²

Operating range (cross section) (max.): 2.5 mm²

Edge hardness: 61 HRC

Material: Vanadium electric furnace steel

Material properties: chrome plated

Length: 165 mm

Width: 57 mm

Weight: 190 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1462182 Knipex 13 46 165 Cable jacket stripping pliers 1.5 up to 2.5 mm² 8 up to 13 mm

Description

The time-saving Strip and strip the insulation from all common round and wet room cables (e.g. NYM cables). Easier access, especially for low-lying flush boxes by Slim head shape and optimally angled cable sheath cutting edge. Easy and damage-free stripping thanks to Round cutter with depth restriction. Can be used universally: Precision stripping holes for wires: 1.5 and 2.5 mm². With wire cutter for cutting cables, wires, small screws and nails. All cutting edges additionally induction hardened to approx. 61 HRC: for high wear resistance. 30% lower weight than comparable pliers. Vanadium electric steel, forged, oil-hardened.
