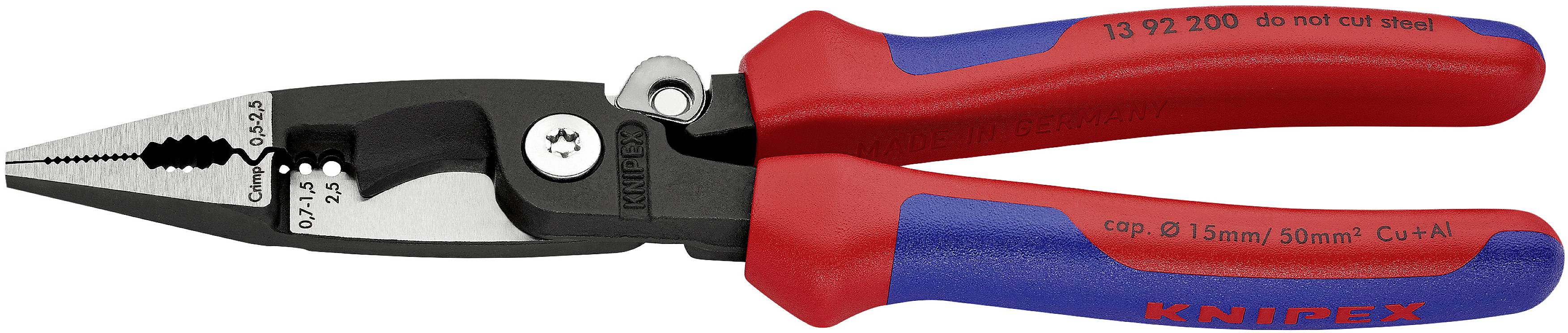

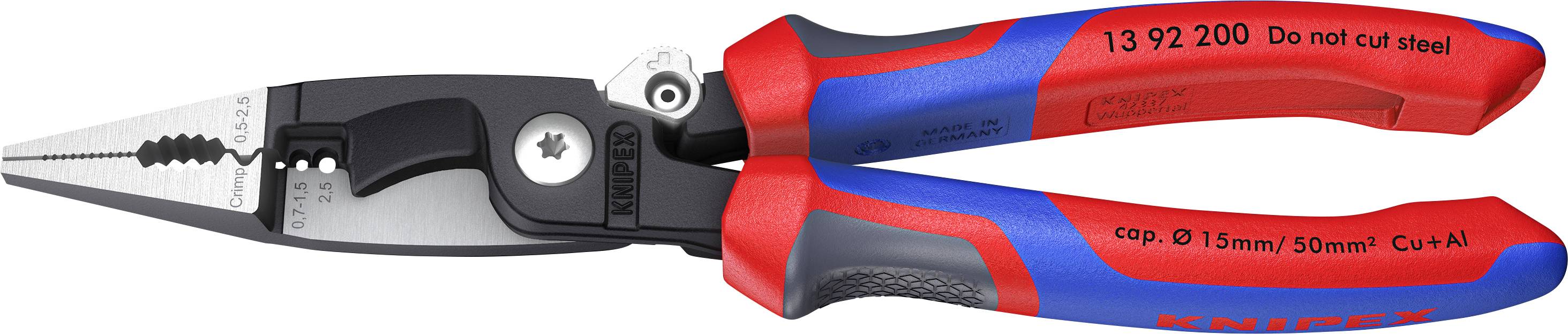

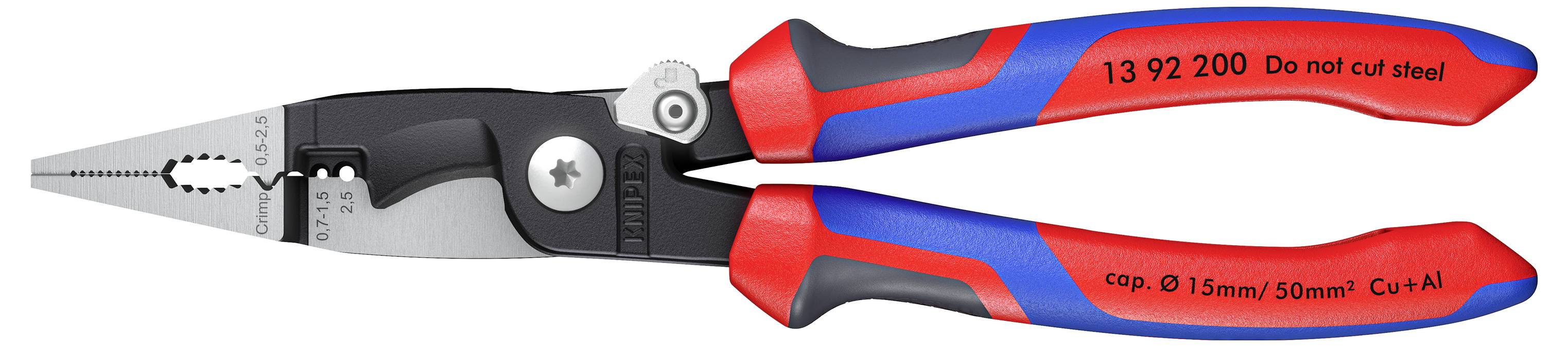

Knipex 13 92 200 Multifunction pliers 50 mm² (max) 0 awg (max) 15 mm (max)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
14-day return policy included
Electrical installation pliers
Highlights & Details
- 6 functions in one set of pliers
- Multifunctional pliers for electrical installation - the gripping of flat and round materials, bending, deburring, cable cutting, stripping and crimping of wire end sleeves

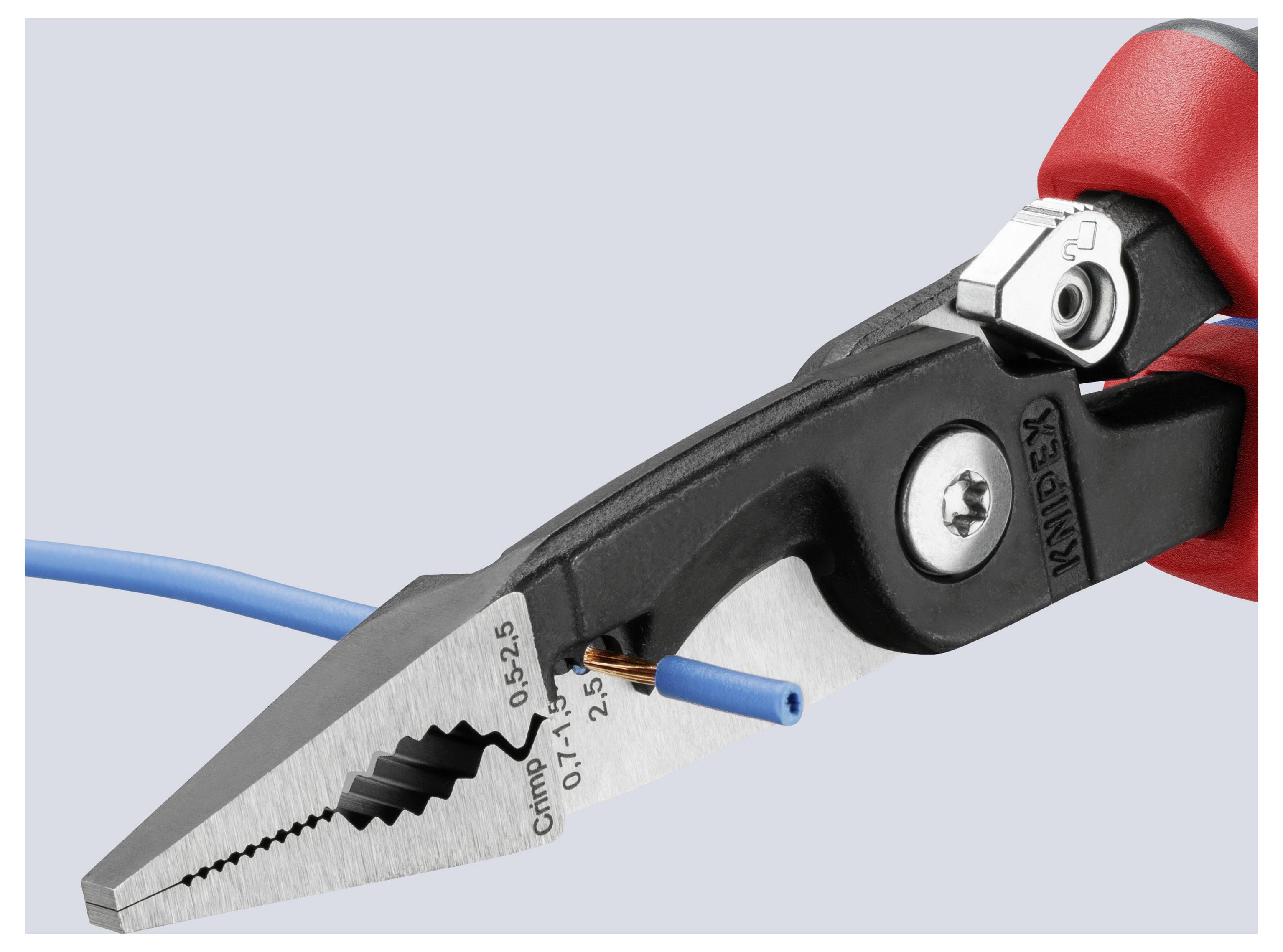

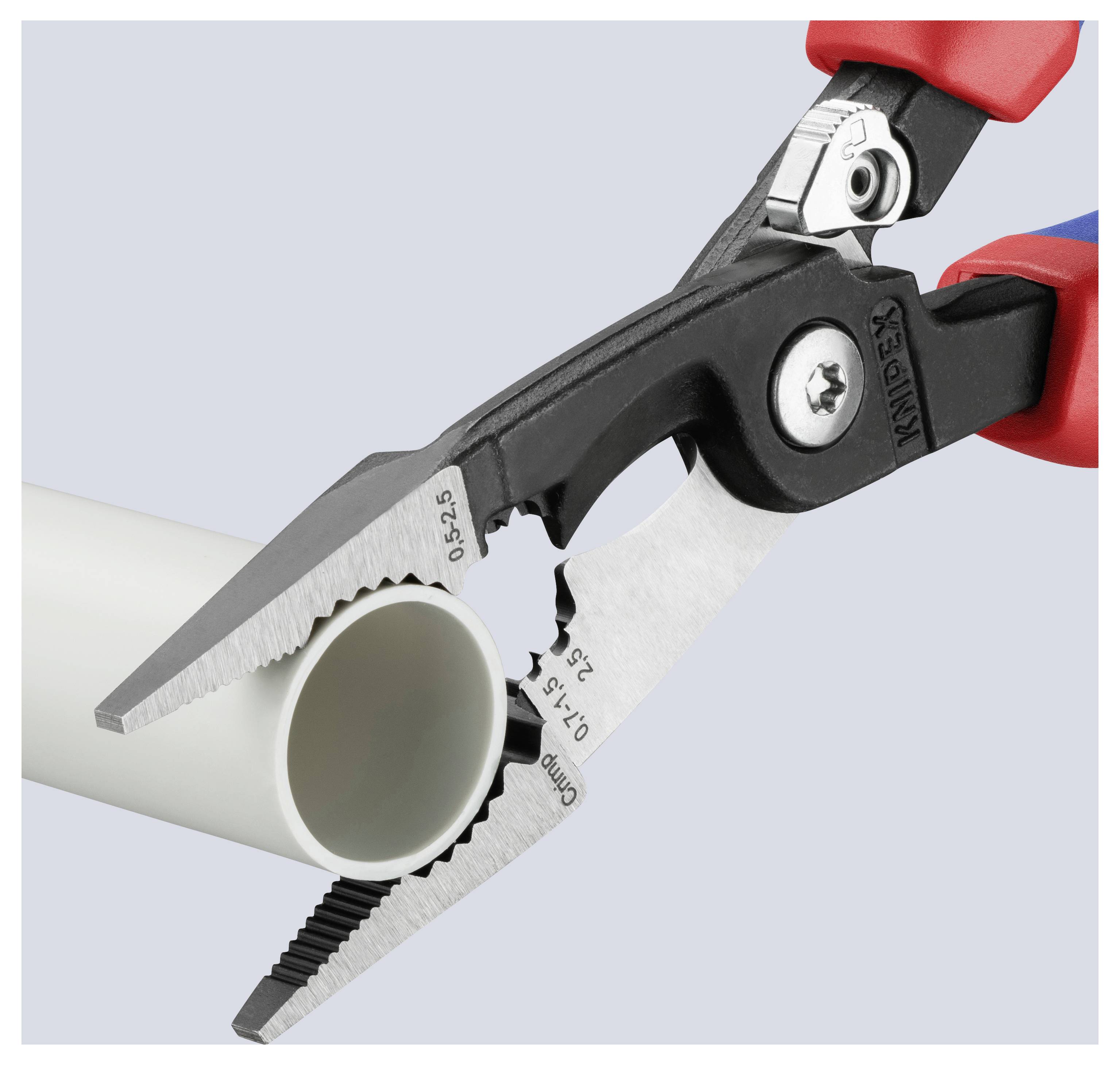

- Smooth gripping surfaces at tips for gripping individual wires without causing damage-Profiled gripping surfaces and stripping hole for gripping of flat and round materials
- Clear-cut outside edge on jaw for working on flush-mounted junction boxes and deburring feed-through holes

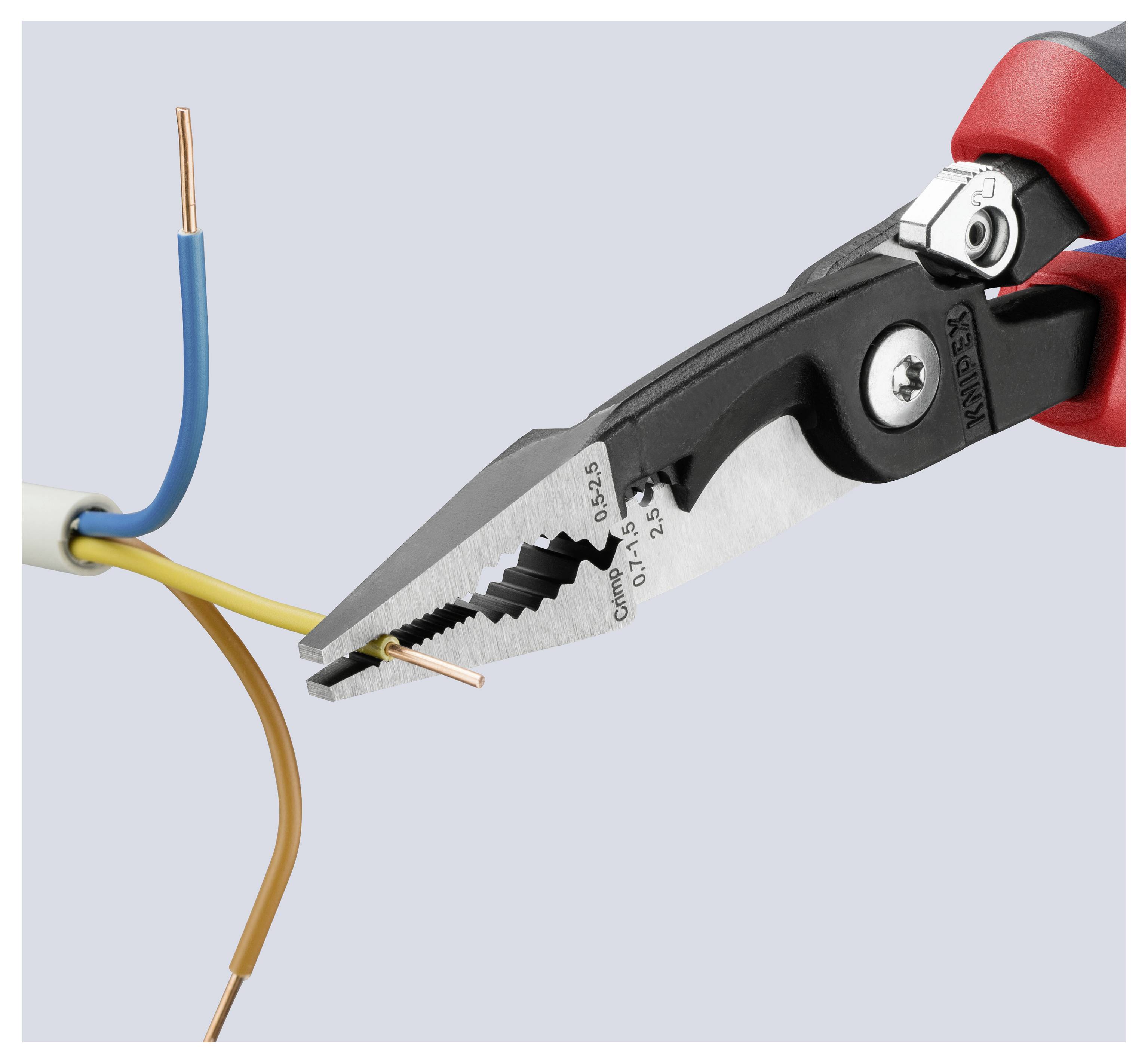

- Stripping holes for wires.75 - 1.5 mm² and 2.5 mm²
Technical specifications
- Stripping capacity: 0.75 – 1.5 + 2.5
- Capacity: 0.5 – 2.5 mm²
- Product type
Multifunction pliers
- Suitable for
Ferrules
- Operating range (diameter)
15 mm (max)
- Operating range (diameter) (max.)
15 mm
- Working area (cross section)
50 mm² (max)
- Operating range (cross section) (max.)
50 mm²
- Operating range (AWG diameter)
0 awg (max)
- Operating range (AWG cross section) (max.)
0 awg
- Material
Special steel
- Material properties
tempered
polishing
- Length
200 mm
- Width
63 mm
- Weight
280 g
- Type
13 92 200
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 816406 Knipex 13 92 200 Multifunction pliers 50 mm² (max) 0 awg (max) 15 mm (max)
User & Safety Instructions
User & Safety Instructions 816406 Knipex 13 92 200 Multifunction pliers 50 mm² (max) 0 awg (max) 15 mm (max)
Description
Multifunctional pliers for electrical installation. For gripping of flat and round materials, bending, deburring, cable cutting, stripping and crimping of wire end sleeves 6 functions in one set of pliers For models with built-in joint opening spring holds the activated latch the blades closed leaving the other functions available. Intelligent latching mechanism lets you grip an item without opening the pliers The blades remains closed and protected. Screwed joint: Precise, frictionless movement Slim design for easy accessibility. Smooth gripping surfaces at tips for gripping individual wires without causing damage; Profiled gripping surfaces and stripping hole for gripping flat or round materials Clear-cut outside edge on jaw for working on flush-mounted junction boxes and deburring feed-through holes Stripping holes for wires: 0.75 – 1.5 mm² and 2.5 mm² Crimp die for cable end sleeves 0.5 – 2.5 mm² Cable shears with precision blades (induction-hardened) for copper and aluminium cable up to 5 x 2.5 mm²/dia. 15 mm Special tool steel in special quality, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- Multifunctional pliers for electrical installation; For gripping of flat and round materials, bending, deburring, cable cutting, stripping and crimping of wire end sleeves
- 6 functions in one set of pliers
- Smooth gripping surfaces at tips for gripping individual wires without causing damage; Profiled gripping surfaces and stripping hole for gripping flat or round materials
- Clear-cut outside edge on jaw for working on flush-mounted junction boxes and deburring feed-through holes
- Stripping holes for wires: 0.75 – 1.5 mm² and 2.5 mm²
- Crimp die for cable end sleeves 0.5 – 2.5 mm²

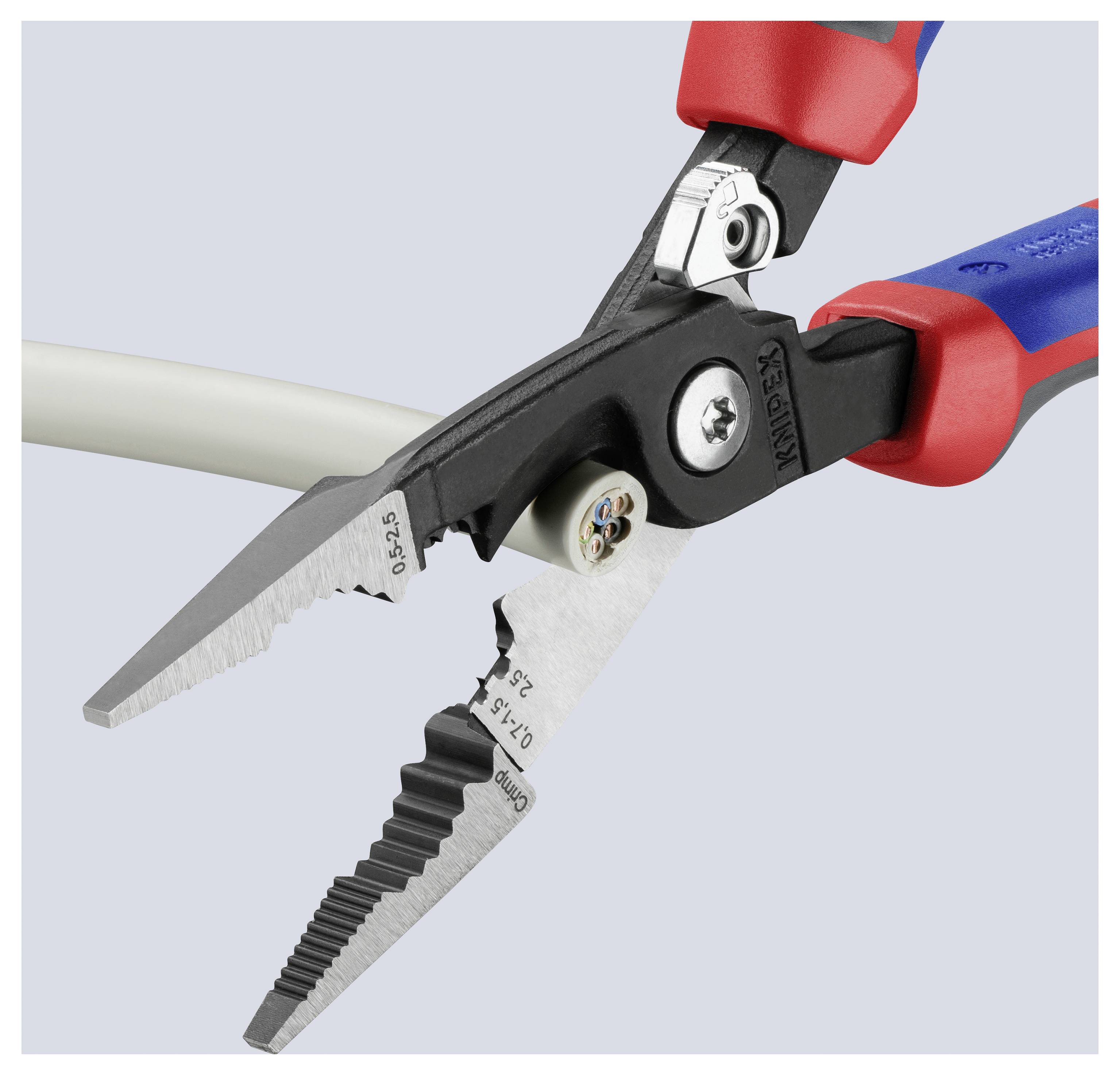

- Cable shears with precision blades (induction-hardened) for copper and aluminium cable up to 5 x 2.5 mm²/dia. 15 mm
- Grip without opening pliers fully (intelligent latching mechanism in the spring assisted version). The blades remains closed and protected
- Slim design for easy accessibility.
- Screwed joint: Precise, frictionless movement
- Special tool steel in special quality, forged, oil-hardened
- The activated latch holds the blades closed leaving the other functions available.
- Intelligent latching mechanism lets you grip an item without opening the pliers The blades remains closed and protected.
