Knipex 25 03 125 Round nose pliers 125 mm
EAN:
Part number:
Item no:
Datasheet (PDF)

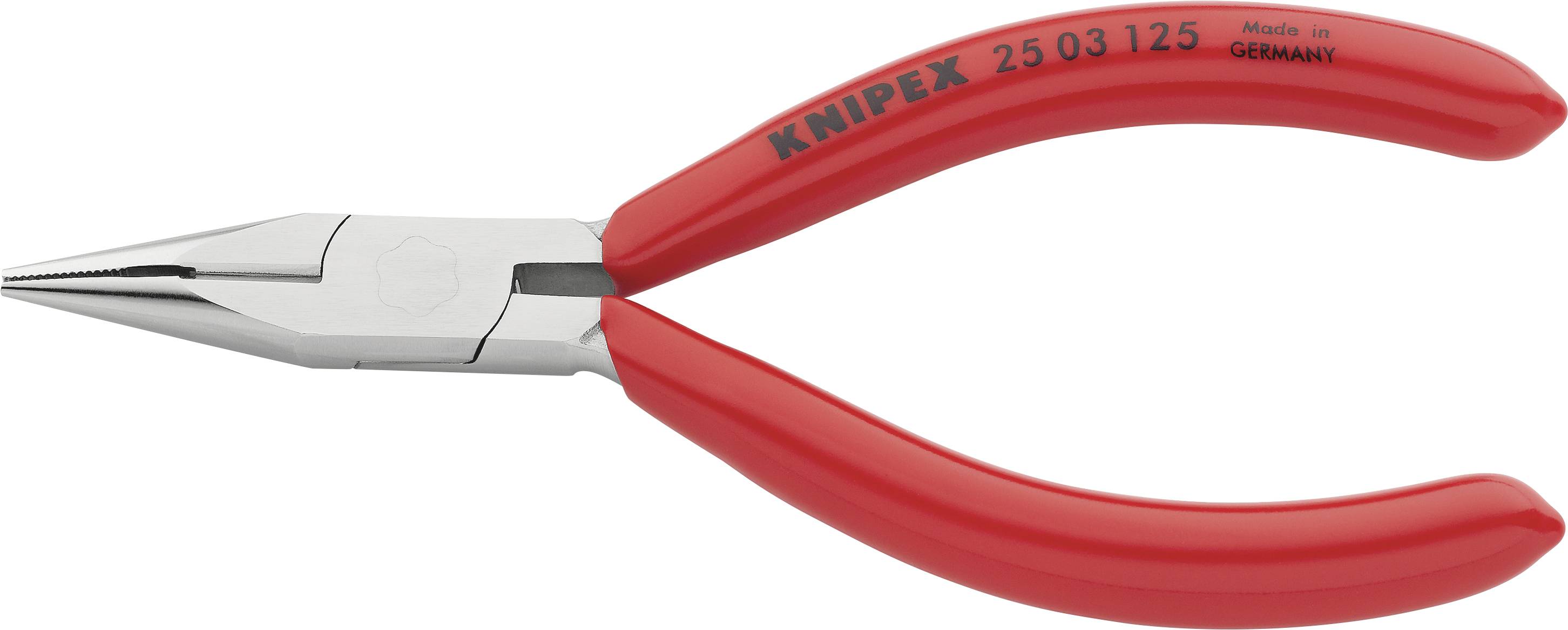

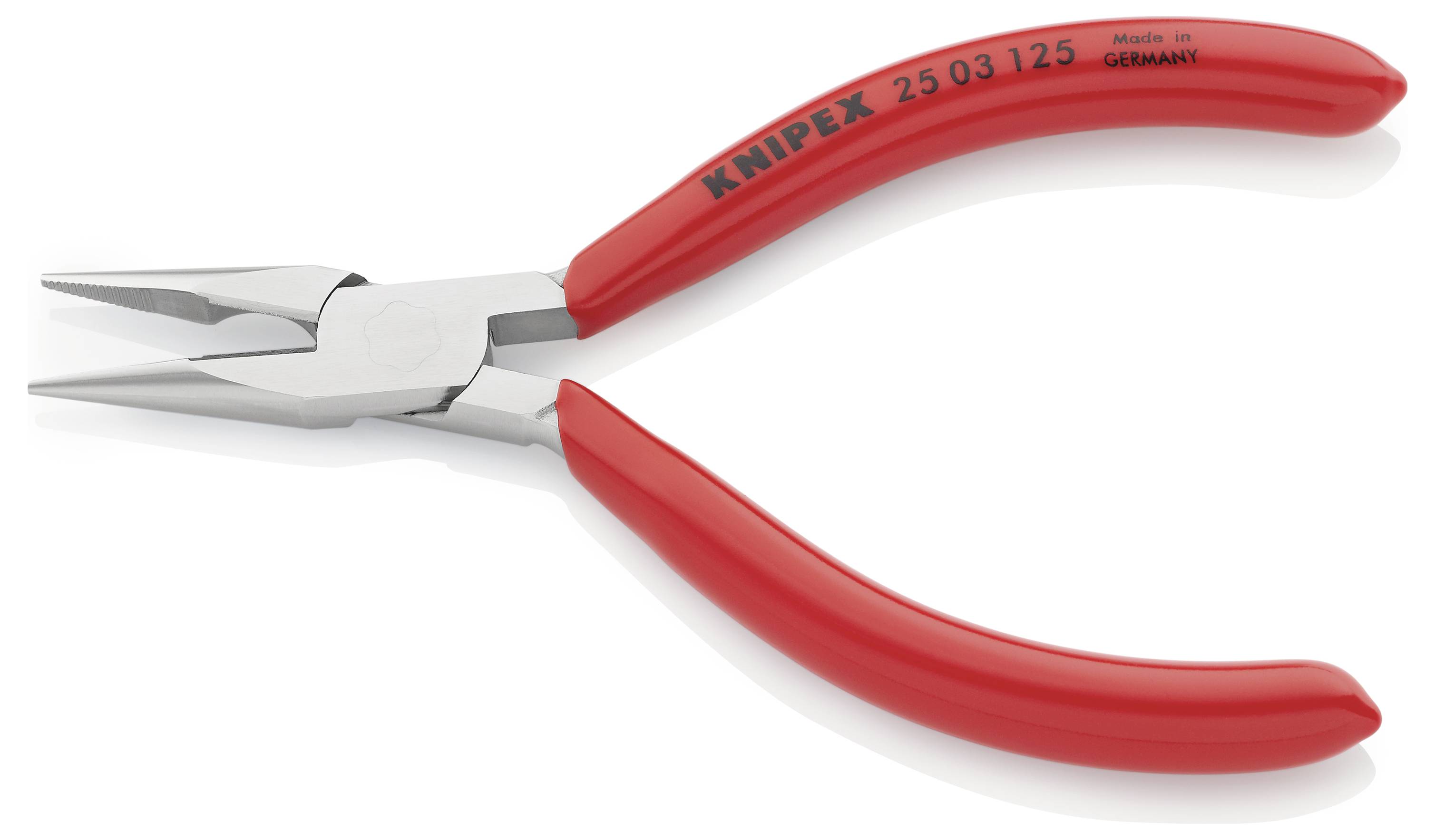

Knipex 25 03 125 needle-nose pliers with cutter (radio pliers) and plastic coated, chrome-plated 125 mm
Technical specifications
- Product type
Round nose pliers
- Manufacturer part #
25 03 125
- Length
125 mm
- Jaw length
27 mm
- Jaw width
13 mm
- Jaw tip thickness
2.5 mm
- Wire hardness (max.) medium wire
2.2 mm
- Wire hardness (max.) hard wire
1.6 mm
- DIN standard
DIN ISO 5745
- Dim
(L x W x H) 125 x 54 x 12 mm
- Width
54 mm
- Height
12 mm
- Weight
72 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3406164 Knipex 25 03 125 Round nose pliers 125 mm
User & Safety Instructions
User & Safety Instructions 3406164 Knipex 25 03 125 Round nose pliers 125 mm
Description
25 03 125 needle-nose pliers with cutting edge, flat-round, long, tapered jaws. Suitable for fine gripping and cutting work, also in places that are difficult to reach. Serrated gripping surfaces. With cutting edges for soft, medium and hard wire. Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC. Straight jaws. - Wire values medium-hard wire (diameter): Ø 2.2mm - Wire hardness of hard wire (diameter): Ø 1.6mm - Jaw thickness (at joint) (T1): 7.0mm - Tip width (W4): 2.5mm - Peak thickness (T2): 1.8mm - Jaw length (L3): 27.0mm - Head width (W3): 13mm
