Buy Knipex 25 05 140 Electrical & precision engineering Round nose pliers Straight Vanadium electric furnace steel 140 mm

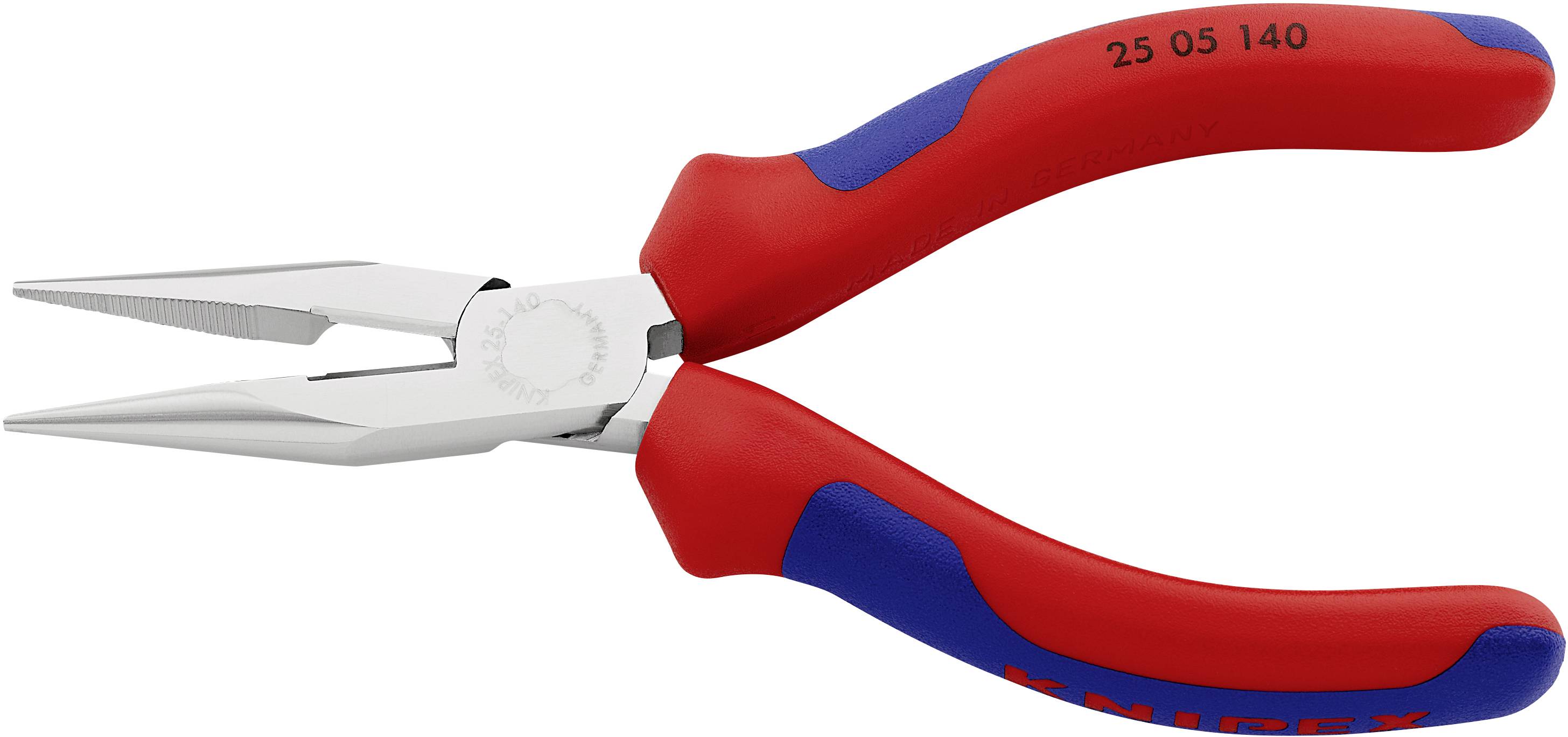

The image shows a long red pliers with blue handles, suitable for precise gripping and cutting.

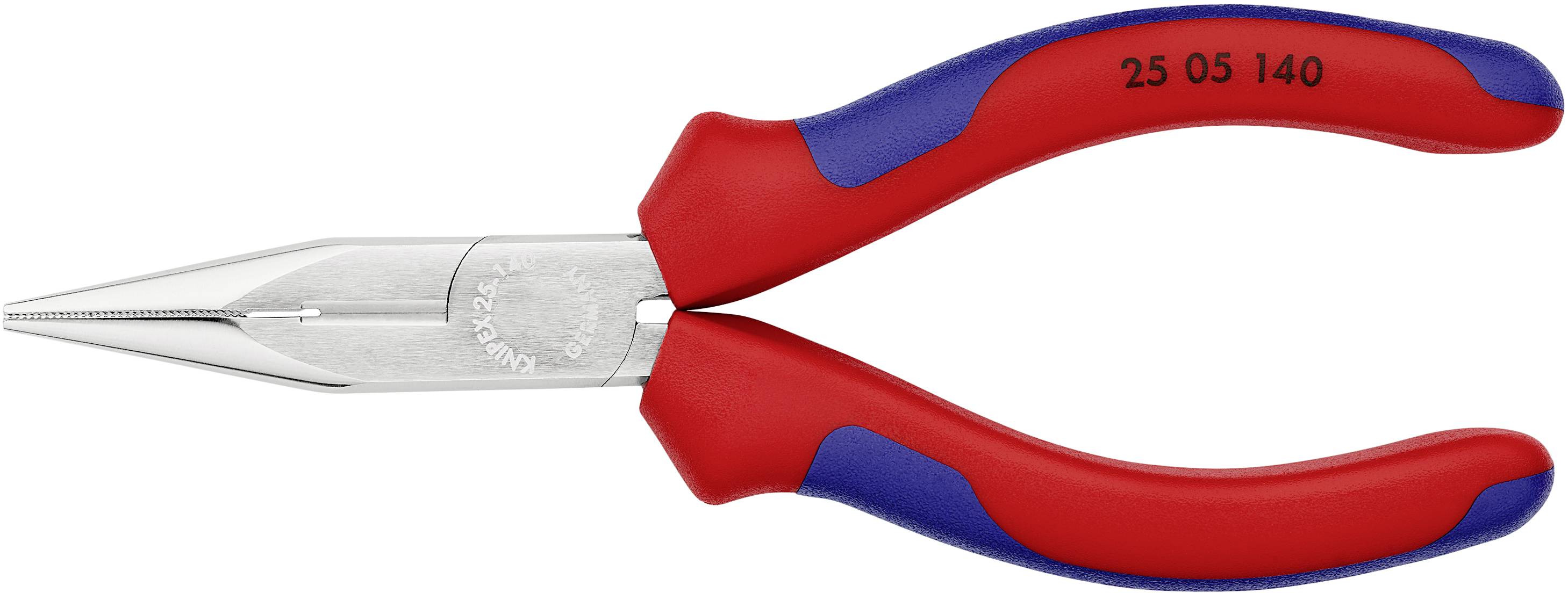

'Long pointed pliers with red and blue handle, 25 05 140, suitable for precise gripping and cutting of wires.'

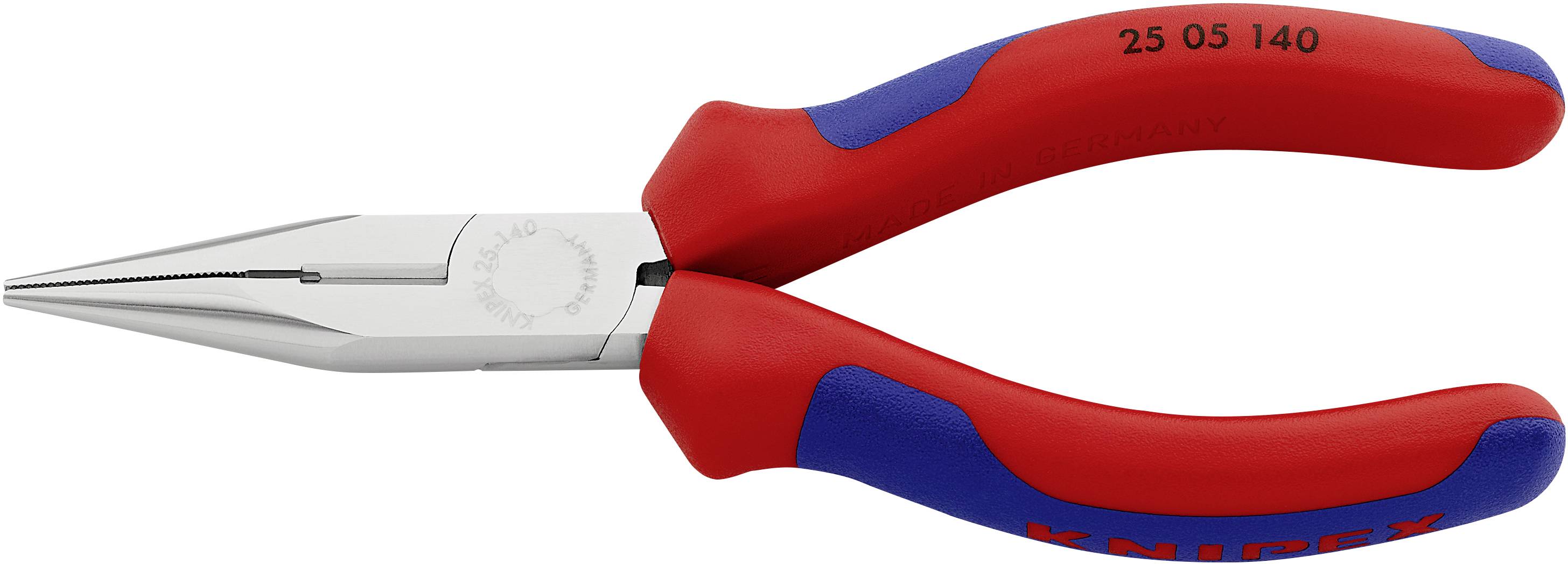

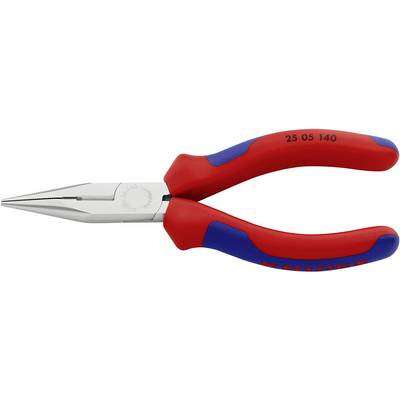

A red and blue combination pliers made of metal with the inscription '25 05 140'.

1/3

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

26 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 20.16 / piece)

€ 20.16

plus VAT.

14-day return policy included

Report legal concerns

Needle nose pliers with cutting edge (radio pliers)

Highlights & Details

Suitable for finer gripping and cutting work
Pointed, half-round jaws
Knurled gripping surfaces
With cutting edges for soft, medium-hard and hard wire
Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC
Vanadium electric steel; forged, oil-hardened
Chrome plated pliers
Multicomponent grips handles
DIN ISO 5745

Technical specifications

Cutting capacity: Medium-hard wire 2.50 mm diameter
Cutting value for hard wire 1.60 mm dia.
L3 42.00 mm
T1 8.00 mm
W3 15.00 mm
W4 2.50 mm
T2 2.00 mm

Product type: Round nose pliers

Manufacturer part #: 25 05 140

Range of use: Electrical & precision engineering

Length: 140 mm

Jaw shape: Straight

Edge hardness: 61 HRC

Wire hardness (max.) medium wire: 2.5 mm

Wire hardness (max.) hard wire: 1.6 mm

Material: Vanadium electric furnace steel

Material properties: tempered
polishing

DIN standard: DIN ISO 5745

Dim: (L x W x H) 140 x 55 x 17 mm

Width: 55 mm

Height: 17 mm

Weight: 111 g

Type: 25 05 140

Standards: DIN ISO 5745

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 822094 Knipex 25 05 140 Electrical & precision engineering Round nose pliers Straight Vanadium electric furnace steel 140 mm

User & Safety Instructions

User & Safety Instructions 822094 Knipex 25 05 140 Electrical & precision engineering Round nose pliers Straight Vanadium electric furnace steel 140 mm

Description

Vanadium electric steel, forged, oil-hardened, chrome plated pliers, handles with multi-component sleeves
Style 0: Straight jaws

Features

Pointed, flat-round jaws
Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC
Serrated gripping surfaces
Suitable for gripping and cutting work in fine mechanics.
With cutting edges for medium-hard and hard wire
