Knipex 26 13 200 Round nose pliers 200 mm
EAN:
Part number:
Item no:
Datasheet (PDF)

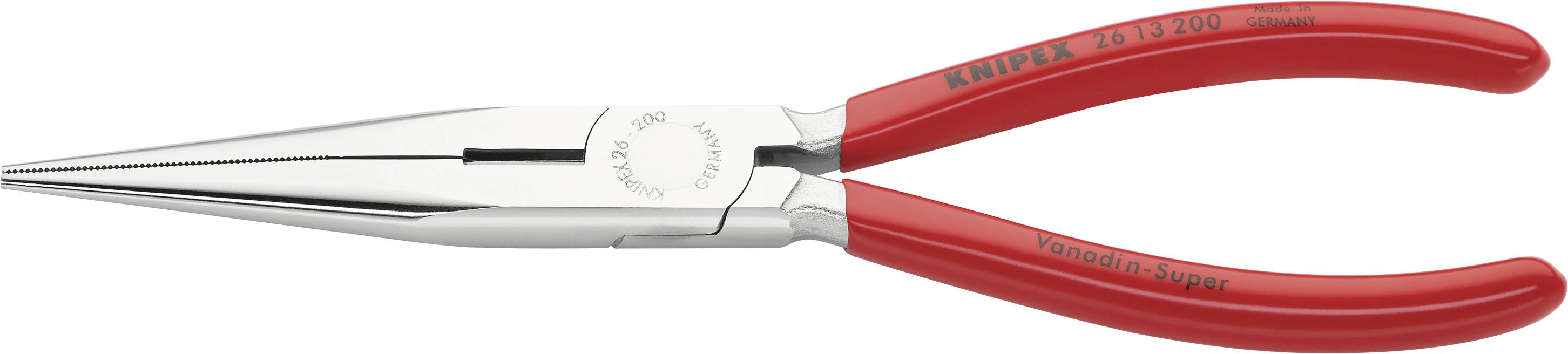

Knipex 26 13 200 needle-nose pliers with cutter (needle nose pliers) and plastic coated, chrome-plated, 200 mm
Technical specifications
- Product type
Round nose pliers
- Manufacturer part #
26 13 200
- Length
200 mm
- Jaw length
73 mm
- Jaw width
9.5 mm
- Jaw tip thickness
3 mm
- Wire hardness (max.) medium wire
3.2 mm
- Wire hardness (max.) hard wire
2.2 mm
- Dim
(L x W x H) 200 x 52 x 14 mm
- Width
52 mm
- Height
14 mm
- Weight
169 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3406165 Knipex 26 13 200 Round nose pliers 200 mm
User & Safety Instructions
User & Safety Instructions 3406165 Knipex 26 13 200 Round nose pliers 200 mm
Description

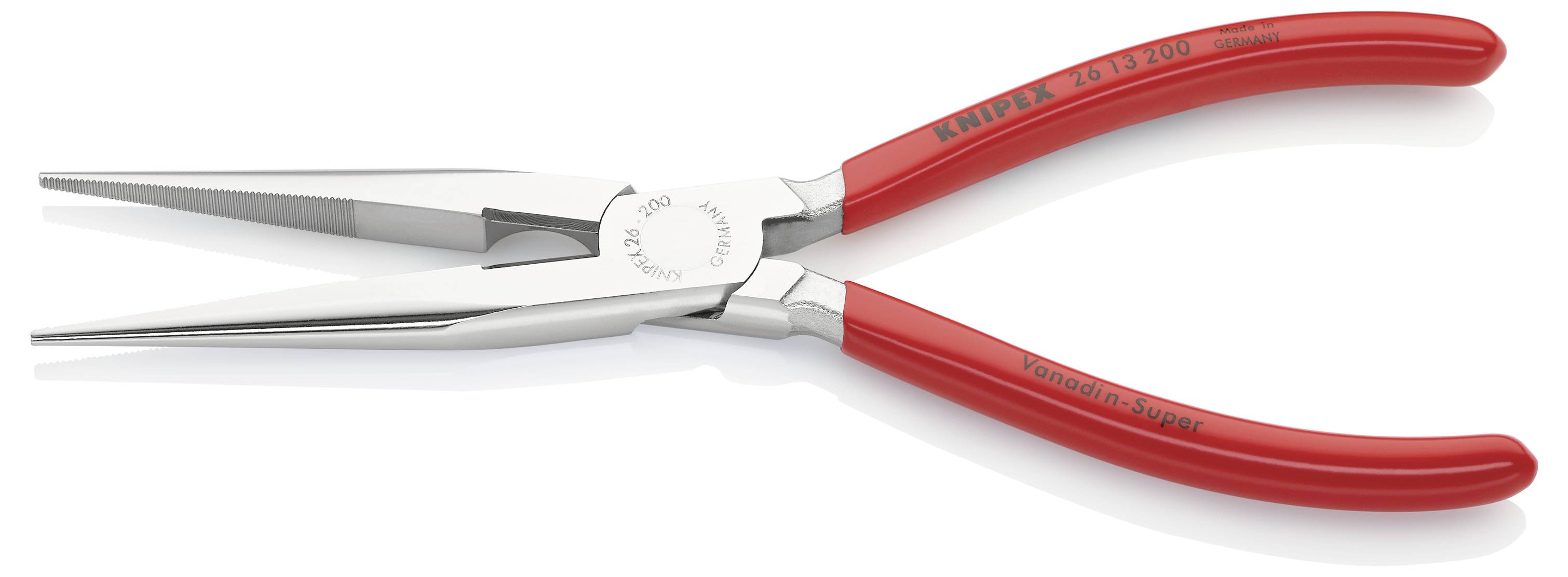

26 13 200 needle-nose pliers with cutting edge, flat-round, long, tapered jaws. Distortion-tolerant, elastic precision tips. Suitable for fine gripping and cutting work, also in places that are difficult to reach. With cutting edges for soft, medium and hard wire. Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC. Straight jaws. - Wire hardness medium hard wire (diameter): Ø 3.2mm - Wire hardness hard wire (diameter): Ø 2.2mm - Jaw thickness (at joint) (T1): 9.5mm - Tip width (W4): 3.0mm - Peak thickness (T2): 2.5mm - Jaw length (L3): 73.0mm - Head width (W3): 18mm
