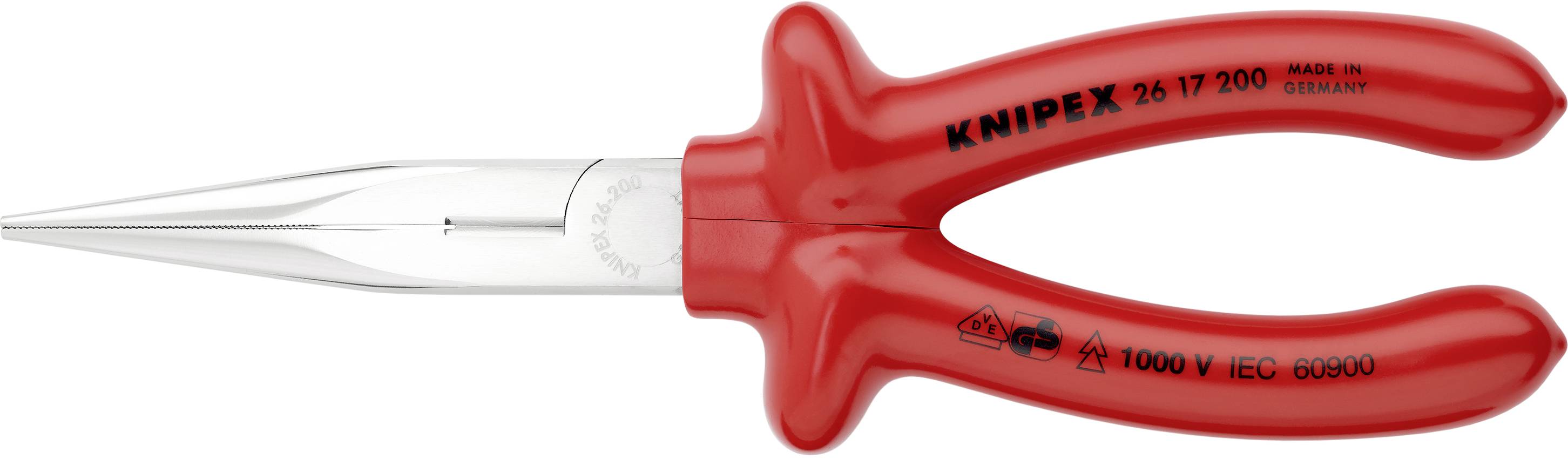

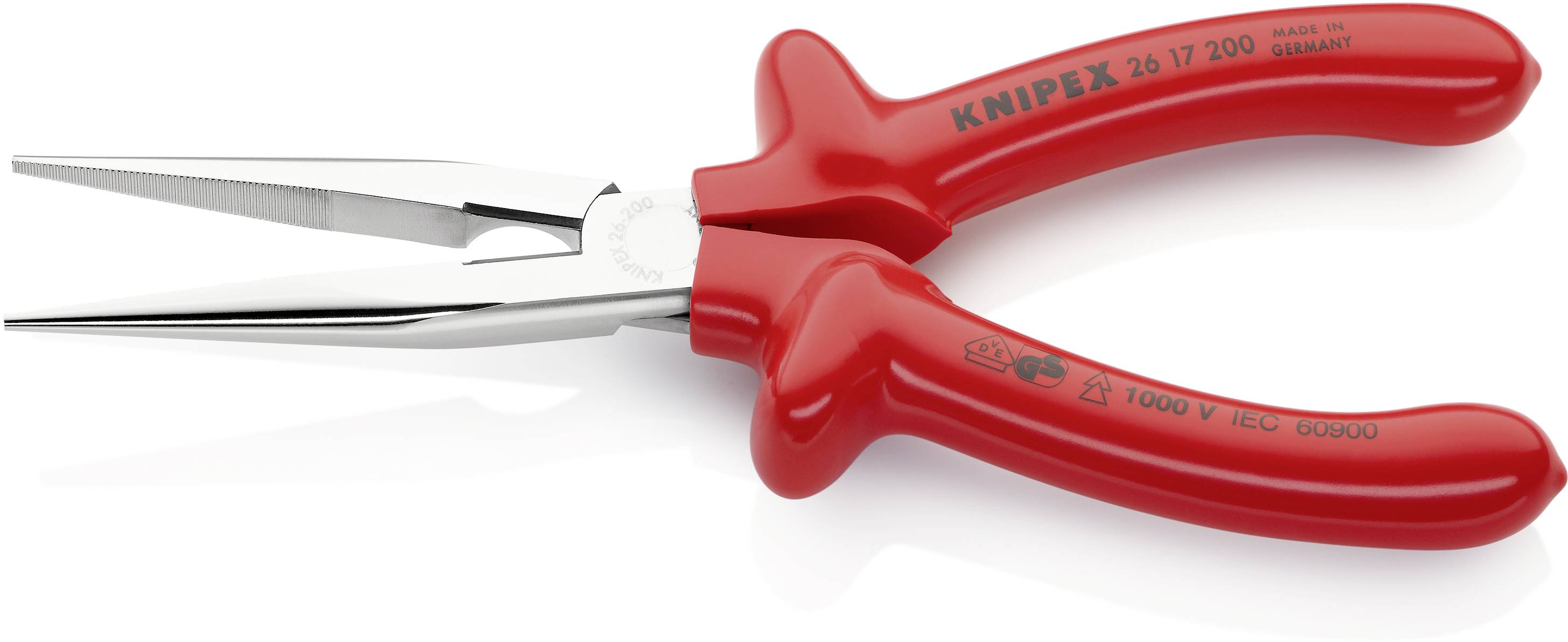

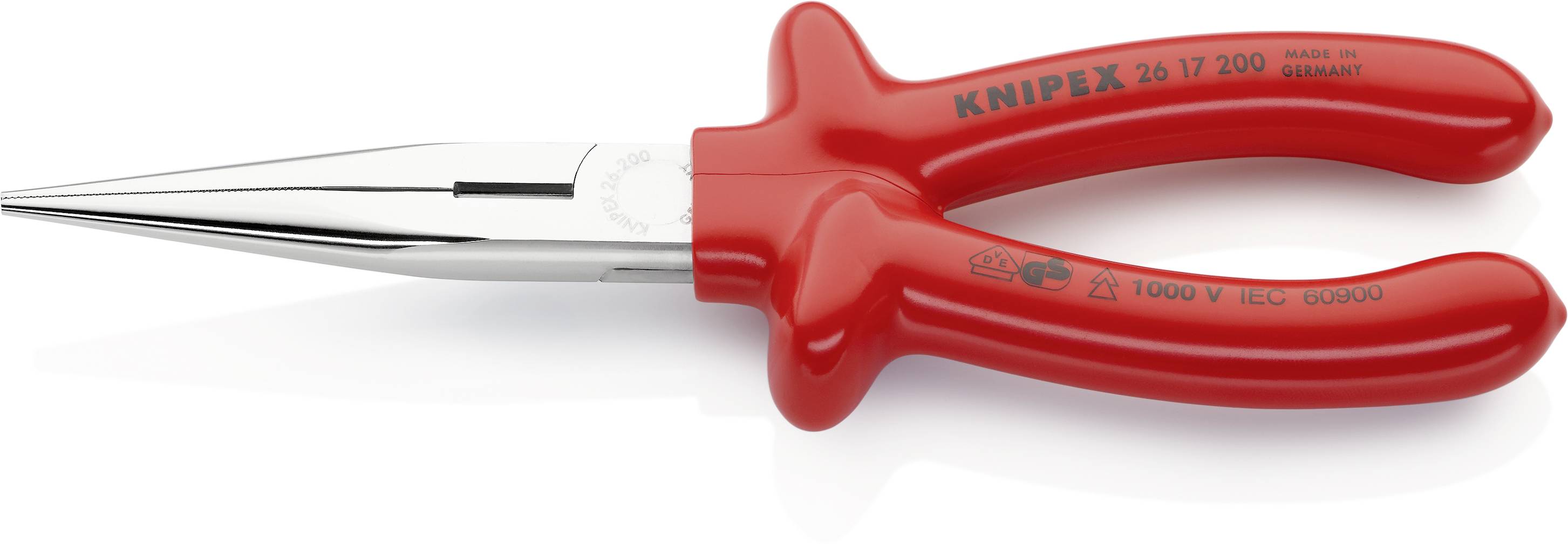

Knipex 26 17 200 VDE Round nose pliers Straight Vanadium electric furnace steel 200 mm
EAN:
Part number:
Item no:
Number
Total (€ 31.08 / piece)
€ 31.08
plus VAT.
Only 10 Piece(s) available
Needle nose pliers with cutting edge
Highlights & Details
- High loadable, elastic precision points
- Half-round, long jaws
- Serrated gripping surfaces
- With cutting edges for medium hard wire max. dia. 3.2 mm and hard wire max. dia. 2.2 mm
- Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC
- Vanadium electric steel; forged, oil-hardened
- Chrome plated pliers
- Dipped insulation, VDE-tested handles
- DIN ISO, 5745 IEC 60900, DIN EN 60900
Technical specifications
- Cutting capacity medium-hard wire diameter 3.20 mm
- Cutting value for hard wire 2.20 mm dia.
- L3 73.00 mm
- T1 9.50 mm
- W3 17.50 mm
- W4 3.00 mm
- T2 2.50mm
- Product type
Round nose pliers
- Manufacturer part #
26 17 200
- Range of use
VDE
- Length
200 mm
- Jaw shape
Straight
- Edge hardness
61 HRC
- Wire hardness (max.) medium wire
3.2 mm
- Wire hardness (max.) hard wire
2.2 mm
- Material
Vanadium electric furnace steel
- Material properties
tempered
chrome plated
- DIN standard
DIN ISO 5745
DIN EN 60900
- Dim
(L x W) 200 mm x 60 mm
- Width
60 mm
- Weight
212 g
- EN standard
EN 60900
- Type
26 17 200
- Standards
DIN ISO 5745
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822100 Knipex 26 17 200 VDE Round nose pliers Straight Vanadium electric furnace steel 200 mm
Description
Chrome-vanadium electric steel, forged, oil-hardened, chrome-plated pliers, handles insulated, VDE-tested
Style: Straight jaws
Style: Straight jaws
Features
- Highly resilient, elastic precision tips
- Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC
- With cutting edges for medium-hard wire diameter 3.2 mm and hard wire diameter 2.2 mm
- Serrated gripping surfaces
- Flat-round, long jaws
