Knipex 36 32 125 PCB assembly pliers 125 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Only 10 Piece(s) available
Electronic assembly pliers
Highlights & Details

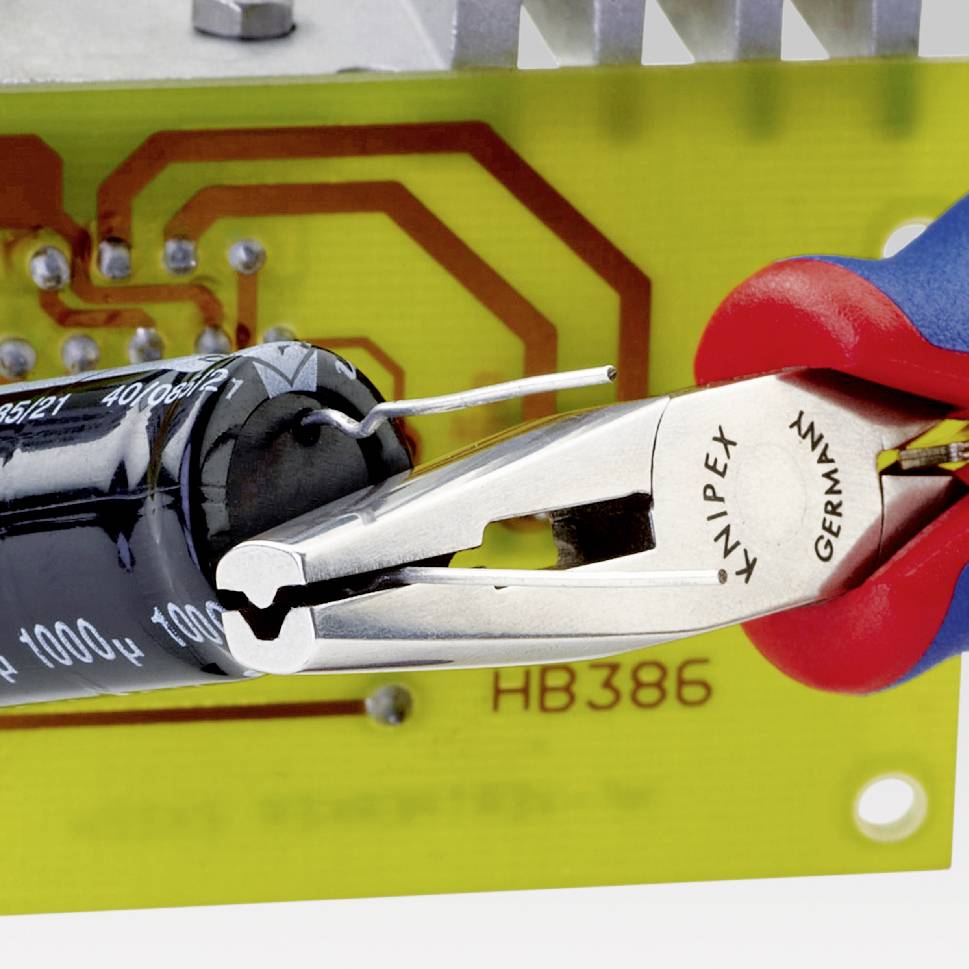

- Precision pliers for very fine assembly and repair work in electronics
- For bending and cutting off wire ends on components
- Sturdy, zero backlash box joint
- Smooth ground gripping surfaces
- Edges carefully deburred
- Low-friction double spring for gentle and even opening
- The mirror polish together with a fine film of oil offer effective rust protection – no circuit faults caused by peeling chrome from plated tools
- High-grade special tool steel, forged, oil-hardened
- Mirror polished head
- Multi-component grips handles
- DIN ISO 5743
Technical specifications
- Cutting value for soft wire 1.00 mm dia.
- L3 18.00 mm
- T1 7.50 mm
- T2 4.00 mm
- W 11.50 mm
- W1 7.50 mm
- Product type
PCB assembly pliers
- Length
125 mm
- Wire hardness (max.) soft wire
1 mm
- Material
Tool steel
- Material properties
tempered
polishing
- DIN standard
DIN ISO 5743
- Weight
108 g
- Range of use
Electrical & precision engineering
- Type
36 32 125
- Standards
DIN ISO 5743
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822144 Knipex 36 32 125 PCB assembly pliers 125 mm 1 pc(s)
Description
For crimping and shortening underneath the PCB to a length of 1.6 mm precision pliers for very fine assembly and repair work in electronics. For bending and cutting wire ends of components. Precision box joint hinge Smooth ground gripping surfaces Carefully deburred edges Low-friction dual spring for gentle and even opening The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts Special tool steel in special quality, forged, oil-hardened
This text is machine translated.
This text is machine translated.
Features
- Low-friction double spring for gentle and even opening
- Precision pliers for ultra-fine installation work e.g. in electronics and precision mechanics
- Together with a fine layer of oil, the mirror polishing provides excellent protection against rust – no flaking chrome parts causing faults in the circuit
- For crimping and shortening underneath the PCB to a length of 1.6 mm
- Smooth-ground gripping surfaces
- For bending and cutting wire ends.
- Inserted precision joint
- Carefully deburred edges
