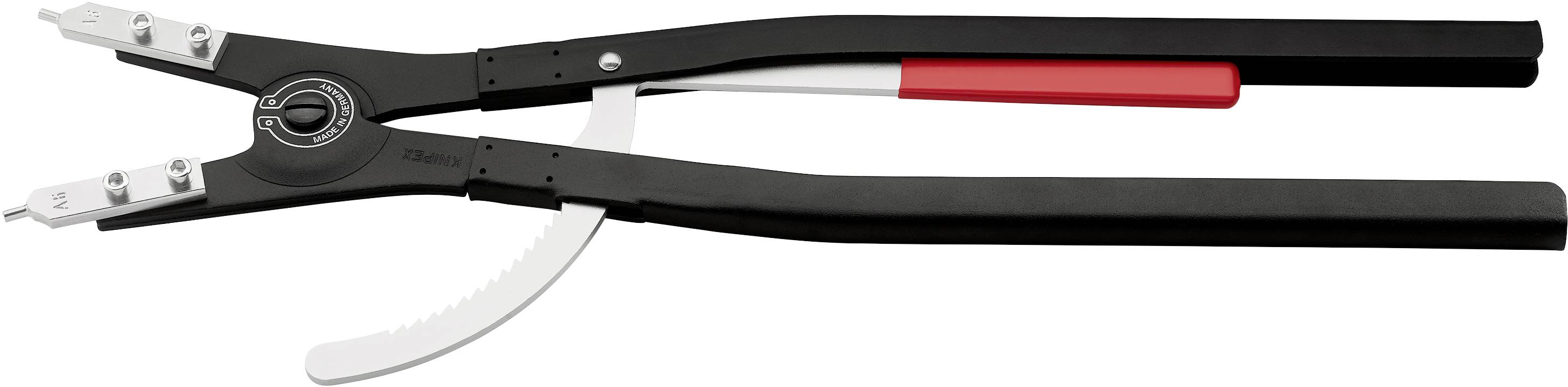

Knipex 46 10 A6 Circlip pliers Suitable for Outer rings 252-400 mm Tip shape (details) Straight
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Tips 4.5 mm dia.
- Product type
Circlip pliers
- Manufacturer part #
46 10 A6
- Suitable for
Outer rings
- Suitable for shaft diameters of
252-400 mm
- Length
570 mm
- Material
Rolled steel
- Material properties
tempered
- DIN standard
DIN 5254-A
- Dim
(L x W) 570 mm x 149 mm
- Weight
1795 g
- Tip shape
Straight
- Width
149 mm
- Material (details)
Tips: Special tool steel, milled, oil-hardened
- Type
46 10 A6
- Shaft Ø
252 - 400 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822187 Knipex 46 10 A6 Circlip pliers Suitable for Outer rings 252-400 mm Tip shape (details) Straight
Description
With detachable locking mechanism. With Interchangeable Tips. Black powder coated. Pliers body: rolled steel, high-strength. Tips: special tool steel, oil-hardened.
This text is machine translated.
This text is machine translated.
Features
- Without opening spring
- With detachable locking mechanism
- Black powder coated
- For fitting circlips in holes of 3–400 mm in diameter
- Non-slip, stable tips
- With replaceable tips
- Solid design, forged
- For rings of 122–400 mm in diameter
