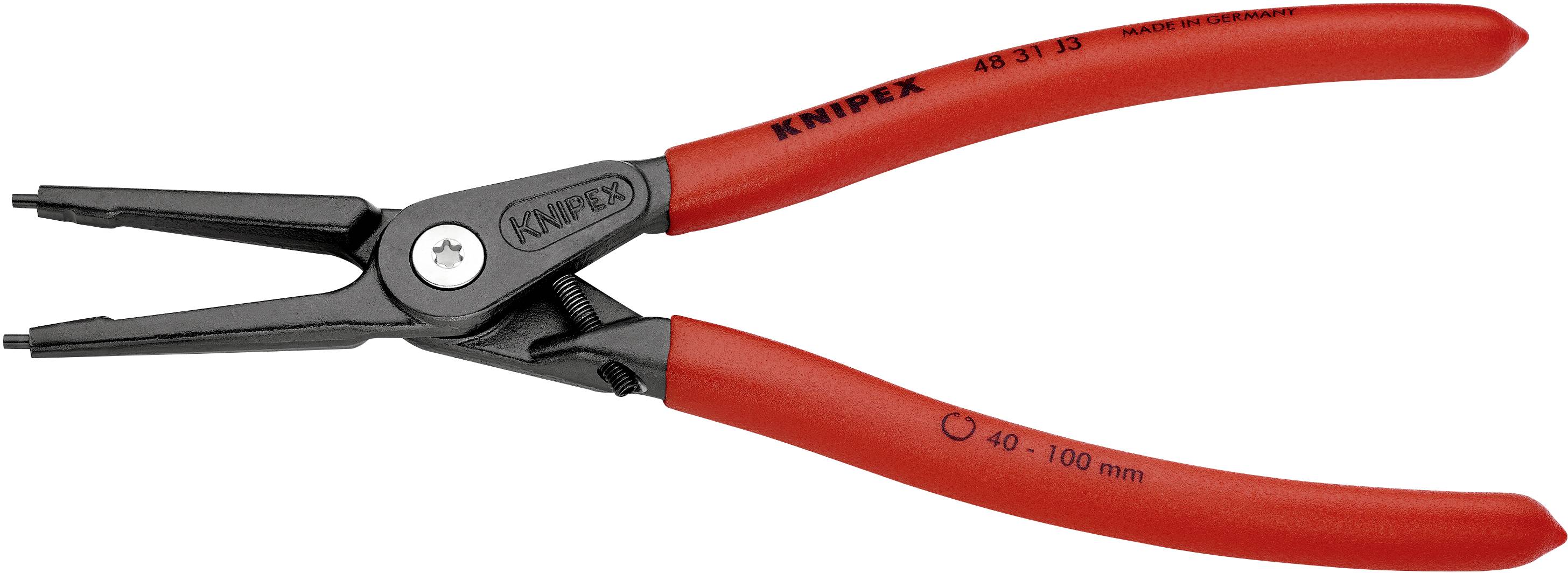

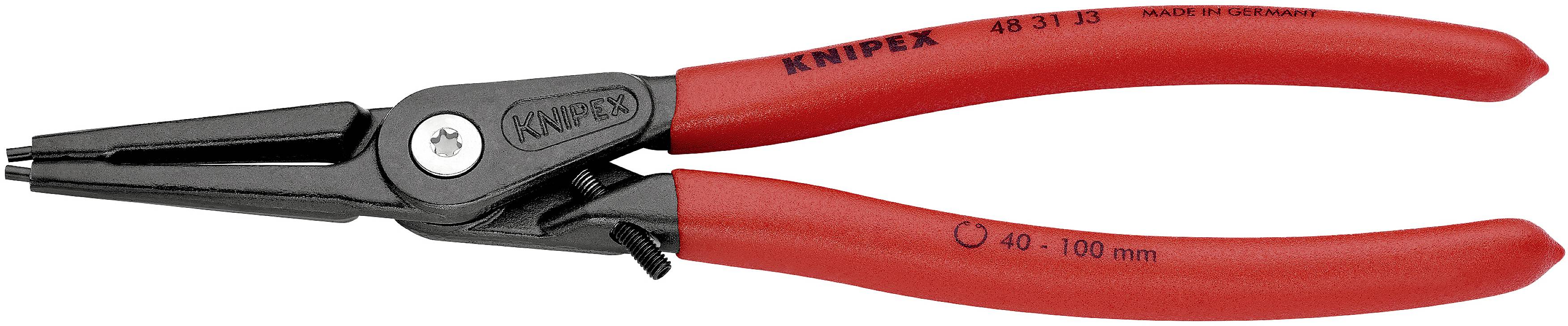

Knipex 48 31 J3 Circlip pliers Suitable for Inner rings 40-100 mm Tip shape (details) Straight
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Precision Circlip Pliers gray atramentized
- With adjusted peaks for safe working
- High load capacity in continuous use: up to 1-times longer service life compared to be turned tips
- Screwed joint: Precise, frictionless movement
- Non-slip plastic coating on the handles
- Pliers body: chrome-vanadium electric steel, forged, oil-hardened
Technical specifications
- Tips 2.3 mm dia.
- Product type
Circlip pliers
- Manufacturer part #
48 31 J3
- Suitable for
Inner rings
- Matching bore diameter
40-100 mm
- Length
225 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
tempered
- DIN standard
DIN 5256-C
- Dim
(L x W) 225 mm x 50 mm
- Weight
266 g
- Tip shape
Straight
- Width
50 mm
- Type
48 31 J3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1008216 Knipex 48 31 J3 Circlip pliers Suitable for Inner rings 40-100 mm Tip shape (details) Straight
Description
High load capacity in continuous use: up to 10-times longer service life compared to be turned tips. With adjusted peaks for a safe working. With overstretching protection (by stop adjustable). Setting with the help of hexagonal screw. Ideal for series production, since a overstretching of the rings take effect is avoided. High load capacity in continuous use, up to 10x higher service life Precise, easy-moving screw joint. Forged. Large surfaces of the tips: No twisting of the rings, easy installation Slim jaws for optimum access to the work-piece. Non-slip plastic handle covers. Tips: Spring steel wire, pulled. Pliers body: chrome-vanadium electric steel, forged, oil-hardened.
This text is machine translated.
This text is machine translated.
Features
- Pliers: gray atramentized; grips with slip-proof plastic coating
- high load capacity in continuous use: up to 10-times longer service life compared to be turned tips
- Screwed joint: Precise, frictionless movement
- Non-slip plastic coating on the handles
- Pliers body: chrome-vanadium electric steel, forged, oil-hardened
- Inserted Tips: Spring steel wire, drawn
- With closing limitation (by stop can be set)
- avoid overstretching small holes.
Hints
This text is machine translated.
