Buy Knipex 49 11 A1 Circlip pliers Suitable for Outer rings 10-25 mm Tip shape (details) Straight

A red Knipex circlip pliers with black gripping tips, suitable for handling circlips in the range of 10 to 25 mm.

The spanner is holding a hexagonal screw head, which is inserted into the bracket, ready to be tightened or loosened.

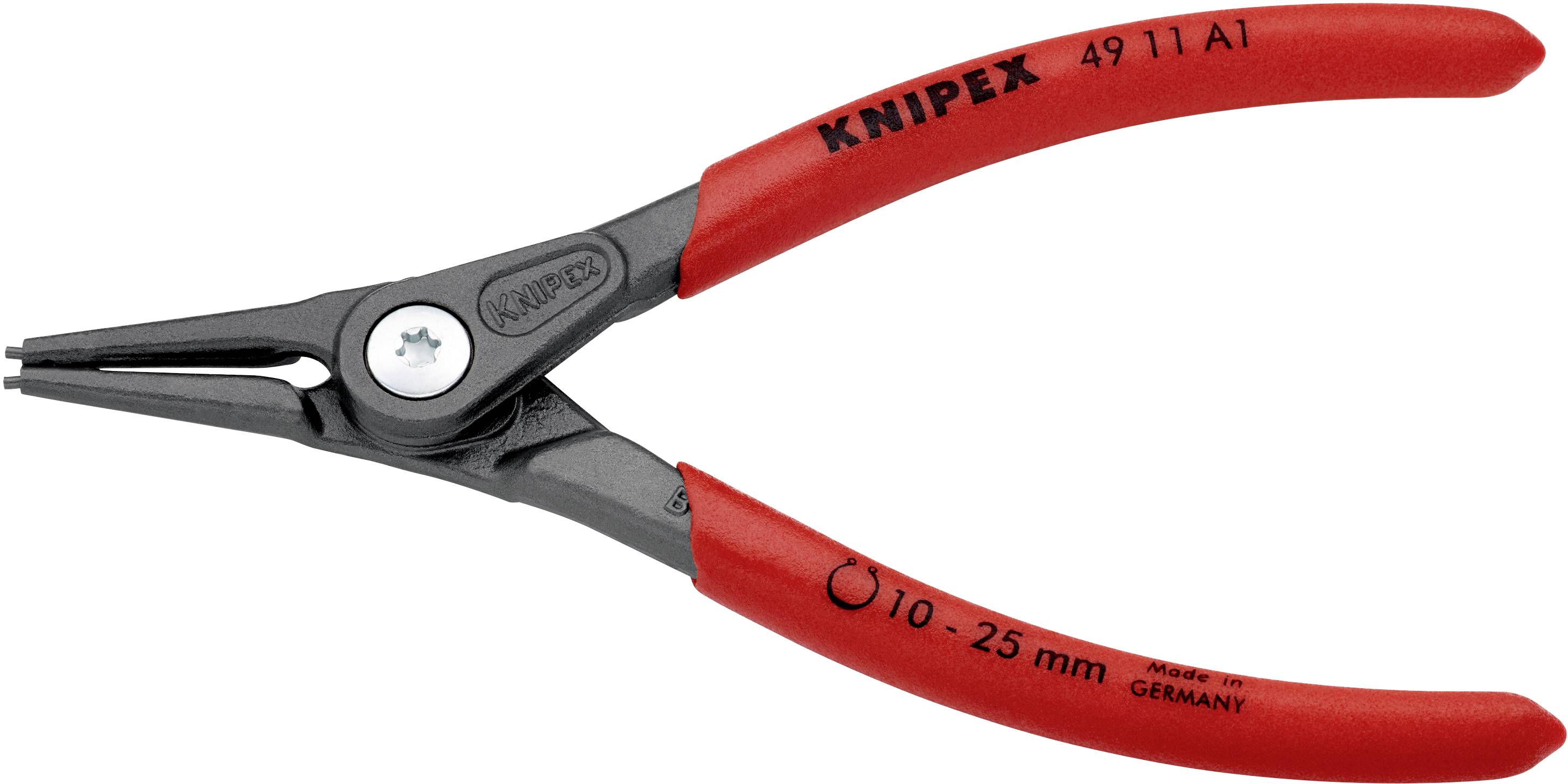

Red and black circlip pliers by Knipex, model number 4911A1, for internal retaining rings with a diameter of 10 to 25 mm.

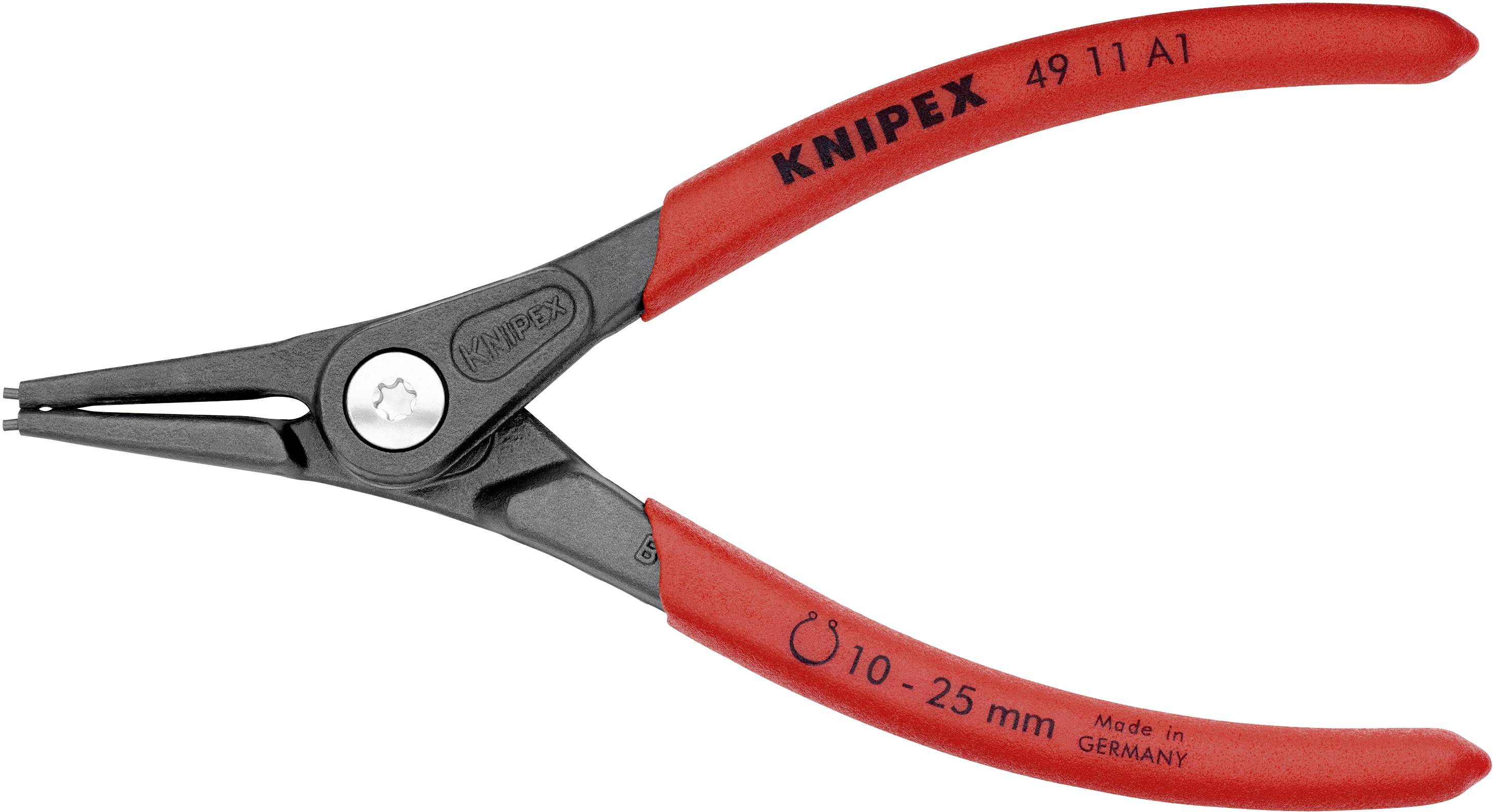

A red Knipex pliers, Model 49 11 A1, with a black central section, suitable for internal rings from 10 to 25 mm, manufactured in Germany.

1/4

Fast track dispatch on Mon, 5 Oct

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Precision Circlip pliers for outer rings (shafts) 49 11/49 21

With adjusted peaks for safe working
High load capacity in continuous use: up to 1-times longer service life compared to be turned tips
Large surfaces of the tips: No twisting of the rings, easy installation
Screwed joint: Precise, frictionless movement
Opening spring lying in the joint, secure and protected against loss;

Technical specifications

Tips 1.3 mm diameter; straight tips

Product type: Circlip pliers

Manufacturer part #: 49 11 A1

Suitable for: Outer rings

Suitable for shaft diameters of: 10-25 mm

Length: 140 mm

Material: Chromium-vanadium electric furnace steel

Material properties: tempered

DIN standard: DIN 5254-A

Dim: (L x W) 140 mm x 64 mm

Weight: 100 g

Tip shape: Straight

Width: 64 mm

Type: 49 11 A1

Shaft Ø: 10 - 25 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 814126 Knipex 49 11 A1 Circlip pliers Suitable for Outer rings 10-25 mm Tip shape (details) Straight

Description

High load capacity in continuous use: up to 10-times longer service life compared to be turned tips. With adjusted peaks for a safe working. High load capacity in continuous use, up to 10x higher service life Precise, easy-moving screw joint. Forged. Large surfaces of the tips: No twisting of the rings, easy installation Slim jaws for optimum access to the work-piece. Opening spring lying in the joint, secure and protected against loss; Non-slip plastic handle covers. Tips: Spring steel wire, pulled. Pliers body: chrome-vanadium electric steel, forged, oil-hardened.

This text is machine translated.
