Buy Knipex 49 11 A2 Circlip pliers Suitable for Outer rings 19-60 mm Tip shape (details) Straight

Red and black circlip pliers by Knipex, Model 49 11 A2, for rings from 19 to 60 mm. Made in Germany.

Shows a spanner holding a nut. The focus is on the cutting edge and the precise tool function.

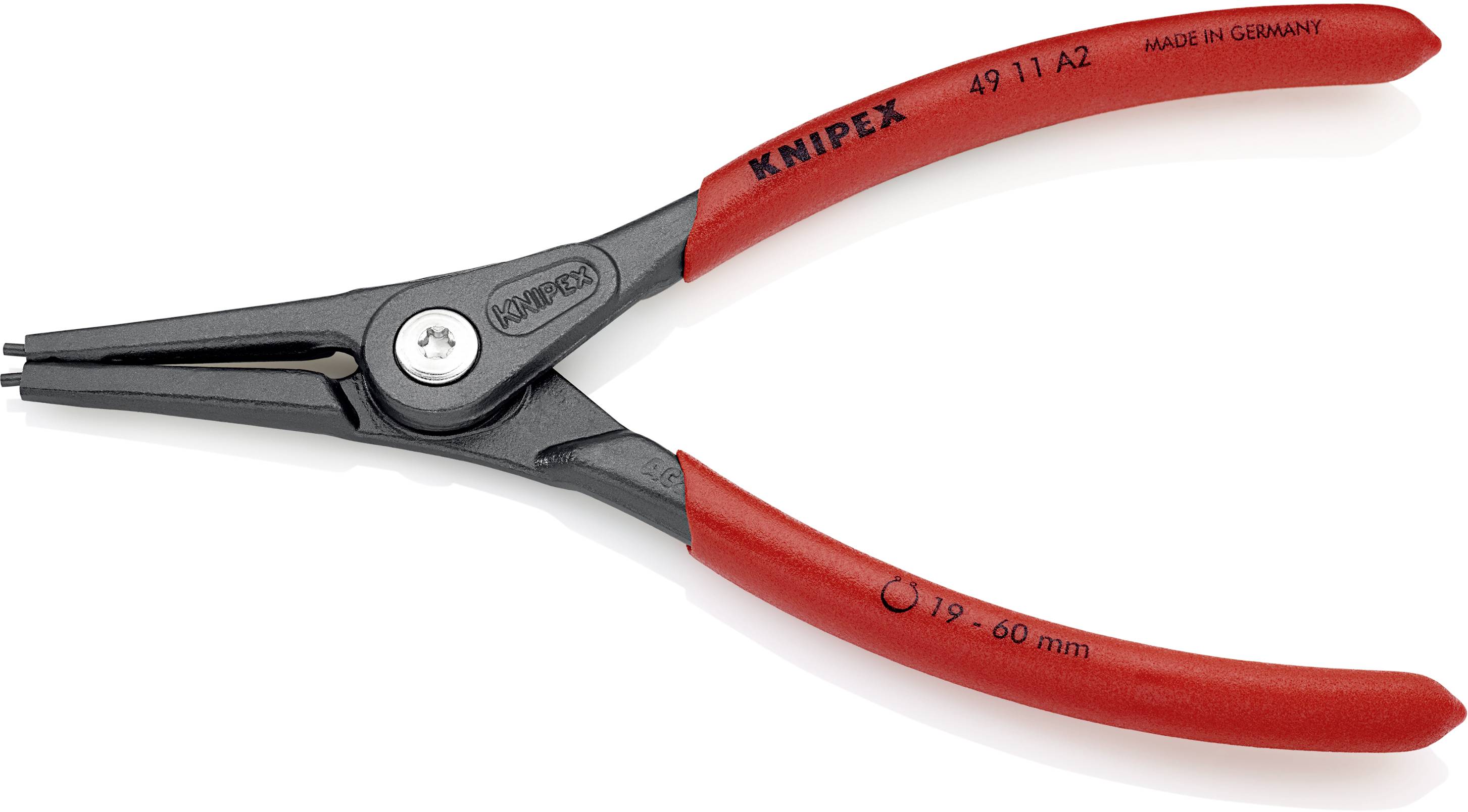

Red Knipex circlip pliers with curved head, suitable for 19-60 mm rings. Inscription '49 11 A2 MADE IN GERMANY'.

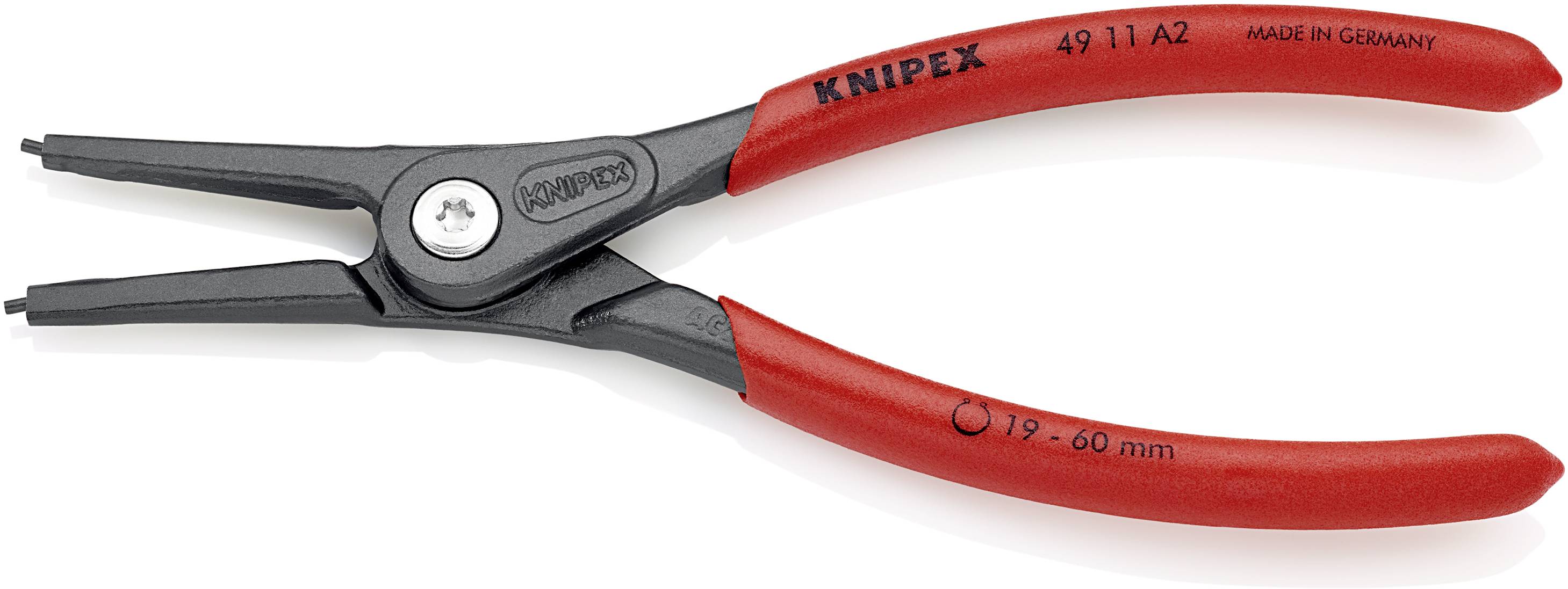

A red circlip pliers with a black head, suitable for internal retaining rings from 19 to 60 mm. Marked with 'KNIPEX' and 'Made in Germany'.

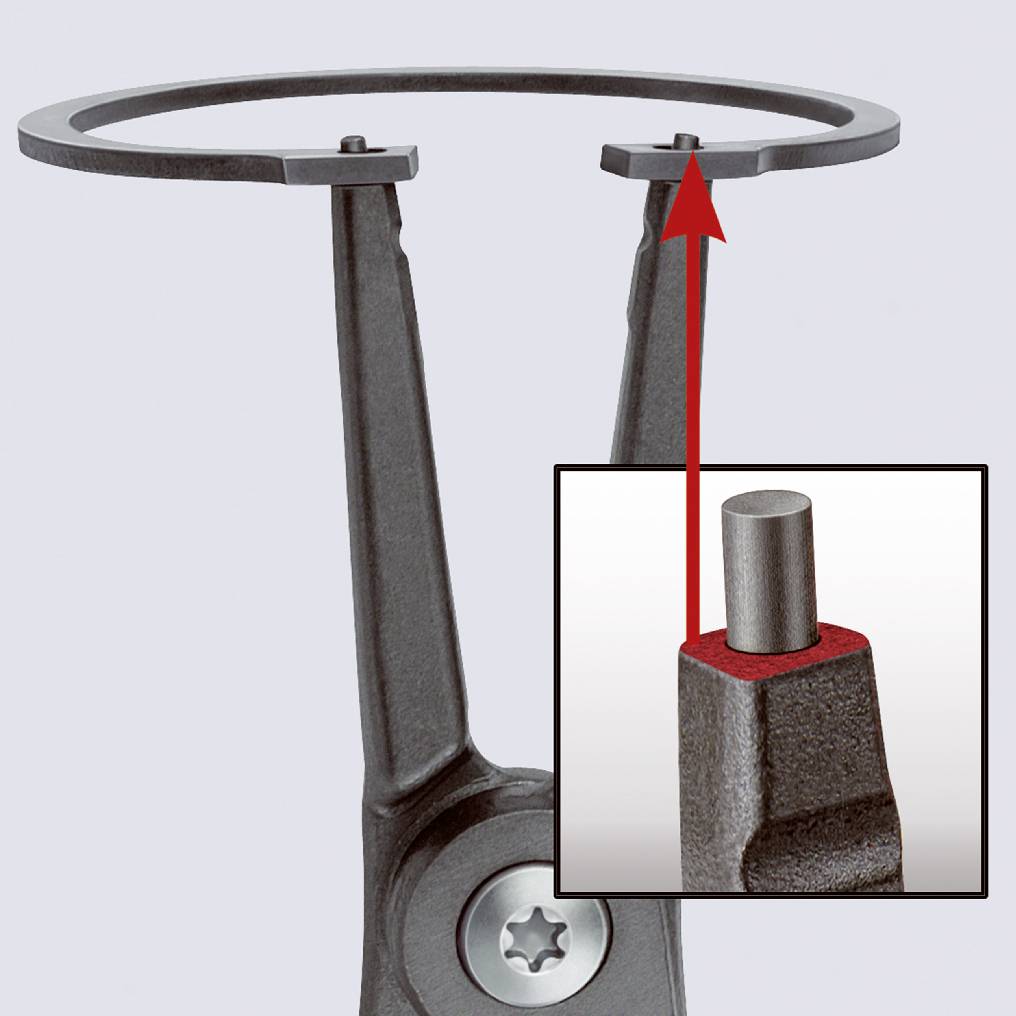

A metal stand with a round holder shows an arrow pointing to a detail of a bolt on the stand, visible in a close-up.

1/5

Fast track dispatch on Fri, 2 Oct

39 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 17.64 / piece)

€ 17.64

plus VAT.

14-day return policy included

Report legal concerns

Precision locking ring pliers for outer rings (shafts)

Highlights & Details

With adjusted peaks for safe working
High load capacity in continuous use: up to 1-times longer service life compared to be turned tips
Large surfaces of the tips: No twisting of the rings, easy installation
Screwed joint: Precise, frictionless movement
Opening spring lying in the joint, secure and protected against loss;

Technical specifications

Tips 1.8 mm dia. straight tips

Product type: Circlip pliers

Manufacturer part #: 49 11 A2

Suitable for: Outer rings

Suitable for shaft diameters of: 19-60 mm

Length: 180 mm

Material: Chromium-vanadium electric furnace steel

Material properties: tempered

DIN standard: DIN 5254-A

Dim: (L x W) 180 mm x 40 mm

Weight: 170 g

Tip shape: Straight

Width: 40 mm

Type: 49 11 A2

Shaft Ø: 19 - 60 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 814139 Knipex 49 11 A2 Circlip pliers Suitable for Outer rings 19-60 mm Tip shape (details) Straight

Description

High load capacity in continuous use: up to 10-times longer service life compared to be turned tips. With adjusted peaks for a safe working. High load capacity in continuous use, up to 10x higher service life Precise, easy-moving screw joint. Forged. Large surfaces of the tips: No twisting of the rings, easy installation Slim jaws for optimum access to the work-piece. Opening spring lying in the joint, secure and protected against loss; Non-slip plastic handle covers. Tips: Spring steel wire, pulled. Pliers body: chrome-vanadium electric steel, forged, oil-hardened.

This text is machine translated.
