Buy Knipex 49 11 A4 Circlip pliers Suitable for Outer rings 85-140 mm Tip shape (details) Straight

A red Knipex circlip pliers, with black gripping arms marked with '19-60 mm', positioned on a white background.

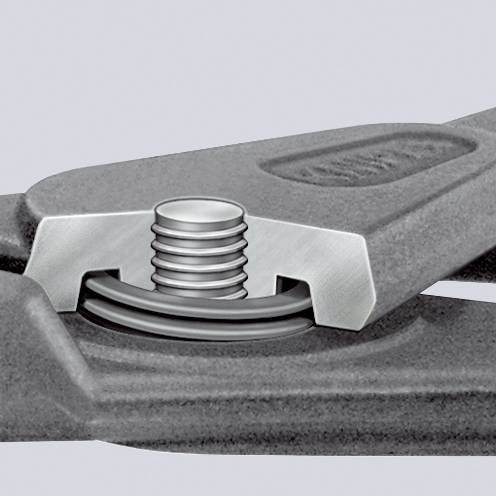

A screw is being turned in an adjustable spanner. The focus is on the turning mechanism of the pliers.

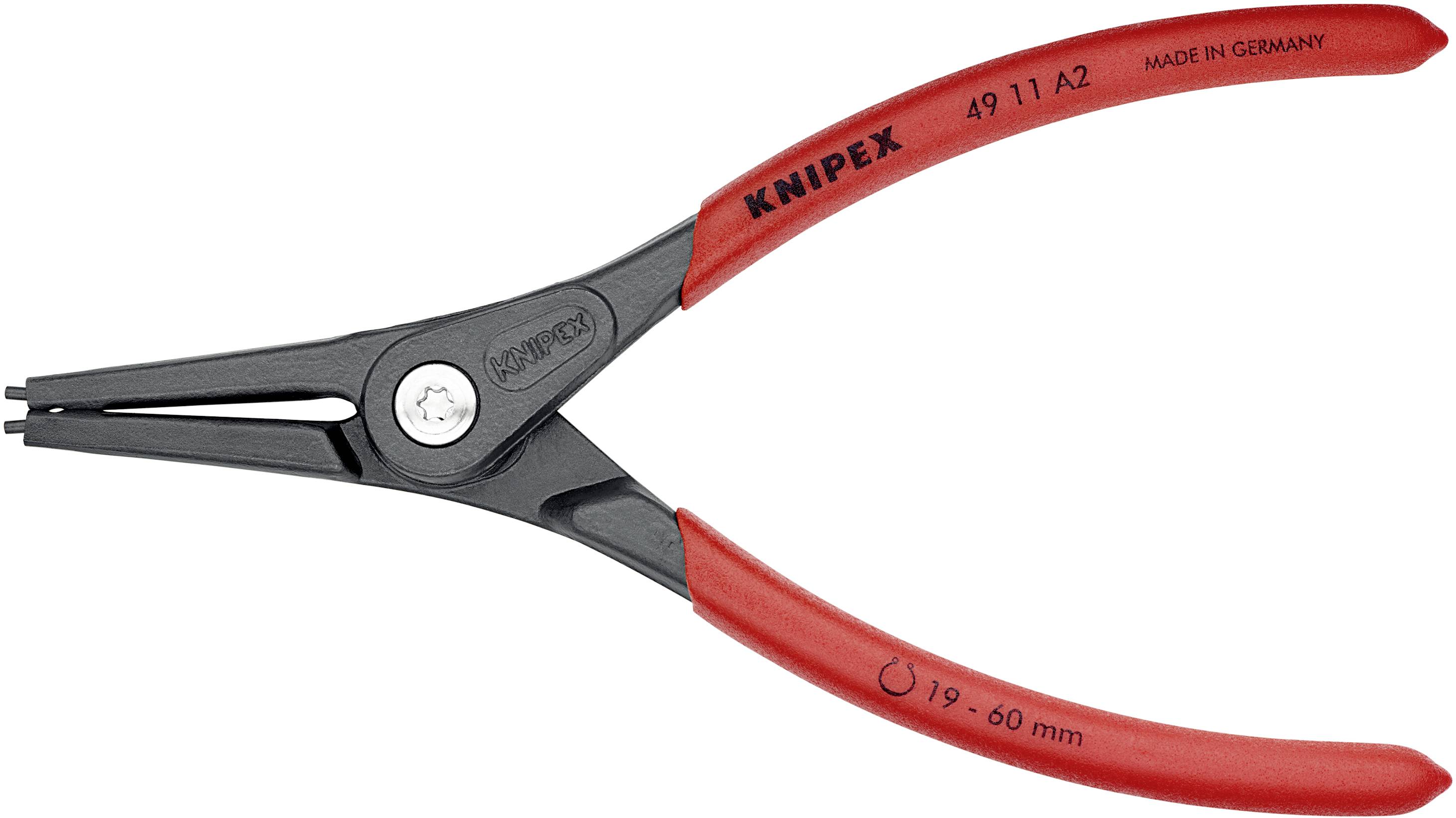

A red and black circlip pliers by Knipex, model 49 11 A2, suitable for retaining rings from 19 to 60 mm, "Made in Germany".

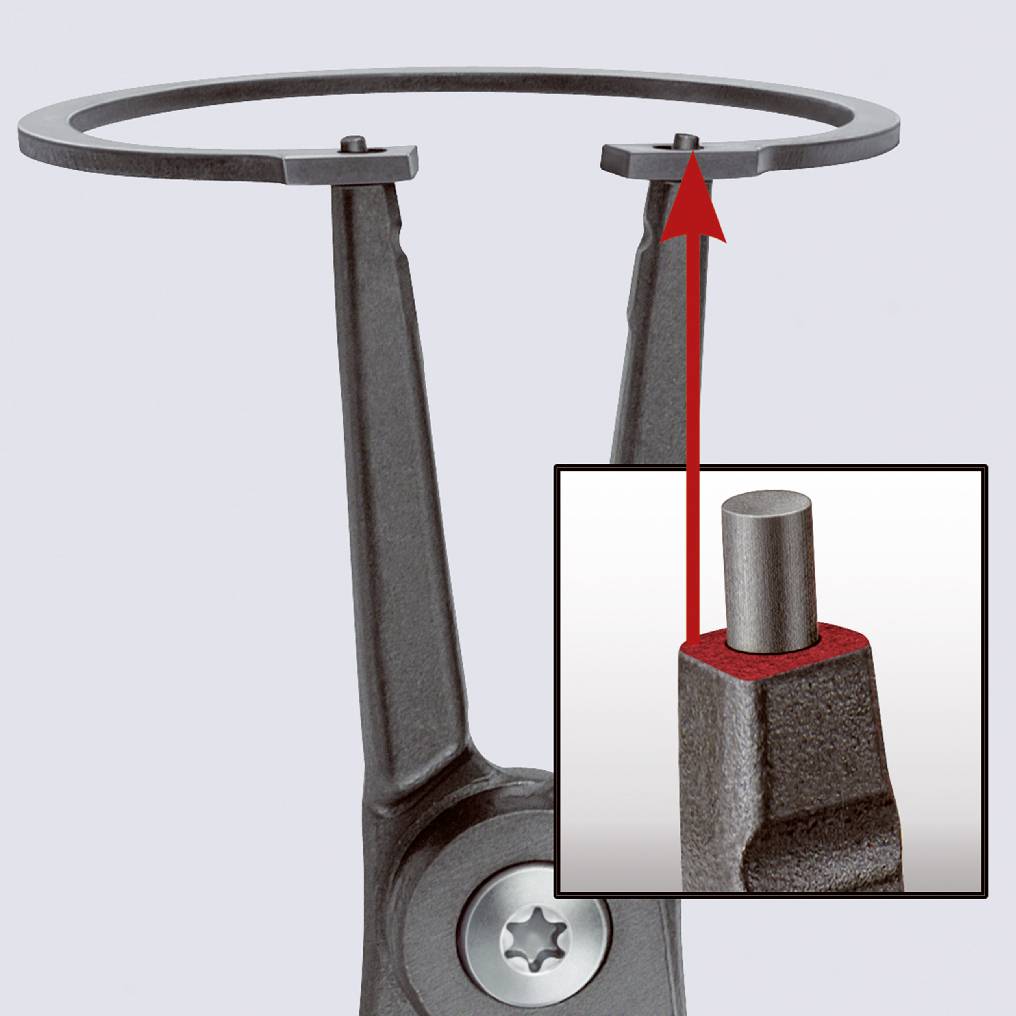

'Arrow points to small section of the metal structure, magnified in separate box on the right.'

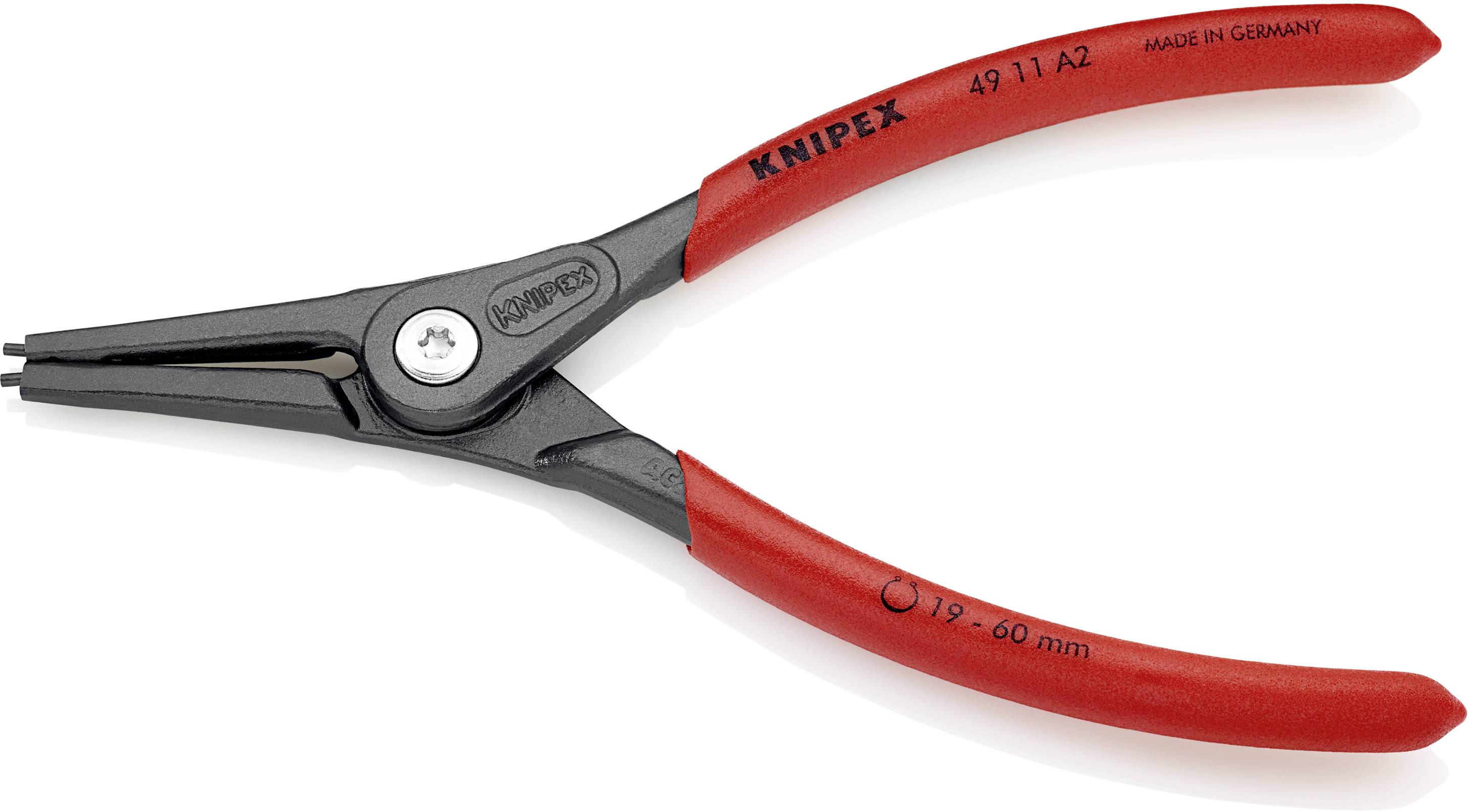

A red, black-grey pliers with the inscription 'KNIPEX, Made in Germany', suitable for workshop applications.

1/5

Dispatches on Wed, 7 Oct

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 32.76 / piece)

€ 32.76

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Precision Circlip pliers for outer rings (shafts) 49 11/49 21

With adjusted peaks for safe working
High load capacity in continuous use: up to 1-times longer service life compared to be turned tips
Large surfaces of the tips: No twisting of the rings, easy installation
Screwed joint: Precise, frictionless movement
Opening spring lying in the joint, secure and protected against loss;

Technical specifications

Tips 3.2 mm dia.

Product type: Circlip pliers

Manufacturer part #: 49 11 A4

Suitable for: Outer rings

Suitable for shaft diameters of: 85-140 mm

Length: 320 mm

Material: Chromium-vanadium electric furnace steel

Material properties: tempered

DIN standard: DIN 5254-A

Dim: (L x W) 320 mm x 137 mm

Weight: 600 g

Tip shape: Straight

Width: 137 mm

Type: 49 11 A4

Shaft Ø: 85 - 140 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 814166 Knipex 49 11 A4 Circlip pliers Suitable for Outer rings 85-140 mm Tip shape (details) Straight

Description

High load capacity in continuous use: up to 10-times longer service life compared to be turned tips. With adjusted peaks for a safe working. High load capacity in continuous use, up to 10x higher service life Precise, easy-moving screw joint. Forged. Large surfaces of the tips: No twisting of the rings, easy installation Slim jaws for optimum access to the work-piece. Opening spring lying in the joint, secure and protected against loss; Non-slip plastic handle covers. Tips: Spring steel wire, pulled. Pliers body: chrome-vanadium electric steel, forged, oil-hardened.

This text is machine translated.
