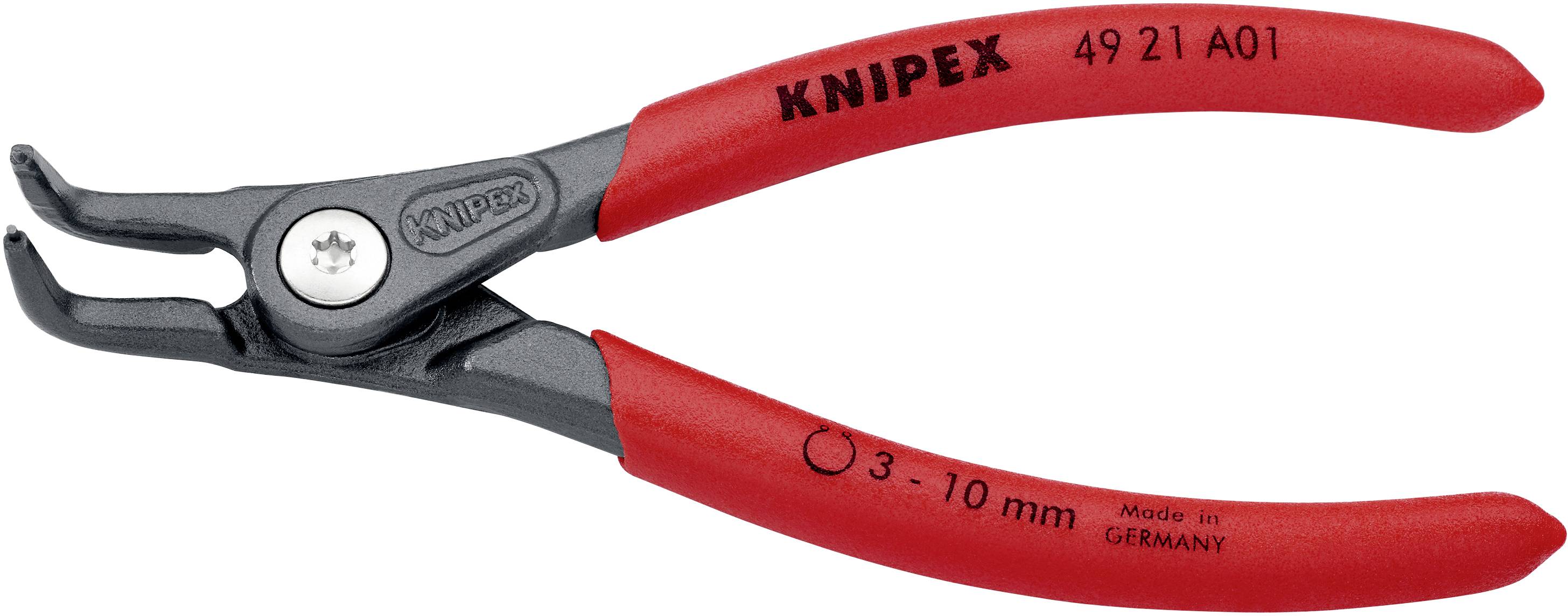

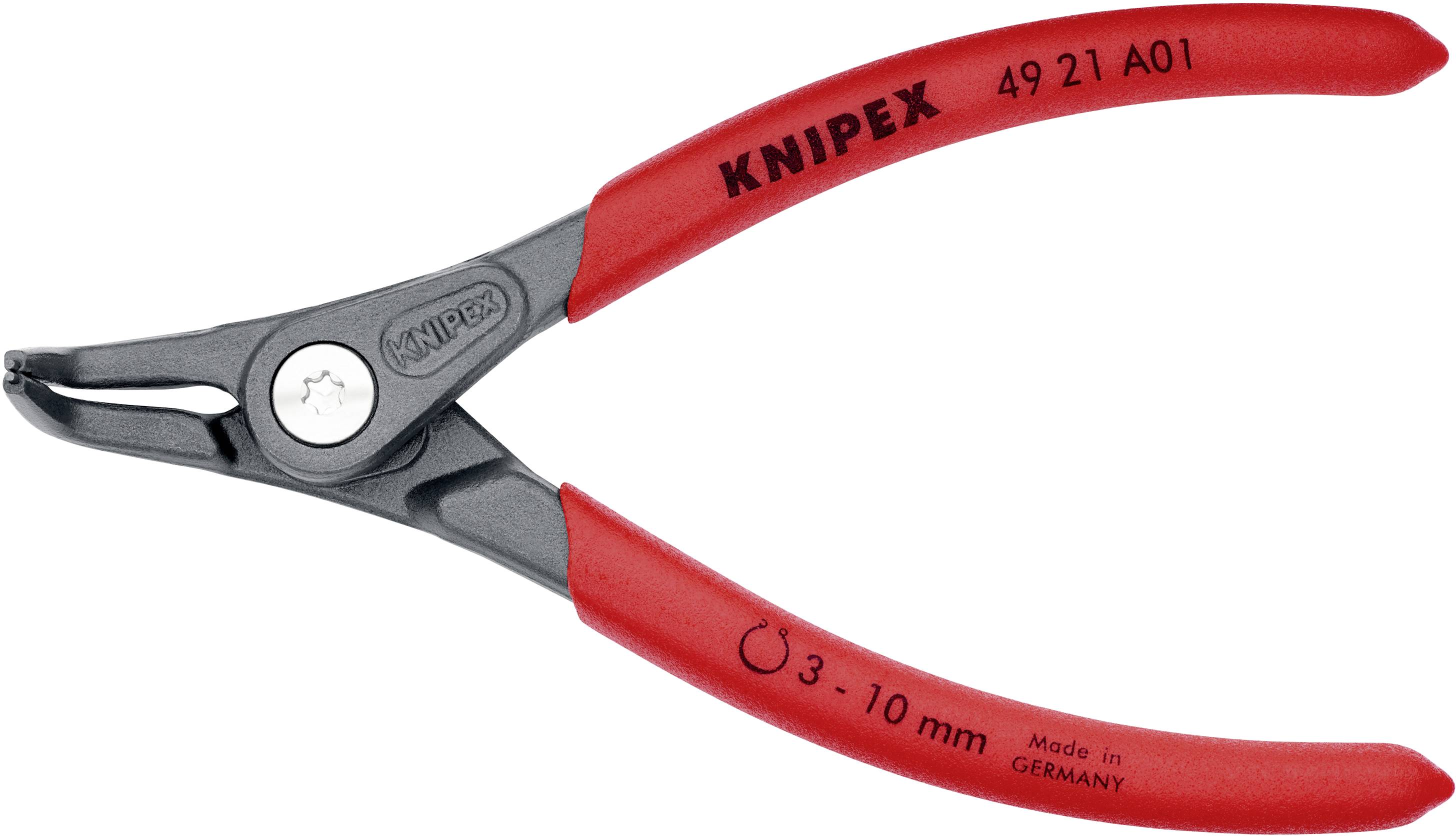

Knipex 49 21 A01 Circlip pliers Suitable for Outer rings 3-10 mm Tip shape (details) 90° angle
EAN:
Part number:
Item no:
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Highlights & Details
Precision Circlip pliers for outer rings (shafts) 49 11/49 21
- With adjusted peaks for safe working
- High load capacity in continuous use: up to 1-times longer service life compared to be turned tips
- Large surfaces of the tips: No twisting of the rings, easy installation
- Screwed joint: Precise, frictionless movement
- Opening spring lying in the joint, secure and protected against loss;
Technical specifications
- Tips 0.9 mm dia.
- Product type
Circlip pliers
- Manufacturer part #
49 21 A01
- Suitable for
Outer rings
- Suitable for shaft diameters of
3-10 mm
- Length
130 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
tempered
- DIN standard
DIN 5254-B
- Dim
(L x W) 130 mm x 63 mm
- Weight
100 g
- Tip shape
90° angle
- Width
63 mm
- Type
49 21 A01
- Shaft Ø
3 - 10 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 814179 Knipex 49 21 A01 Circlip pliers Suitable for Outer rings 3-10 mm Tip shape (details) 90° angle
Description
High load capacity in continuous use: up to 10-times longer service life compared to be turned tips. With adjusted peaks for a safe working. High load capacity in continuous use, up to 10x higher service life Precise, easy-moving screw joint. Forged. Large surfaces of the tips: No twisting of the rings, easy installation Slim jaws for optimum access to the work-piece. Opening spring lying in the joint, secure and protected against loss; Non-slip plastic handle covers. Tips: Spring steel wire, pulled. Pliers body: chrome-vanadium electric steel, forged, oil-hardened.
This text is machine translated.
This text is machine translated.
Features
- Positive-fit tips made of high-compression spring steel wire, non-scoring.
- Supports high-loads, even in continuous use.

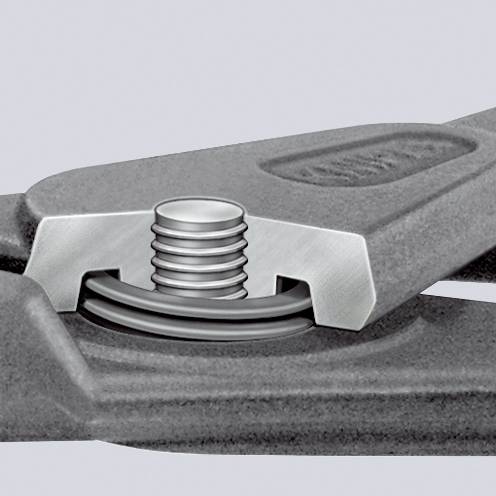

- The tips are inserted by positive-fit and cannot drop out.
- Precise, easy-moving screw joint.
- Opening spring protected inside the joint.
- Slim jaws for optimum access to the work-piece.
- Parkerized head.
- Grips are of rough, non-slip plastic.
- Forged chromium-vanadium electric steel.
