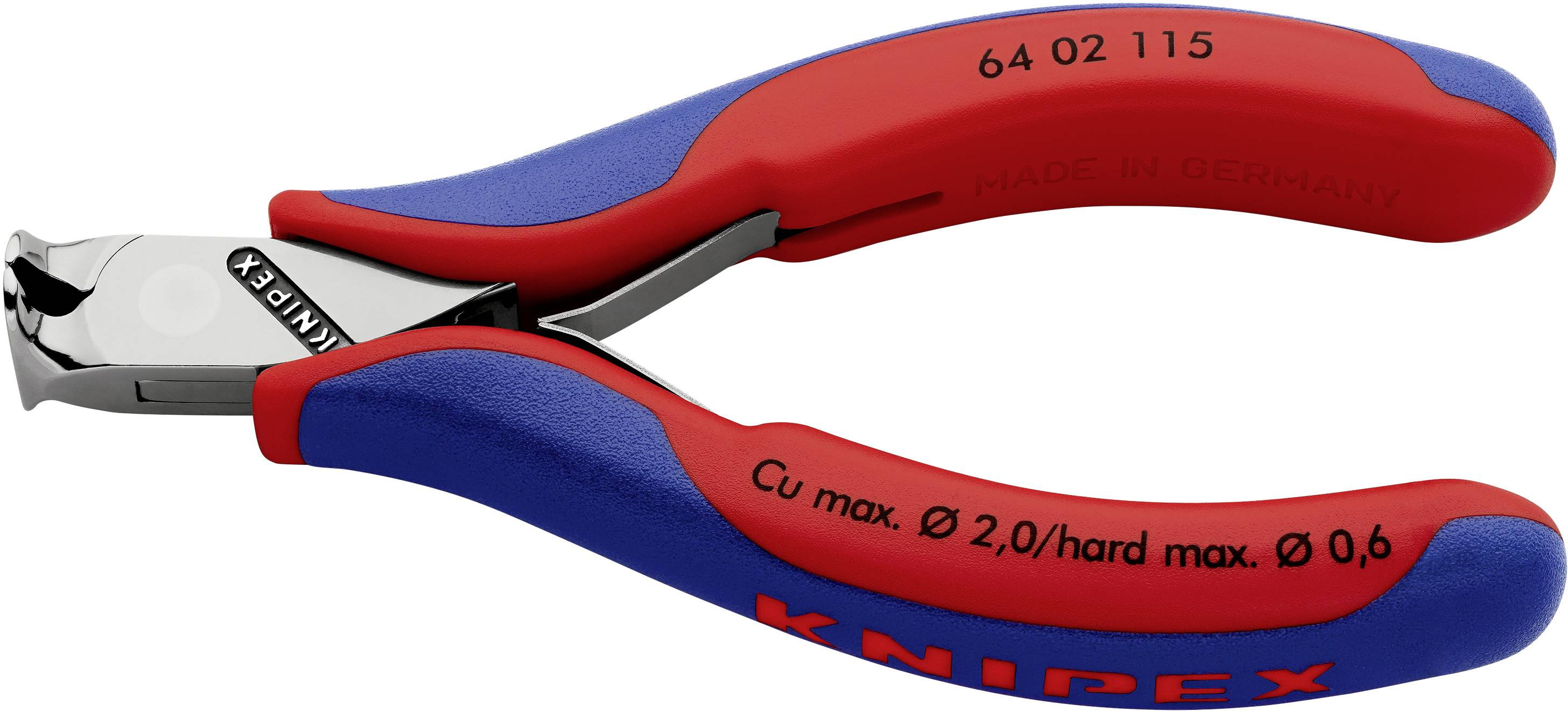

Knipex 64 02 115 Electrical & precision engineering End cutting nippers non-flush type 115 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Electronics end cutter
Technical specifications
- Head dimensions A 11.00 mm
- B 6.00 mm
- D 7.50 mm
- C 16.00 mm
- Manufacturer part #
64 02 115
- Range of use
Electrical & precision engineering
- Length
115 mm
- Material
Tool steel
- Material properties
tempered
polishing
- Edge hardness
56 HRC
- Wire hardness (max.) soft wire
2 mm
- Wire hardness (max.) medium wire
1 mm
- Wire hardness (max.) hard wire
0.6 mm
- DIN standard
DIN ISO 9654
- Width
62 mm
- Weight
94 g
- Features
non-flush type
- Type
The front cutter with facet
- Type
64 02 115
- Standards
DIN ISO 9654
- Product type
End cutting nippers
Variants(All information is without VAT, plus shipping costs)
Length
Knipex 64 02 115 Electrical & precision engineering End cutting nippers non-flush type 115 mm
This article
115 mm
Minimum order quantity: 1
Multiple: 1
€ 35.29*

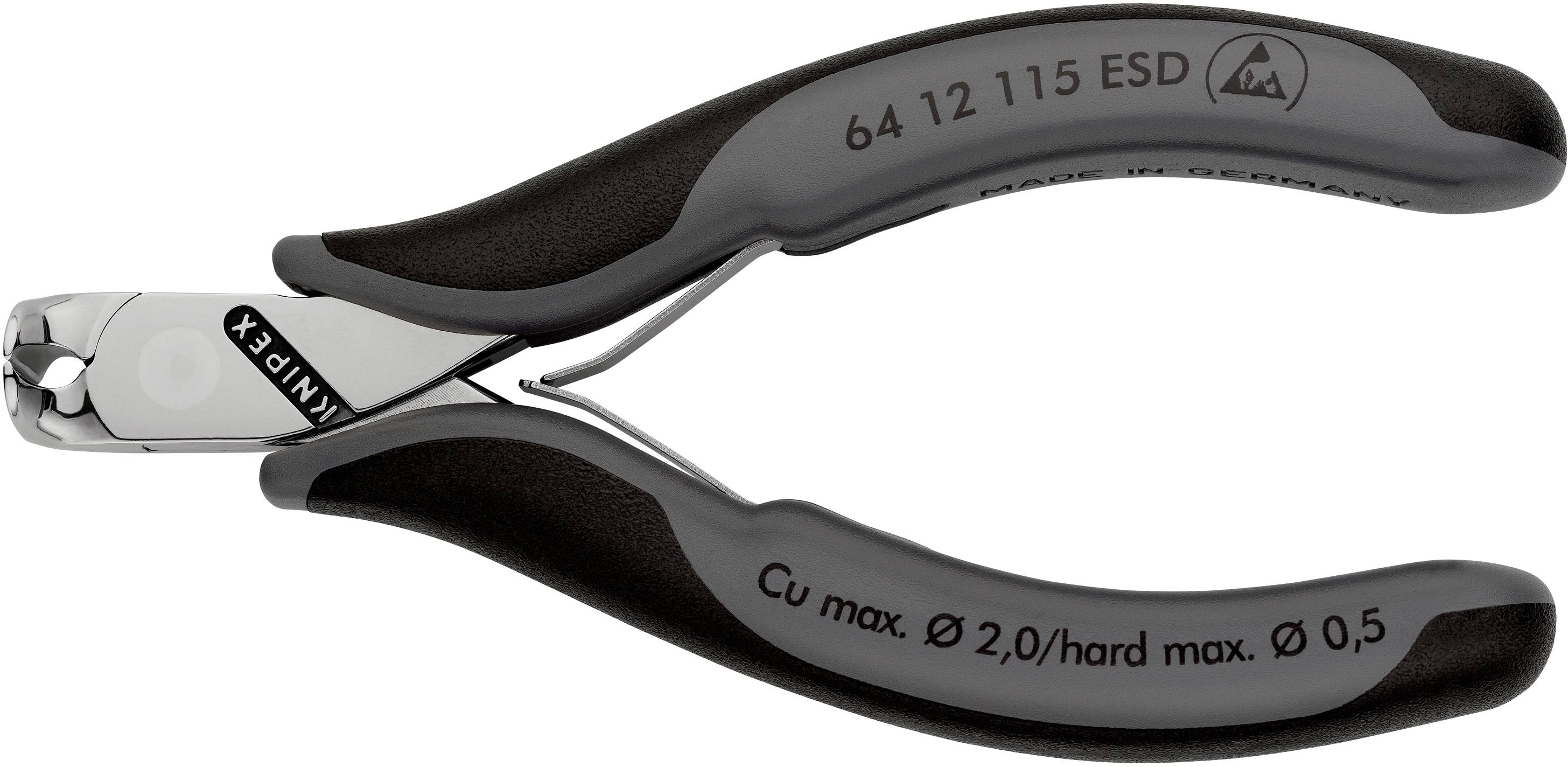

Knipex 64 12 115 Electrical & precision engineering End cutting nippers non-flush type 115 mm
115 mm
Minimum order quantity: 1
Multiple: 1
€ 33.61*
Knipex 64 22 115 Electrical & precision engineering End cutting nippers non-flush type 115 mm
115 mm
Minimum order quantity: 1
Multiple: 1
€ 34.45*

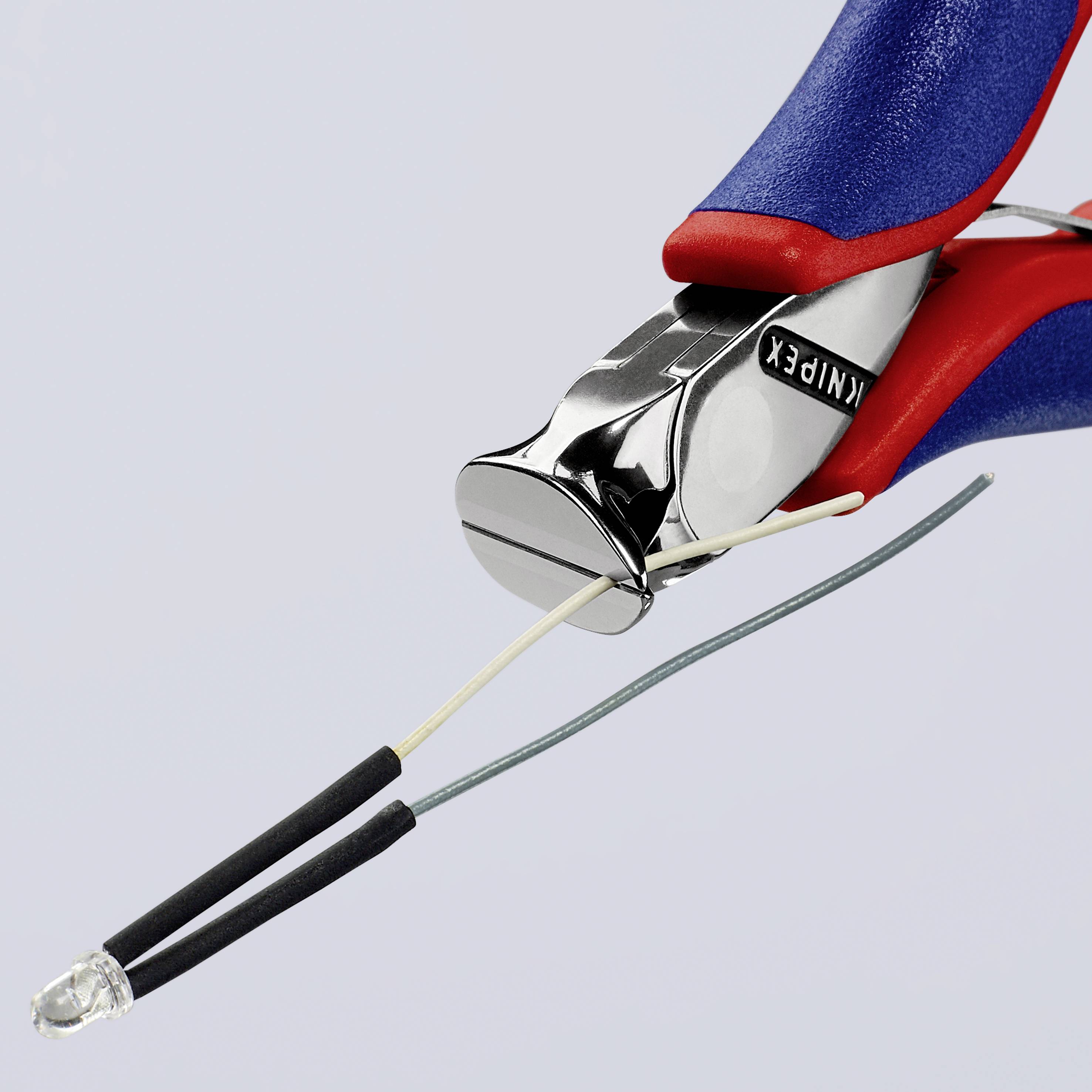

Knipex 64 32 120 Electrical & precision engineering End cutting nippers non-flush type 120 mm
120 mm
Minimum order quantity: 1
Multiple: 1
€ 37.81*
Knipex 64 72 120 Electrical & precision engineering End cutting nippers non-flush type 120 mm
120 mm
Minimum order quantity: 1
Multiple: 1
€ 42.01*
Knipex 64 42 115 SB Electrical & precision engineering End cutting nippers non-flush type 115 mm
115 mm
Minimum order quantity: 1
Multiple: 1
€ 36.97*
Documents & Downloads
Datasheet
Datasheet 822228 Knipex 64 02 115 Electrical & precision engineering End cutting nippers non-flush type 115 mm
User & Safety Instructions
User & Safety Instructions 822228 Knipex 64 02 115 Electrical & precision engineering End cutting nippers non-flush type 115 mm
Description
Precision pliers for fine cutting work e.g. in electronics and precision mechanics. Precision box joint hinge Low-friction dual spring for gentle and even opening The polishing or mirror polishing (design 2 only) and fine oil film offer excellent protection against rust - no interference in the circuit by flaking chrome parts Cutting edges additionally induction hardened, cutting hardness min. 56 HRC. Cutting head: special tool steel in special quality, forged, oil-hardened
This text is machine translated.
This text is machine translated.
Features
- Cutting edge hardness min. 56 HRC
- Together with a fine layer of oil, the polishing or mirror polishing (only design 2) provides excellent protection against rust – no flaking chrome parts causing faults in the circuit
- Friction-less dual spring for a soft and uniform opening
- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- Inserted precision joint
