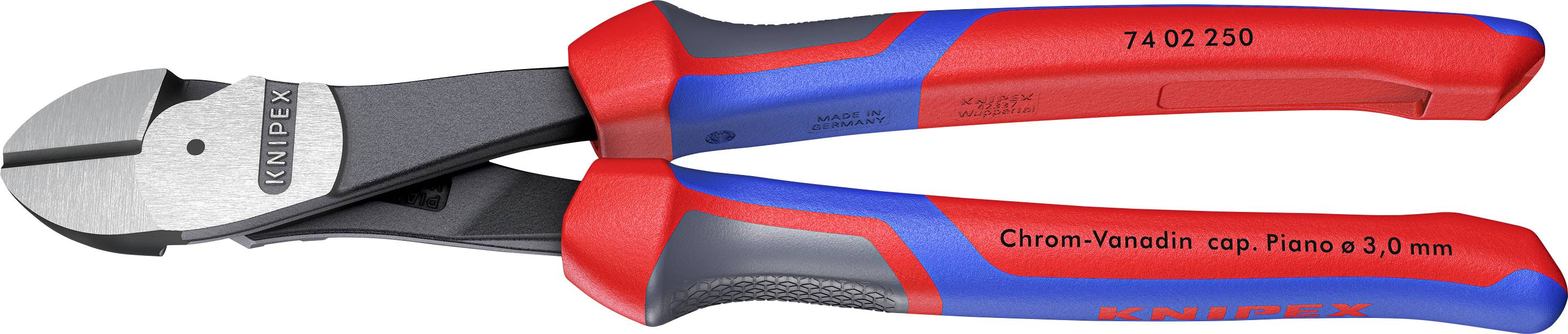

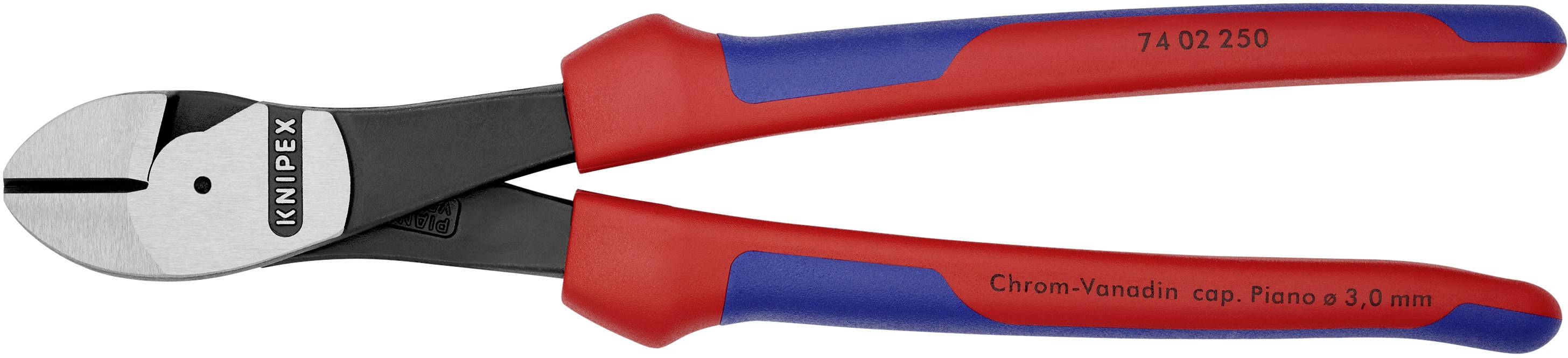

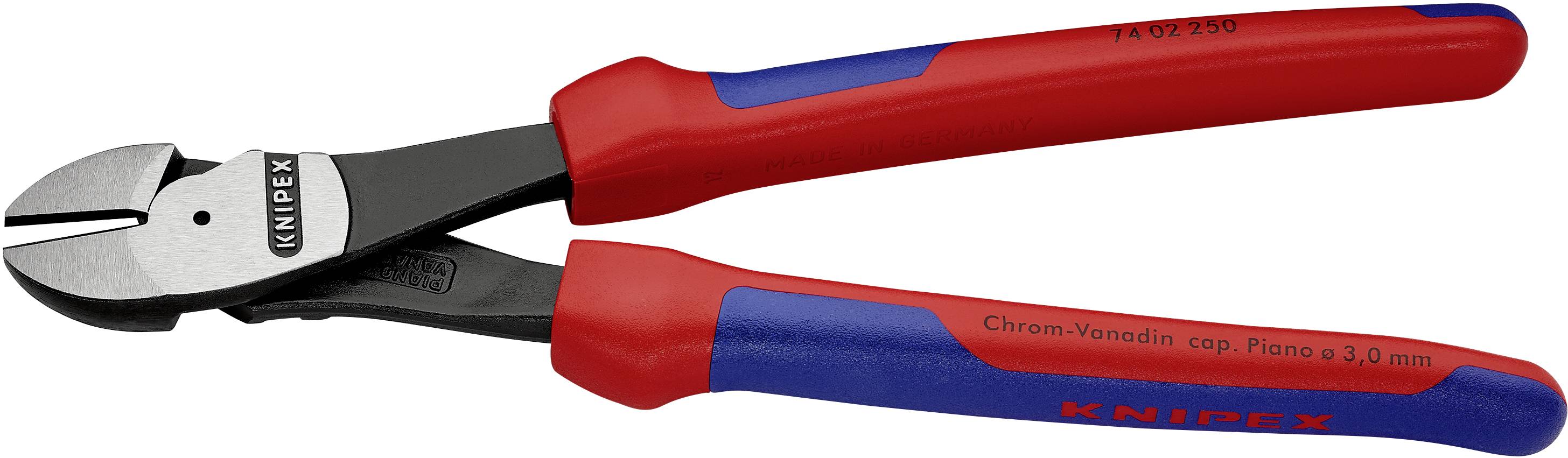

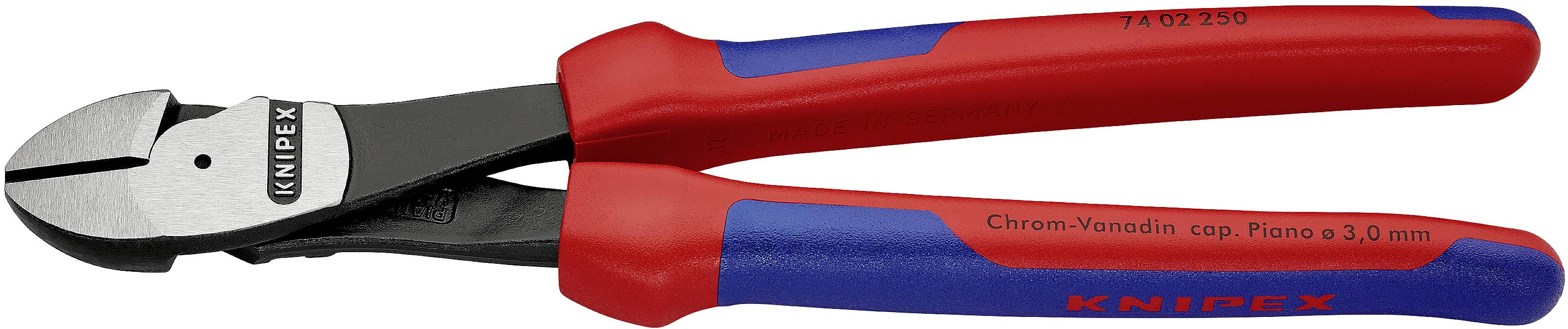

Knipex 74 02 250 Workshop Kraft side cutter non-flush type 250 mm
EAN:
Part number:
Item no:
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
14-day return policy included
Power cutter
Highlights & Details
- For heavy-duty, continuous use
- High cutting power with low application of force through optimum matching of cutting angle and transmission ratio

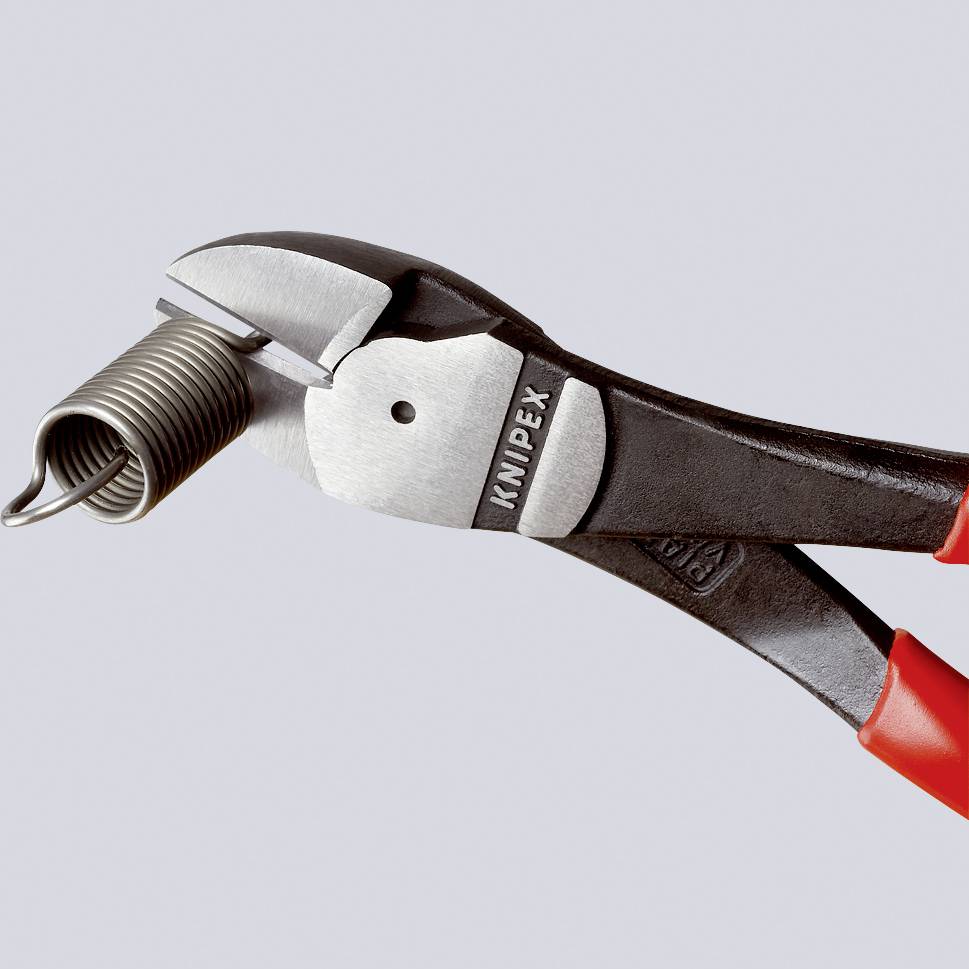

- Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC) for all sorts of wire, including piano wire
- Chrome-vanadium high speed steel, forged, oil-hardened multi-level
- The 25mm long side cutter is suitable for copper wire up to 16mm² and AI contacts up to 35 mm²
Technical specifications
- Product type
Kraft side cutter
- Manufacturer part #
74 02 250
- Range of use
Workshop
- Length
250 mm
- Material
Chromium-vanadium steel
- Material properties
tempered
polishing
- Edge hardness
64 HRC
- Wire hardness (max.) medium wire
4.6 mm
- Wire hardness (max.) hard wire
3.5 mm
- Wire hardness piano wire (max.)
3.0 mm
- DIN standard
DIN ISO 5749
- Width
55 mm
- Height
25 mm
- Weight
437 g
- Features
non-flush type
- Factory colour
Multicolour
- Type
Power side-cutter
- Type
74 02 250
- Standards
DIN ISO 5749
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 823330 Knipex 74 02 250 Workshop Kraft side cutter non-flush type 250 mm
Description
Chromium-vanadium heavy duty steel, forged, oil-hardened, pliers black atramentised, polished head, grips with multi-component sleeves
Features
- With forged joint axle for the hardest loads
- For soft wire as well as for piano wire
- High cutting power with low application of force
- Induction-hardened precision cutter.
