Buy Knipex 74 22 200 Workshop Kraft side cutter non-flush type 200 mm

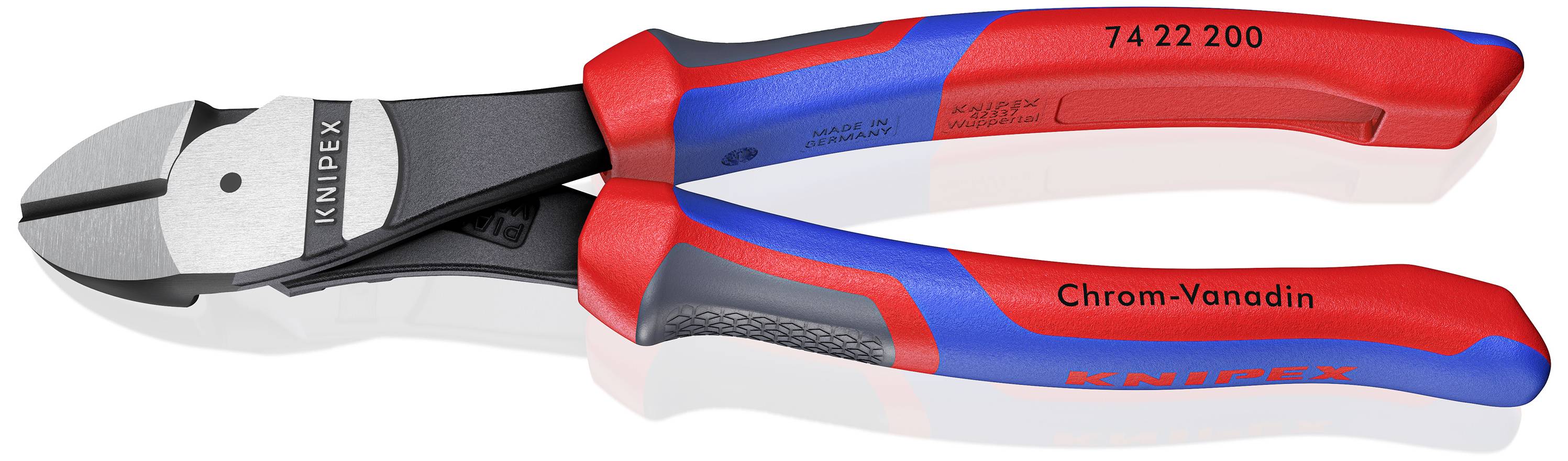

Side cutters with blue-red handle, inscription 'Chrome-Vanadium', product number 74 22 200.

Side cutters cutting a metal spring. Comfortable, ergonomic handles for precise cuts visible. Suitable for craft work.

A side cutter slices through a thin metal rod. The handle is blue and red, and the blades are shiny.

A Knipex combination pliers with red and blue handles, model number '74 22 200', made of chrome vanadium steel.

A pliers precisely shortens a nail. The handles are red and blue, the tool black.

Knipex side cutters, red and blue handles, marked on top with '74 22 200' and on the side with 'Chrome-Vanadium', suitable for heavy-duty wire cutting.

A red and blue wire cutter with a sharp cutting edge, suitable for cutting wires or cables. Marked with 'KNIPEX'.

A Knipex side cutter with red and blue handles and the inscription 'Chrome Vanadium'. Suitable for cutting wires and cables.

A hand is using a combination pliers to remove a nail from a wooden board.

A red and blue pair of pliers cuts through a metal chain.

1/10

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

90 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 25.20 / piece)

€ 25.20

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

High leverage diagonal cutters

For heavy-duty, continuous use
High cutting power with low application of force through optimum matching of cutting angle and transmission ratio
Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC) for all sorts of wire, including piano wire
Chrome-vanadium high speed steel, forged, oil-hardened multi-level

Technical specifications

12 ° angle

Product type: Kraft side cutter

Manufacturer part #: 74 22 200

Range of use: Workshop

Length: 200 mm

Material: Chromium-vanadium steel

Material properties: tempered
polishing

Edge hardness: 64 HRC

Wire hardness (max.) medium wire: 4.2 mm

Wire hardness (max.) hard wire: 3.0 mm

Wire hardness piano wire (max.): 2.5 mm

DIN standard: DIN ISO 5749

Width: 50 mm

Weight: 300 g

Features: non-flush type

Type: High leverage diagonal cutters with 12° angled head

Type: 74 22 200

Standards: DIN ISO 5749

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 822294 Knipex 74 22 200 Workshop Kraft side cutter non-flush type 200 mm

User & Safety Instructions

User & Safety Instructions 822294 Knipex 74 22 200 Workshop Kraft side cutter non-flush type 200 mm

Description

Chromium-vanadium heavy duty steel, forged, oil-hardened, pliers black atramentised, polished head, handles with multi-component grips
Style 2: 12° angled head offers clearance for gripping

Features

Ideal for all sorts of wire, including piano wire
High cutting performance with minimum effort thanks to optimum co-ordination of the cutting edge angle and transmission ratio
With forged joint axle for very tough, continuous use
Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC
