Buy Knipex 75 22 125 Electrical & precision engineering Side cutter non-flush type 125 mm

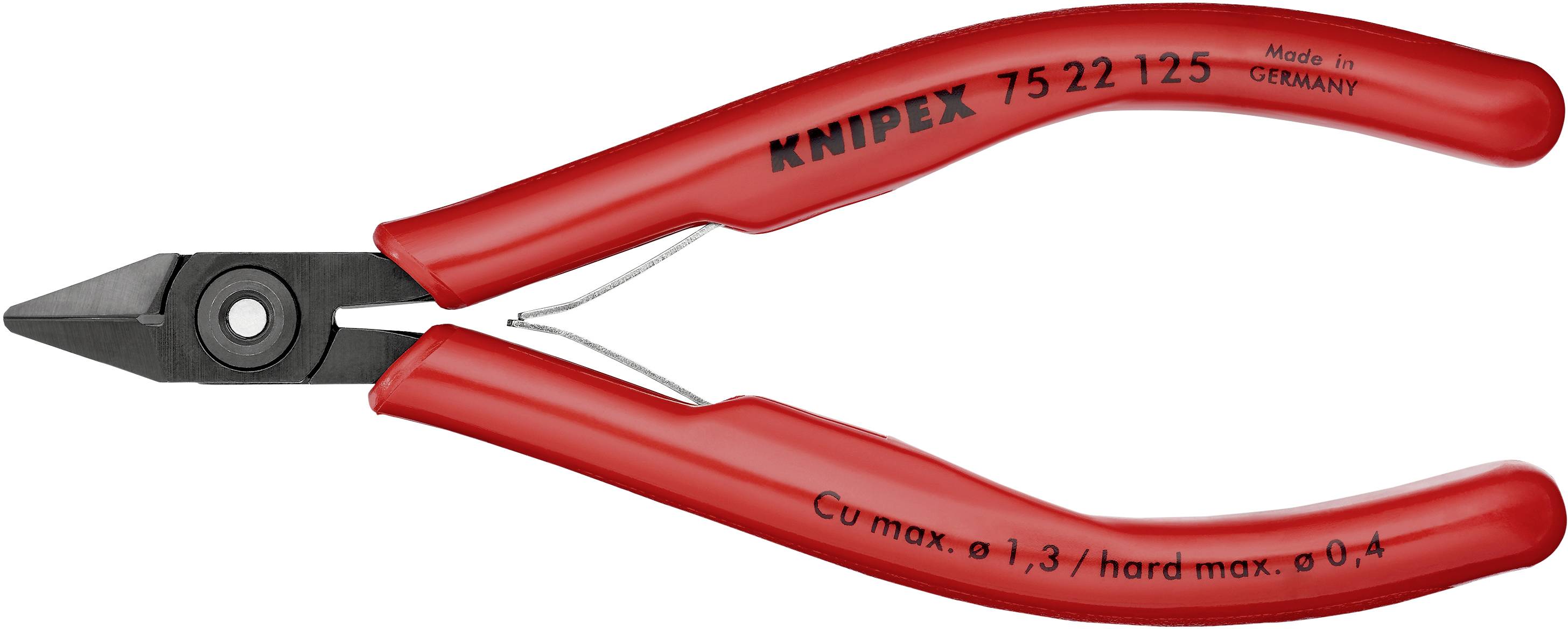

Pictured is a Knipex side cutters with red handles, a black cutting head and the inscription 'Made in Germany' on the handle.

Red Knipex side cutters, Model 75 22 125, suitable for copper with a diameter up to 1.3 mm and hard material up to 0.4 mm. Made in Germany.

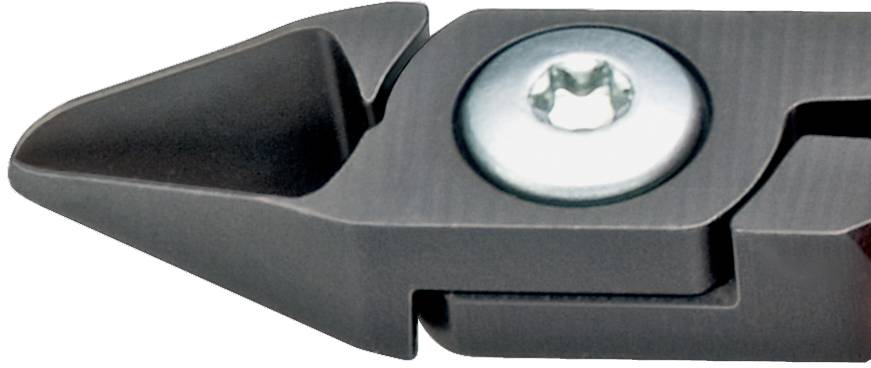

'Close-up of a black metal cutting blade with a mounting screw. The blade has a sharp, wedge-like shape.'

1/4

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

33 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 31.92 / piece)

€ 38.65

-17 %

€ 31.92

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Electronics diagonal cutters

Screwed joint for high precision and load-carrying capacity
Precision pliers for very fine cutting work such as electronics and precision engineering.
With sharp, polished cutting for soft and hard wire and piano wire
Induction hardened blades. Blade hardness approx. 64 HRC
Low-friction dual spring for gentle and even opening

Technical specifications

Head dimensions A 10.50 mm
B 14.00 mm
D 6.50 mm

Product type: Side cutter

Manufacturer part #: 75 22 125

Range of use: Electrical & precision engineering

Length: 125 mm

Material: Tool steel

Material properties: tempered
burnished

Edge hardness: 64 HRC

Wire hardness (max.) soft wire: 1.3 mm

Wire hardness (max.) medium wire: 0.9 mm

Wire hardness (max.) hard wire: 0.4 mm

Wire hardness piano wire (max.): 0.3 mm

DIN standard: DIN ISO 9654

Weight: 79 g

Features: non-flush type

Type: With a small bevel

Type: 75 22 125

Standards: DIN ISO 9654

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 822299 Knipex 75 22 125 Electrical & precision engineering Side cutter non-flush type 125 mm

User & Safety Instructions

User & Safety Instructions 822299 Knipex 75 22 125 Electrical & precision engineering Side cutter non-flush type 125 mm

Description

Precision pliers for ultra-fine assembly work e.g. in electronics and precision mechanics With sharp, polished cutting for soft and hard wire and piano wire. Induction hardened blades. Blade hardness approx. 64 HRC Low-friction dual spring for gentle and even opening Precision pliers for very fine cutting work such as electronics and precision engineering. Cutting head: special tool steel in special quality, forged, oil-hardened

This text is machine translated.

Features

Precision pliers for ultra-fine installation work e.g. in electronics and precision mechanics
With precision cutting for soft and hard wire, also suitable for piano wire
Induction hardened blades. Blade hardness approx. 64 HRC
Friction-less dual spring for a soft and uniform opening
