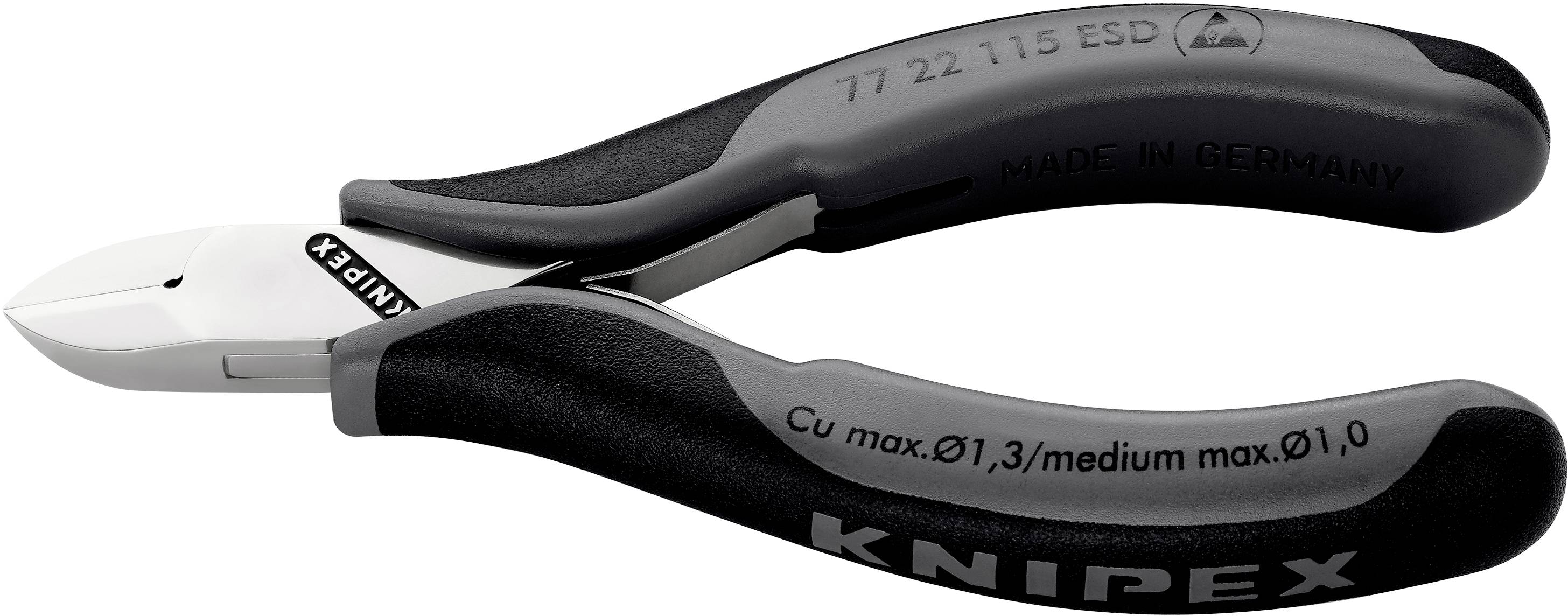

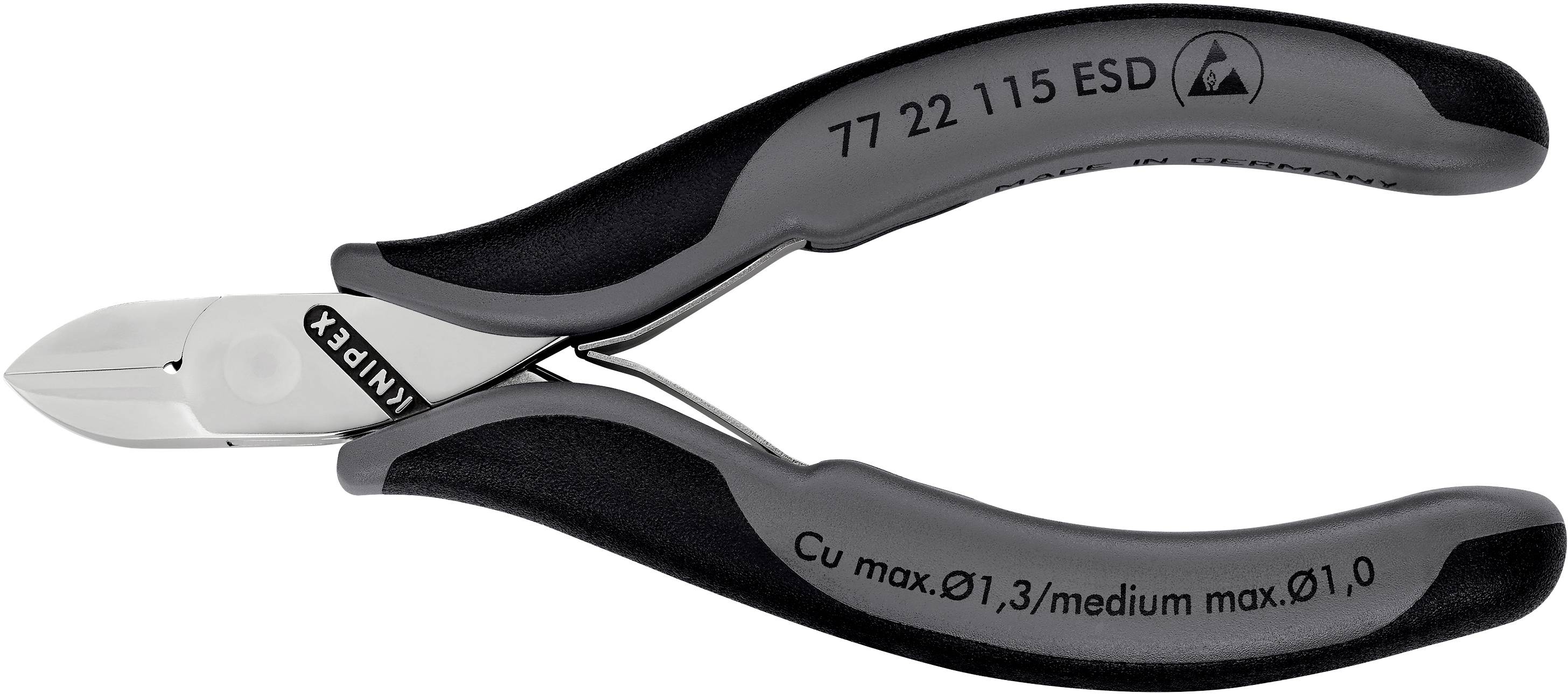

Knipex 77 22 115 ESD ESD Side cutter flush-cutting 115 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
14-day return policy included
Highlights & Details
Electronic side-cutter ESD
- Precision pliers for very fine cutting work such as electronics and precision engineering.
- Handles Electrically discharging design - dissipative
- Stable box joint free from play
- Low-friction dual spring for gentle and even opening
- The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts
Technical specifications
- Head dimensions A 11.00 mm
- B 14.00 mm
- D 7.50 mm
- Product type
Side cutter
- Manufacturer part #
77 22 115 ESD
- Range of use
ESD
- Length
115 mm
- Material
Tool steel
- Material properties
tempered
polishing
- Edge hardness
62 HRC
- Wire hardness (max.) soft wire
1.3 mm
- Wire hardness (max.) medium wire
1 mm
- DIN standard
DIN ISO 9654
DIN EN 61340-5
- Width
69 mm
- Weight
80 g
- Features
flush-cutting
- Type
ESD
- Type
77 22 115 ESD
- Standards
DIN ISO 9654
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 822311 Knipex 77 22 115 ESD ESD Side cutter flush-cutting 115 mm
User & Safety Instructions
User & Safety Instructions 822311 Knipex 77 22 115 ESD ESD Side cutter flush-cutting 115 mm
Description
Round head, without facet. Cutting hardness approx. 57 HRC. Precision pliers for fine cutting work e.g. in electronics and precision mechanics. Handles Electrically discharging design - dissipative. Precision box joint hinge Low-friction dual spring for gentle and even opening The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts Blades also induction-hardened. Grips with two-coloured multi-component grip colours black/grey Cutting head: special tool steel in special quality, forged, oil-hardened
This text is machine translated.
This text is machine translated.
Features
- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- Grips with two-coloured multi-component grip colours black/grey
- Blades are also induction-hardened
- The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts
- Low-friction double spring for gentle and even opening
- Precision box joint hinge
- Electrically discharging design – dissipative
