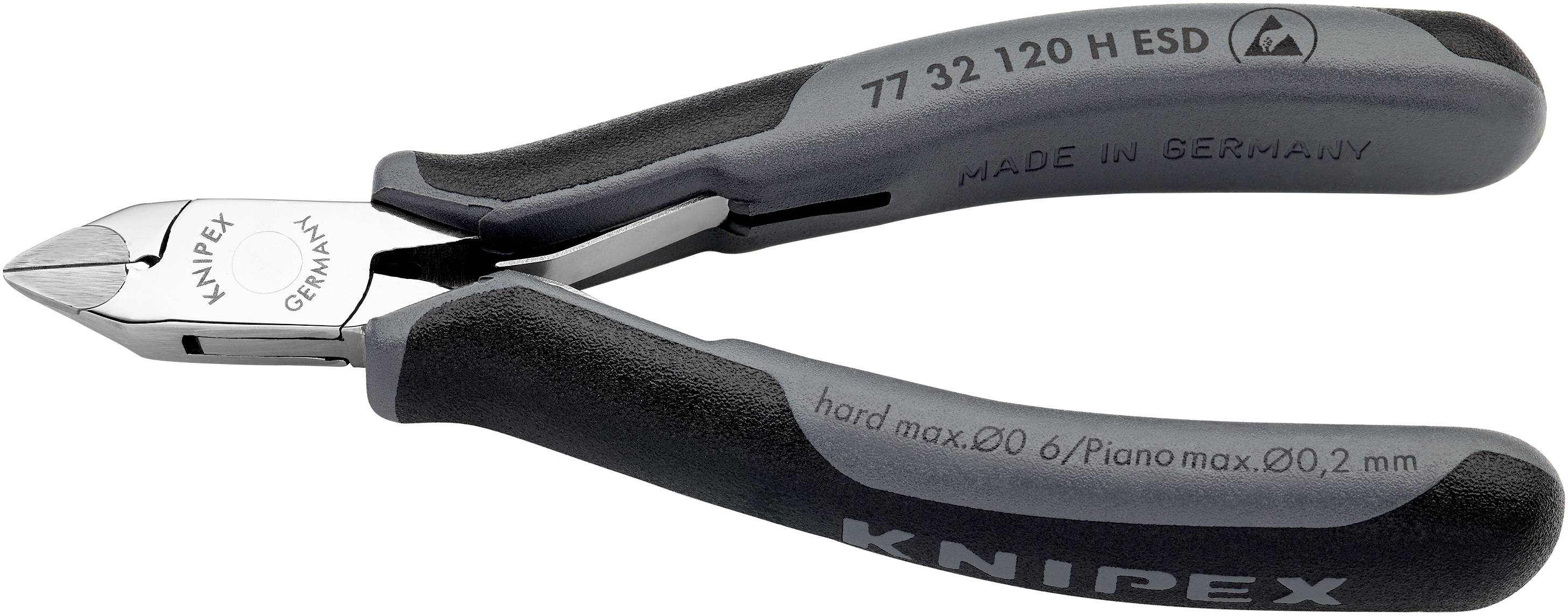

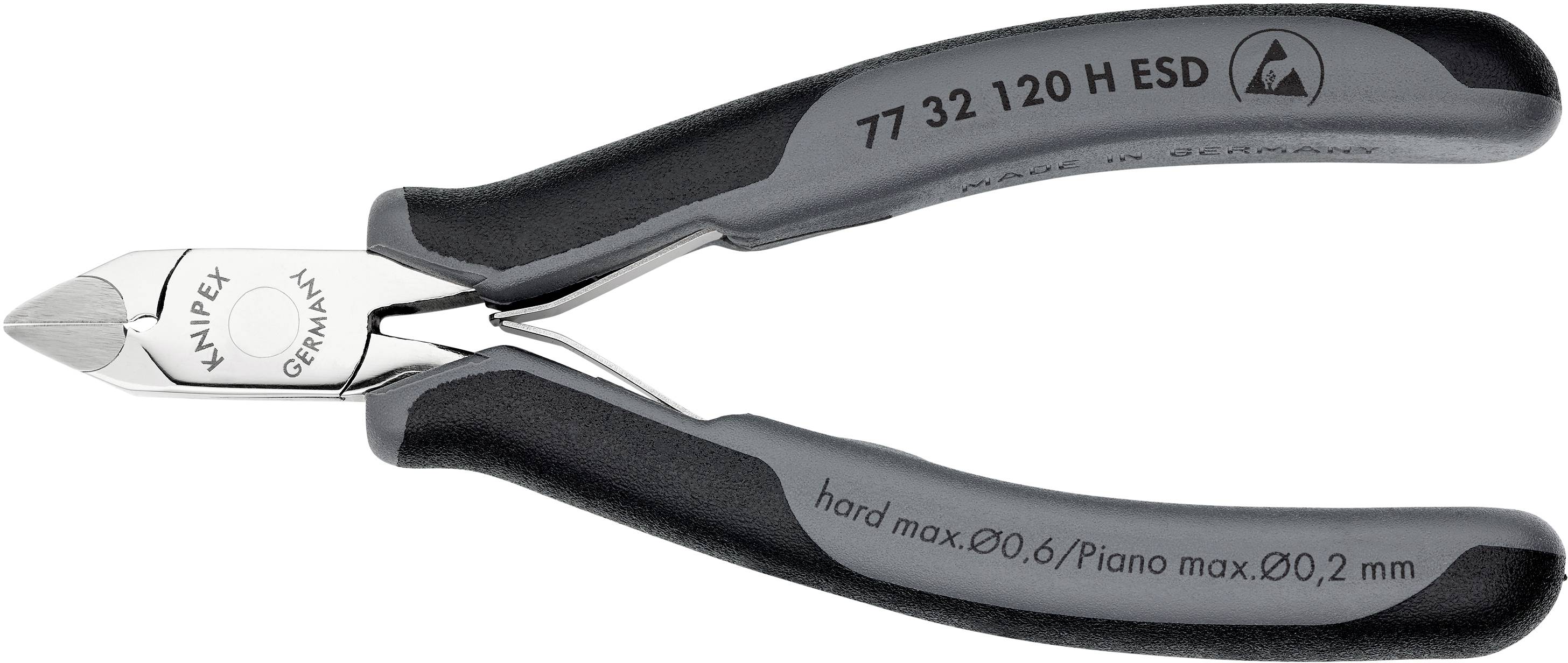

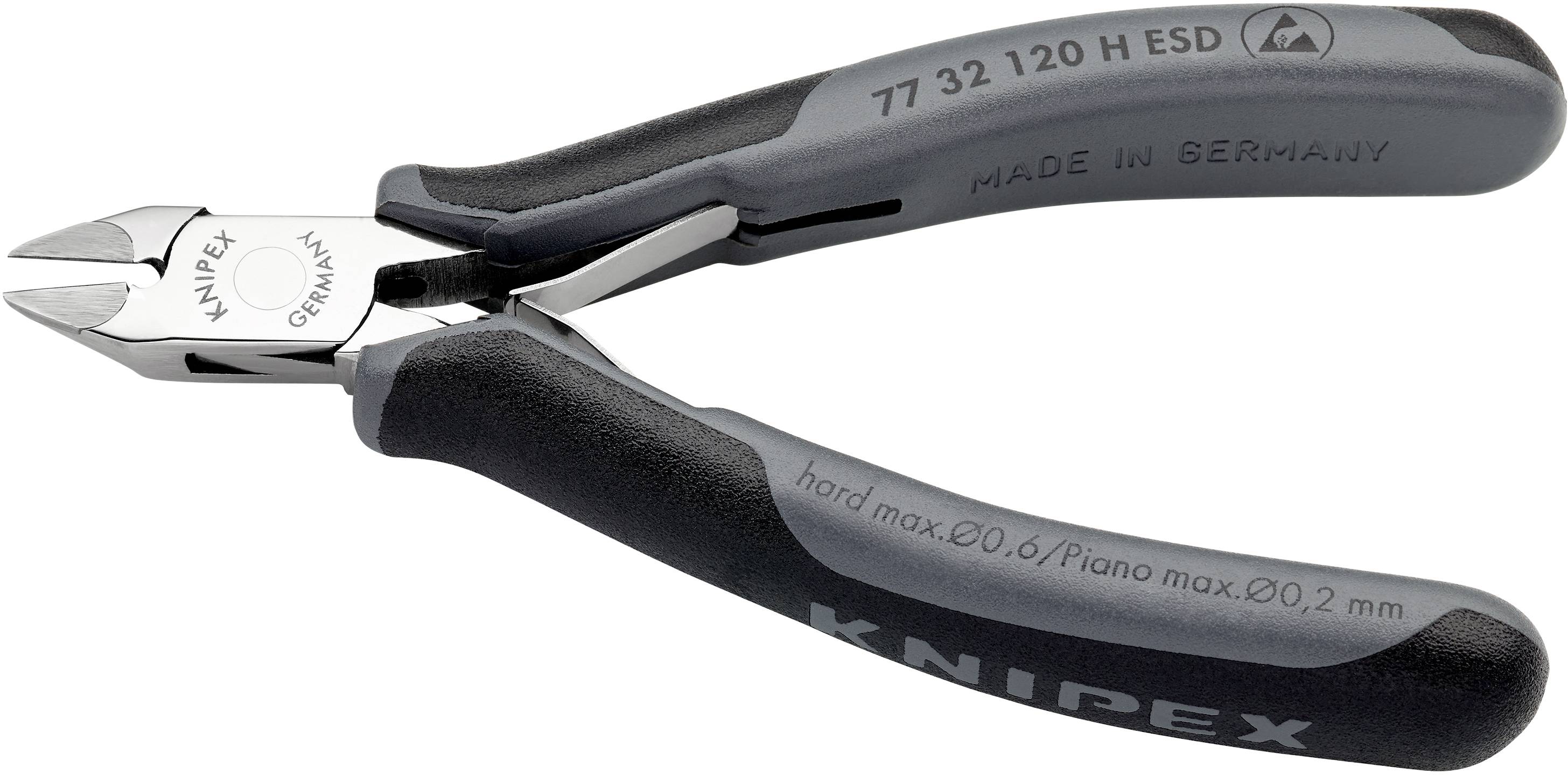

Knipex 77 32 120 H ESD ESD Side cutter non-flush type 120 mm
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€
Only 2 Piece(s) available
Highlights & Details
Electronic side-cutter ESD
- For extreme demands on-cutting pliers thanks to hard or viscous materials, e.g. Piano, Nickel, tungsten and diode wire as you are increasingly in the electronics and aerospace industry can be used
- Always the right cutting tool, even in the hardest material
- Precision hard metal cut soldered in forged blanks
- Stable box joint free from play
- Cutting hardness of the carbide cutting 8-83 HRC
Technical specifications
- Manufacturer part #
77 32 120 H ESD
- Range of use
ESD
- Length
120 mm
- Material
Carbide metal
- Material properties
polishing
- Edge hardness
83 HRC
- Wire hardness (max.) soft wire
1.6 mm
- Wire hardness (max.) medium wire
1 mm
- Wire hardness (max.) hard wire
0.6 mm
- Wire hardness piano wire (max.)
0.2 mm
- DIN standard
DIN ISO 9654
DIN EN 61340-5
- Weight
80 g
- Features
non-flush type
- Type
With carbide cutting
- Type
77 32 120 H ESD
- Product type
Side cutter
Variants(All information is without VAT, plus shipping costs)
Length
Range of use
Knipex 77 32 120 H ESD ESD Side cutter non-flush type 120 mm
This article
120 mm
ESD
Minimum order quantity: 1
Multiple: 1
€ 100.83*
Knipex 77 02 120 H ESD ESD Side cutter non-flush type 120 mm
120 mm
ESD
Minimum order quantity: 1
Multiple: 1
€ 96.63*
Knipex 77 02 120 H Electrical & precision engineering Side cutter non-flush type 120 mm
120 mm
Electrical & precision engineering
Minimum order quantity: 1
Multiple: 1
€ 96.63*
Knipex 77 32 120 H Electrical & precision engineering Side cutter non-flush type 120 mm
120 mm
Electrical & precision engineering
Minimum order quantity: 1
Multiple: 1
€ 96.63*
Knipex 77 02 135 H Electrical & precision engineering Side cutter non-flush type 135 mm
135 mm
Electrical & precision engineering
Minimum order quantity: 1
Multiple: 1
€ 92.43*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1008225 Knipex 77 32 120 H ESD ESD Side cutter non-flush type 120 mm
Description
Pointed head with Auskehlung. With a small facet. Handles Electrically discharging design - dissipative. Stable box joint free from play For extreme demands on-cutting pliers thanks to hard or viscous materials, e.g. Piano, Nickel, tungsten and diode wire as you are increasingly in the electronics and aerospace industry. Always the right cutting tool, even in the toughest conditions material. Precision hard metal cut soldered in forged blanks. Cutting hardness of the carbide cutting 80 - 83 HRC. Pliers with hard metal cut have a much longer life than those with conventional cutting. Permanently reliable cutting results by avoiding cutting deformations due to overload. High cost-savings through longer service life of pliers.
This text is machine translated.
This text is machine translated.
Features
- Mirror Polished
- Grips with multi-component sleeves
- for extreme demands on-cutting pliers thanks to hard or viscous materials, e.g. Piano, Nickel, tungsten and diode wire as you are increasingly in the electronics and aerospace industry can be used
- Always the right cutting tool, even in the hardest material
- Precision hard metal cut soldered in forged blank discs
- Stable box joint free from play
- Cutting hardness of 80 - 83 HRC
- pliers with HM-cutting hard metal cut have a much longer life than those with conventional cutting
- permanently reliable cutting results by avoiding cutting deformations due to overload
- High Cost savings due to a longer service life of the pliers
- Grips Electrically discharging design - dissipative.
Hints
This text is machine translated.
