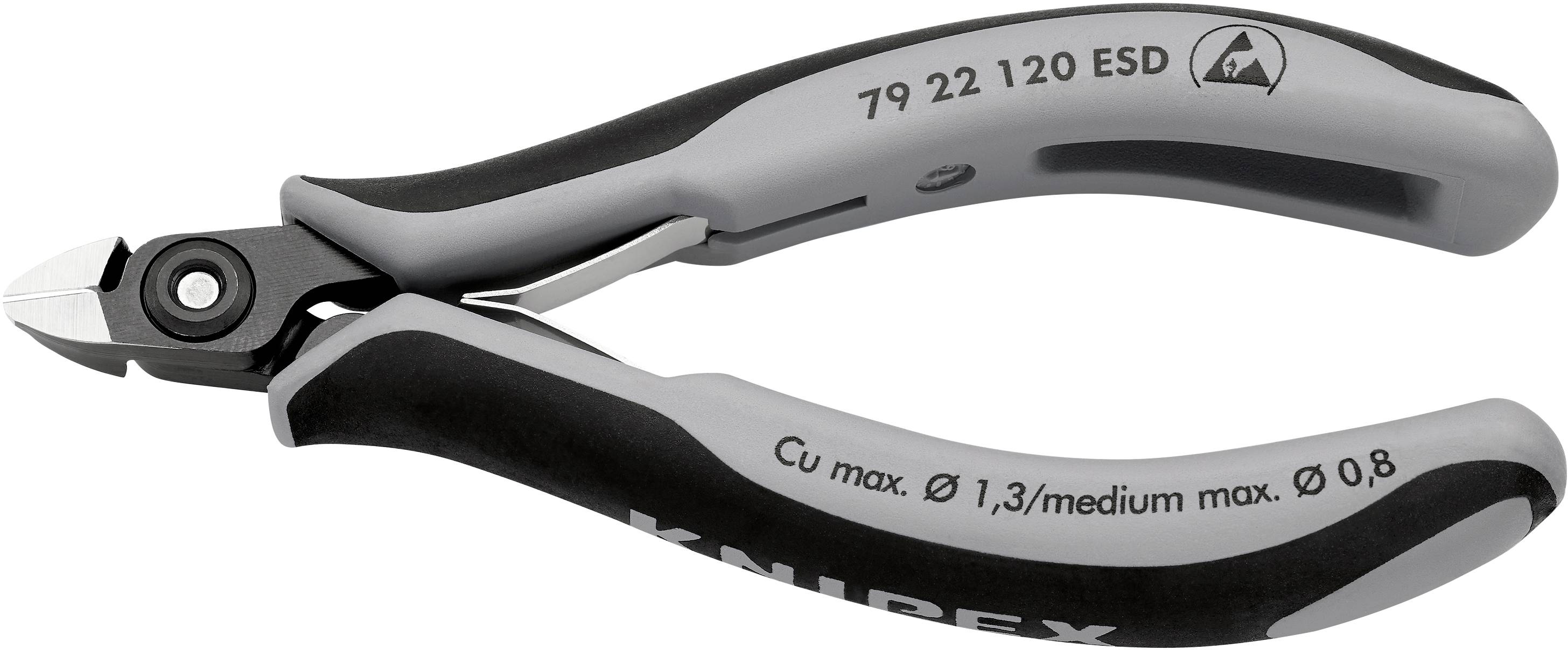

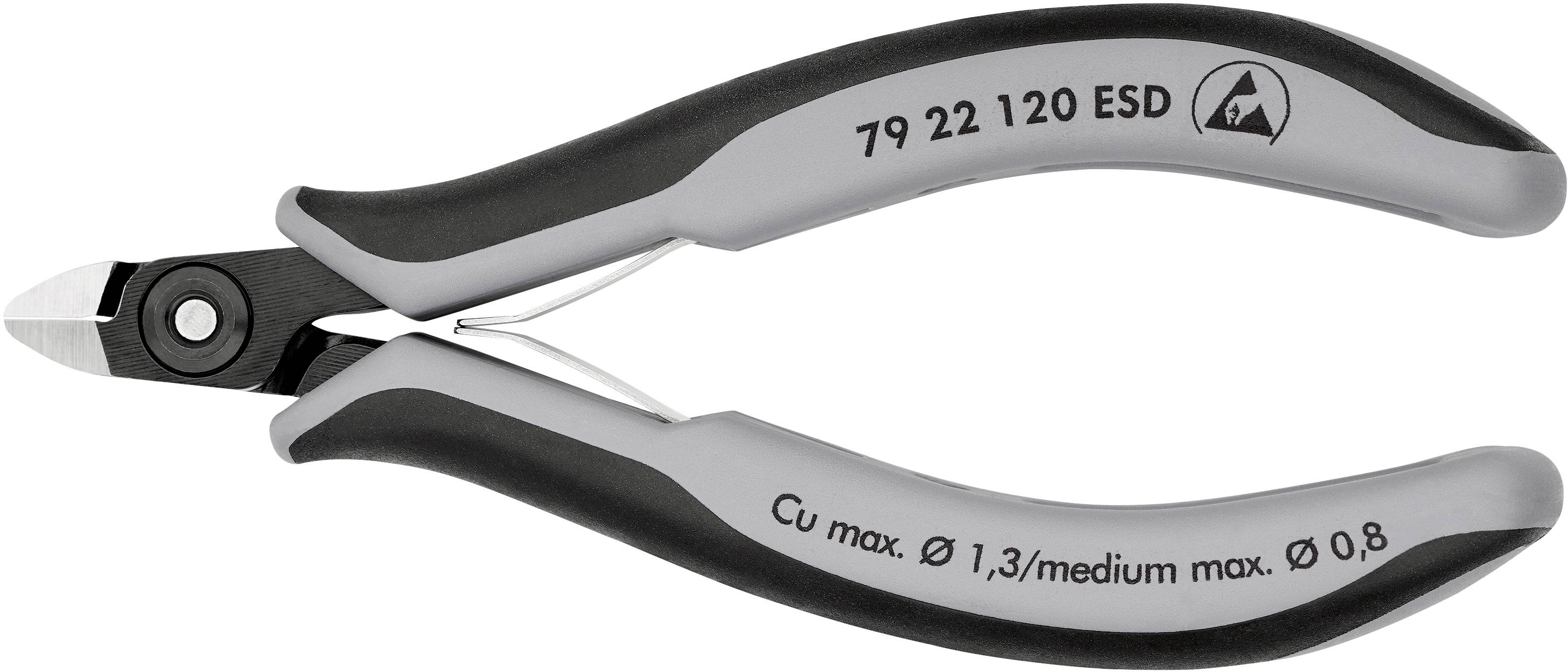

Knipex 79 22 120 ESD ESD Side cutter flush-cutting 120 mm
EAN:
Part number:
Item no:
Number
Total (€ 47.05 / piece)
€
Only 10 Piece(s) available
Highlights & Details
Precision Electronic side cutter
- Handles Electrically discharging design - dissipative
- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- Very precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components - even without bevel for flush cutting
- Induction hardened blades. Blade hardness approx. 64 HRC
- Approx. 2% less weight than conventional electronics pliers
Technical specifications
- Head dimensions A 9.00 mm
- B 6.50 mm
- D 6.50 mm
- Manufacturer part #
79 22 120 ESD
- Range of use
ESD
- Length
120 mm
- Material
Chromium-vanadium ball bearing steel
- Material properties
burnished
polishing
- Edge hardness
64 HRC
- Wire hardness (max.) soft wire
1.3 mm
- Wire hardness (max.) medium wire
0.8 mm
- DIN standard
DIN ISO 9654
DIN EN 61340-5
- Width
61 mm
- Weight
61 g
- Features
flush-cutting
- Type
ESD mini-head without Facet
- Type
79 22 120 ESD
- Standards
DIN ISO 9654
- Product type
Side cutter
Variants(All information is without VAT, plus shipping costs)
Length
Knipex 79 22 120 ESD ESD Side cutter flush-cutting 120 mm
This article
120 mm
Minimum order quantity: 1
Multiple: 1
€ 47.05*
Knipex 79 02 120 ESD ESD Side cutter non-flush type 120 mm
120 mm
Minimum order quantity: 1
Multiple: 1
€ 43.69*
Knipex 79 02 125 ESD ESD Side cutter non-flush type 125 mm
125 mm
Minimum order quantity: 1
Multiple: 1
€ 41.17*

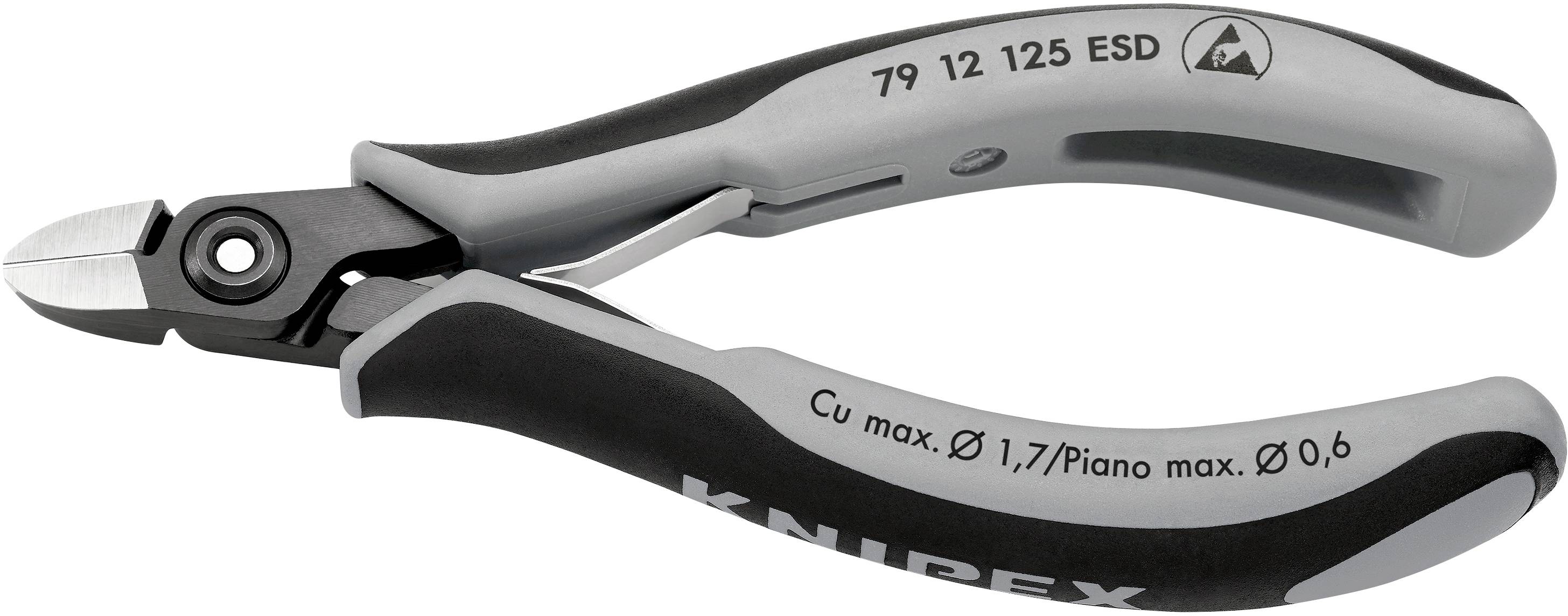

Knipex 79 12 125 ESD ESD Side cutter non-flush type 125 mm
125 mm
Minimum order quantity: 1
Multiple: 1
€ 47.05*
Knipex 79 22 125 ESD ESD Side cutter flush-cutting 125 mm
125 mm
Minimum order quantity: 1
Multiple: 1
€ 45.37*
Knipex 79 32 125 ESD ESD Side cutter non-flush type 125 mm
125 mm
Minimum order quantity: 1
Multiple: 1
€ 40.33*
Knipex 79 42 125 ESD ESD Side cutter flush-cutting 125 mm
125 mm
Minimum order quantity: 1
Multiple: 1
€ 45.37*
Knipex 79 52 125 ESD ESD Side cutter non-flush type 125 mm
125 mm
Minimum order quantity: 1
Multiple: 1
€ 47.05*

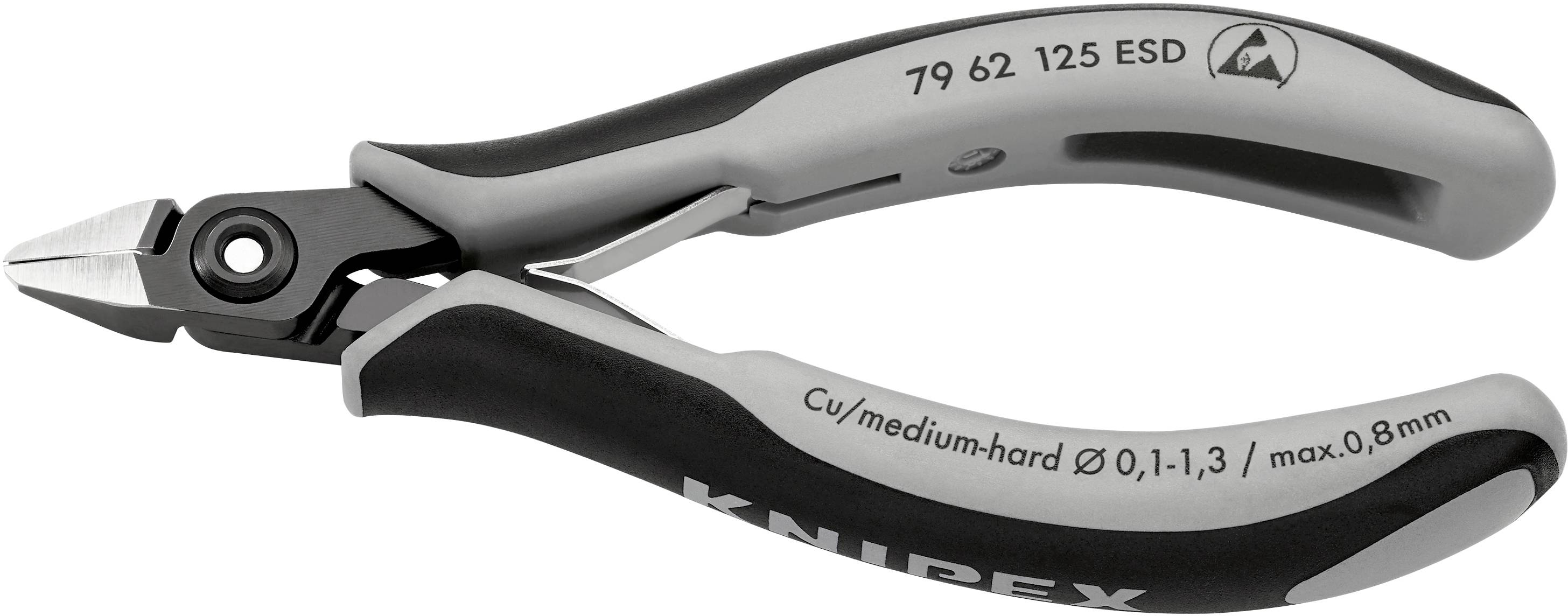

Knipex 79 62 125 ESD ESD Side cutter flush-cutting 125 mm
125 mm
Minimum order quantity: 1
Multiple: 1
€ 50.41*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822334 Knipex 79 22 120 ESD ESD Side cutter flush-cutting 120 mm
Description
Handles Electrically discharging design - dissipative mini-head the range for the highest standards of performance and results. Precision pliers for fine cutting work e.g. in electronics and precision mechanics. Very precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components. also available without bevel for flush cutting Induction hardened blades. Blade hardness approx. 64 HRC Handles Electrically discharging design - dissipative. Screwed joint: Precise, frictionless movement Carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range Low-friction dual spring for gentle and even opening Anti-glare finish. Low weight Ergonomic, two-coloured, multi-component ESD handle sleeves; Black/gray. Ball-bearing chrome steel, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- Anti-glare finish
- Carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
- Mini-head without Facet
- Lightweight
- Friction-less dual spring for a soft and uniform opening
- Design electrically draining - dissipative
- Induction hardened blades. Blade hardness approx. 64 HRC
- The range for the highest standards of performance and results
- Precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- Screwed joint: Precise, frictionless plier movement
- Ergonomic, two-colored multi-component ESD handle sleeves; black/gray
- This text is machine translated.
