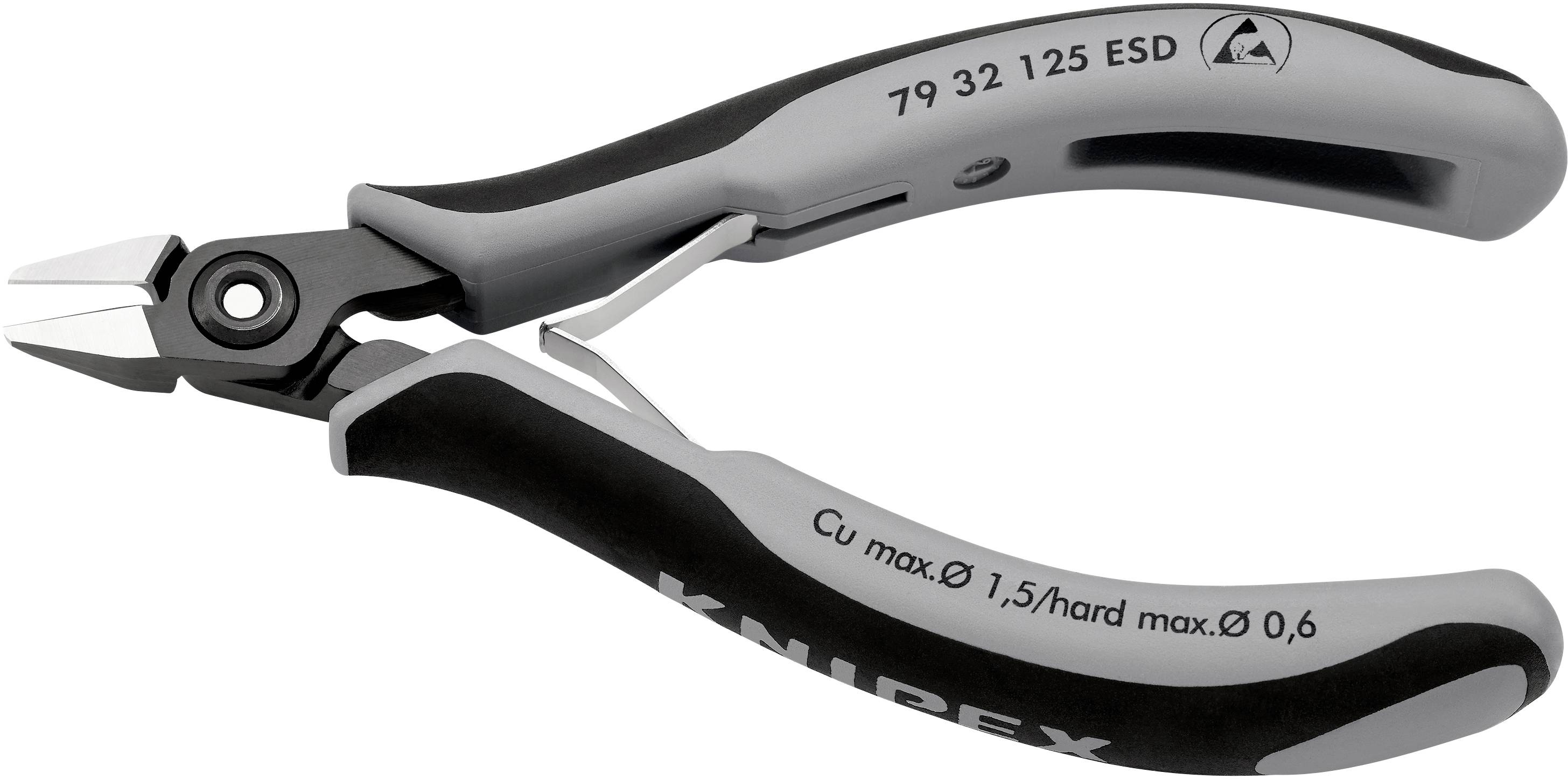

Knipex 79 32 125 ESD ESD Side cutter non-flush type 125 mm
EAN:
Part number:
Item no:
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Precision electronics diagonal cutters ESD
- Handles Electrically discharging design - dissipative
- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- Very precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components - even without bevel for flush cutting
- Induction hardened blades. Blade hardness approx. 64 HRC
- Approx. 2% less weight than conventional electronics pliers
Technical specifications
- Head dimensions A 11.00 mm
- B 10.50 mm
- D 6.50 mm
- Product type
Side cutter
- Manufacturer part #
79 32 125 ESD
- Range of use
ESD
- Length
125 mm
- Material
Chromium-vanadium ball bearing steel
- Material properties
burnished
polishing
- Edge hardness
64 HRC
- Wire hardness (max.) soft wire
1.5 mm
- Wire hardness (max.) medium wire
1.1 mm
- Wire hardness (max.) hard wire
0.6 mm
- DIN standard
DIN ISO 9654
DIN EN 61340-5
- Weight
61 g
- Features
non-flush type
- Type
ESD pointed head with very small bevel
- Type
79 32 125 ESD
- Standards
DIN ISO 9654
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822336 Knipex 79 32 125 ESD ESD Side cutter non-flush type 125 mm
Description
Handles Electrically discharging design - dissipative pointed head the range for the highest standards of performance and results. Precision pliers for fine cutting work e.g. in electronics and precision mechanics. Very precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components. also available without bevel for flush cutting Induction hardened blades. Blade hardness approx. 64 HRC Handles Electrically discharging design - dissipative. Screwed joint: Precise, frictionless movement Carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range Low-friction dual spring for gentle and even opening Anti-glare finish. Low weight Ergonomic, two-coloured, multi-component ESD handle sleeves; Black/gray. Ball-bearing chrome steel, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- Friction-less dual spring for gentle and even opening
- The range for those with high demands on performance and results
- Ergonomic, two-coloured, multi-component ESD grip sleeves; Black/grey
- Pointed head with very small bevel
- Lightweight
- Anti-glare finish
- Bolted joint: precise, frictionless movement of the pliers
- Electrically discharging design - dissipative
- Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC
- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- Precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
- Carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
