Knipex 95 17 500 VDE cable cutters 500 mm
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Only 8 Piece(s) available
Highlights & Details

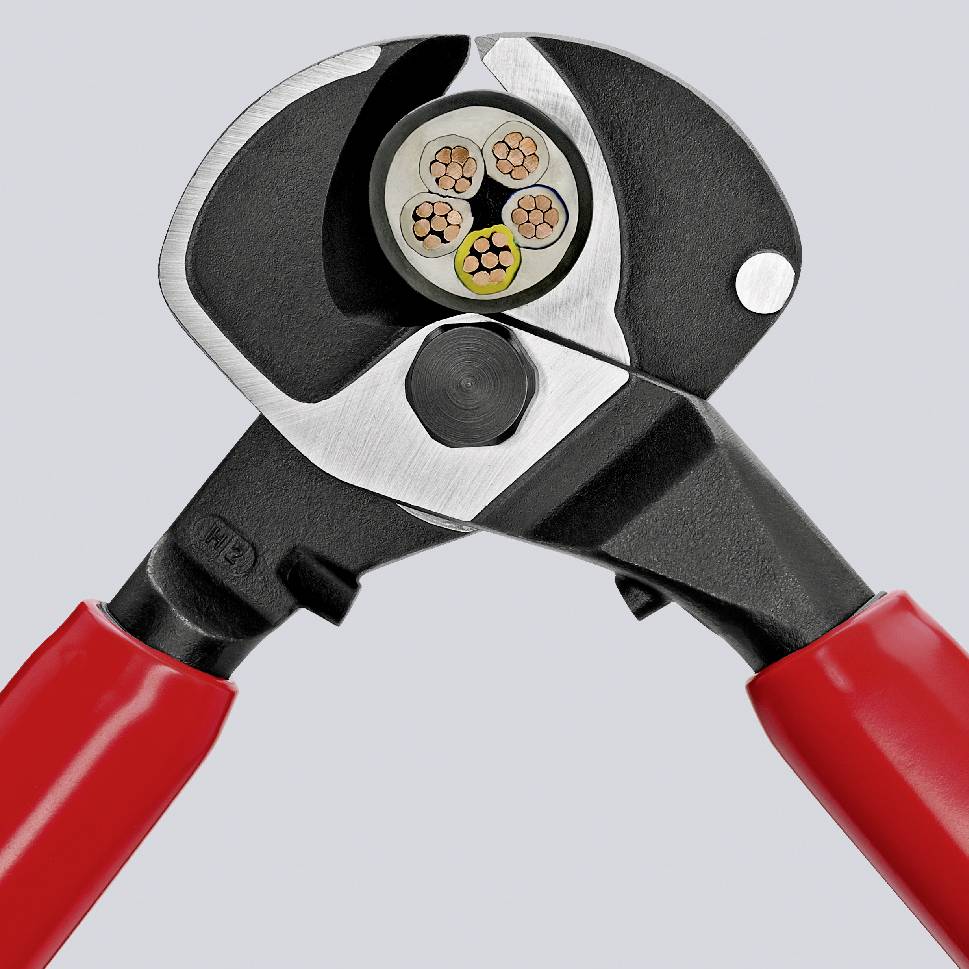

VDE cable shears KNIPEX 95 17 500
- For cutting Cu and Al cables, one-strand or multi-strand
- Not suitable for steel wires and wire ropes!
- Hardened blades for precision cutting
- Cuts smoothly and cleanly, without deforming the cable
- Low application of force through favorable translation ratios and optimized cutting geometry.
Technical specifications
- Product type
VDE cable cutting scissors
- Manufacturer part #
95 17 500
- Suitable for
Single/multi-core aluminium and copper cables
- Length
500 mm
- Material
Vanadium electric furnace steel
- Material properties
tempered
polishing
- Wire hardness diameter (max.)
27 mm
- Wire hardness cross section (max.)
150 mm²
- Wire hardness cross section AWG (max.)
0
- DIN standard
DIN EN 60900
- Width
175 mm
- Weight
1477 g
- Type
95 17 500
- Material suitability
Cu- and Al-cable, one and multi-wire, not suitable for steel wire and hard drawn copper wires
- Standards
IEC 60900, DIN EN 60900, ASTM F1505
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 816613 Knipex 95 17 500 VDE cable cutters 500 mm
Description
Short design, length of only 500 mm. Light weight, high translation. For cutting Cu and Al cables, one-strand or multi-strand. Not suitable for steel wires and wire ropes! Hardened cutting with precision-cut Cuts smoothly and cleanly, without deforming the cable. Low application of force through favorable translation ratios and special cutting geometry. Short design, length of only 500 mm. Low weight With pinch protection. Adjustable screw joint. Knife Head: vanadium electric steel, forged, oil-hardened. Legs: aluminum pipe, high-strength.
This text is machine translated.
This text is machine translated.
Features
- Polished, dip insulated, VDE-tested
- Hardened cutting with precision-cut
- Cuts smoothly and cleanly, without deforming the cable.
- Low effort needed because of the favourable gear ratio and new cutting geometry.
- Small shape
- Low weight
- With pinch protection
- Adjustable screw joint
- Cutting tip of Vanadin-Steel, hardened and tampered in oil
- Handles made of fixed Aluminum pipe
