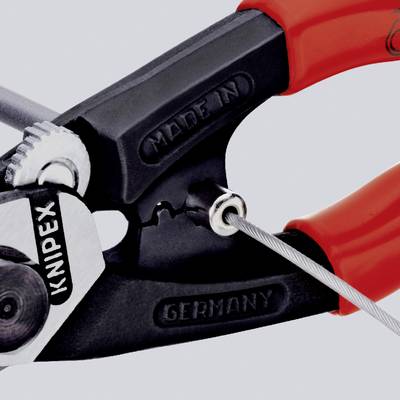

Close-up of a red and black Knipex pliers with the inscription 'Made in Germany'.

Diagram of a 3D model of a mechanical component with a bolt and thread for fastening purposes.

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 18 Sep

31 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 37.81 / piece)

€ 37.81

plus VAT.

Report legal concerns

Wire rope cutter forged KNIPEX 95 62 190

Highlights & Details

With two crimp profiles for ferrules on jackets and end caps for wire rope.
Comfortable working by handy, slim design and inner opening spring
Screwed joint for precise blade guide, operating positions
High translation for power saving work
Cutting hardness approx. 64 HRC

Technical specifications

Grips with multi-component sleeves

Product type: Wire rope cutter

Manufacturer part #: 95 62 190

Suitable for: Single/multi-core aluminium and copper cables
Medium wire ropes

Length: 195 mm

Material: Chromium-vanadium steel

Material properties: burnished
tempered

Wire hardness diameter (max.): 7 mm

Wire hardness cross section (max.): 10 mm²

Wire hardness cross section AWG (max.): 7

Weight: 314 g

Type: 95 62 190

Material suitability: Medium-hard wire ropes, Bowden cables, cable and round steel

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 823809 Knipex 95 62 190 Wire rope cutter Suitable for (cable stripping) Single/multi-core aluminium and copper cables, Medium w

User & Safety Instructions

User & Safety Instructions 823809 Knipex 95 62 190 Wire rope cutter Suitable for (cable stripping) Single/multi-core aluminium and copper cables, Medium w

Description

For hard wire ropes, also suitable for cable and round steel With Crimp functions e.g. for bicycle-Bowden sleeve end-caps and Bowden cable end sleeves. Precise, easy-moving screw joint. Opening spring lying in the joint, secure and protected against loss; With locking device. Special cutting geometry prevents a splitting of the wire rope Chrome-vanadium high speed steel, forged, oil-hardened multi-level

This text is machine translated.

Features

For hard wire ropes, also suitable for cable and round steel
With crimping function e.g. for bicycle-Bowden sleeve end-caps
Precise, easy-moving screw joint
Opening spring lying in the joint, secure and protected against loss; with safety catch
Special cutting geometry prevents a splitting of the wire rope
Special tool steel in special quality, forged, oil-hardened
Polished head.
