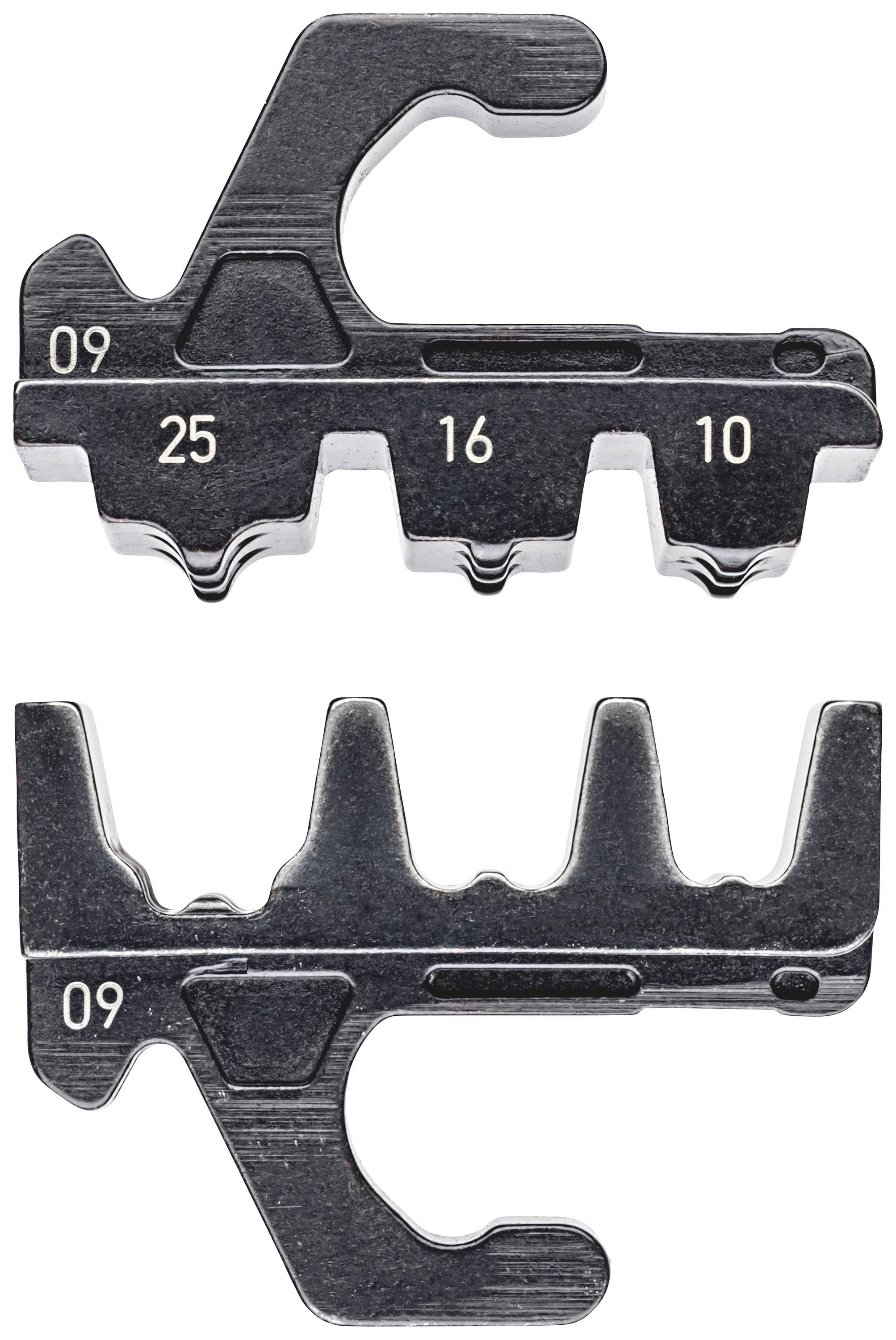

Knipex 97 39 09 Crimp inset 10 up to 25 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Knipex 97 39 09 Crimp insert for insulated + non-insulated wire end sleeves 80 mm
- For insulated + non-insulated wire-end sleeves;only one tool for the most common crimp applications;fast and easy changing of the crimp inserts without additional tools;safe and protected storage of the change-over inserts in a round magazine;comfortable, powerful crimping pliers in professional quality;reliable crimping results as with permanently mounted crimping inserts;consistently high crimping quality through precision inserts and forced lock (can be unlocked);
Technical specifications
- Product type
Crimp inset
- Manufacturer part #
97 39 09
- Range of uses
Ferrules
- Suitable for
Ferrules
- Crimp area
10 up to 25 mm²
- Crimp area AWG
4 up to 8 awg
- Crimp area (min.)
10 mm²
- Crimp area (max.)
25 mm²
- Crimp area AWG (min.)
8 awg
- Crimp area AWG (max.)
4 awg
- Length
80 mm
- Suitable for
Knipex
- Width
50 mm
- Weight
50 g
- Features
incl. exchangeable crimp insets
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2391066 Knipex 97 39 09 Crimp inset 10 up to 25 mm²
User & Safety Instructions
User & Safety Instructions 2391066 Knipex 97 39 09 Crimp inset 10 up to 25 mm²
Description
97 39 09 Crimp insert only one tool for the most common crimp applications. Quick and easy changing of the crimp inserts without additional tools. Safe and protected storage of the change-over inserts in a round magazine. Comfortable, powerful crimping pliers in professional quality. Reliable crimping results as with permanently mounted crimping inserts. Consistently high crimping quality thanks to precision dies and ratchet (unlocked) - Application: For wire end sleeves - Capacity square millimeter: 10.0 / 16.0 / 25,0mm² - AWG: 8 / 6 / 4
