Knipex 97 49 05 Crimp inset Non-insulated open end connectors Suitable for (pliers) 2.8/6.3 mm connector width 0.5 up to
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.

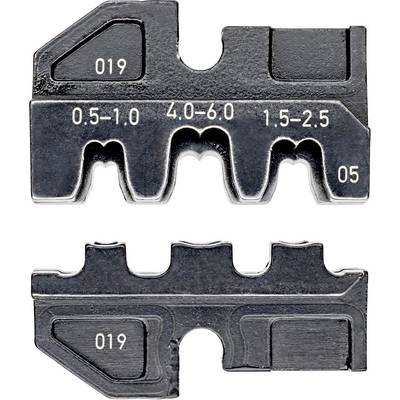

Crimp profiles
Highlights & Details
Technical specifications
- Number of cavities: 3
- Product type
Crimp inset
- Manufacturer part #
97 49 05
- Range of uses
Non-insulated open end connectors
- Suitable for
2.8/6.3 mm connector width
- Crimp area AWG
10 up to 20 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
10 awg
- Weight
46 g
- Suitable for
Knipex
- Suited for model
97 43 200
97 43 E
97 43 E AUS
97 43 E UK
97 43 E US
- Crimp area
0.5 up to 6 mm²
- Range of uses
Uninsulated connectors 4.8 + 6.3 mm 974904
- Type
97 49 05
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 823984 Knipex 97 49 05 Crimp inset Non-insulated open end connectors Suitable for (pliers) 2.8/6.3 mm connector width 0.5 up to
Datasheet 823984 Knipex 97 49 05 Crimp inset Non-insulated open end connectors Suitable for (pliers) 2.8/6.3 mm connector width 0.5 up to
User & Safety Instructions
User & Safety Instructions 823984 Knipex 97 49 05 Crimp inset Non-insulated open end connectors Suitable for (pliers) 2.8/6.3 mm connector width 0.5 up to
Description
Application: Non-insulated, open connector (4.8 + 6.3 mm plug width) 0.5 - 6.0 mm²
This text is machine translated.
This text is machine translated.
Hints
Only into use with the system KNIPEX Pliers code 82 39 31 Use!
