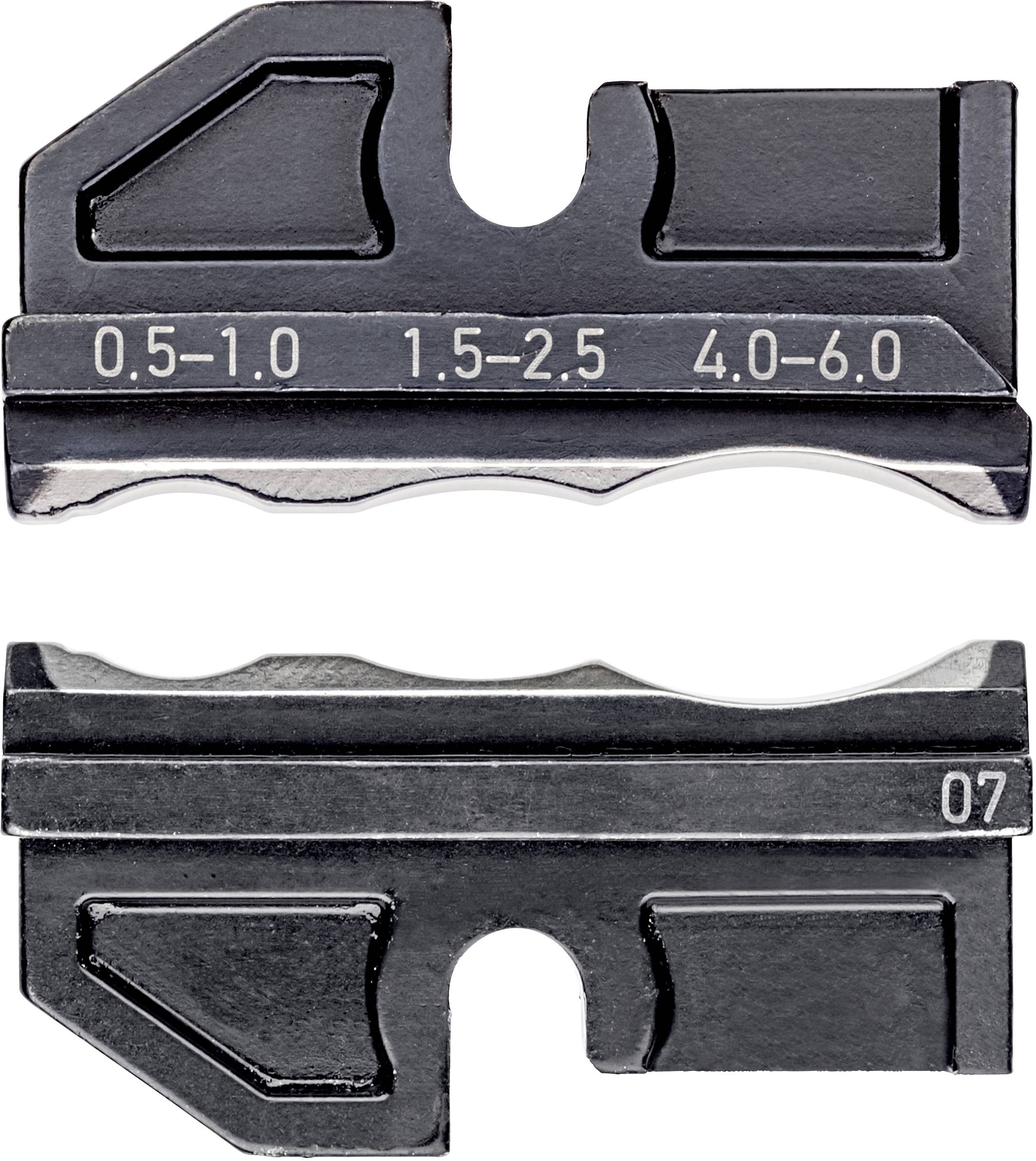

Knipex 97 49 07 Crimp inset Heatshrink terminals 0.5 up to 6 mm² Suitable for brand (pliers) Knipex
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Highlights & Details
Crimp insert for heat shrink connectors
- Up to 25 profiles available
- Special profiles on request
Technical specifications
- Capacity 0.5 - 6.0 mm²; AWG 20 - 10; Number of cavities: 3
- Product type
Crimp inset
- Manufacturer part #
97 49 07
- Range of uses
Heatshrink terminals
- Crimp area AWG
10 up to 20 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
10 awg
- Length
35 mm
- Width
32 mm
- Weight
40 g
- Suitable for
Knipex
- Crimp area
0.5 up to 6 mm²
- Type
97 49 07
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1169031 Knipex 97 49 07 Crimp inset Heatshrink terminals 0.5 up to 6 mm² Suitable for brand (pliers) Knipex
Description
Up to 250 profiles available. Special profiles on request.
