Knipex 97 49 10 Crimp inset Non-insulated crimp cable lugs, Non-insulated crimp contacts, Non-insulated butt connectors
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Only 10 Piece(s) available
Highlights & Details

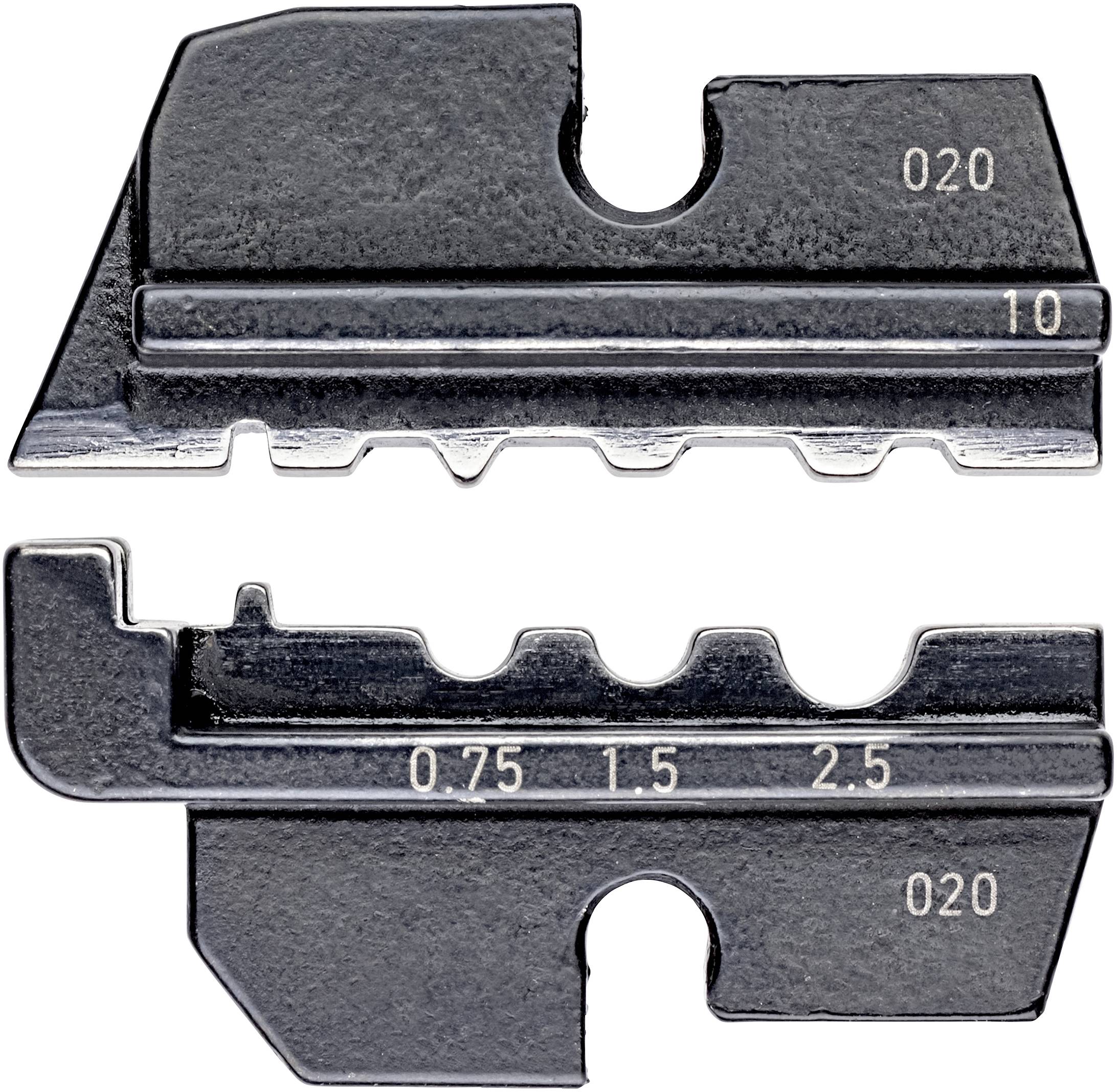

Crimp insert for cable lugs
- Application: uninsulated pipe and cable lugs according to DIN 46237 as well as non-insulated impact and crimp connectors according to DIN 46341.75 / 1.5 / 2.5 mm²
Technical specifications
- Capacity 0.75 / 1.5 / 2.5 mm²; AWG 20 - 19/ 17-15 / 13; Number of cavities: 3
- Product type
Crimp inset
- Manufacturer part #
97 49 10
- Range of uses
Non-insulated crimp cable lugs
Non-insulated crimp contacts
Non-insulated butt connectors
- Crimp area AWG
13 up to 20 awg
- Crimp area (min.)
0.75 mm²
- Crimp area (max.)
2.5 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
13 awg
- Length
32 mm
- Width
12 mm
- Weight
37 g
- Suitable for
Knipex
- Suited for model
97 43 200
97 43 E
97 43 E AUS
97 43 E UK
97 43 E US
- Crimp area
0.75 up to 2.5 mm²
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1008236 Knipex 97 49 10 Crimp inset Non-insulated crimp cable lugs, Non-insulated crimp contacts, Non-insulated butt connectors
Description
Application: uninsulated pipe and cable lugs according to DIN 46237 as well as non-insulated impact and crimp connectors according to DIN 46341 0.75/ 1.5/ 2.5 mm²
