Knipex 97 49 18 Crimp inset Twin ferrules 6 up to 16 mm² Suitable for brand (pliers) Knipex 97 43 200, 97 43 E, 97 43 E
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
14-day return policy included
Highlights & Details
Crimp profiles
Technical specifications
- Capacity 2 x 6 / 2 x 10 / 2 x 16 mm²; AWG 2 x 10 / 2 x 7 / 2 x 5
- Product type
Crimp inset
- Manufacturer part #
97 49 18
- Range of uses
Twin ferrules
- Crimp area AWG
5 up to 10 awg
- Crimp area (min.)
6 mm²
- Crimp area (max.)
16 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
5 awg
- Length
80 mm
- Width
50 mm
- Weight
48 g
- Suitable for
Knipex
- Suited for model
97 43 200
97 43 E
97 43 E AUS
97 43 E UK
97 43 E US
- Crimp area
6 up to 16 mm²
- Material
Steel
- Range of uses
Twin - ferrule sleeves for two flexible wires
- Type
97 49 18
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 814493 Knipex 97 49 18 Crimp inset Twin ferrules 6 up to 16 mm² Suitable for brand (pliers) Knipex 97 43 200, 97 43 E, 97 43 E
Description

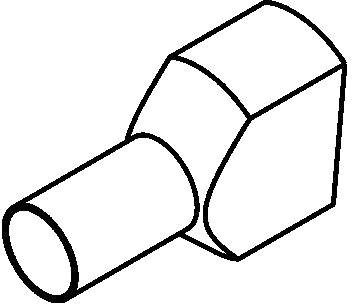

Application: Twin wire-end sleeves for taking in two flexible conductors 2 x 6 / 2 x 10/ 2 x 16 mm²
This text is machine translated.
This text is machine translated.
Hints
Only into use with the system KNIPEX Pliers code 82 39 31 Use!
