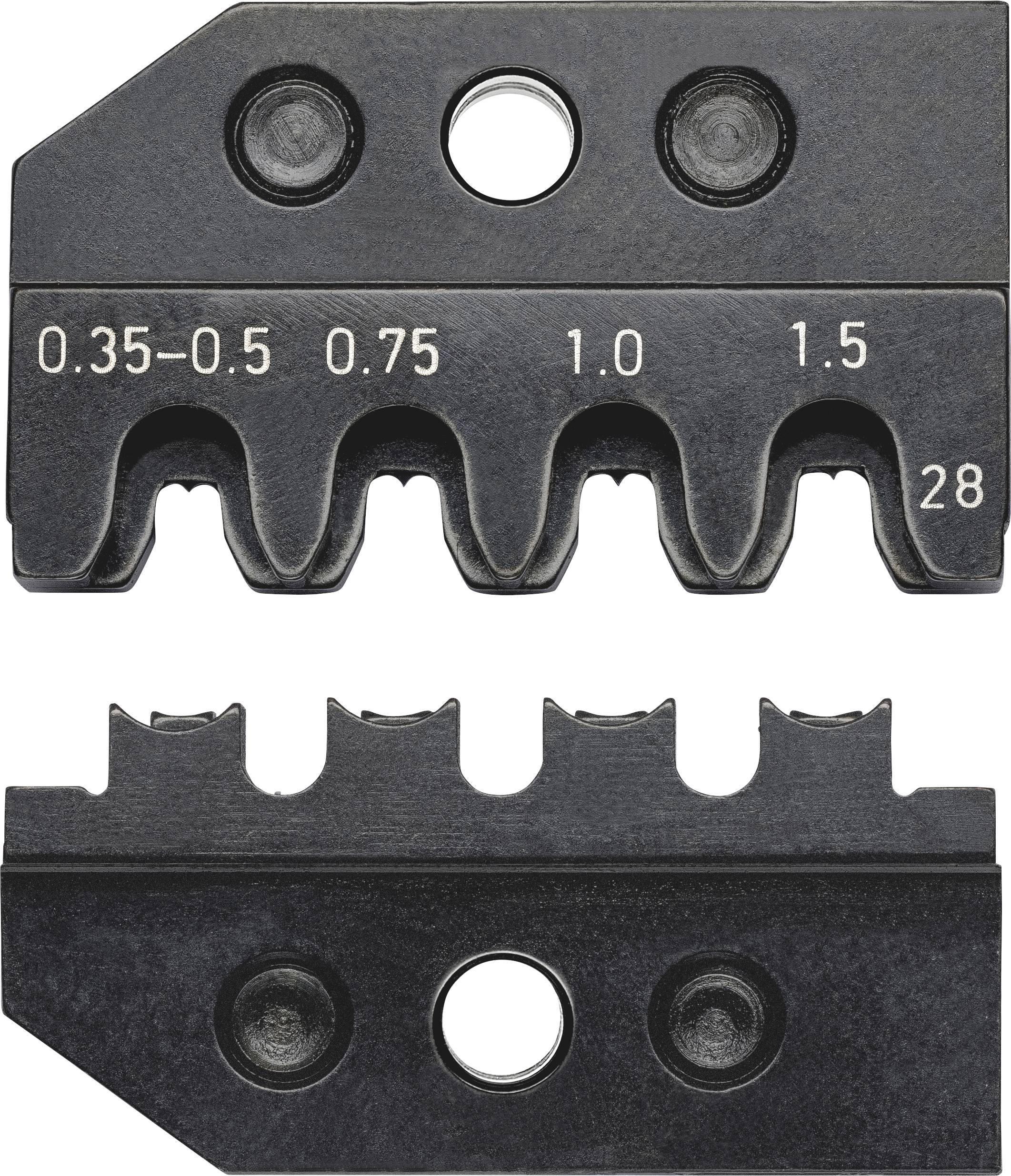

Knipex 97 49 28 Crimp inset
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Crimp inset
- Manufacturer part #
97 49 28
- Range of uses
AMP Superseal 1.5
- Crimp area AWG
16 up to 22 awg
- Crimp area (min.)
0.35 mm²
- Crimp area (max.)
1.5 mm²
- Crimp area AWG (min.)
22 awg
- Crimp area AWG (max.)
16 awg
- Length
80 mm
- Width
50 mm
- Weight
41 g
- Suitable for
Knipex
- Crimp area
0.35 up to 1.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3406219 Knipex 97 49 28 Crimp inset
User & Safety Instructions
User & Safety Instructions 3406219 Knipex 97 49 28 Crimp inset
Description
97 49 28 Crimp insert The optional wire stop 97 49 28 1 prevents the wire from being inserted too far into the crimp contact. This ensures that the wire has the optimal contact surface and a reliable electrical connection is made. Application: Plug of the AMP Superseal 1.5 series of Tyco Electronics. - Application: Mini Mic Super seal 1.5 by Tyco Electronics - Capacity Square millimeters: 0.35 — 1.5mm² - AWG: 22 — 16
