Knipex 97 52 13 Crimper Non-insulated spade terminals, Non-insulated crimp cable lugs, Non-insulated crimp contacts, Non
EAN:
Part number:
Item no:
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 3 Piece(s) available

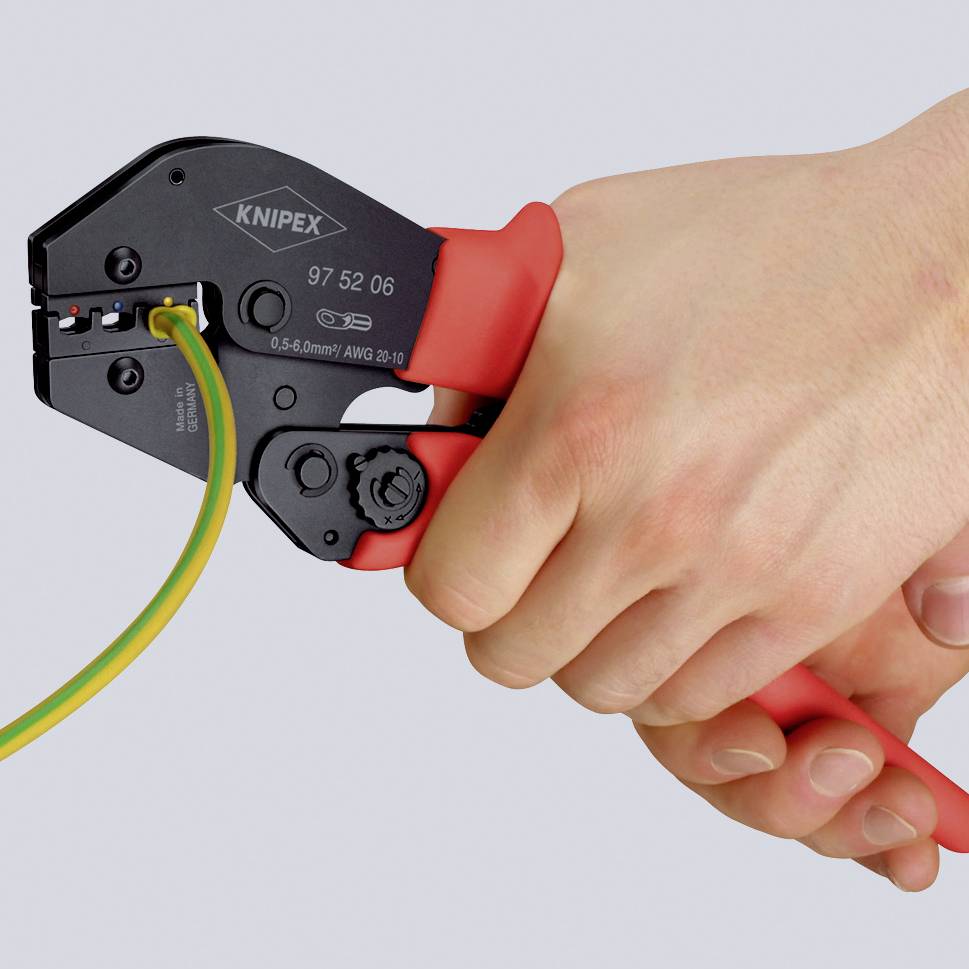

Crimping pliers also for two-handed use
Highlights & Details
- For solder-free electrical connections
- Up to 3 % reduced manual force compared to standard crimping pliers thanks to high leverage
- Consistent high crimping quality through precision inserts and lock (can be unlocked)
- Crimping pressure is factory-precisely adjusted (calibrated), operating positions
- Two-hand operation for easy crimping of large conductor cross sections
Technical specifications
- AWG 20 - 7
- Number of holes: 4x
- Product type
Crimper
- Manufacturer part #
97 52 13
- Range of uses
Non-insulated spade terminals
Non-insulated crimp cable lugs
Non-insulated crimp contacts
Non-insulated crimp connectors
Non-insulated butt connectors
- Crimp area
0.5 up to 10 mm²
- Crimp area AWG
7 up to 20 awg
- Crimp area (min.)
0.5 mm²
- Crimp area (max.)
10 mm²
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
7 awg
- Length
250 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
burnished
tempered
- Width
104 mm
- Height
30 mm
- Weight
558 g
- Range of uses
Non-insulated cable lug + plug connector
- Suitable for
0.5 -10.0 mm²
- Type
97 52 13
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822446 Knipex 97 52 13 Crimper Non-insulated spade terminals, Non-insulated crimp cable lugs, Non-insulated crimp contacts, Non
Description
Crimping pliers of the new generation. For solder-free electrical connections Up to 30 % reduced manual force compared to standard crimping pliers thanks to high leverage Consistent high crimping quality through precision inserts and lock (can be unlocked) Cirmping pressure is precisely set (calibrated) at the factory Two-hand operation for easy crimping of large conductor cross sections Good handling thanks to balanced centre of gravity, angled head and ergonomically-shaped grips Chromium-vanadium electro-steel in special quality, oil-hardened
This text is machine translated.
This text is machine translated.
Features
- For solder-free electrical connections
- Up to 30% reduced manual force compared to standard crimping pliers thanks to high leverage
- Consistently high crimping quality thanks to precision dies and ratchet (unlocked)
- Cirmping pressure is precisely set (calibrated) at the factory
- Two-hand operation for easy crimping of large conductor cross sections
- Good handling thanks to balanced centre of gravity, angled head and ergonomically-shaped grips
- Crimping pliers of the new generation
