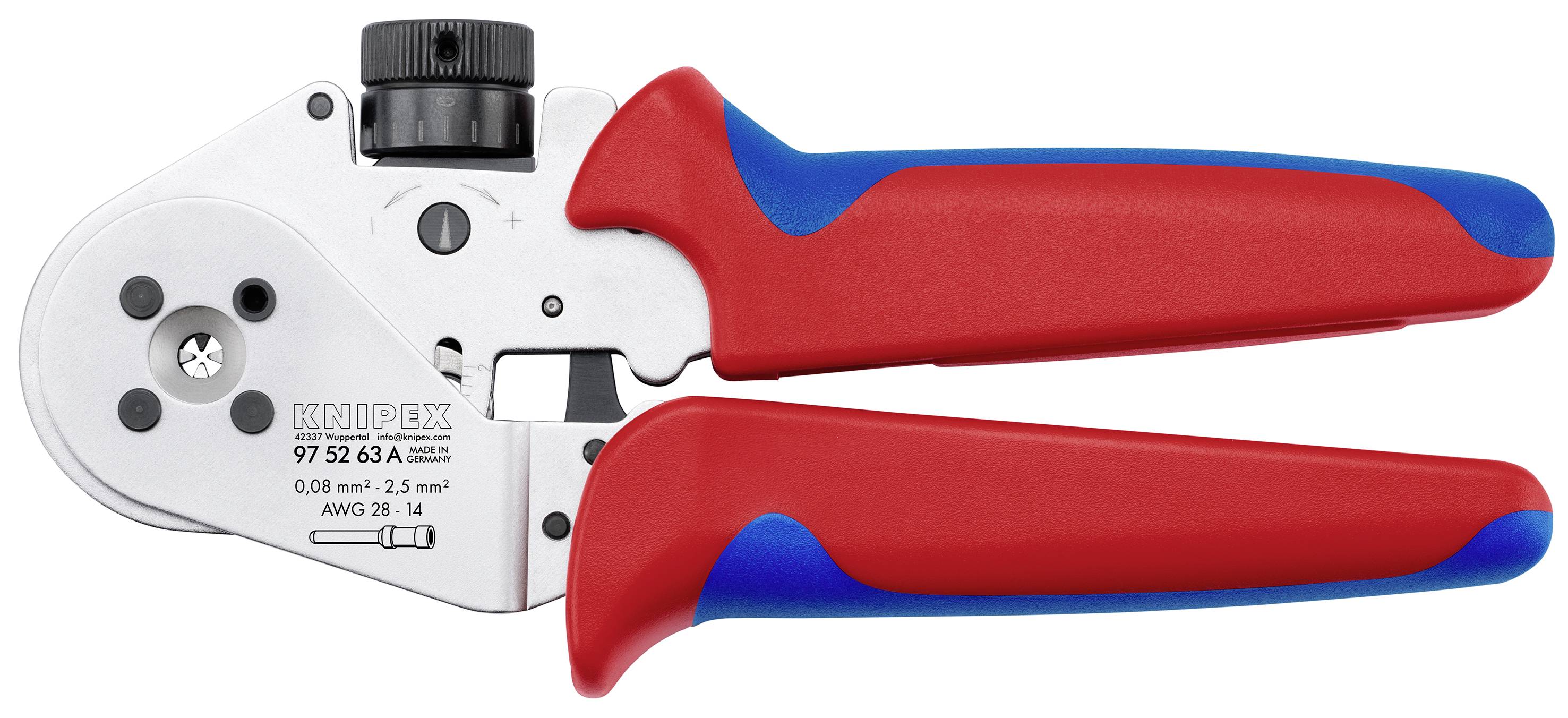

Knipex 97 52 63 A Crimper Machined contacts 0.08 up to 2.5 mm² Incl. PVC case, Knipex, incl. foam inset, Fine adjustment
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Four-punch pliers for turned contacts

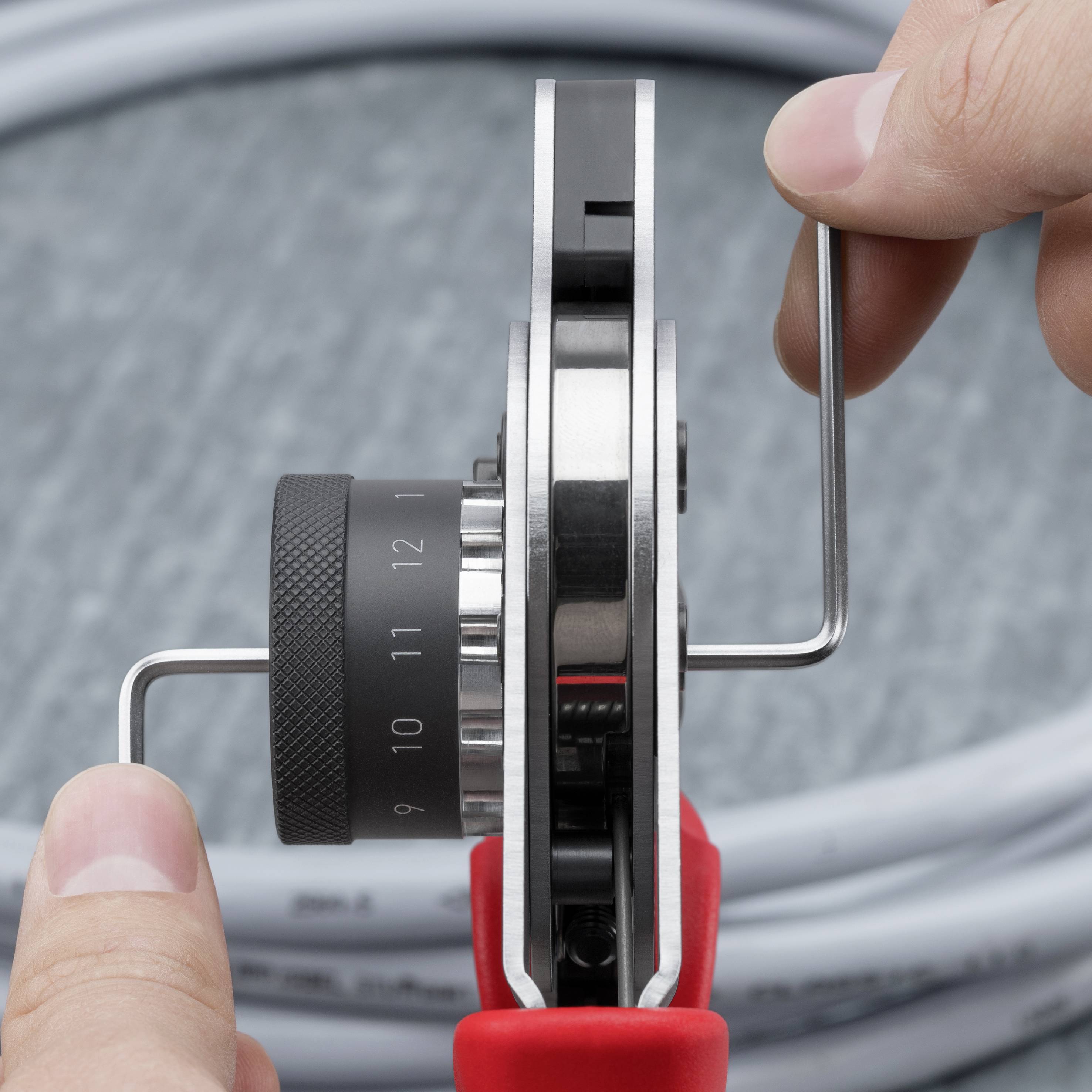

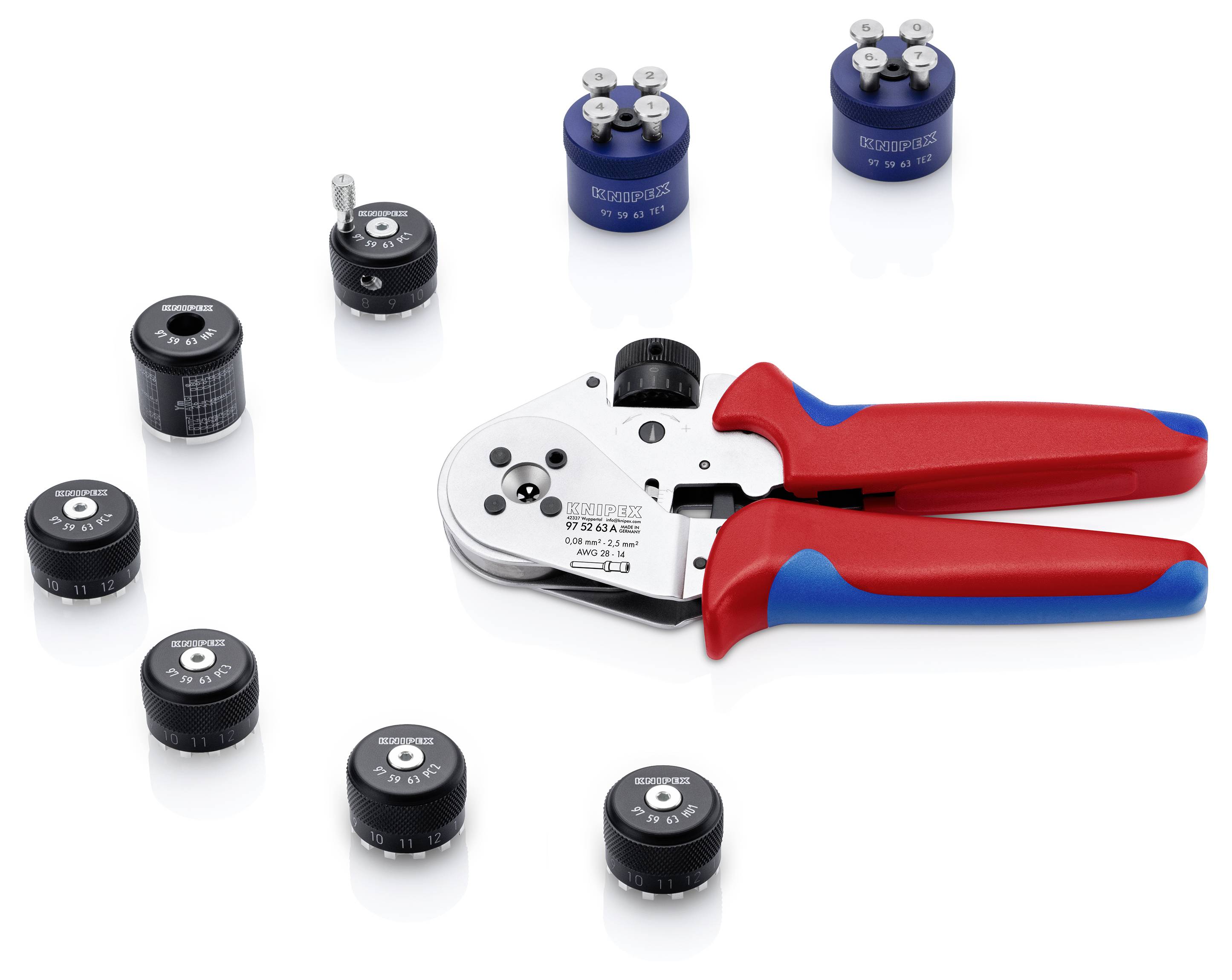

- Crimp punch inlet adjustable in 0.01 mm steps using a selection wheel; Reliable pressing thanks to synchronous insertion of the crimp probes;Process-safe and consistently high crimping quality through release lock according to IEC 60352 (forced lock, unlockable);verification of the basic setting with the enclosed test pin;The scope of application of the crimp pliers can be extended by exchanging the contact holders of various contact manufacturers;High operating comfort with handy design;Tongs in the plastic case with foam insert, mandrel for controlling the basic setting and slots for up to 3 optional contact pockets of the series 97 59 63 xxx
Technical specifications
- Suitable for: Machined pin and socket contacts of various contact manufacturers
- Product type
Crimper
- Manufacturer part #
97 52 63 A
- Range of uses
Machined contacts
- Crimp area
0.08 up to 2.5 mm²
- Crimp area AWG
14 up to 28 awg
- Crimp area (min.)
0.08 mm²
- Crimp area (max.)
2.5 mm²
- Crimp area AWG (min.)
28 awg
- Crimp area AWG (max.)
14 awg
- Length
175 mm
- Width
220 mm
- Height
52 mm
- Weight
840 g
- Features
Incl. PVC case
Knipex, incl. foam inset
Fine adjustment knob
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3742624 Knipex 97 52 63 A Crimper Machined contacts 0.08 up to 2.5 mm² Incl. PVC case, Knipex, incl. foam inset, Fine adjustment
User & Safety Instructions
User & Safety Instructions 3742624 Knipex 97 52 63 A Crimper Machined contacts 0.08 up to 2.5 mm² Incl. PVC case, Knipex, incl. foam inset, Fine adjustment
Description
97 52 63 A four-punch crimp pliers for turned contacts Basic pliers without contacting for pressing twisted pin and socket contacts of different contact manufacturers with 0.08 - 2.5 mm² (AWG 28 - 14). Set of crimp probes in increments of 0.01 mm using a selection wheel. Reliable crimping thanks to synchronous entry of the crimp probes. Process-safe and consistently high crimping quality through trip lock according to IEC 60352 (forced lock, can be unlocked). Check the basic setting using the test jack enclosed. The scope of application of the crimp pliers can be extended by the exchange of contact holders of different contact manufacturers. High user comfort through handy design. Pliers in plastic case with foam insert, mandrel for controlling the basic setting and slots for up to 3 optional contact holders of the series 97 59 63 xxx. - Application: Rotated contacts - Capacity square millimeters: 0.08 — 2.5mm² - AWG: 28 — 14 - Contact diameter max.: 5mm
