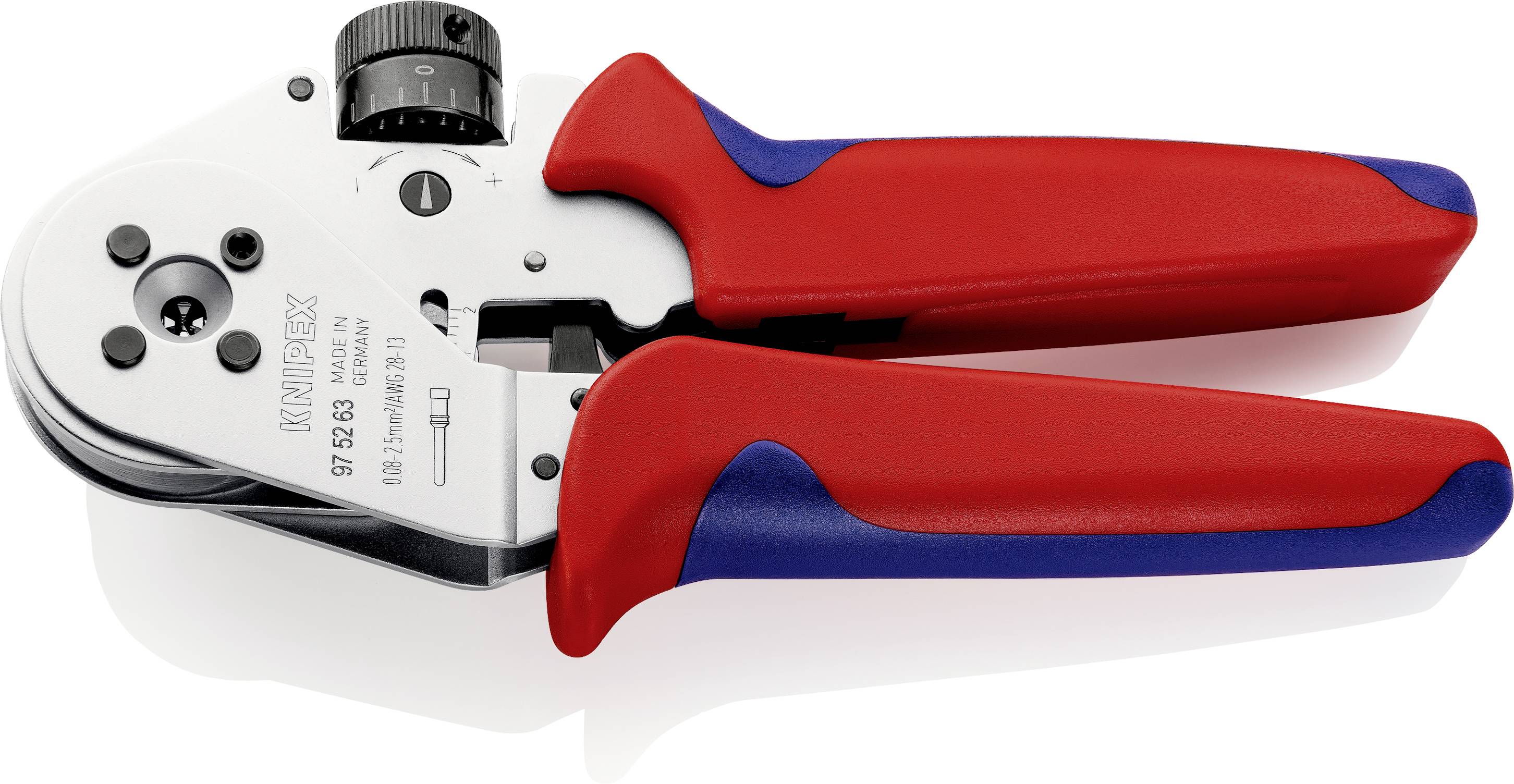

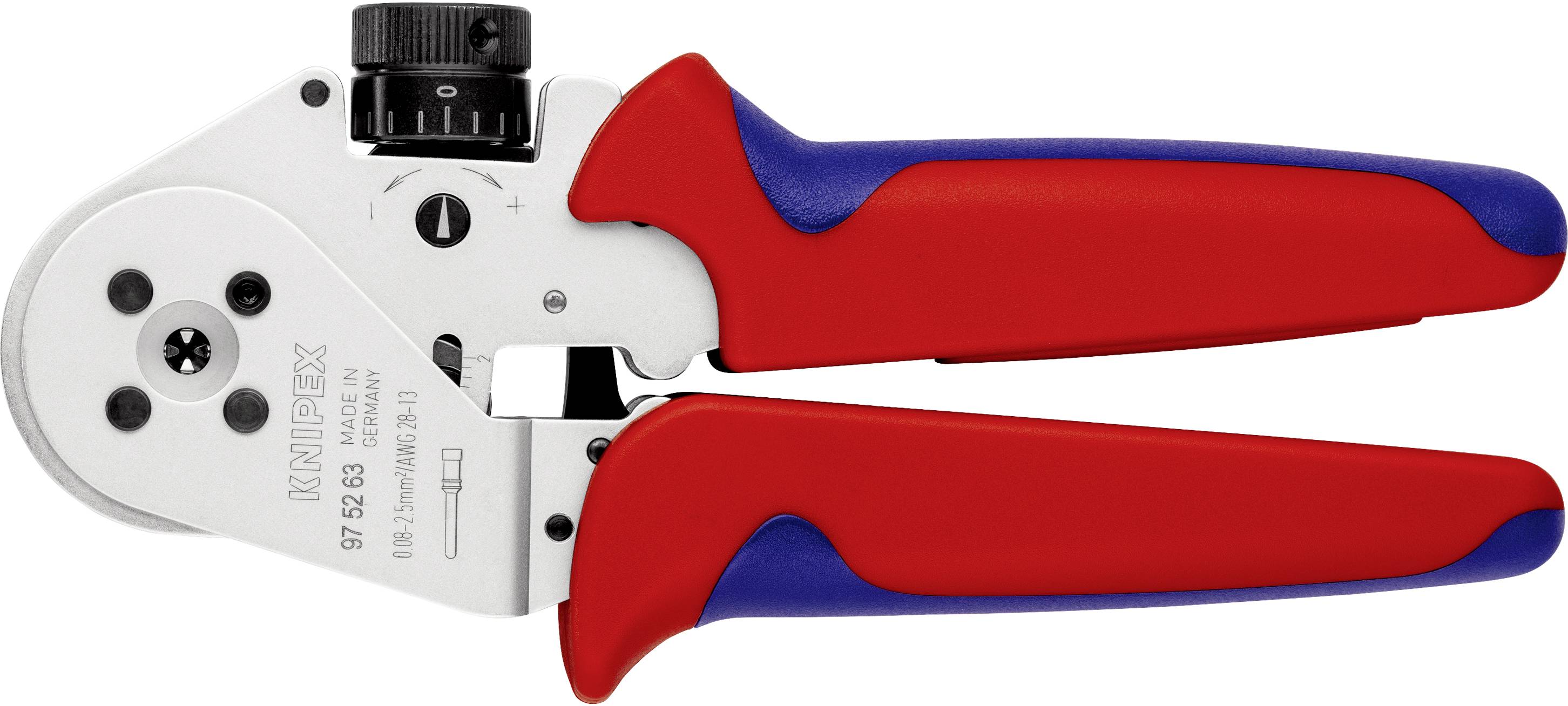

Buy Knipex 97 52 63 Squeezer Machined contacts 0.08 up to 2.5 mm²

A silver mechanical device with a large black rotary knob displaying numbers from 1 to 4, and a red lever.

Measuring device with digital display, reading '0.59 inch'. Power switch labelled 'MODE' and 'ON/OFF', metal casing.

An open toolbox containing a crimping tool, screwdrivers, and a blue instruction sheet resting on a grey foam pad.

A red crimping pliers with blue accents and an adjustable mechanism for cable processing.

Camera display shows the mode 'F7'. Switch with 'MODE ON/OFF' located to the right.

A red crimping pliers with blue accents and an adjustable mechanism, used for connecting wires in electrical applications.

A red crimping pliers with an adjustable mechanism, suitable for professional cable connections and precision work.

Close-up of a digital calliper with a display showing '1.51 mm'. A switch with positions 'Mode' and 'On/Off' is visible.

1/9

Fast track dispatch on Thu, 1 Oct

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 483.19 / piece)

€ 483.19

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Four-punch pliers for turned contacts

For crimping of machined contacts
Four indent crimping for highest quality crimp connections
Plug gauge for checking the basic setting
consistently high crimping quality through locking device (can be unlocked)
Power strengthening through highly effective lever transmission for fatigue-free working

Technical specifications

AWG 28 - 13
Number of cavities: 1 pcs.

Product type: Squeezer

Manufacturer part #: 97 52 63

Range of uses: Machined contacts

Crimp area: 0.08 up to 2.5 mm²

Crimp area AWG: 13 up to 28 awg

Crimp area (min.): 0.08 mm²

Crimp area (max.): 2.5 mm²

Crimp area AWG (min.): 28 awg

Crimp area AWG (max.): 13 awg

Length: 180 mm

Material: Chromium-vanadium electric furnace steel

Material properties: chrome plated
tempered

Width: 67 mm

Weight: 388 g

Suitable for: Turned contacts

Type: 97 52 63

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822455 Knipex 97 52 63 Squeezer Machined contacts 0.08 up to 2.5 mm²

Description

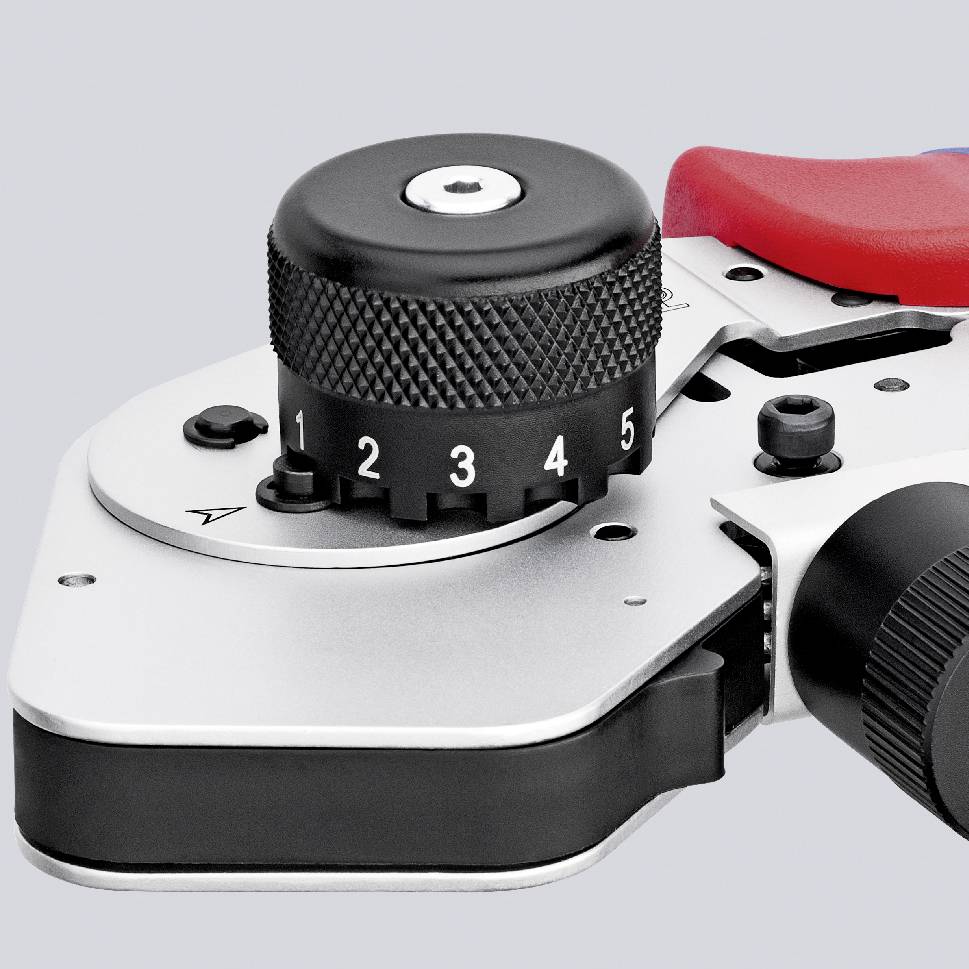

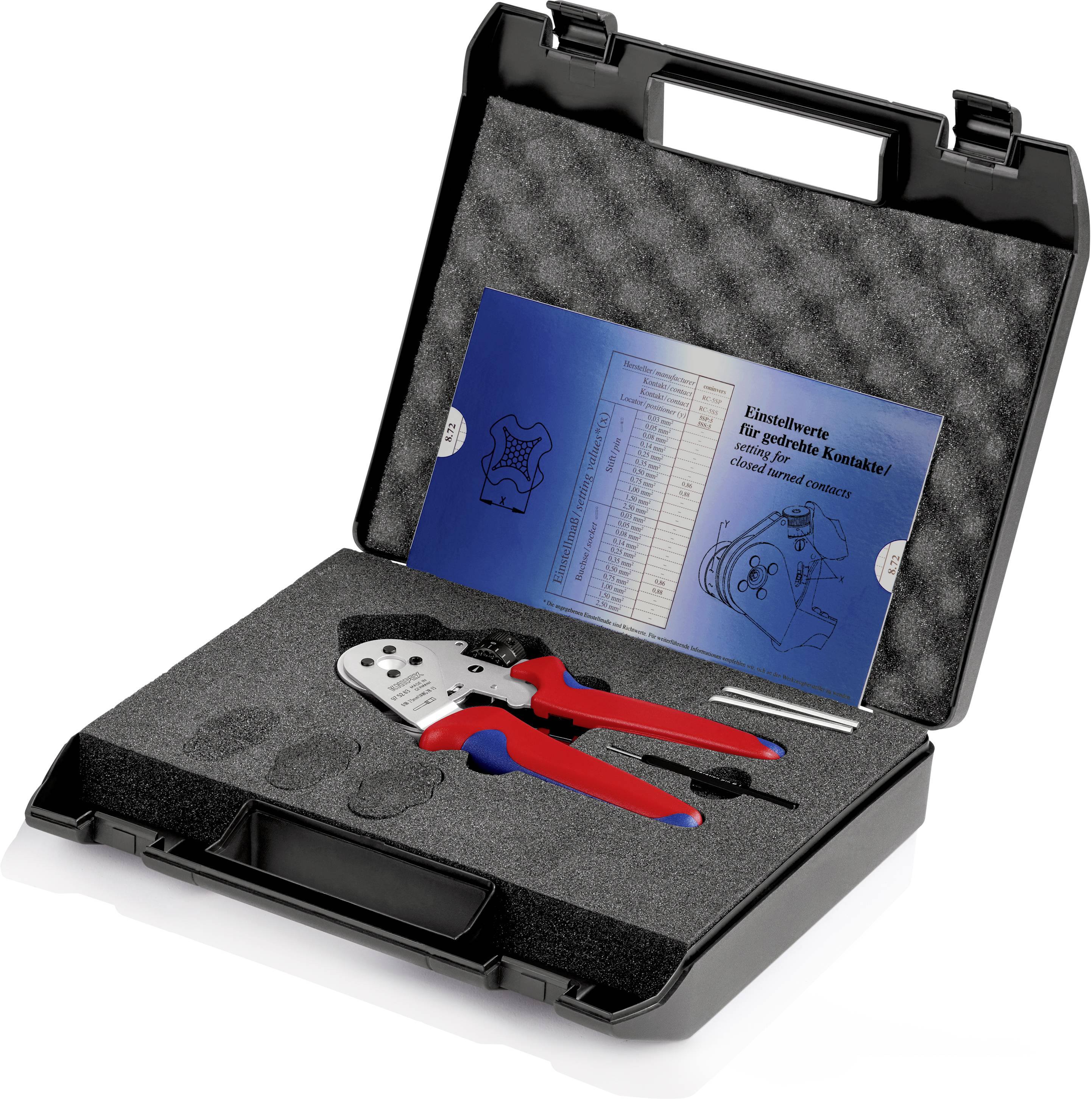

Fine-stage pressure setting on different cross sections of the conductor by means of adjusting wheel. Clamp-on ammeter in plastic case with foam inserts and positioning for the recording of the contacts. For crimping of turned contacts. For solder-free electrical connections Four indent crimping for exact crimp connection. Plug gauge for checking the basic settings. consistently high crimping quality through locking device (can be unlocked) Cirmping pressure is precisely set (calibrated) at the factory Power strengthening through lever transmission for fatigue-free working High usage comfort through handy design. Chromium-vanadium electro-steel in special quality, oil-hardened

This text is machine translated.

Features

High usage comfort through handy design
Power strengthening through lever transmission for fatigue-free working
Cirmping pressure is precisely set (calibrated) at the factory
consistently high crimping quality through locking device (can be unlocked)
Plug gauge for checking the basic setting
Four indent crimping for exact crimp connection
For solder-free electrical connections
For crimping of machined contacts
Fine-stage pressure setting on different cross sections of the conductor by means of adjusting wheel
