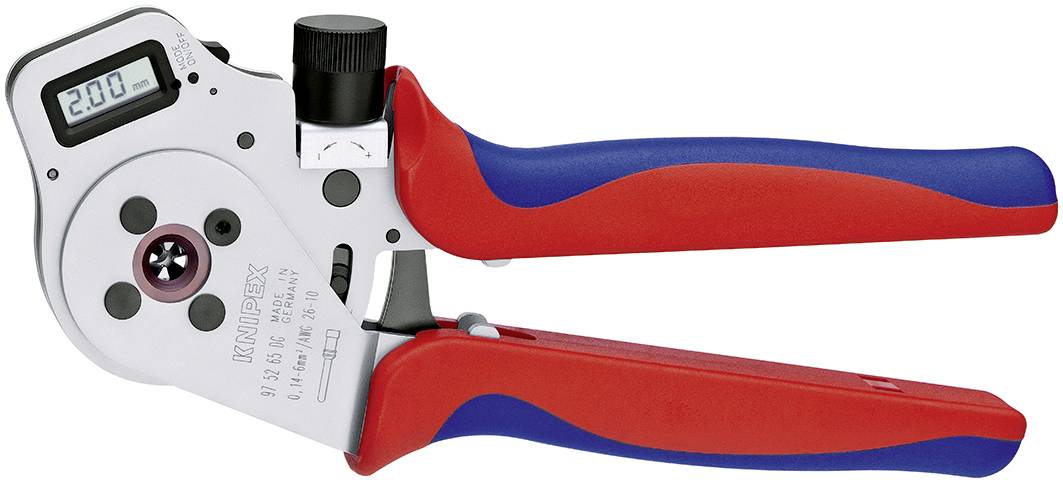

Knipex 97 52 65 DG A Squeezer Machined contacts 0.14 up to 6 mm² Incl. PVC case
EAN:
Part number:
Item no:
Number
Total (€ 688.24 / piece)
€ 688.24
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Four-Mandrel Crimping Pliers for turned contacts chrome plated with multi-component grips 250 mm
- For crimping of machined contacts
- Four indent crimping for highest quality crimp connections
- Plug gauge for checking the basic setting
- consistently high crimping quality through locking device (can be unlocked)
- Power strengthening through highly effective lever transmission for fatigue-free working
Technical specifications
- Pliers: chrome plated
- Handles: with multi-component grips
- Applications: turned contacts (Harting; Ilme; Phoenix; Amphenol; Walther; HTS; Contact; Weidmüller)
- Capacity: 0,14 - 6,0 mm²
- AWG: 25 - 10
- Number of crimping positions: 1
- Length: 250 mm
- Product type
Squeezer
- Manufacturer part #
97 52 65 DG A
- Range of uses
Machined contacts
- Crimp area
0.14 up to 6 mm²
- Crimp area AWG
10 up to 25 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
25 awg
- Crimp area AWG (max.)
10 awg
- Length
250 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
chrome plated
tempered
- Weight
630 g
- Features
Incl. PVC case
- Suitable for
Turned contacts (e.g. from harting;;;;;; Amphenol Ilme Phoenix Contact; Weidmüller Walther HTS)
- Type
97 52 65 DG A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 825534 Knipex 97 52 65 DG A Squeezer Machined contacts 0.14 up to 6 mm² Incl. PVC case
Description
For crimping turned contacts
Four-mandrel crimping for top-quality crimping connections
Mandrel gauge to check the basic setting
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
High operation comfort thanks to handy shape
Chrome vanadium electric steel in special quality, oil-hardened
With digital display of the preset crimping capacities
With table for calculating the settings
Pliers in a plastic case with foam insert
Without locator
Crimping capacity can be adjusted in increments of 0.01 mm
Adjustment in mm, inches or comparable selection positions according to MIL
Four-mandrel crimping for top-quality crimping connections
Mandrel gauge to check the basic setting
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
High operation comfort thanks to handy shape
Chrome vanadium electric steel in special quality, oil-hardened
With digital display of the preset crimping capacities
With table for calculating the settings
Pliers in a plastic case with foam insert
Without locator
Crimping capacity can be adjusted in increments of 0.01 mm
Adjustment in mm, inches or comparable selection positions according to MIL
Features
- For crimping of machined contacts
- Four indent crimping for highest quality crimp connections
- Plug gauge for checking the basic setting
- consistently high crimping quality through locking device (can be unlocked)
- Power strengthening through lever transmission for fatigue-free working
- High usage comfort through handy design
- Chromium-vanadium electro-steel in special quality, oil-hardened
- Fine-stage pressure setting on different cross sections of the conductor by means of adjusting wheel
- With digital display of set crimp ground
- Display can be switched between mm and inch and MIL-Values
- With table to determine the setting values
- Clamp-on ammeter in plastic case with foam padding.
- Without positioning aid.
