Buy Knipex 97 52 65 Squeezer Machined contacts 0.14 up to 6 mm² Incl. PVC case

A red crimping pliers with blue handles in a black plastic case with foam lining, suitable for cable connections.

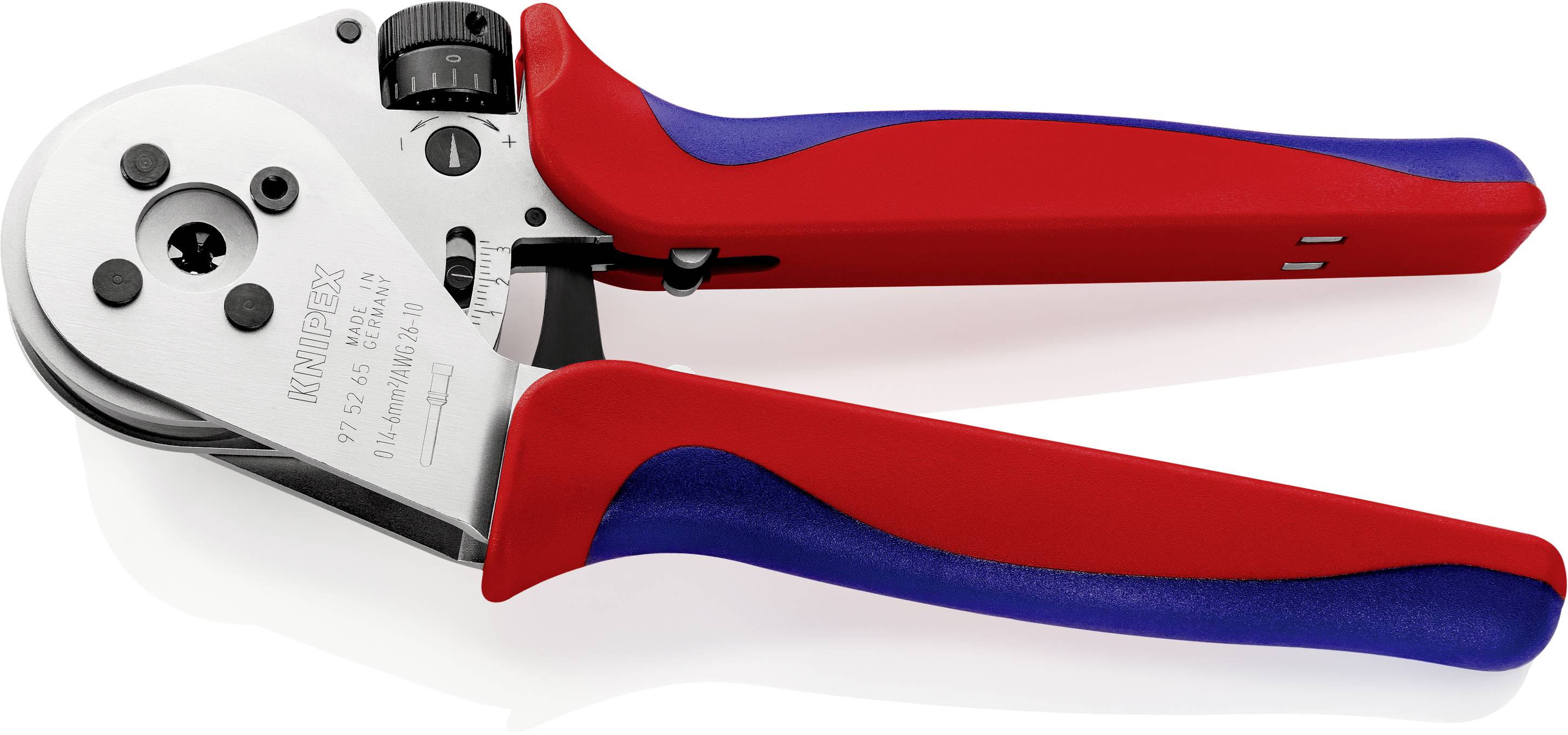

Crimping pliers with red and blue handles, suitable for crimping cable lugs and connectors.

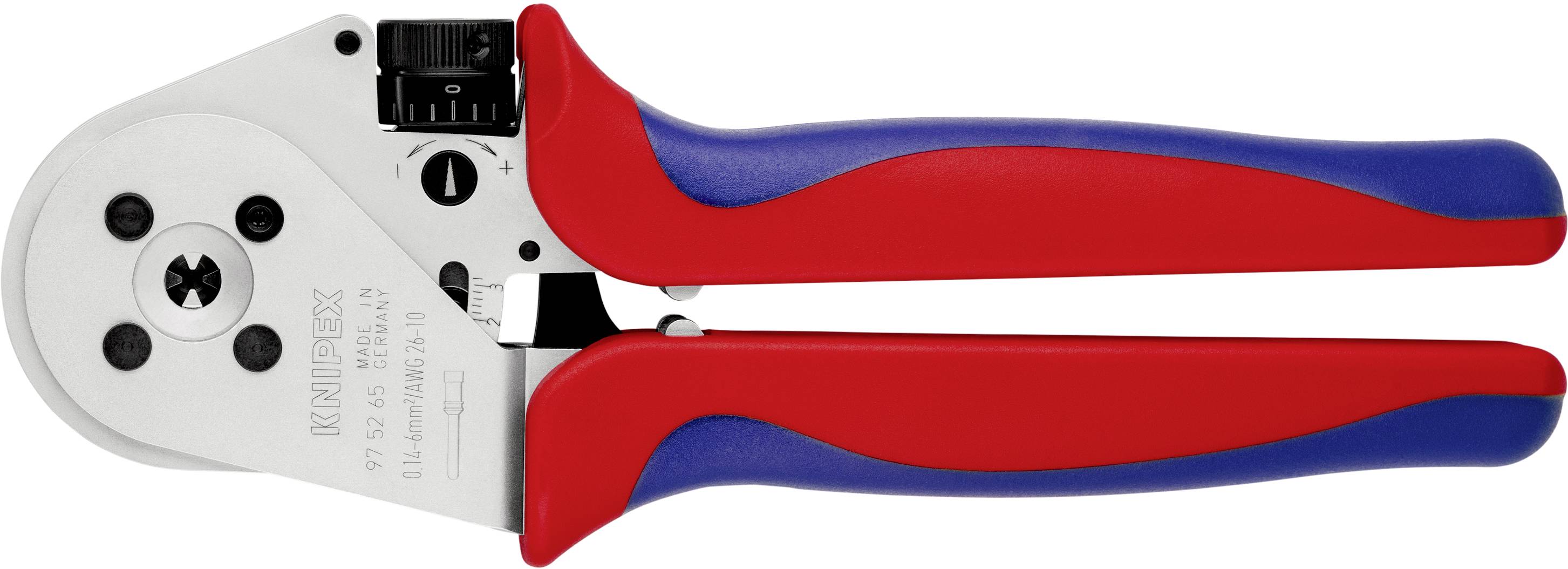

Knipex crimping pliers with red and blue handles, suitable for crimping cable lugs.

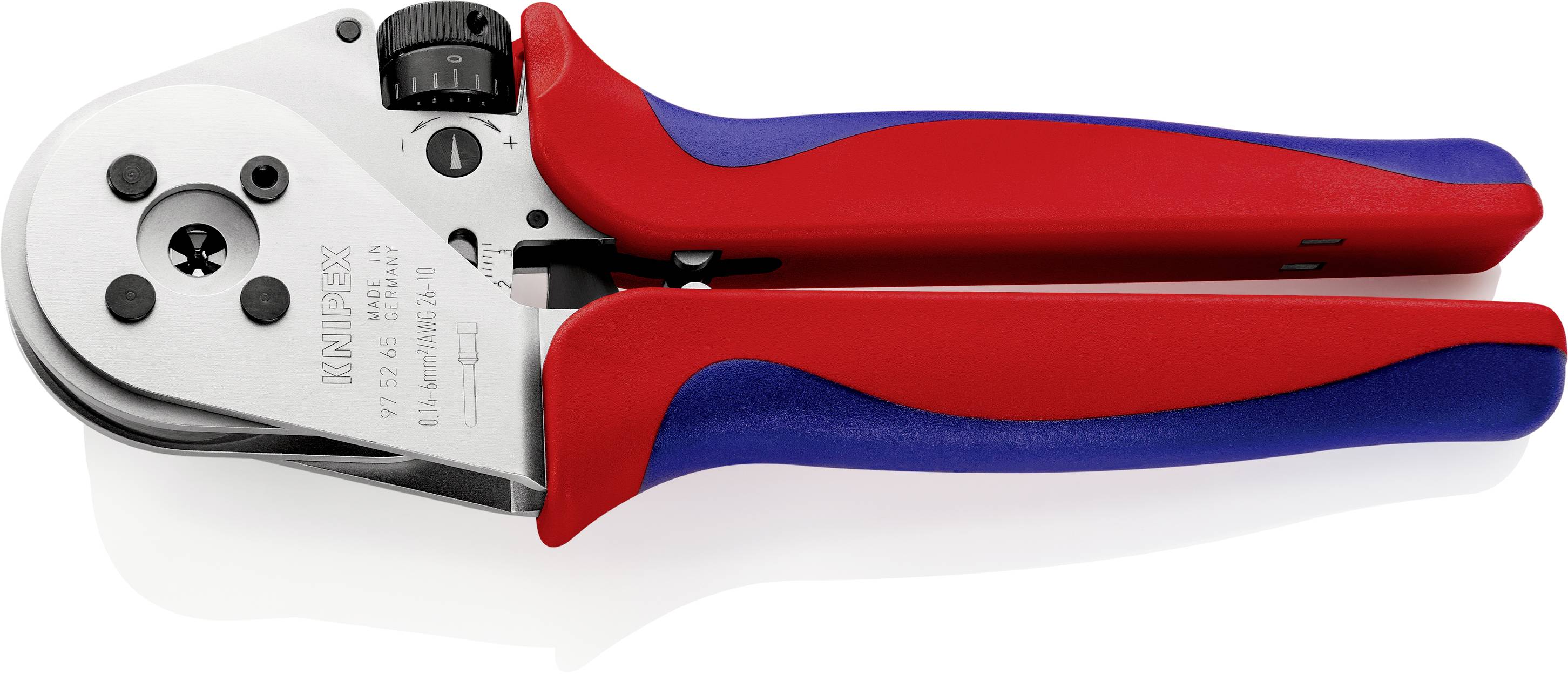

Crimping pliers with a red and blue handle, suitable for crimping cables. They are manufactured from metal and plastic, with an adjustment wheel.

1/5

Fast track dispatch on Mon, 5 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 562.18 / piece)

€ 562.18

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Four-punch pliers for turned contacts

For crimping of machined contacts
Four indent crimping for highest quality crimp connections
Plug gauge for checking the basic setting
consistently high crimping quality through locking device (can be unlocked)
Power strengthening through highly effective lever transmission for fatigue-free working

Technical specifications

AWG 28 - 13
Number of cavities: 1 pcs.

Product type: Squeezer

Manufacturer part #: 97 52 65

Range of uses: Machined contacts

Crimp area: 0.14 up to 6 mm²

Crimp area AWG: 10 up to 25 awg

Crimp area (min.): 0.14 mm²

Crimp area (max.): 6 mm²

Crimp area AWG (min.): 25 awg

Crimp area AWG (max.): 10 awg

Length: 230 mm

Material: Chromium-vanadium electric furnace steel

Material properties: chrome plated
tempered

Weight: 676 g

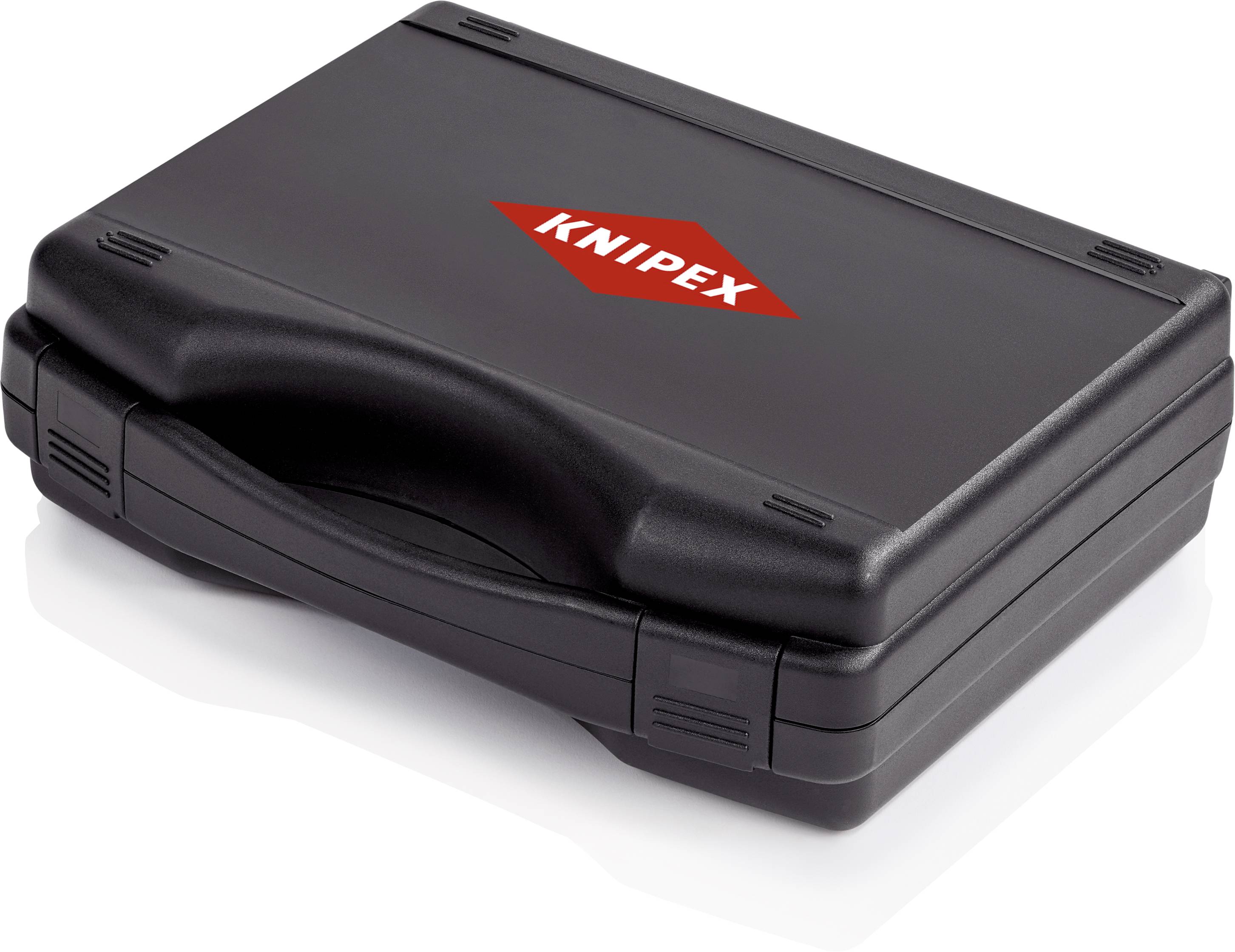

Features: Incl. PVC case

Suitable for: Turned contacts (e.g. from harting;;;;;; Amphenol Ilme Phoenix Contact; Weidmüller Walther HTS)

Type: 97 52 65

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822458 Knipex 97 52 65 Squeezer Machined contacts 0.14 up to 6 mm² Incl. PVC case

Description

Fine-stage pressure setting on different cross sections of the conductor by means of adjusting wheel. Positioning help for the recording of the contacts. With table to determine the setup values. Clamp-on ammeter in plastic case with foam inserts. For crimping of turned contacts. For solder-free electrical connections Four indent crimping for exact crimp connection. Plug gauge for checking the basic settings. consistently high crimping quality through locking device (can be unlocked) Cirmping pressure is precisely set (calibrated) at the factory Power strengthening through lever transmission for fatigue-free working High usage comfort through handy design. Chromium-vanadium electro-steel in special quality, oil-hardened

This text is machine translated.

Features

consistently high crimping quality through locking device (can be unlocked)
For crimping of machined contacts
For solder-free electrical connections
Clamp-on ammeter in plastic case with foam padding.
Plug gauge for checking the basic setting
Cirmping pressure is precisely set (calibrated) at the factory
Power strengthening through lever transmission for fatigue-free working
High usage comfort through handy design
Fine-stage pressure setting on different cross sections of the conductor by means of adjusting wheel
Display can be switched between mm and inch and MIL-Values
Positioning help for the recording of the contacts
With table to determine the setting values
Four indent crimping for exact crimp connection
