Knipex 97 52 67 DT Crimper Pins, Socket 0.35 up to 3 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

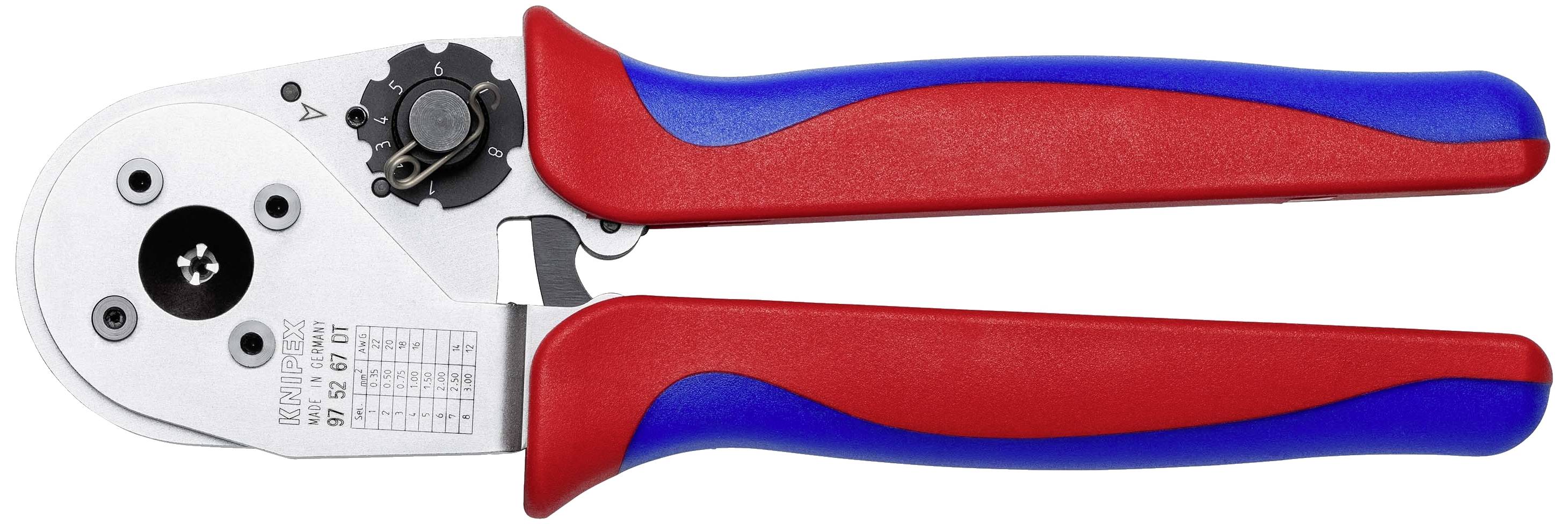

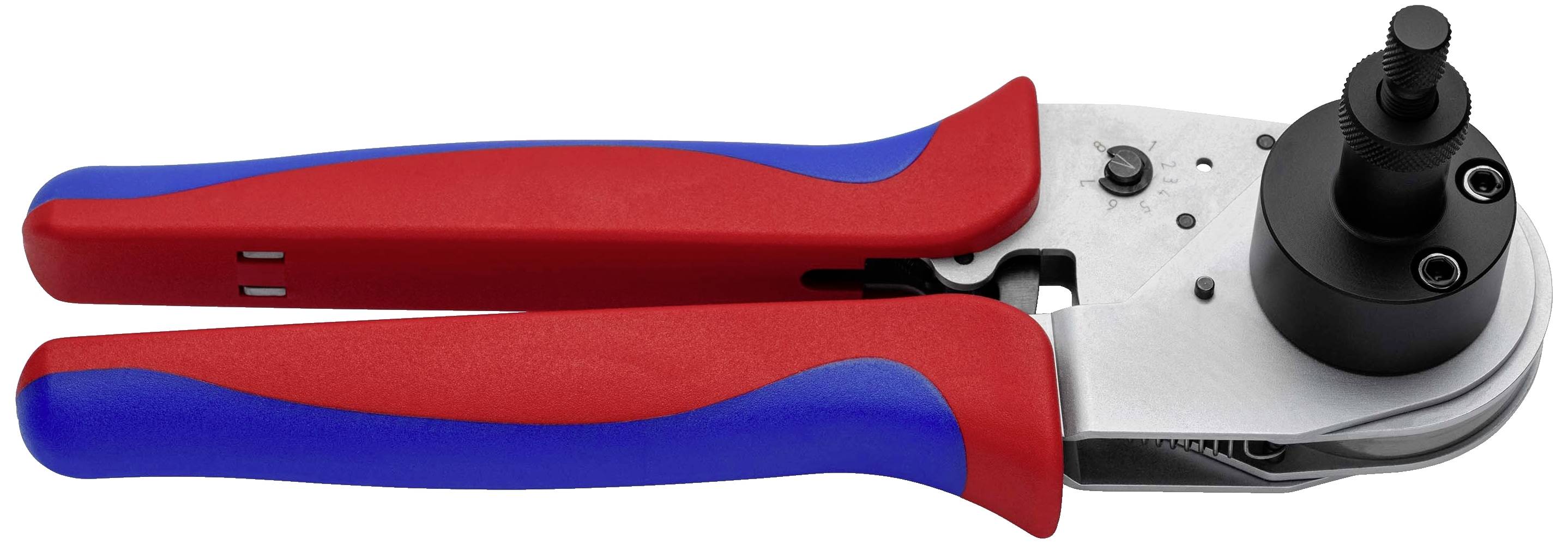

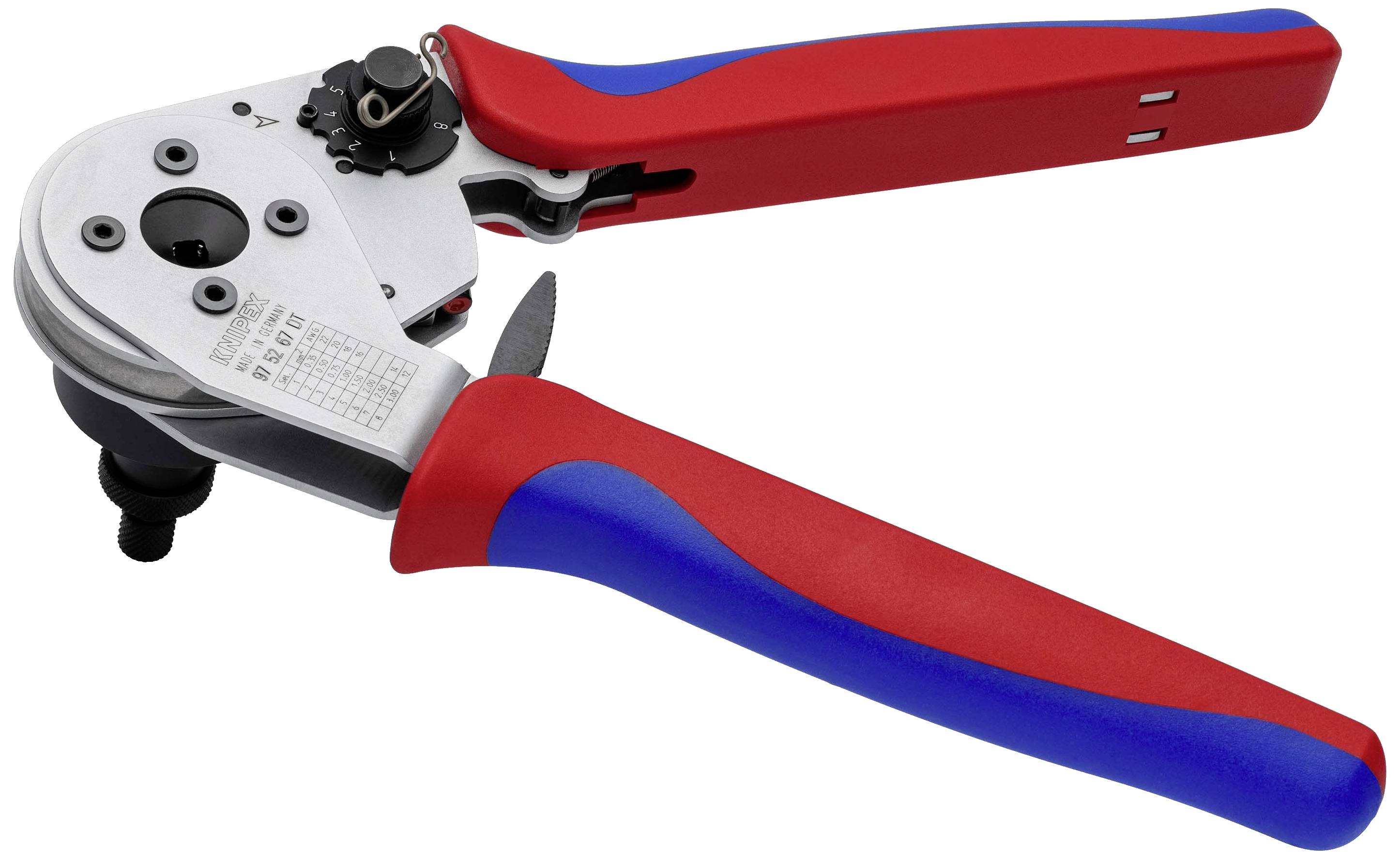

Knipex 97 52 67 DT four-punch pliers for DT-contacts 230 mm

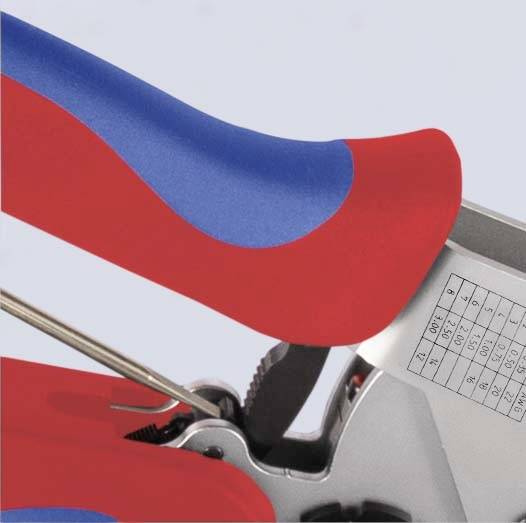

- Ergonomic design for fatigue-free working: Optimized opening width, comfortable 2K-grips, reduced manual force by lever transmission; consistently high crimping quality by force lock (unlock key); mandrels included in delivery always allow fast quality control: Go-mandrel still needs to fit, NoGo must not fit, selector positions for setting the crimp depth on the pliers can be clearly read;Synchronous delivery of the four crimp punches achieves optimum crimp result with eight impressions (4/8-Indent)
Technical specifications
- Product type
Crimper
- Manufacturer part #
97 52 67 DT
- Range of uses
Pins
Socket
- Crimp area
0.35 up to 3 mm²
- Crimp area AWG
12 up to 22 awg
- Crimp area (min.)
0.35 mm²
- Crimp area (max.)
3 mm²
- Crimp area AWG (min.)
22 awg
- Crimp area AWG (max.)
12 awg
- Length
230 mm
- Width
80 mm
- Height
70 mm
- Weight
0.897 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2865843 Knipex 97 52 67 DT Crimper Pins, Socket 0.35 up to 3 mm²
User & Safety Instructions
User & Safety Instructions 2865843 Knipex 97 52 67 DT Crimper Pins, Socket 0.35 up to 3 mm²
Description

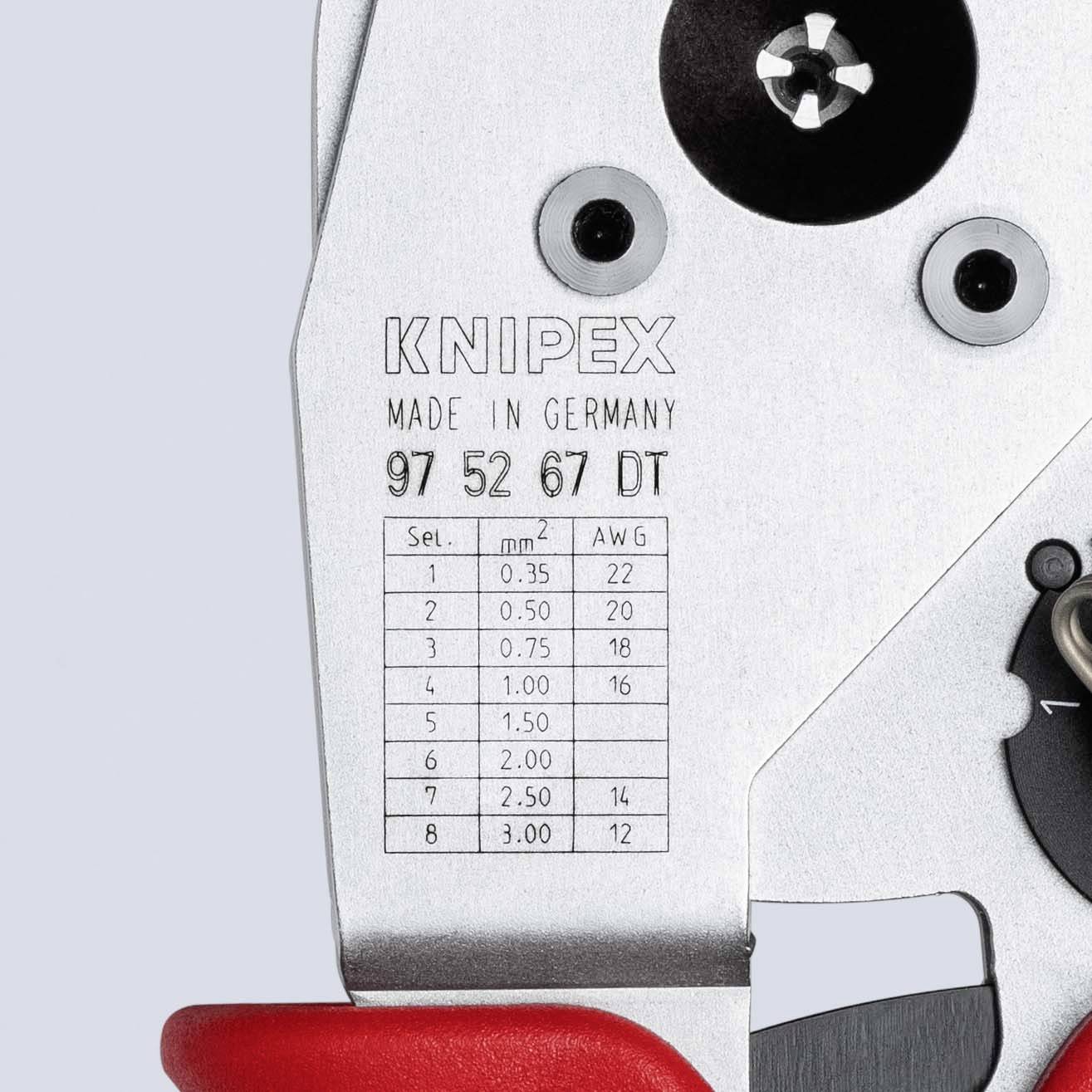

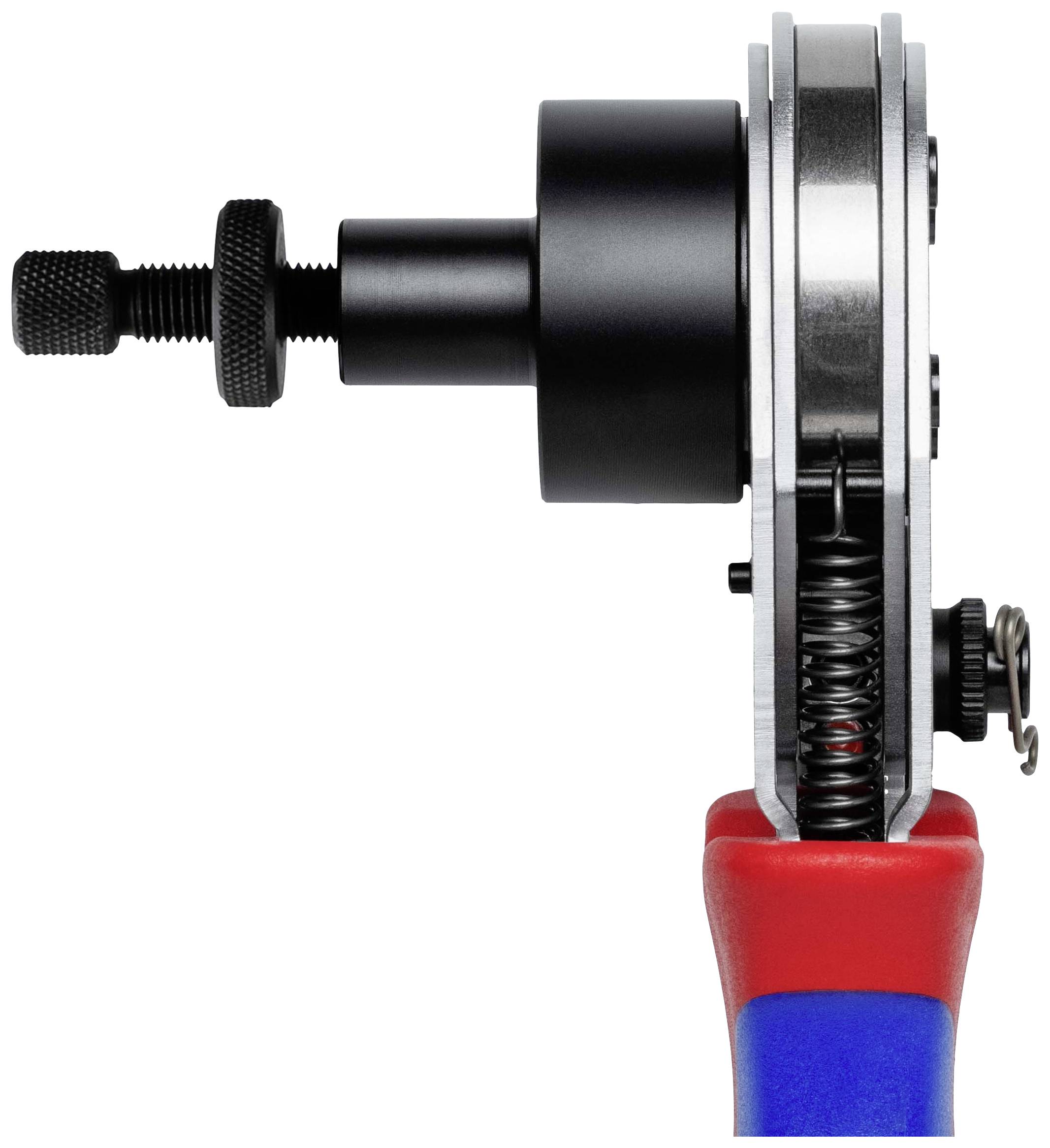

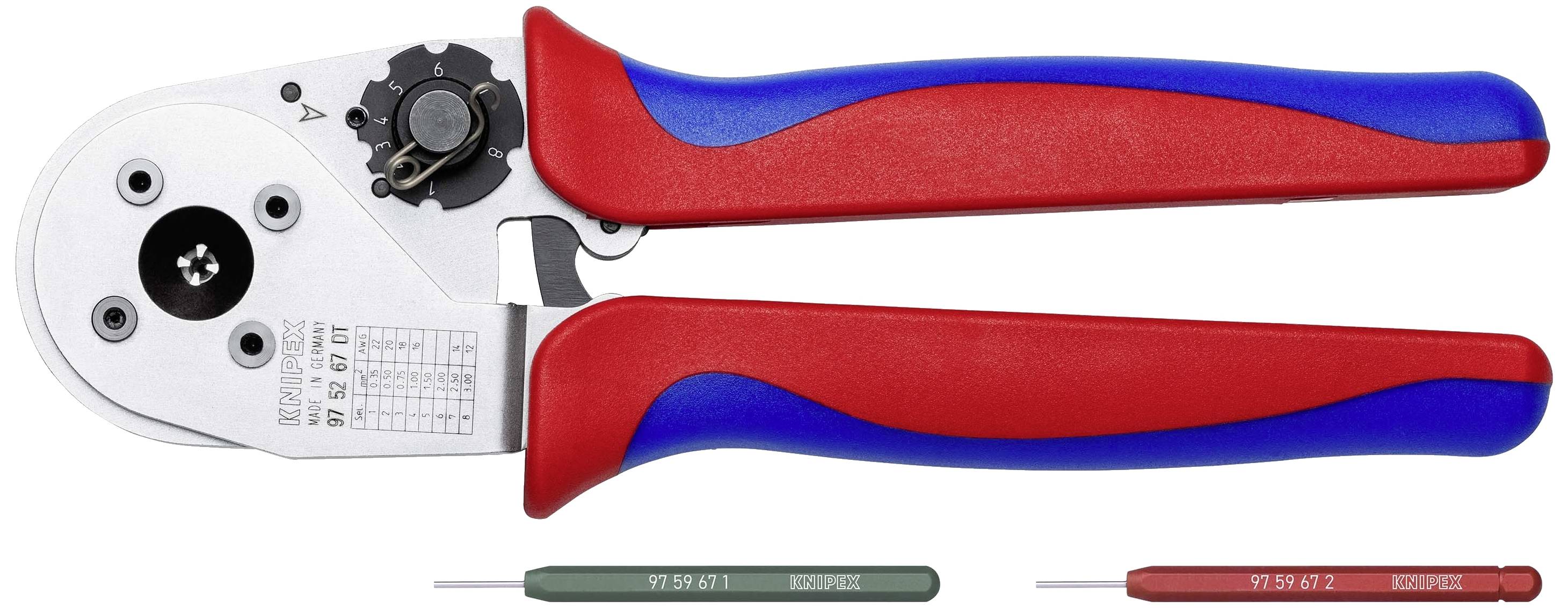

97 52 67 DT four-prong crimping pliers for DT-contacts (formerly English contacts) for all turned pin and jack contacts of the series DT, DTM and DTP. Comprehensive capacity: From 0.35 mm² to 3.0 mm² (AWG 22 - 12). Complete: With highly precise ground Go-/NoGo-punches for control of calibration. Synchronous feeding of the four crimp probes achieves an optimum crimp result with eight impressions (4/8-Indent). Universal positioning aid for flexible adjustment of all contact lengths. consistently high crimping quality through locking device (can be unlocked) Selector positions for setting the crimp depth can be clearly read on the pliers. Ergonomic design for fatigue-free working: Optimised opening width, comfortable 2K-grips, reduced hand force through lever transmission. Mandrel included in the scope of delivery allows a fast quality control at any time: Go-Dorn still has to fit, NoGo must not fit.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 97 52 67 DT
