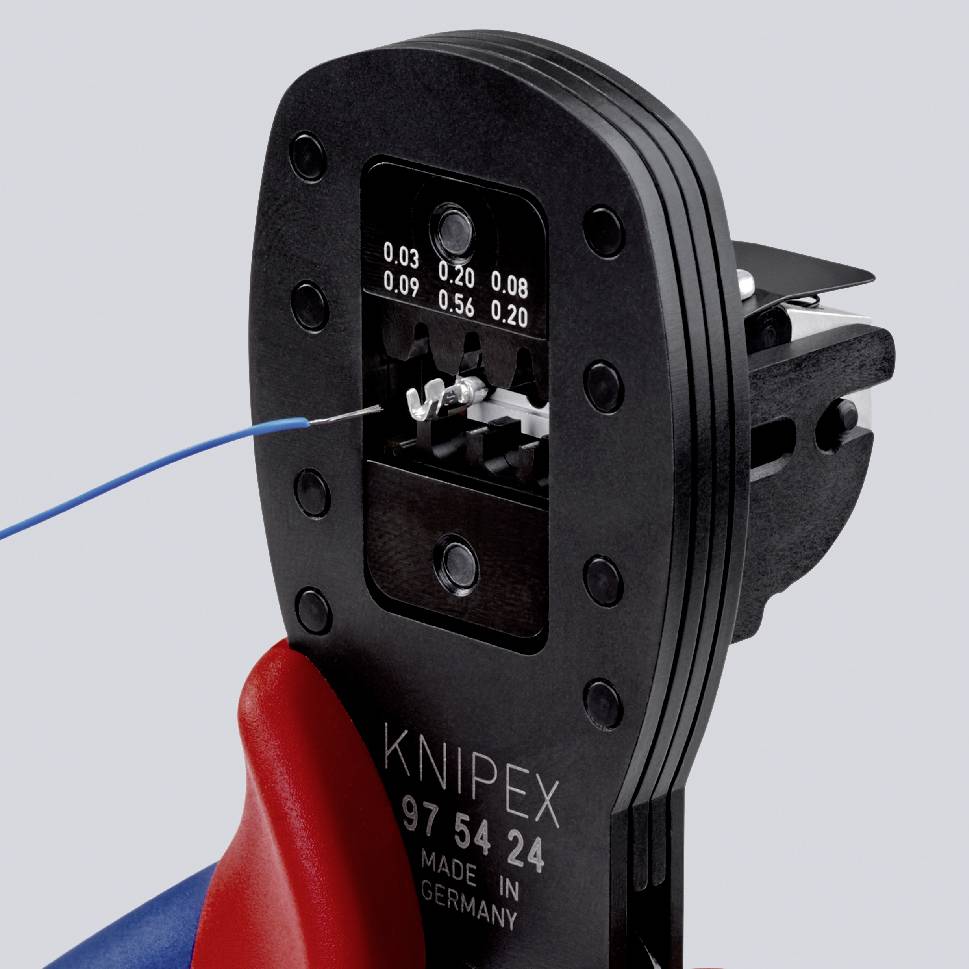

Knipex crimping pliers are used to connect a blue wire. The print shows: '0.5, 0.08, 0.04/0.2'.

Crimping pliers with red and blue handles, for crimping connectors. Marked with 'Knipex', 'Micro-Fit', suitable for AWG 30-20.

1/6

Unavailable

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Crimping pliers for miniature plug browned 190 mm

Parallel crimping jaw guide, in order to justify the especially high requirements of this small connector
Consistent high crimping quality through precision inserts and lock (can be unlocked)
With mounted positioning help for D-SUB miniature plug for an exact positioning of connector and cable
Crimping pressure is factory-precisely adjusted (calibrated), operating positions
Power strengthening through lever transmission for fatigue-free working

Technical specifications

Product type: Crimper

Manufacturer part #: 97 54 25

Range of uses: Micro-Fit

Suitable for: HD 22

Suitable for connectors: D-SUB connector

Crimp area AWG: 20 up to 30 awg

Crimp area AWG (min.): 30 awg

Crimp area AWG (max.): 20 awg

Length: 190 mm

Material: Chromium-vanadium electric furnace steel

Material properties: burnished

Suitable for: Knipex

Width: 60 mm

Weight: 305 g

Features: Incl. mounting aid

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1462232 Knipex 97 54 25 Crimper Micro-Fit

Description

Parallel crimping jaw guide, in order to justify the especially high requirements of this small connector For solder-free electrical connections Consistent high crimping quality through precision inserts and lock (can be unlocked) With mounted positioning help for D-SUB miniature plug for an exact positioning of connector and cable Cirmping pressure is precisely set (calibrated) at the factory Power strengthening through lever transmission for fatigue-free working Crimping pliers for other miniature plug, such as HD 22. Modu IV. Micro Timer. ... On request. Chromium-vanadium electro-steel in special quality, oil-hardened
