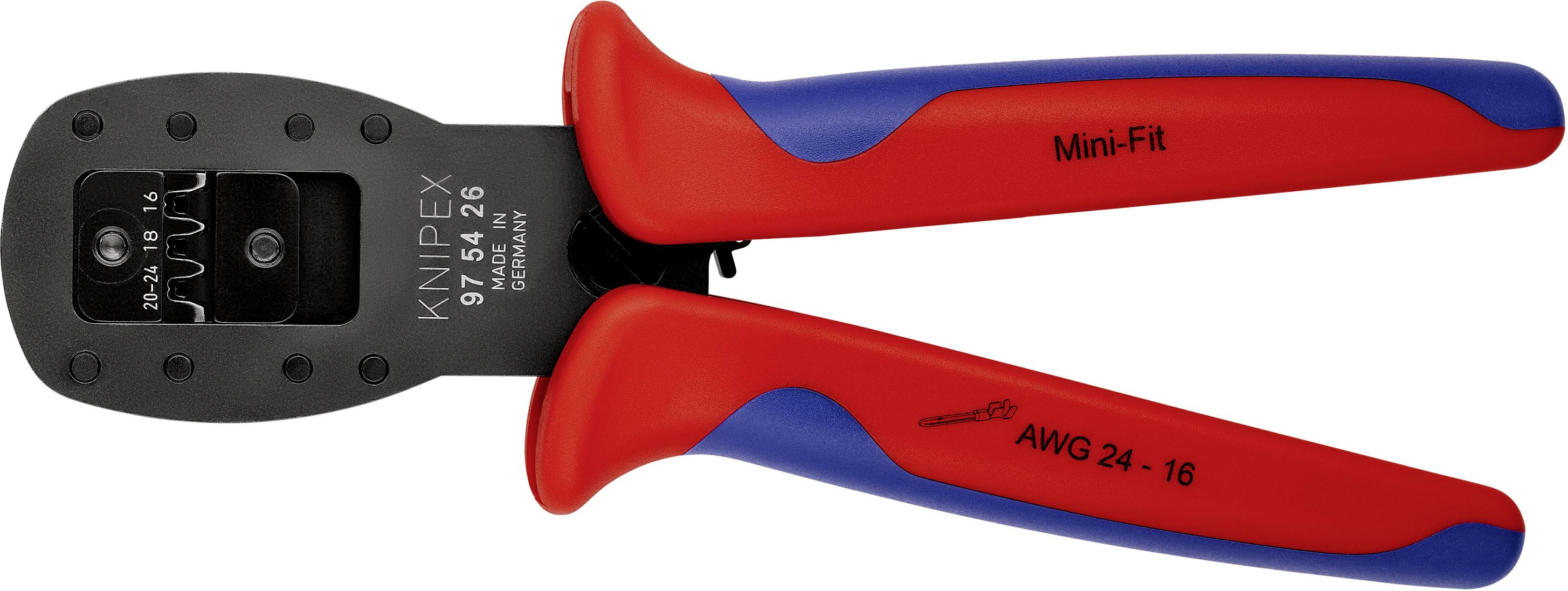

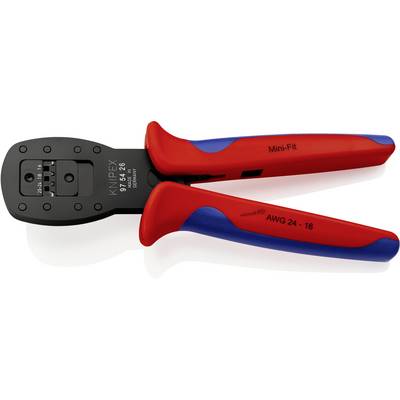

Knipex 97 54 26 Crimper Mini-Fit
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Crimping pliers for miniature plug browned 190 mm
- Parallel crimping jaw guide, in order to justify the especially high requirements of this small connector
- Consistent high crimping quality through precision inserts and lock (can be unlocked)

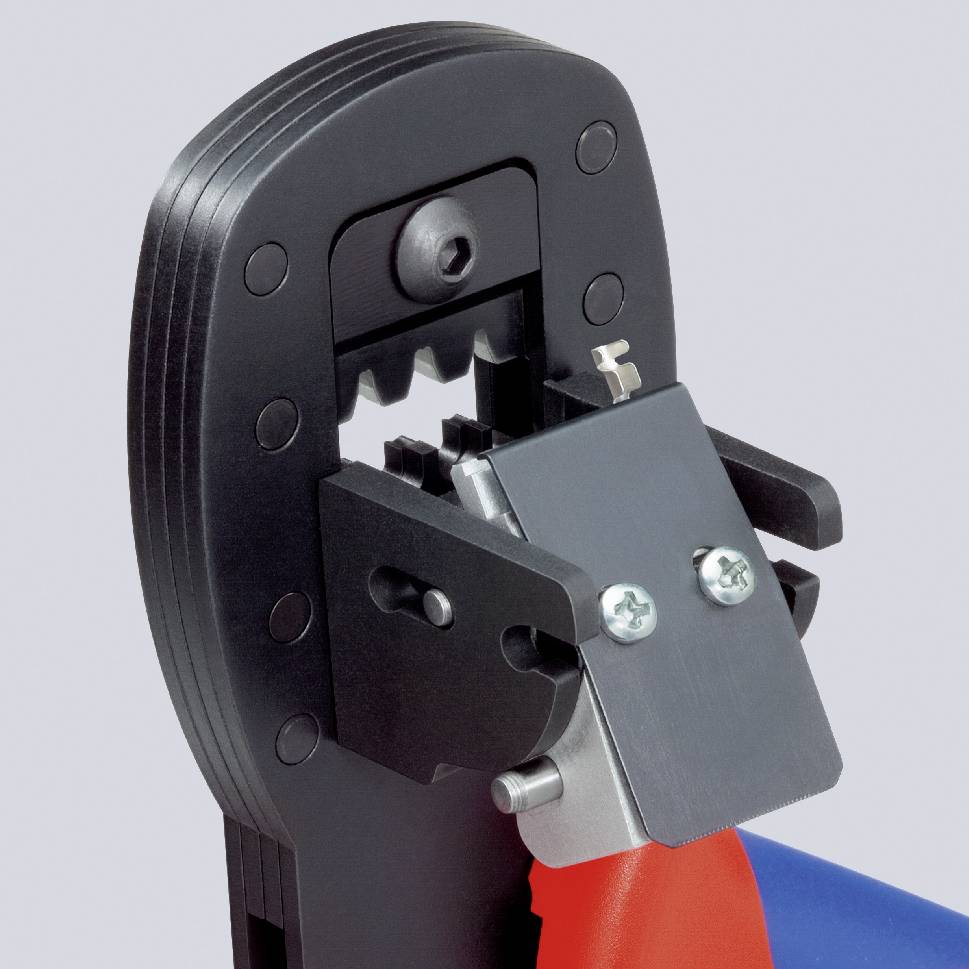

- With mounted positioning help for D-SUB miniature plug for an exact positioning of connector and cable
- Crimping pressure is factory-precisely adjusted (calibrated), operating positions
- Power strengthening through lever transmission for fatigue-free working
Technical specifications
- Product type
Crimper
- Manufacturer part #
97 54 26
- Range of uses
Mini-Fit
- Suitable for
HD 22
- Suitable for connectors
D-SUB connector
- Crimp area AWG
16 up to 20 awg
- Crimp area AWG (min.)
20 awg
- Crimp area AWG (max.)
16 awg
- Length
190 mm
- Material
Chromium-vanadium steel
- Material properties
burnished
- Suitable for
Knipex
- Weight
305 g
- Features
Incl. mounting aid
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1462233 Knipex 97 54 26 Crimper Mini-Fit
User & Safety Instructions
User & Safety Instructions 1462233 Knipex 97 54 26 Crimper Mini-Fit
Description
Parallel crimping jaw guide, in order to justify the especially high requirements of this small connector For solder-free electrical connections Consistent high crimping quality through precision inserts and lock (can be unlocked) With mounted positioning help for D-SUB miniature plug for an exact positioning of connector and cable Cirmping pressure is precisely set (calibrated) at the factory Power strengthening through lever transmission for fatigue-free working Crimping pliers for other miniature plug, such as HD 22. Modu IV. Micro Timer. ... On request. Chromium-vanadium electro-steel in special quality, oil-hardened
