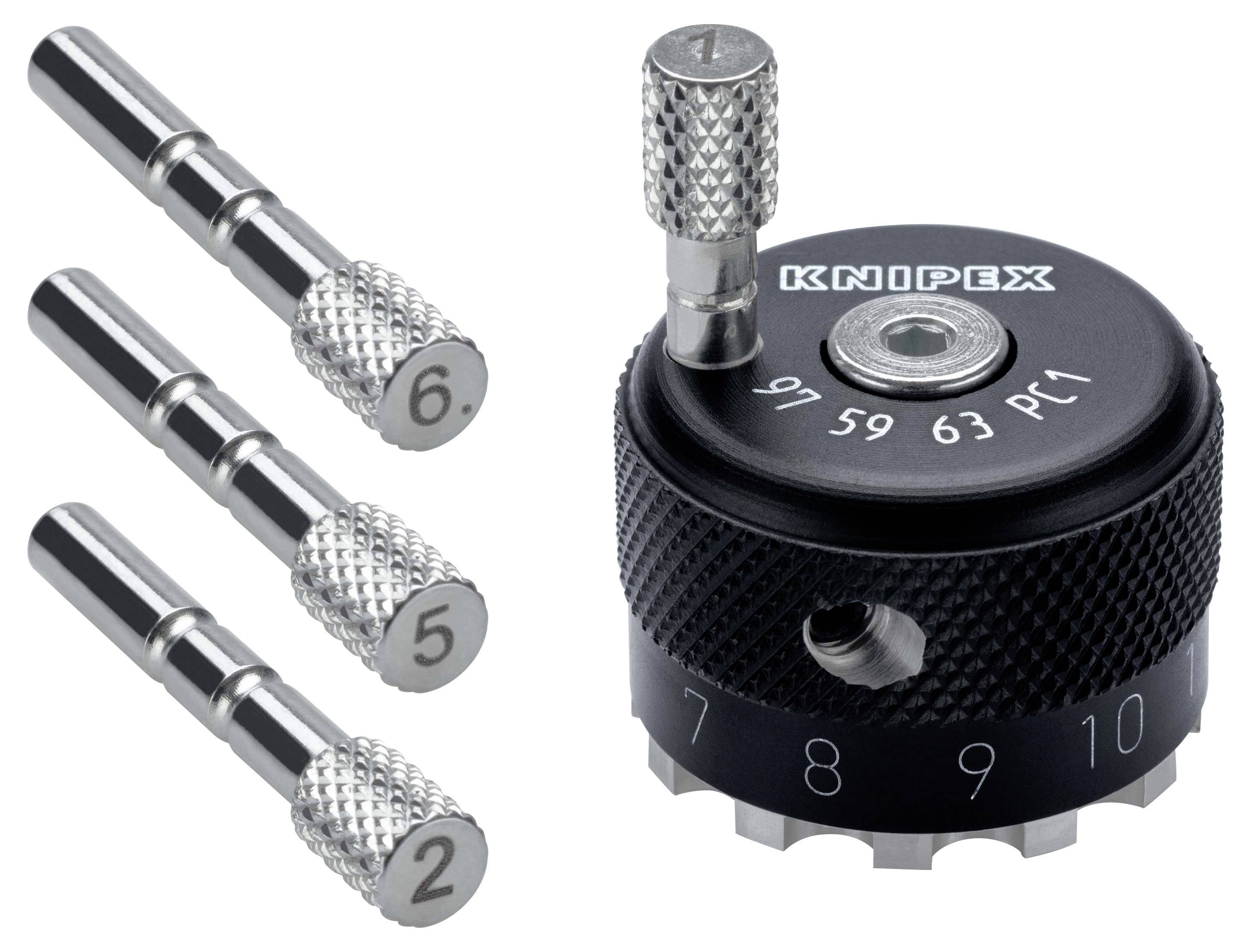

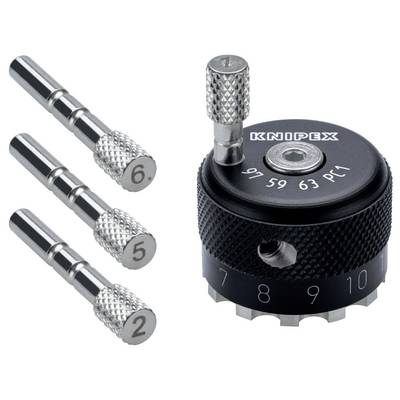

Knipex 97 59 63 PC1 Contact slot Machined contacts 0.08 up to 2.5 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Designed for contact series SB, SF, SH and ST
- Product type
Contact slot
- Manufacturer part #
97 59 63 PC1
- Range of uses
Machined contacts
- Crimp area (min.)
0.08 mm²
- Crimp area (max.)
2.5 mm²
- Length
55 mm
- Width
27 mm
- Height
45 mm
- Weight
30 g
- Crimp area
0.08 up to 2.5 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3742626 Knipex 97 59 63 PC1 Contact slot Machined contacts 0.08 up to 2.5 mm²
User & Safety Instructions
User & Safety Instructions 3742626 Knipex 97 59 63 PC1 Contact slot Machined contacts 0.08 up to 2.5 mm²
Description

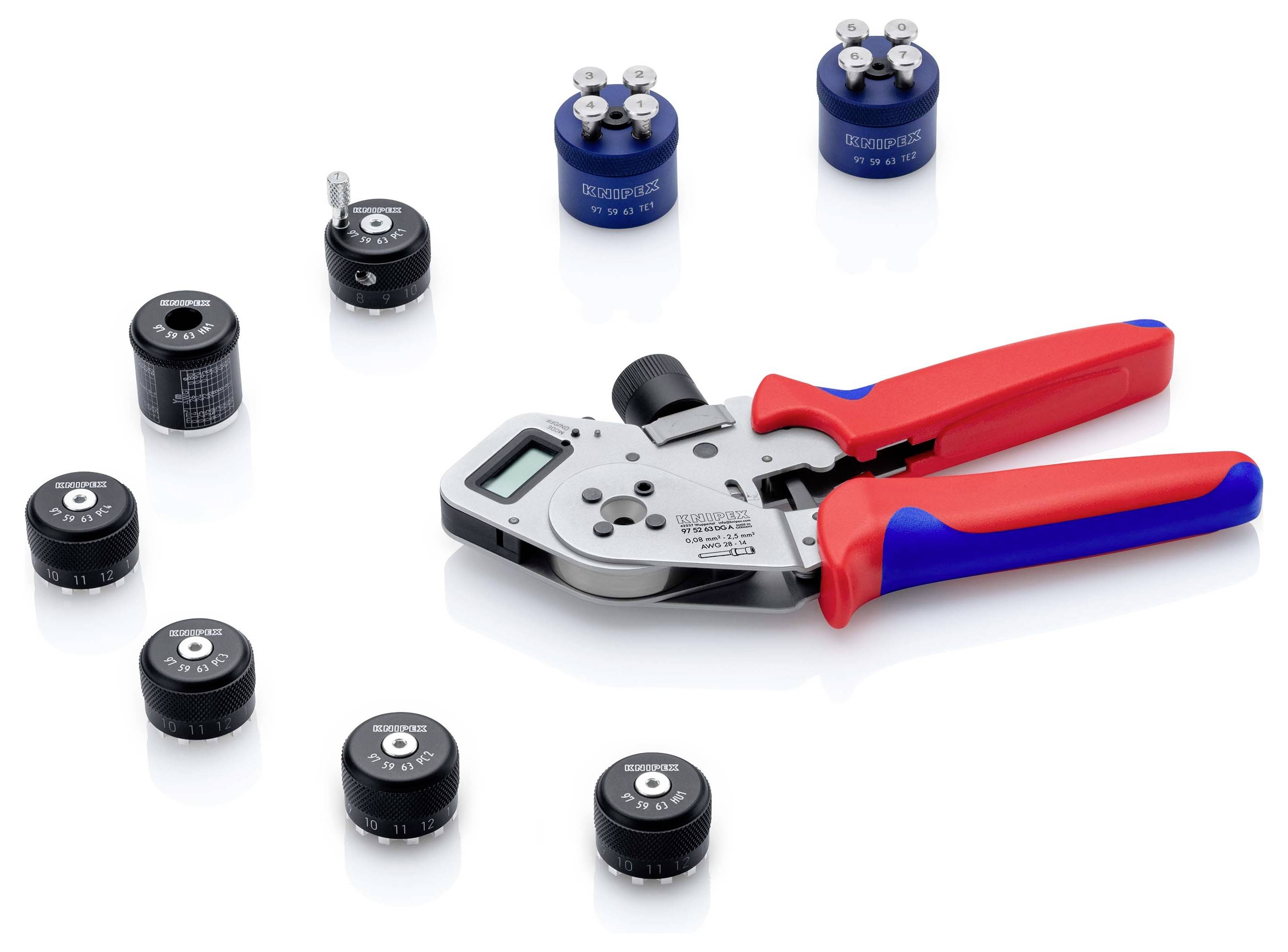

97 59 63 PC1 Contact for Phoenix Contact For four-spike crimping pliers for turned contacts, 0.08 - 2.5 mm² (AWG28 - 14), contact diameter up to 5 mm. For precise position determination of the contact series SB / SF / SH / ST, for details of contact series see setting table (separate download).
