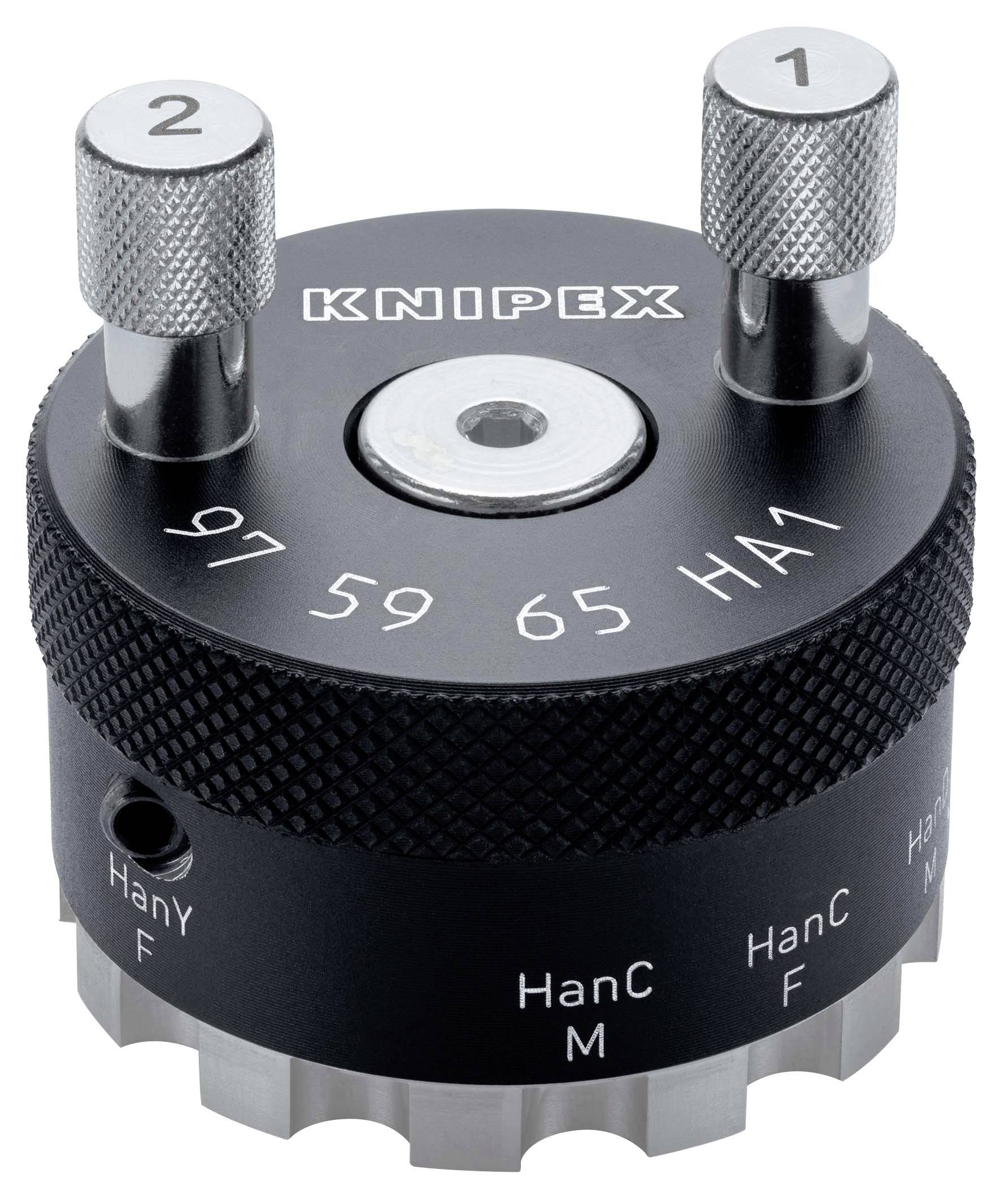

Knipex 97 59 65 HA1 Contact slot 0.14 up to 6 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Supported types HAN C / HAN D / HAN E / Yellock
- Product type
Contact slot
- Manufacturer part #
97 59 65 HA1
- Crimp area AWG
10 up to 26 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
10 awg
- Length
55 mm
- Width
38 mm
- Height
45 mm
- Weight
75 g
- Crimp area
0.14 up to 6 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3742635 Knipex 97 59 65 HA1 Contact slot 0.14 up to 6 mm²
User & Safety Instructions
User & Safety Instructions 3742635 Knipex 97 59 65 HA1 Contact slot 0.14 up to 6 mm²
Description
97 59 65 HA1 Contact for Harting For four-prong crimping pliers for turned contacts, 0.14 - 6 mm² (AWG 26 - 10), contact diameter up to 7.5 mm. For precise position determination of plug types HAN C / HAN D / HAN E / Yellow, for details of contact series see setting table (separate download).
