Buy Knipex 97 59 65 PC1 Contact slot 0.14 up to 6 mm²

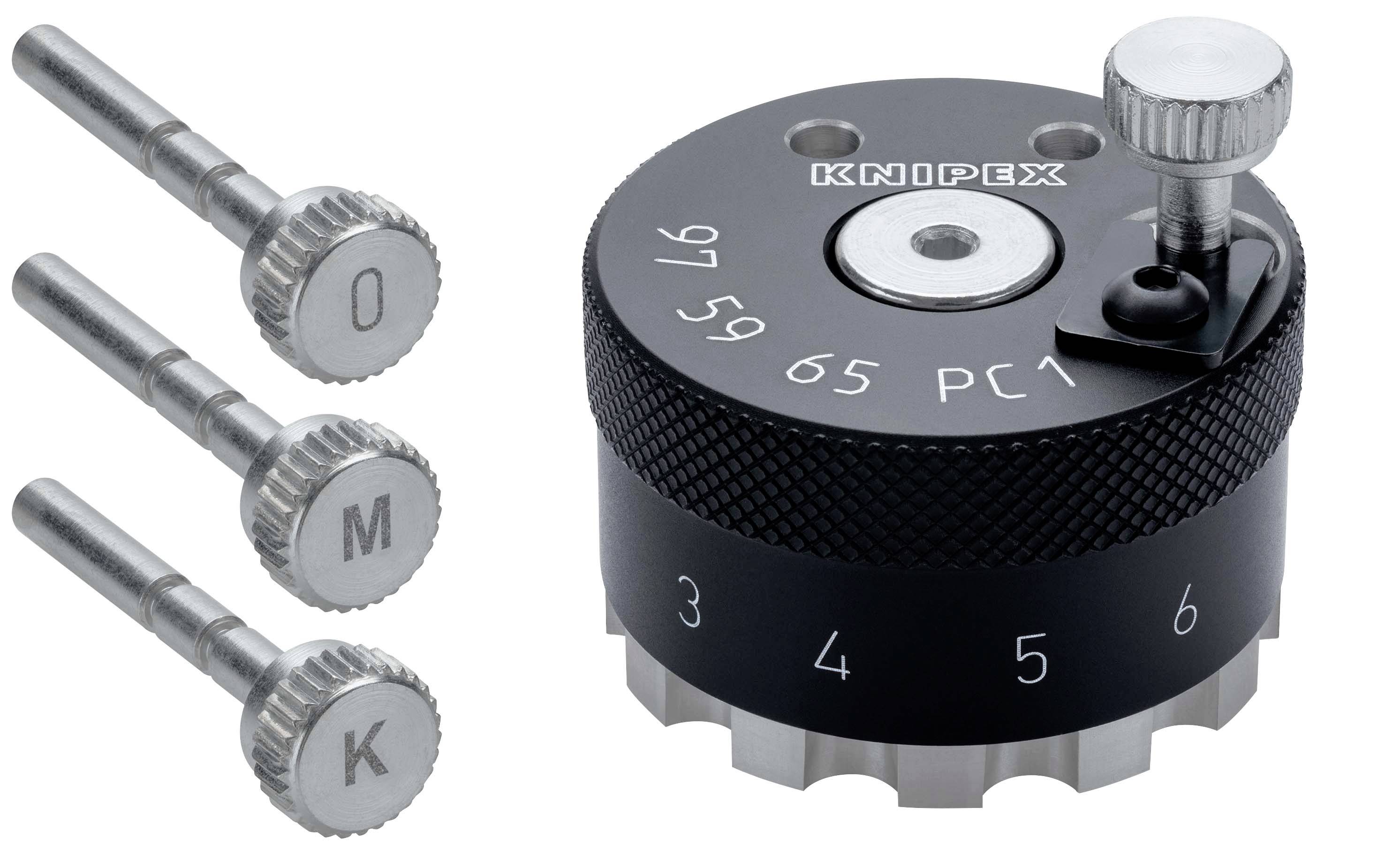

Machined metal tool with interchangeable tipped pins and a rotary dial labeled with numbers and 'KNOPB', likely a precision adjustment or punch setting device.

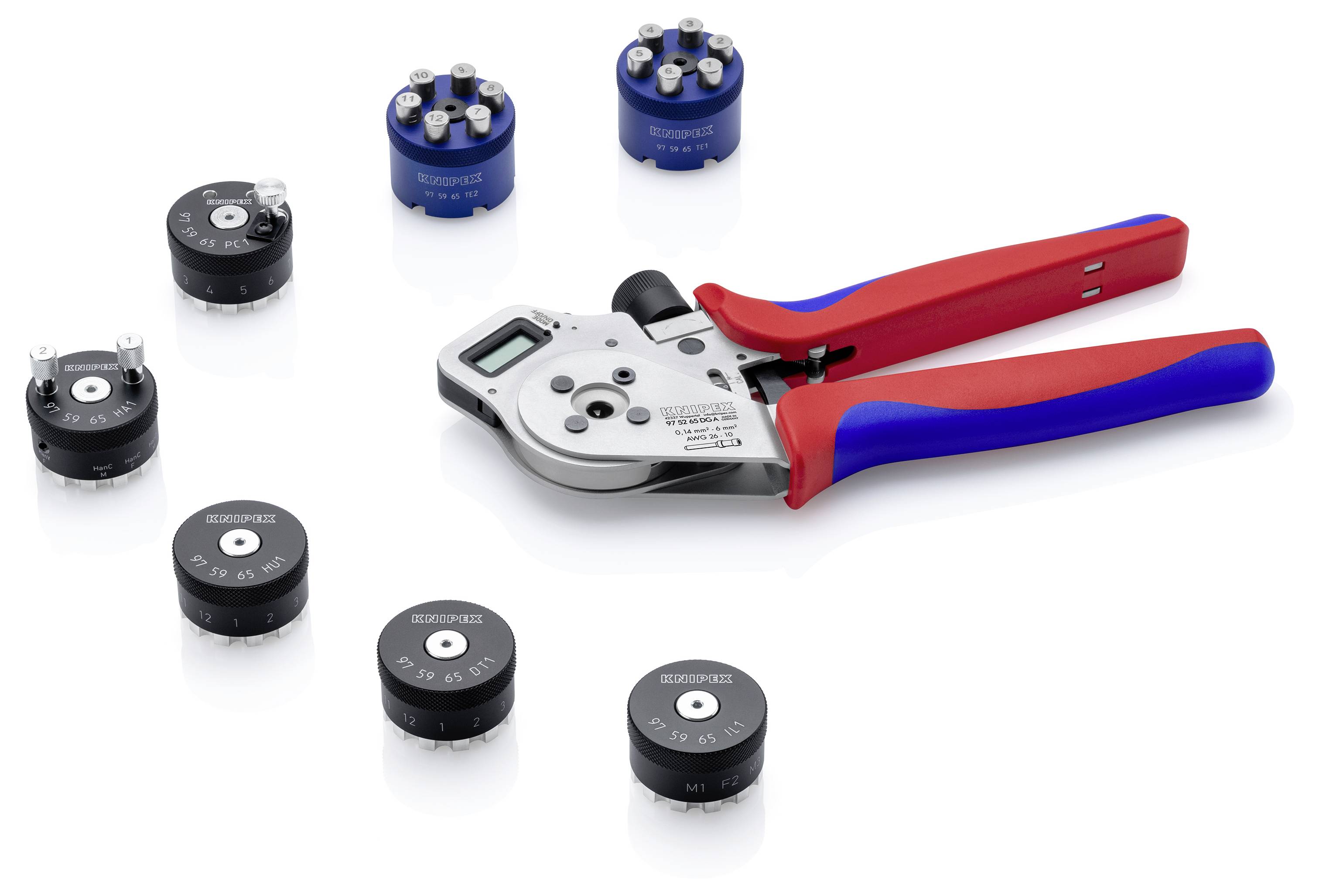

Crimping tool with interchangeable blue and black dies arranged around it on a white background.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Four-punch pliers suitable for machined contacts (0,14-6 mm²)

Product type: Contact slot

Manufacturer part #: 97 59 65 PC1

Crimp area AWG: 10 up to 26 awg

Crimp area (min.): 0.14 mm²

Crimp area (max.): 6 mm²

Crimp area AWG (min.): 26 awg

Crimp area AWG (max.): 10 awg

Length: 38 mm

Width: 55 mm

Height: 45 mm

Weight: 70 g

Crimp area: 0.14 up to 6 mm²

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3742639 Knipex 97 59 65 PC1 Contact slot 0.14 up to 6 mm²

User & Safety Instructions

User & Safety Instructions 3742639 Knipex 97 59 65 PC1 Contact slot 0.14 up to 6 mm²

Description

97 59 65 PC1 Contact for Phoenix Contact For four-prong crimping pliers for turned contacts, 0.14 - 6 mm² (AWG 26 - 10), contact diameter up to 7.5 mm. For precise position determination of plug types SF-/ ST-/ SM, for details of contact series see setting table (separate download).
