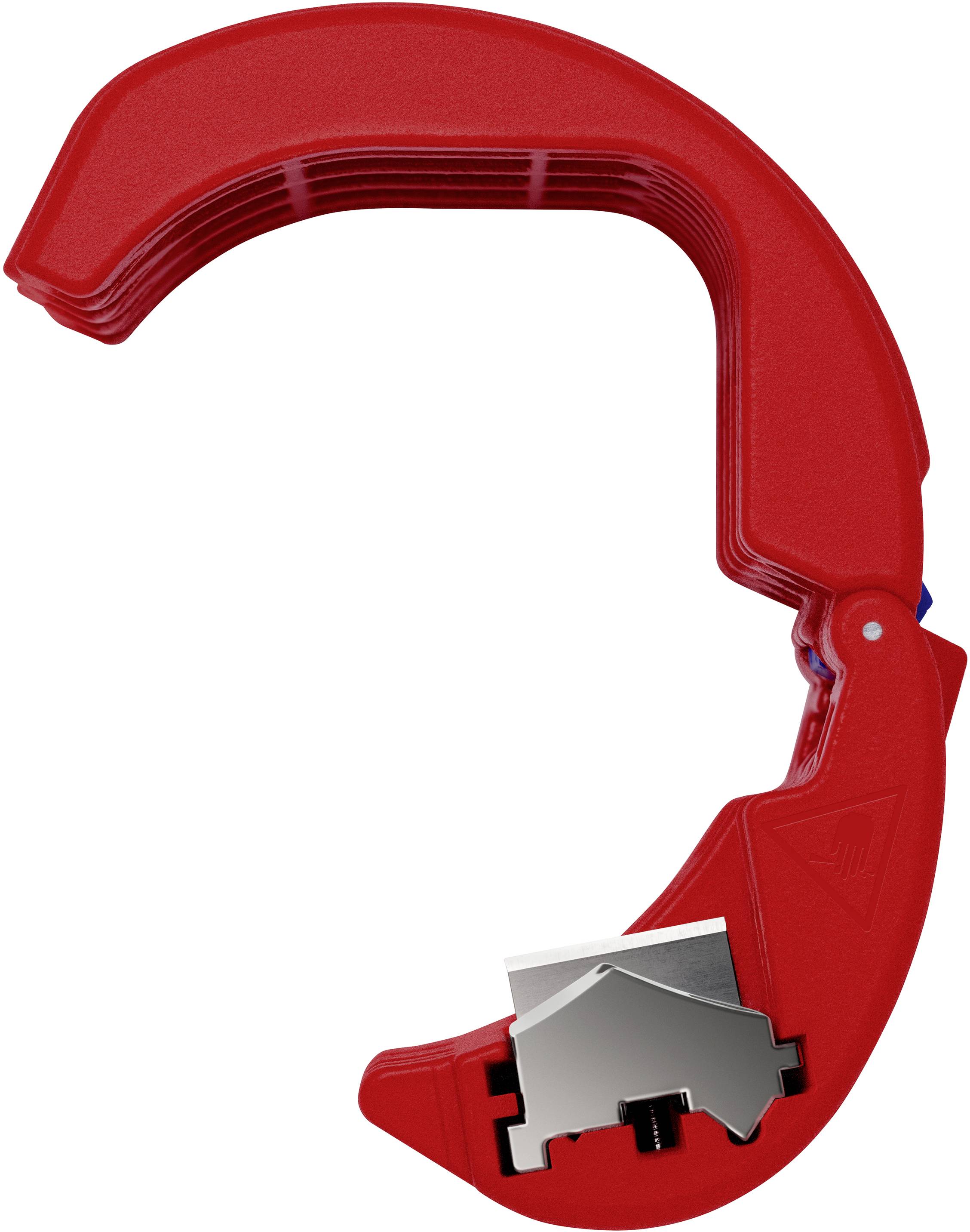

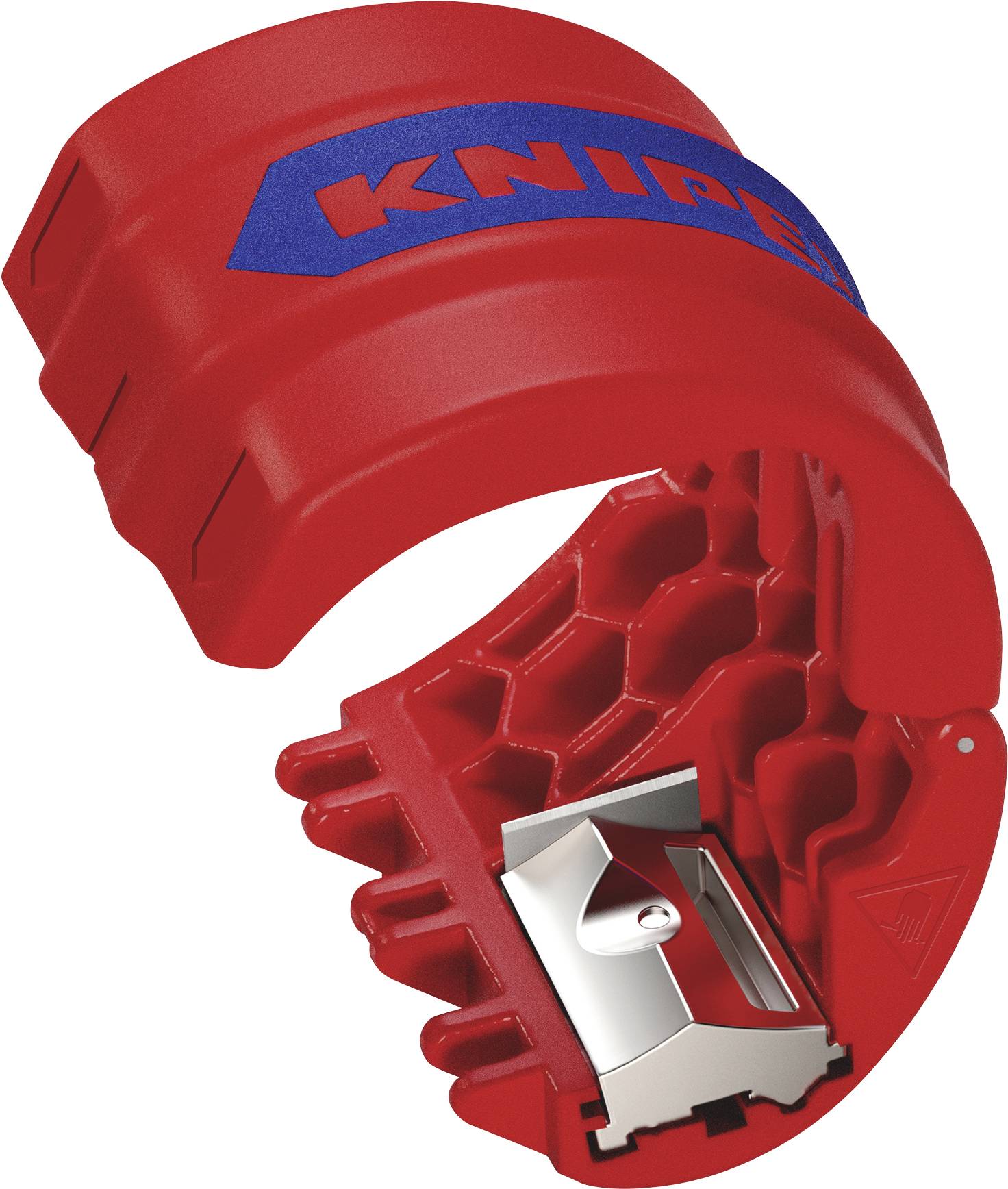

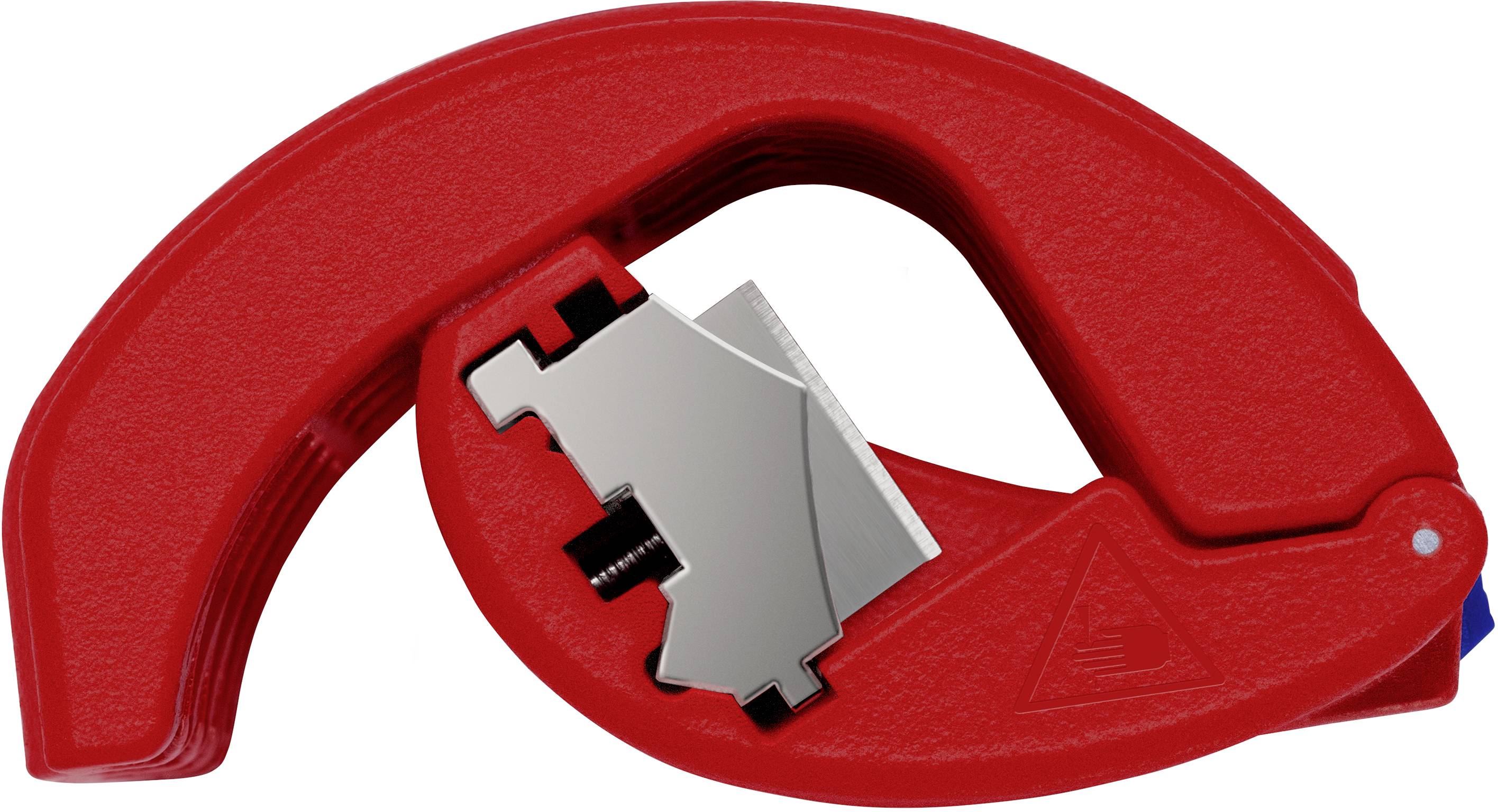

Knipex 90 22 10 BK Plastic pipe cutter
EAN:
Part number:
Item no:
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Knipex BIX® Cutter for plastic tubes and sealing sleeves
Highlights & Details
- Particularly smart pipe cutter: Separates pipes without cutting and fits in the fist
- Cuts among other things high-temperature sewage pipes and electrical empty pipes in no time at all
- Shortens drip and sealing sleeves during final assembly – in line with standards, close to the wall
Technical specifications
- Product type
Plastic pipe cutter
- Compatible with diameters of
20 - 50 mm
- Length
186 mm
- Dim
(L x W x H) 186 x 186.0000 x 85.0000 mm
- Weight
70.00
- Material
Plastic
- Suitable for diameters of (max.)
50 mm
- Suitable for pipe diameter (min.)
20 mm
- Width
186.0000 mm
- Height
85.0000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2464288 Knipex 90 22 10 BK Plastic pipe cutter
Description
Particularly smart pipe cutter: Separates pipes without cutting and fits in the fist. Cuts among other things high-temperature sewage pipes and electrical empty pipes in no time at all. Shortens drip and sealing sleeves during final assembly – in line with standards, close to the wall. Cuts unreinforced plastic pipes from Ø 20 to 50 mm with wall thicknesses up to 2.4 mm. Separates pipes cleanly and without cutting in a few turns. Cuts sealing sleeves with a distance of approx. 2-3 mm from the wall. Rotating knife block for cutting plastic pipes (blade in the middle) or drip and sealing sleeves (blade on the outside). With locking mechanism for safe transport. Two spare blades integrated in the tool. - Cutting values HT and plastic tubes: Ø 20 – 50mm - Cutting values for sealing sleeves: Ø 20 – 50mm
