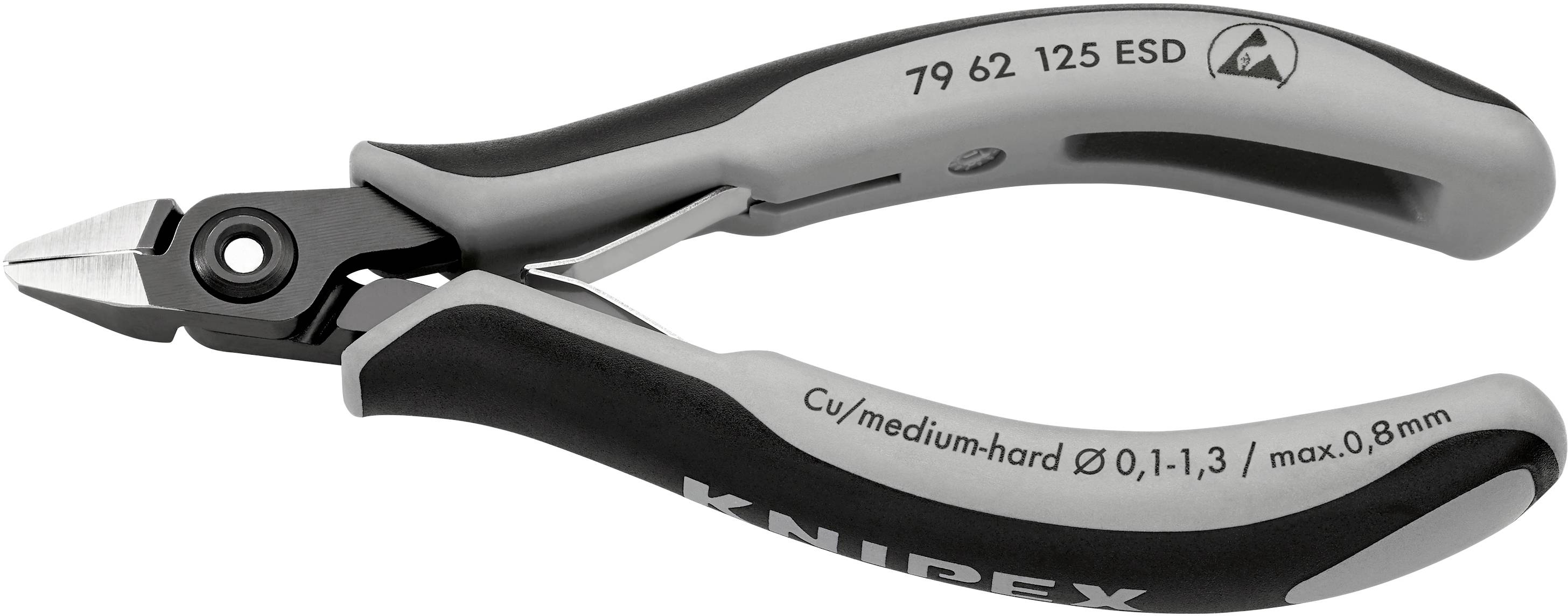

Knipex 79 62 125 ESD ESD Side cutter flush-cutting 125 mm
EAN:
Part number:
Item no:
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Precision Electronic side cutter
- Handles Electrically discharging design - dissipative
- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- Very precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components - even without bevel for flush cutting
- Induction hardened blades. Blade hardness approx. 64 HRC
- Approx. 2% less weight than conventional electronics pliers
Technical specifications
- Head dimensions A 11.00 mm
- B 11.00 mm
- D 6.50 mm
- Product type
Side cutter
- Manufacturer part #
79 62 125 ESD
- Range of use
ESD
- Length
125 mm
- Material
Chromium-vanadium ball bearing steel
- Material properties
burnished
polishing
- Edge hardness
64 HRC
- Wire hardness (max.) soft wire
1.3 mm
- Wire hardness (max.) medium wire
0.8 mm
- DIN standard
DIN ISO 9654
DIN EN 61340-5
- Weight
58 g
- Features
flush-cutting
- Type
ESD pointed head without Facet With wire clamp
- Type
79 62 125 ESD
- Standards
DIN ISO 9654
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822341 Knipex 79 62 125 ESD ESD Side cutter flush-cutting 125 mm
Description
Handles Electrically discharging design - dissipative pointed head. With wire clamp - no uncontrolled shingling of wire segments. The range for the highest standards of performance and results Precision pliers for fine cutting work e.g. in electronics and precision mechanics. Very precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components. also available without bevel for flush cutting Induction hardened blades. Blade hardness approx. 64 HRC Handles Electrically discharging design - dissipative. Screwed joint: Precise, frictionless movement Carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range Low-friction dual spring for gentle and even opening Anti-glare finish. Low weight Ergonomic, two-coloured, multi-component ESD handle sleeves; Black/gray. Ball-bearing chrome steel, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- Pointed head without facets
- Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
- Precisely ground, sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
- Induction hardened blades. Blade hardness approx. 64 HRC
- Design electrically draining - dissipative
- Screwed joint: Precise, frictionless plier movement
- Carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
- With wire clamp - no uncontrolled movement of the wire segments
- Ergonomic, two-colored multi-component ESD handle sleeves; black/gray
- The range for the highest standards of performance and results
- Friction-less dual spring for a soft and uniform opening
- Anti-glare finish
- Lightweight
- This text is machine translated.
