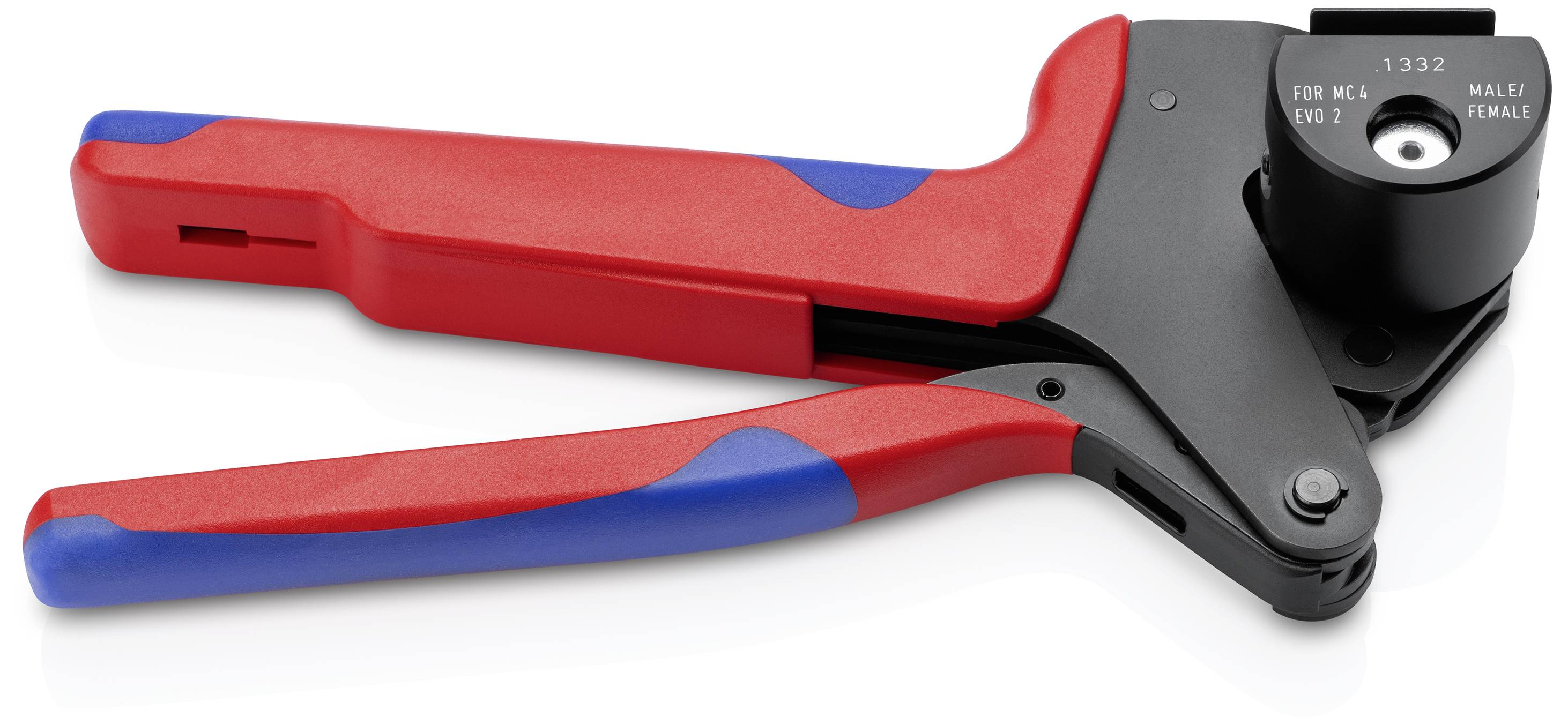

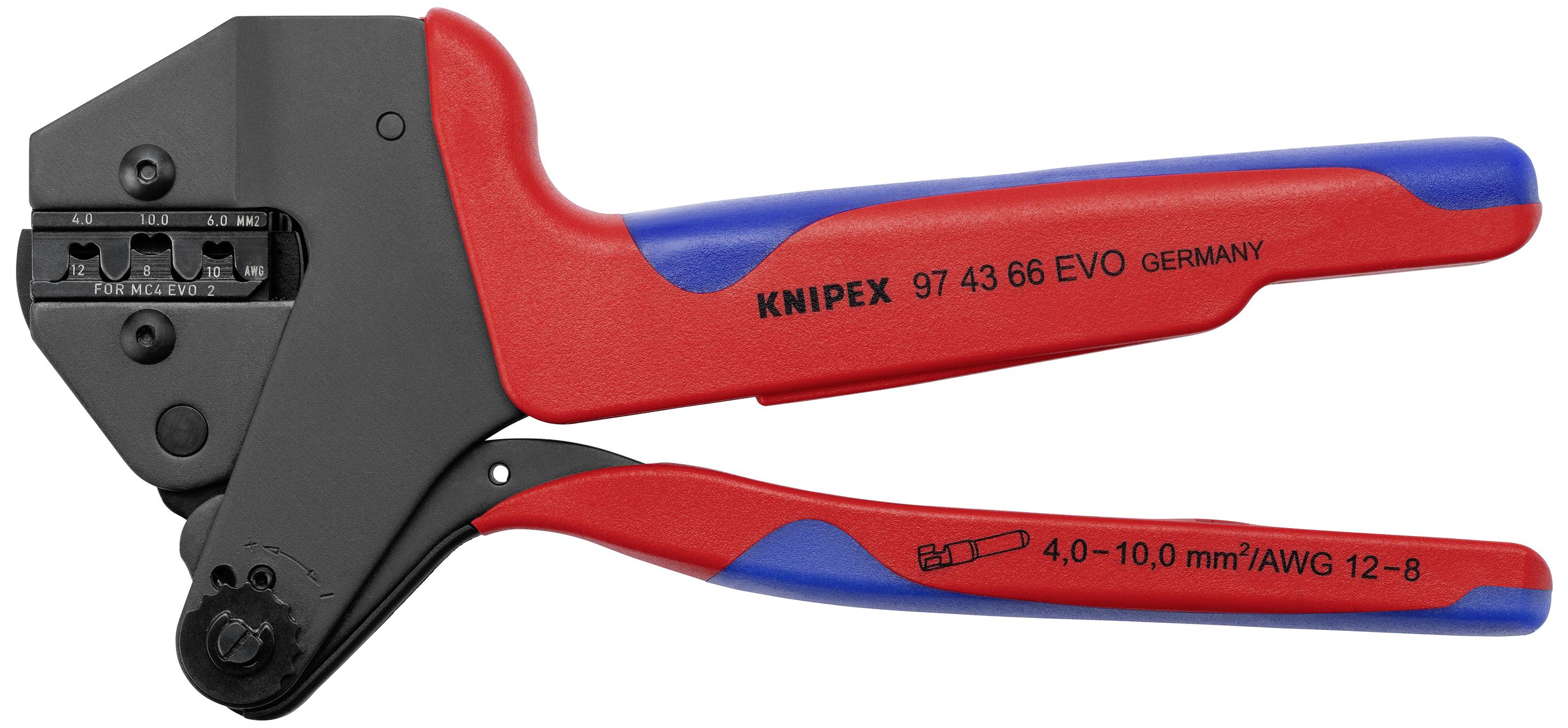

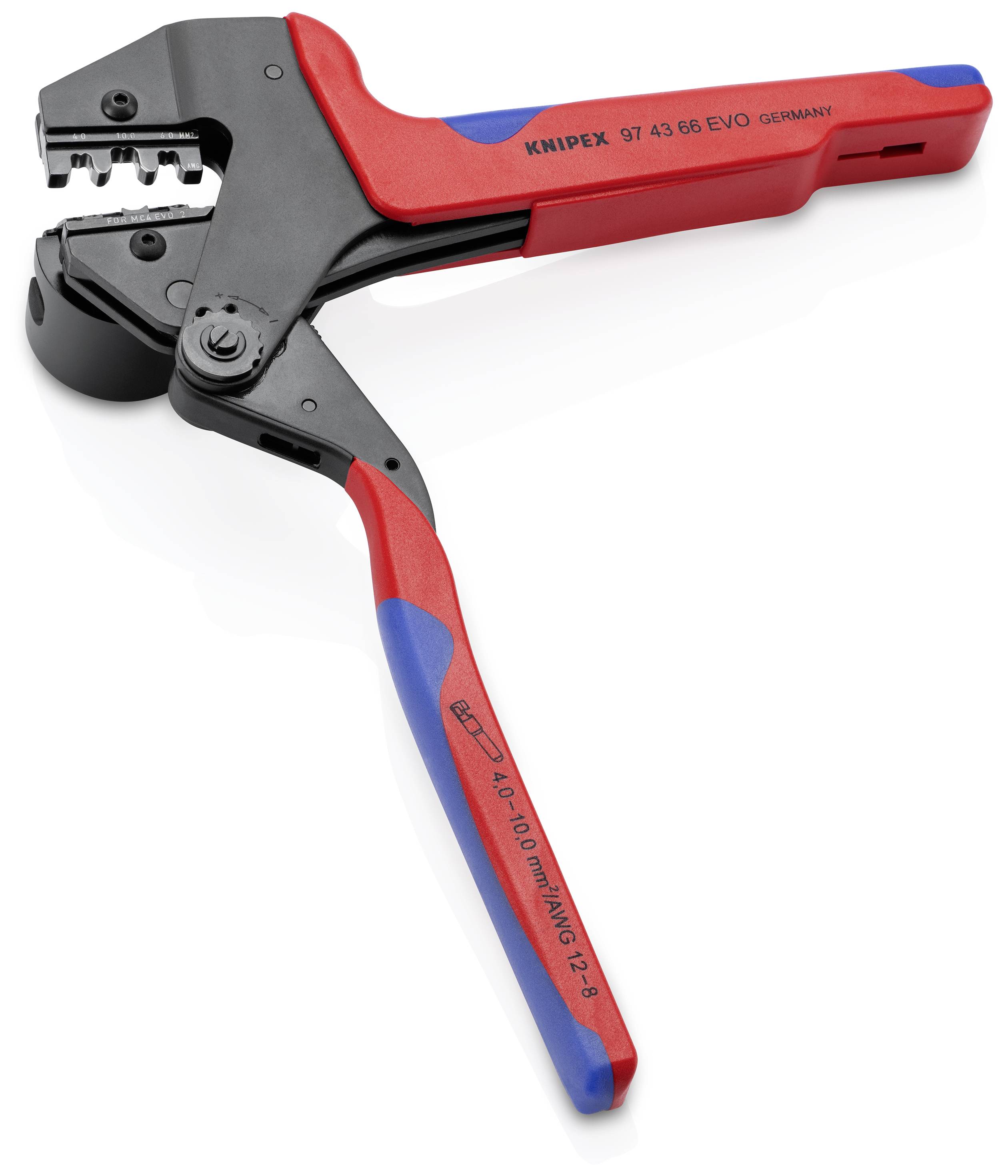

Knipex MC4 EVO2 97 43 66 EVO Crimper
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Highlights & Details
Knipex 97 43 66 EVO crimp-system pliers

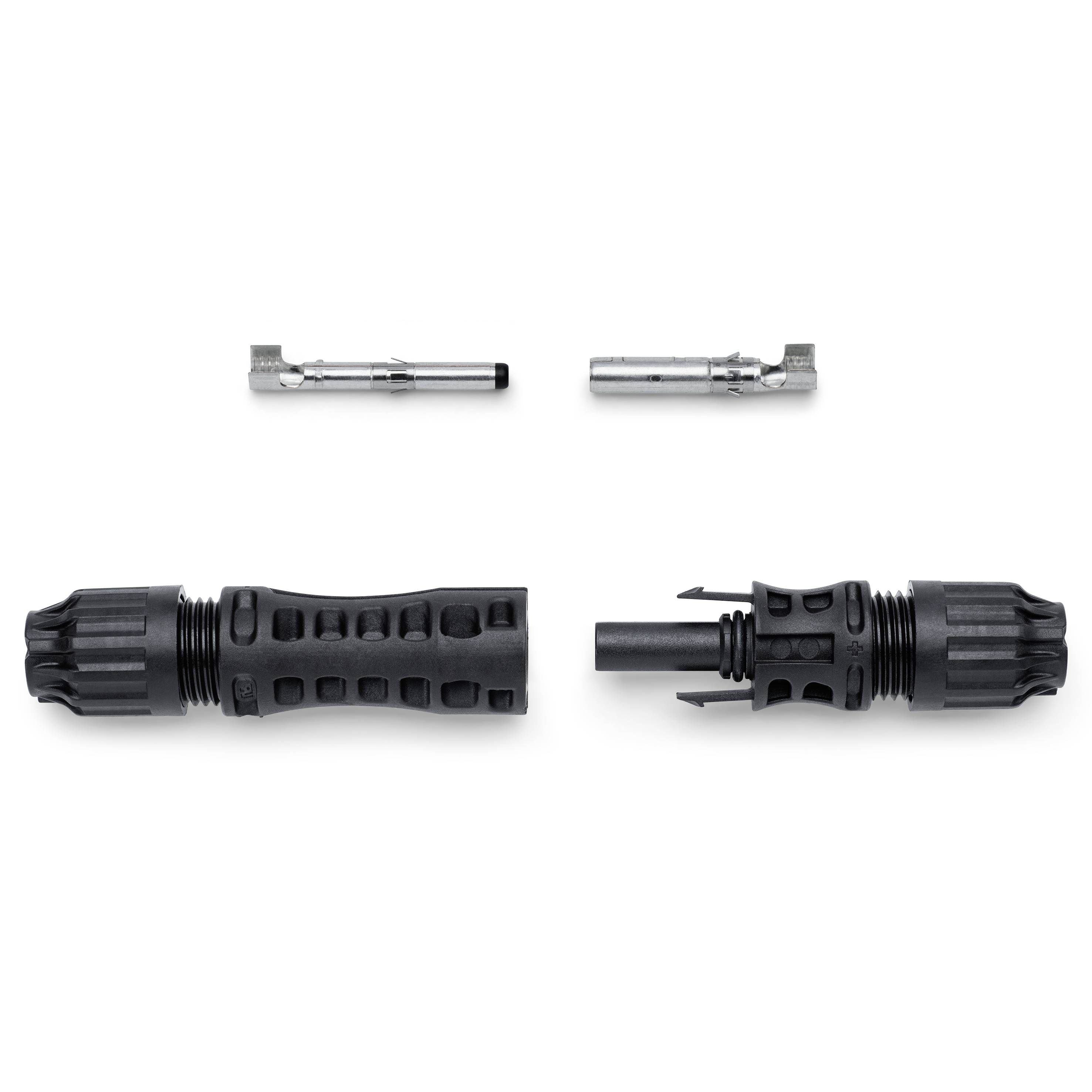

- With the optional contact 97 49 71 1 all solar connectors of the MC4-series can be processed
- For exchangeable crimp insets with multi-component sleeves browned 200 mm
Technical specifications
- Product type
Crimper
- Manufacturer part #
97 43 66 EVO
- Range of uses
PV connector
- Suitable for
MC4
- Crimp area
4.0 up to 10.0 mm²
- Crimp area AWG
8 up to 12 awg
- Crimp area (min.)
4.0 mm²
- Crimp area (max.)
10.0 mm²
- Crimp area AWG (min.)
12 awg
- Crimp area AWG (max.)
8 awg
- Length
200 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
tempered
- Suitable for
Knipex
- Features
incl. exchangeable crimp insets
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3220391 Knipex MC4 EVO2 97 43 66 EVO Crimper
User & Safety Instructions
User & Safety Instructions 3220391 Knipex MC4 EVO2 97 43 66 EVO Crimper
Description

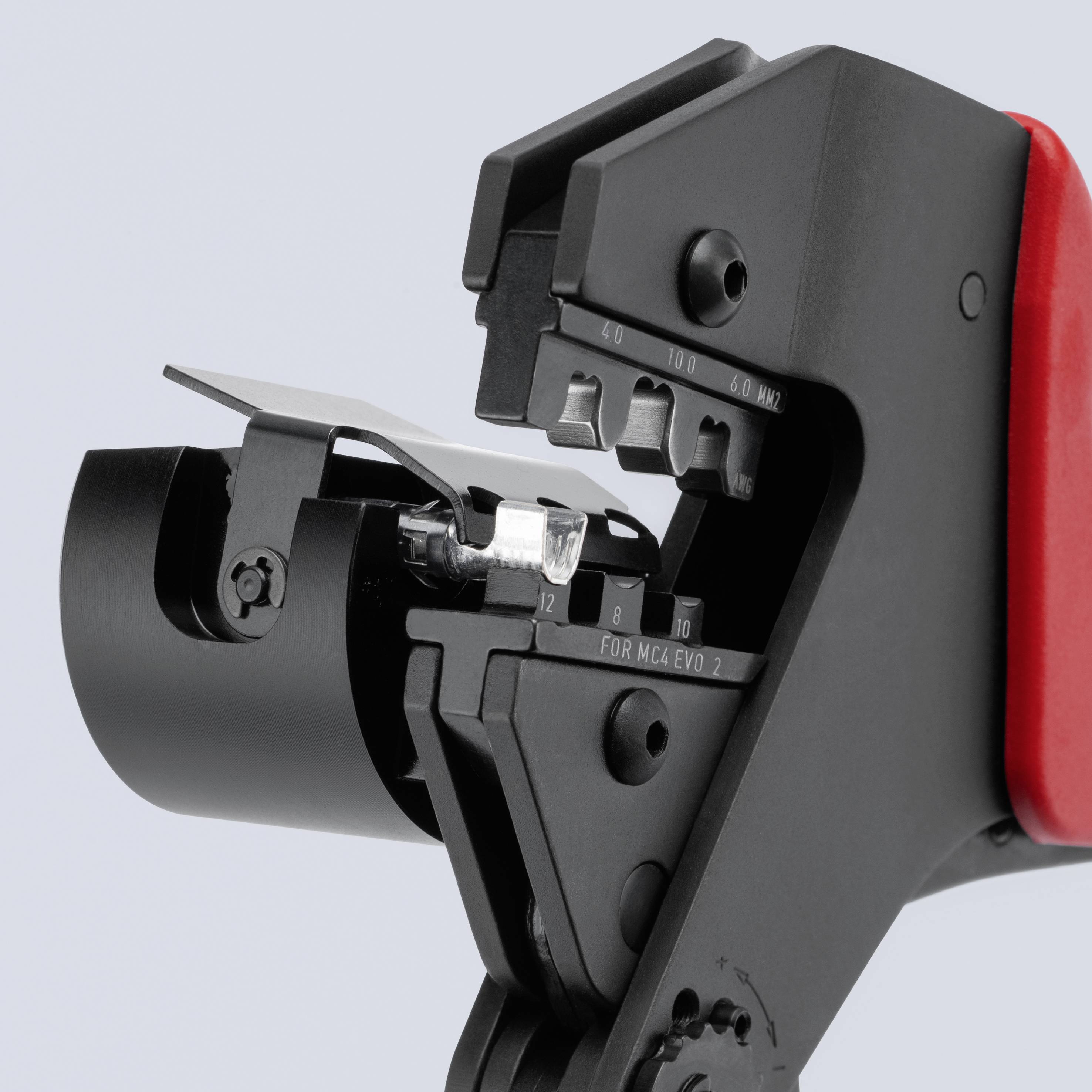

Only one tool for nearly 1000 Crimp applications: Use with all Crimp inserts and positioning assistant 97 49 XX. Specially modified system pliers: Optimized for MC4 EVO 2-connectors up to 10 mm². Professional standard for large PV installations. Almost parallel Crimp movement. Consistently high crimping quality thanks to precision dies and ratchet (unlocked) Cirmping pressure is precisely set (calibrated) at the factory, adjustable. Power strengthening through lever transmission for fatigue-free working For one-and two-handed operation. With pre-assembled contact for precise positioning; with optional contact 97 49 71 1 all solar connectors of the MC4 series can be processed. Crimp inserts for applications which go beyond the offered range, upon request. Chromium-vanadium electro-steel in special quality, oil-hardened - Application: MC4 EVO2 - Capacity square millimeters: 4.0 — 10.0 mm² - AWG: 12 / 10 / 8
